BOSE Audio With Navigation System





AV CONTROL UNIT

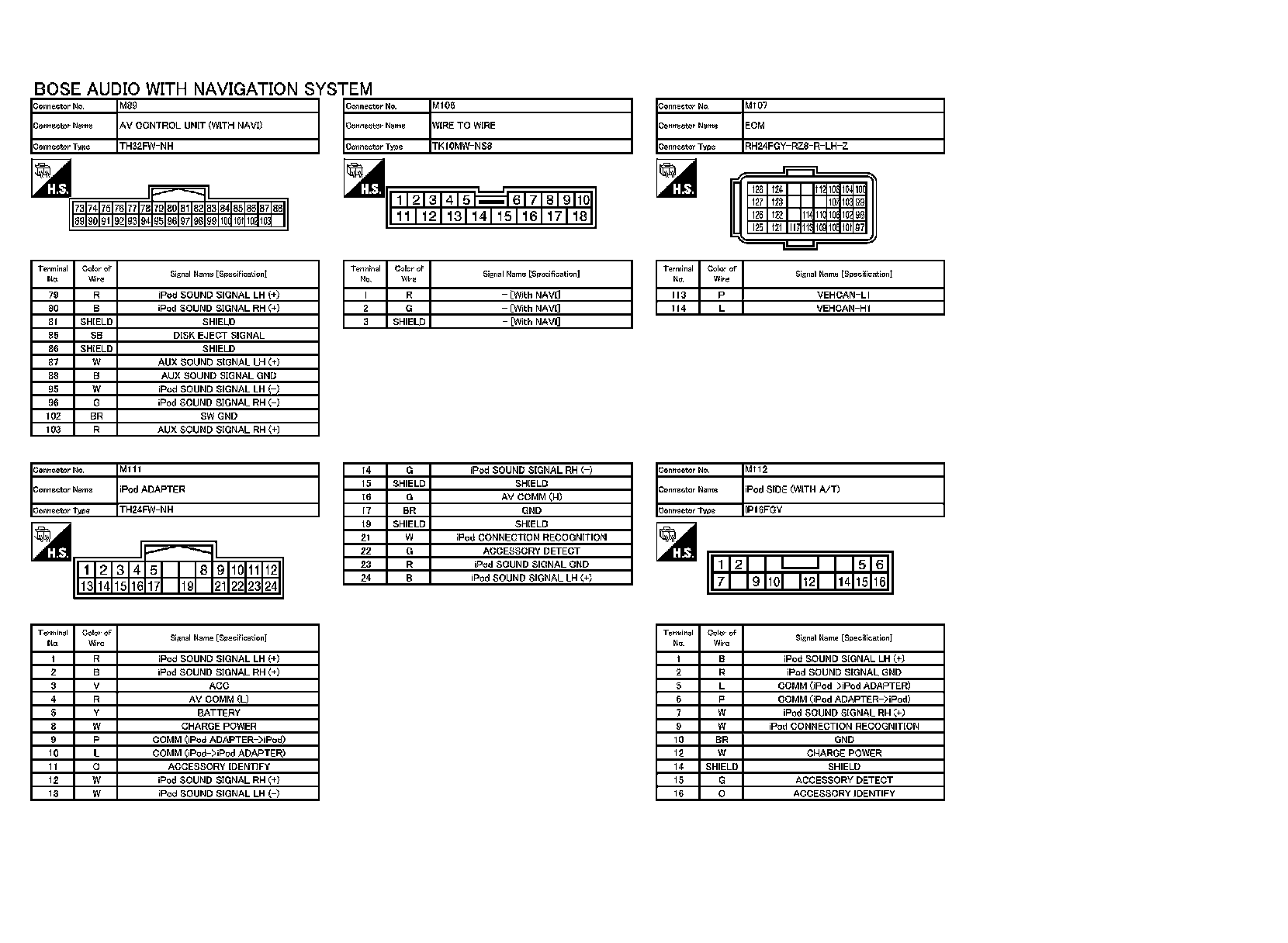

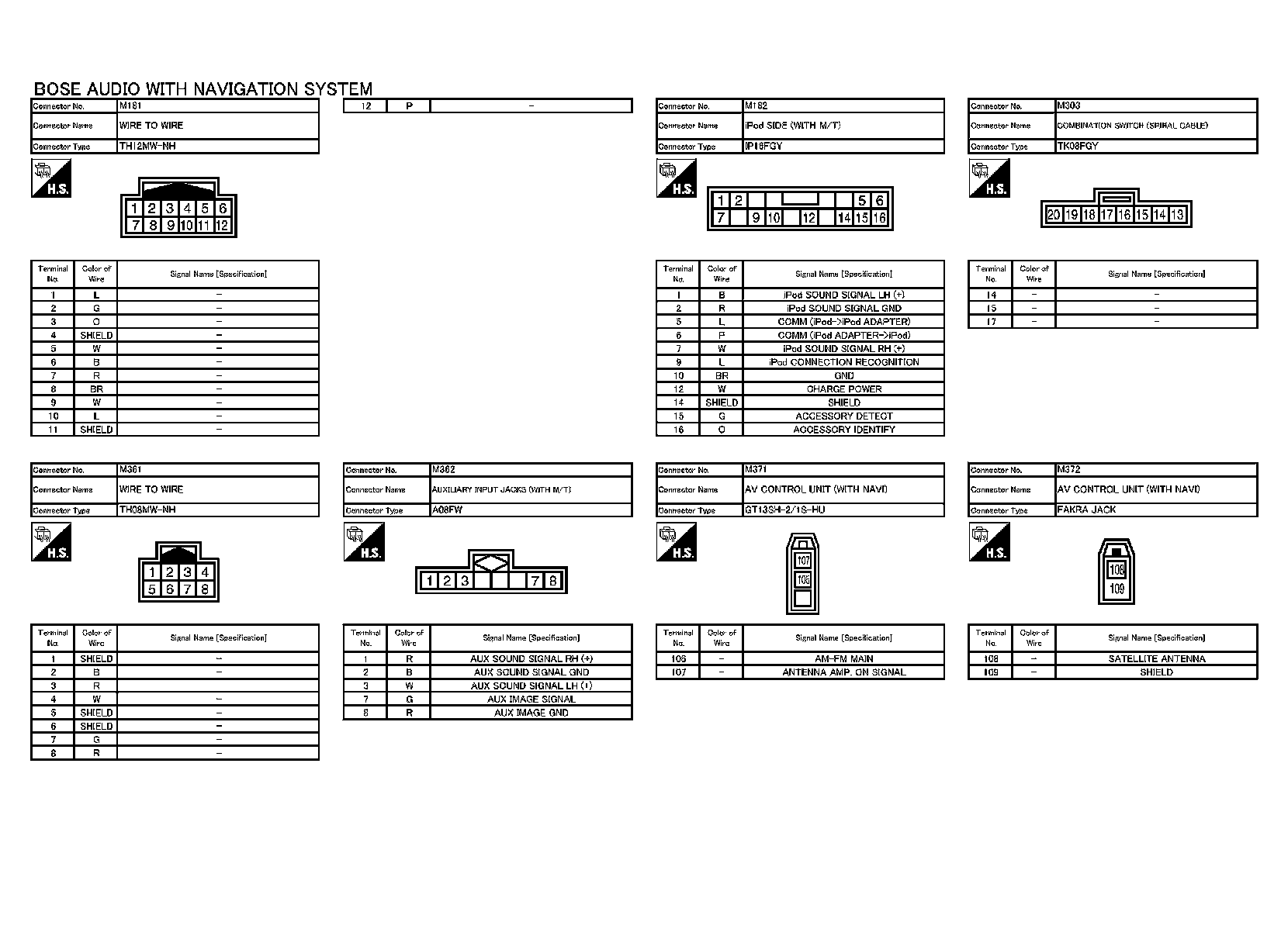

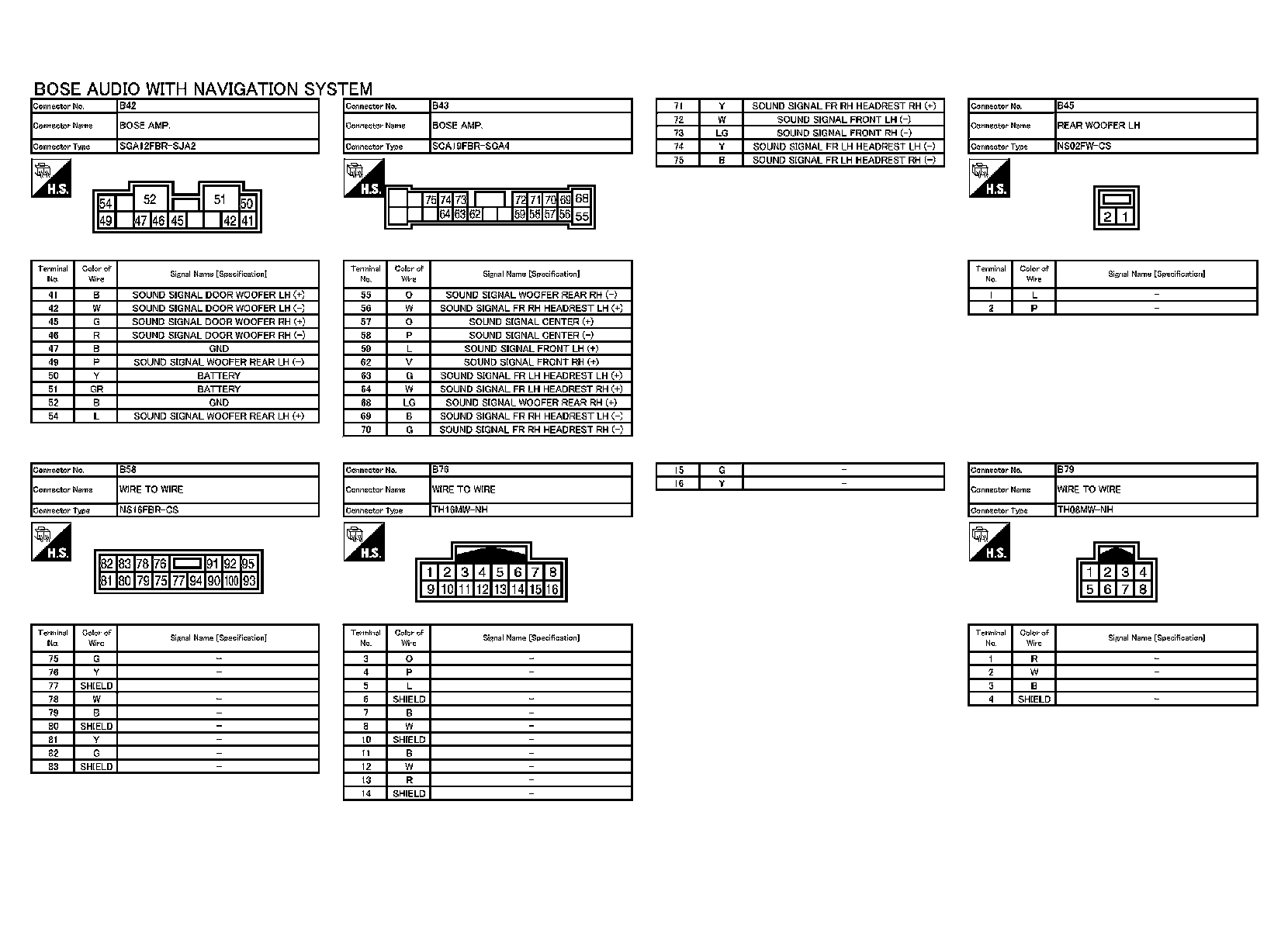

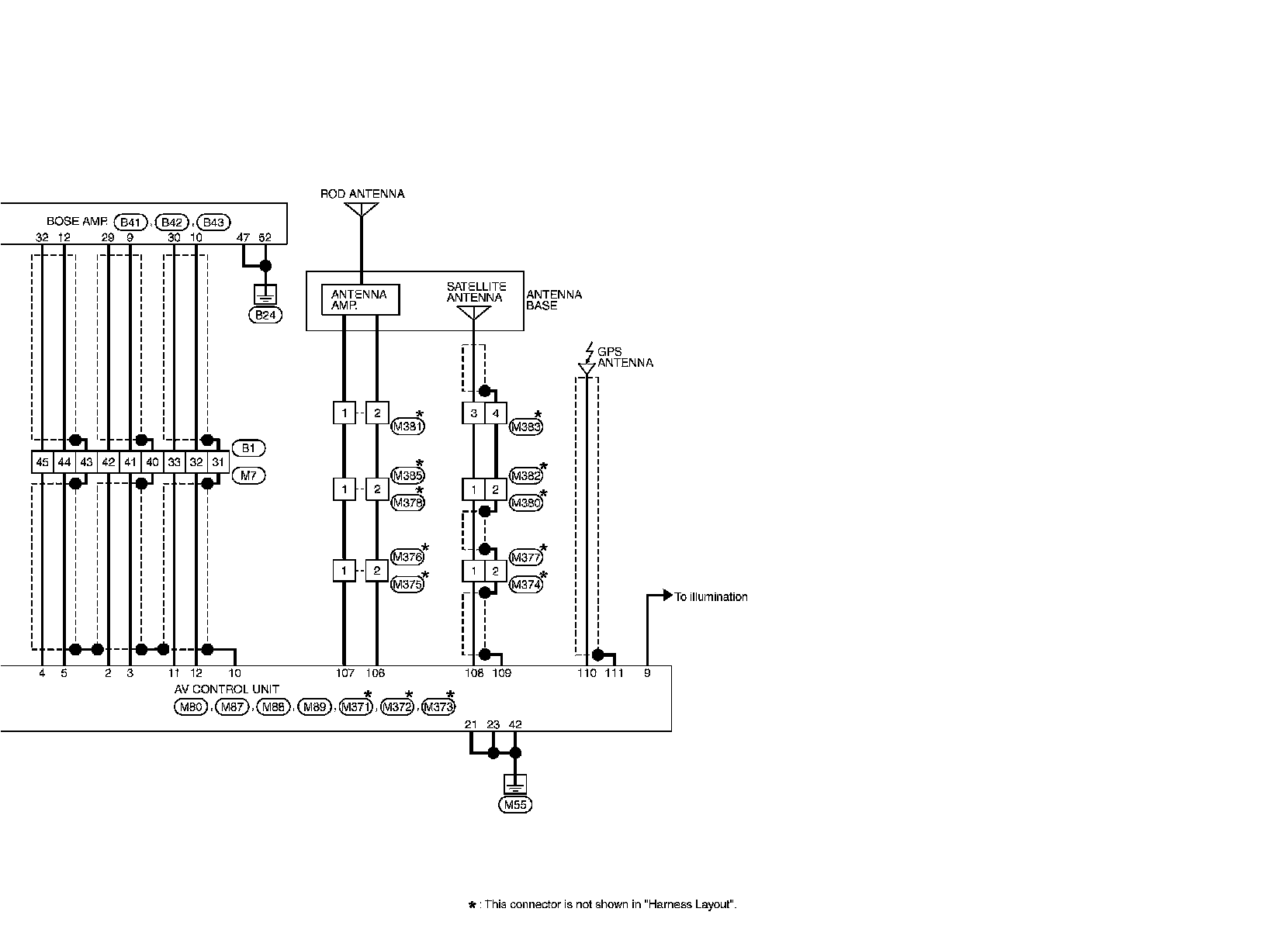

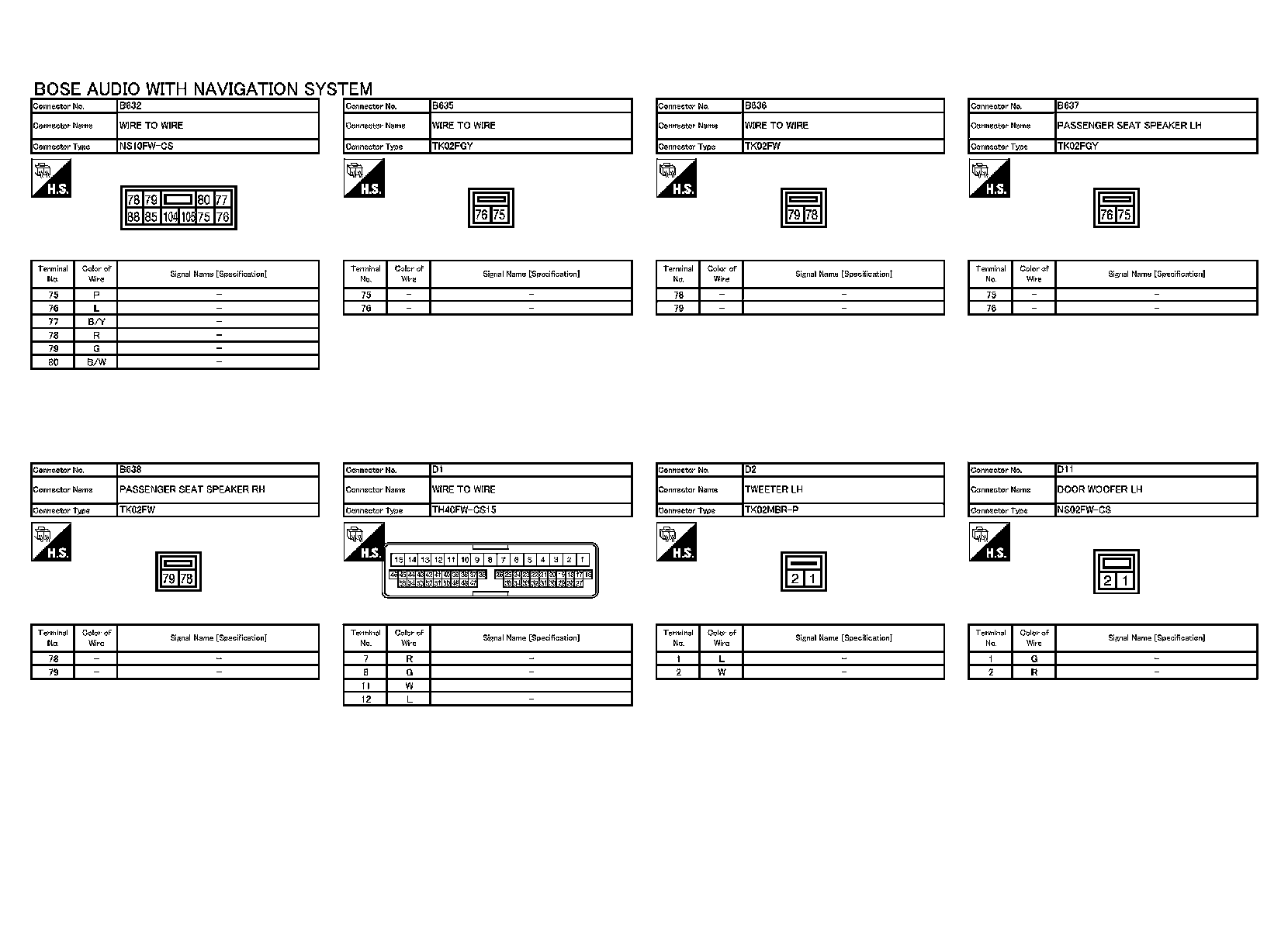

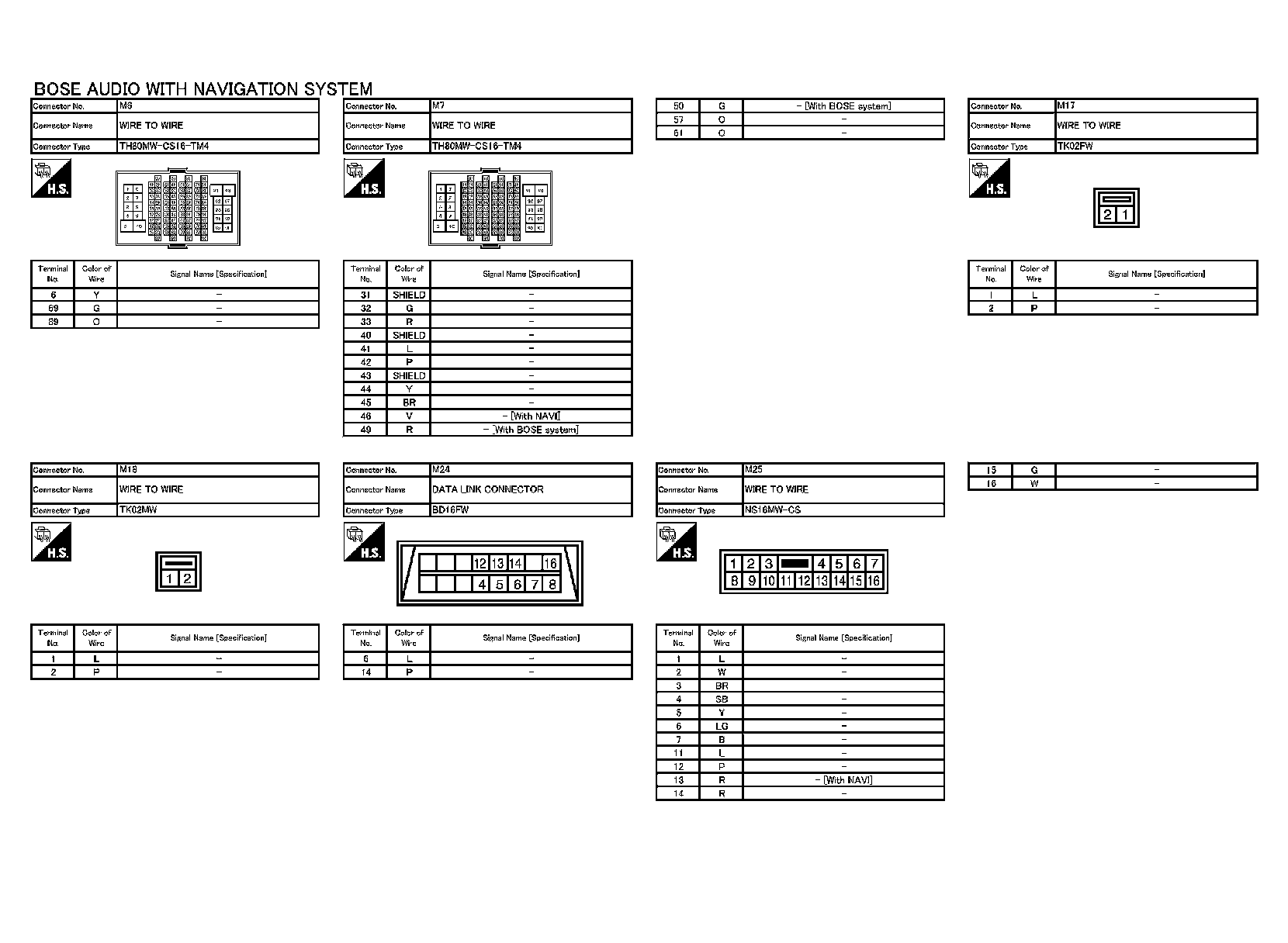

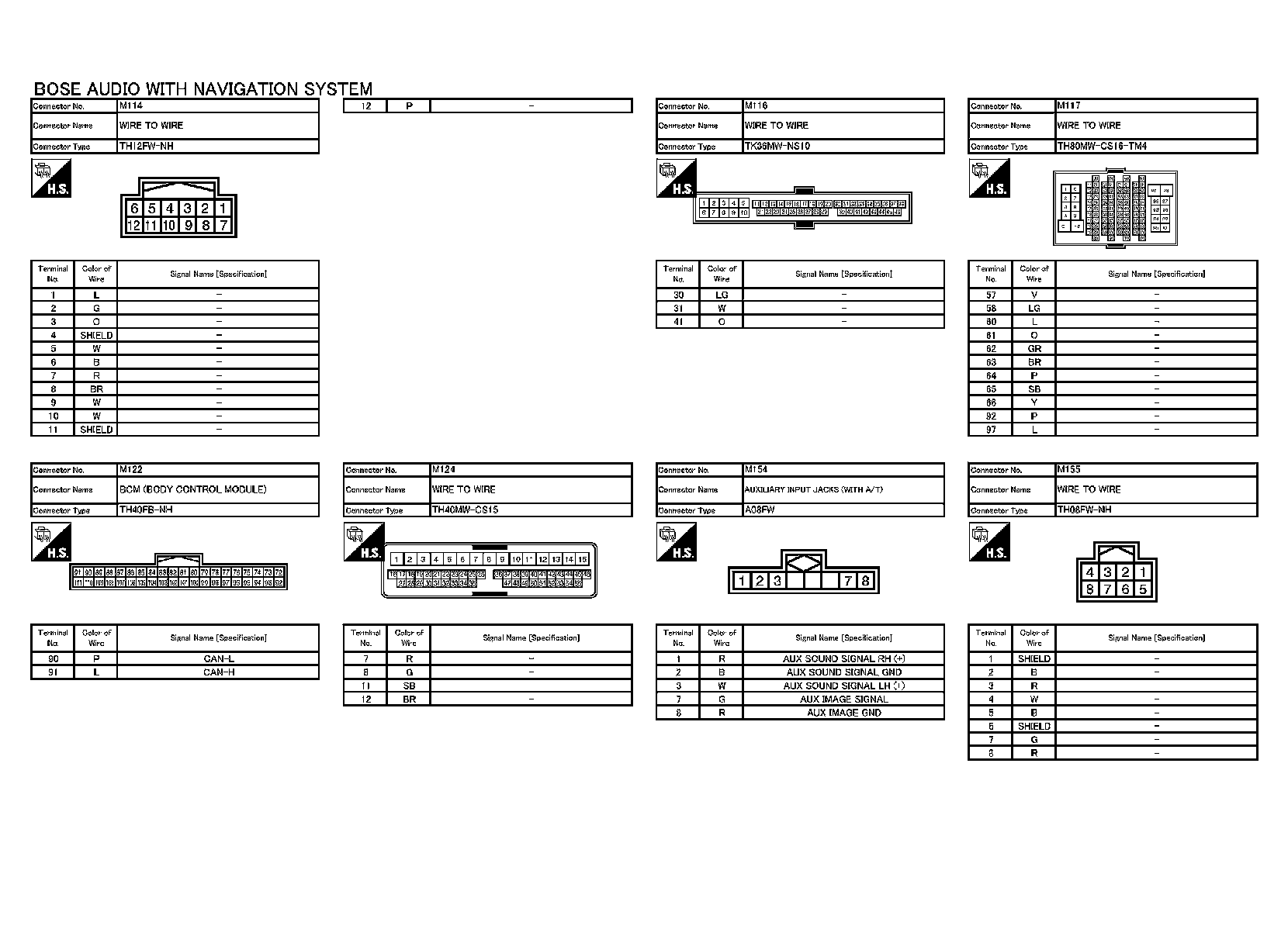

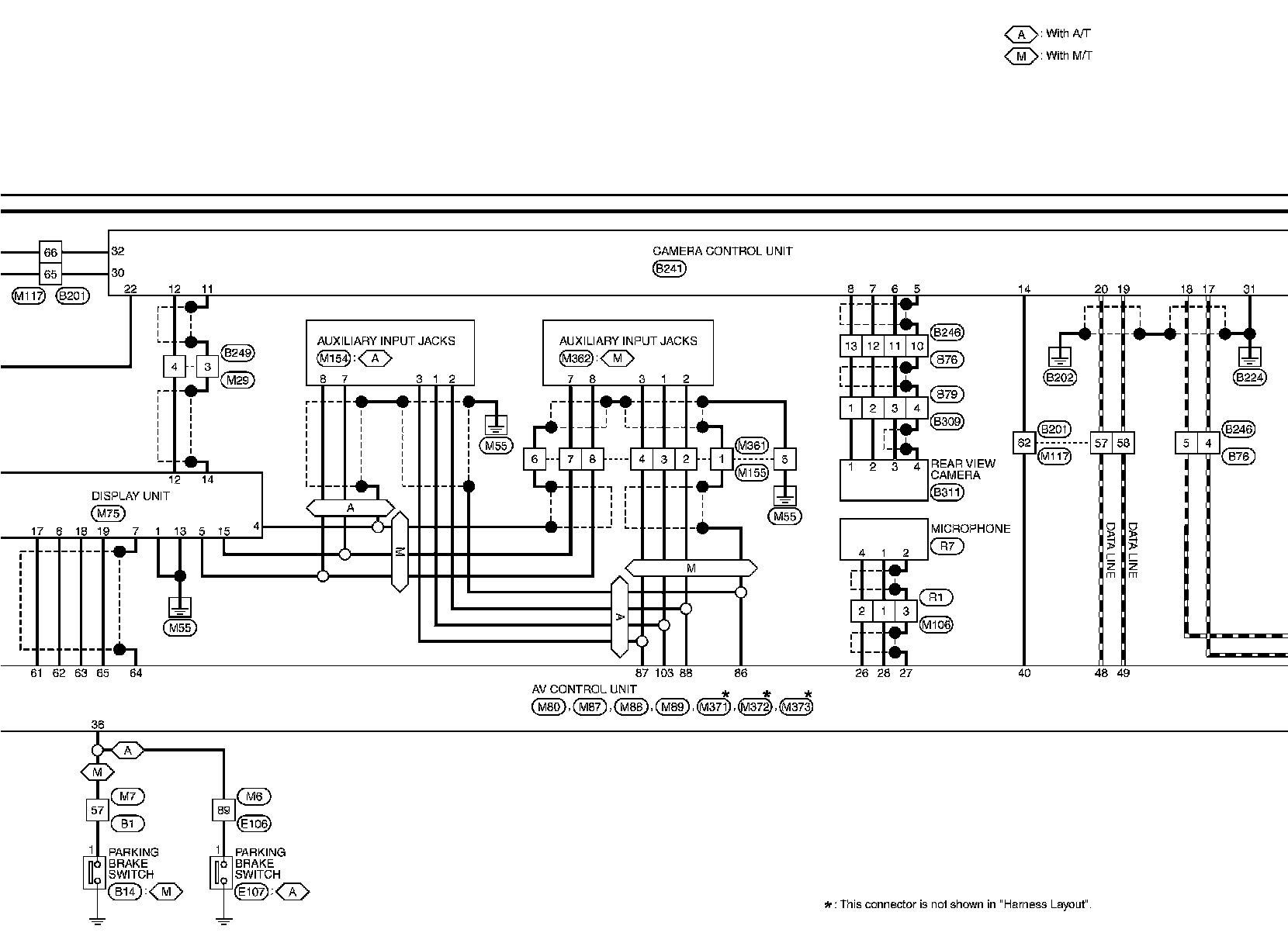

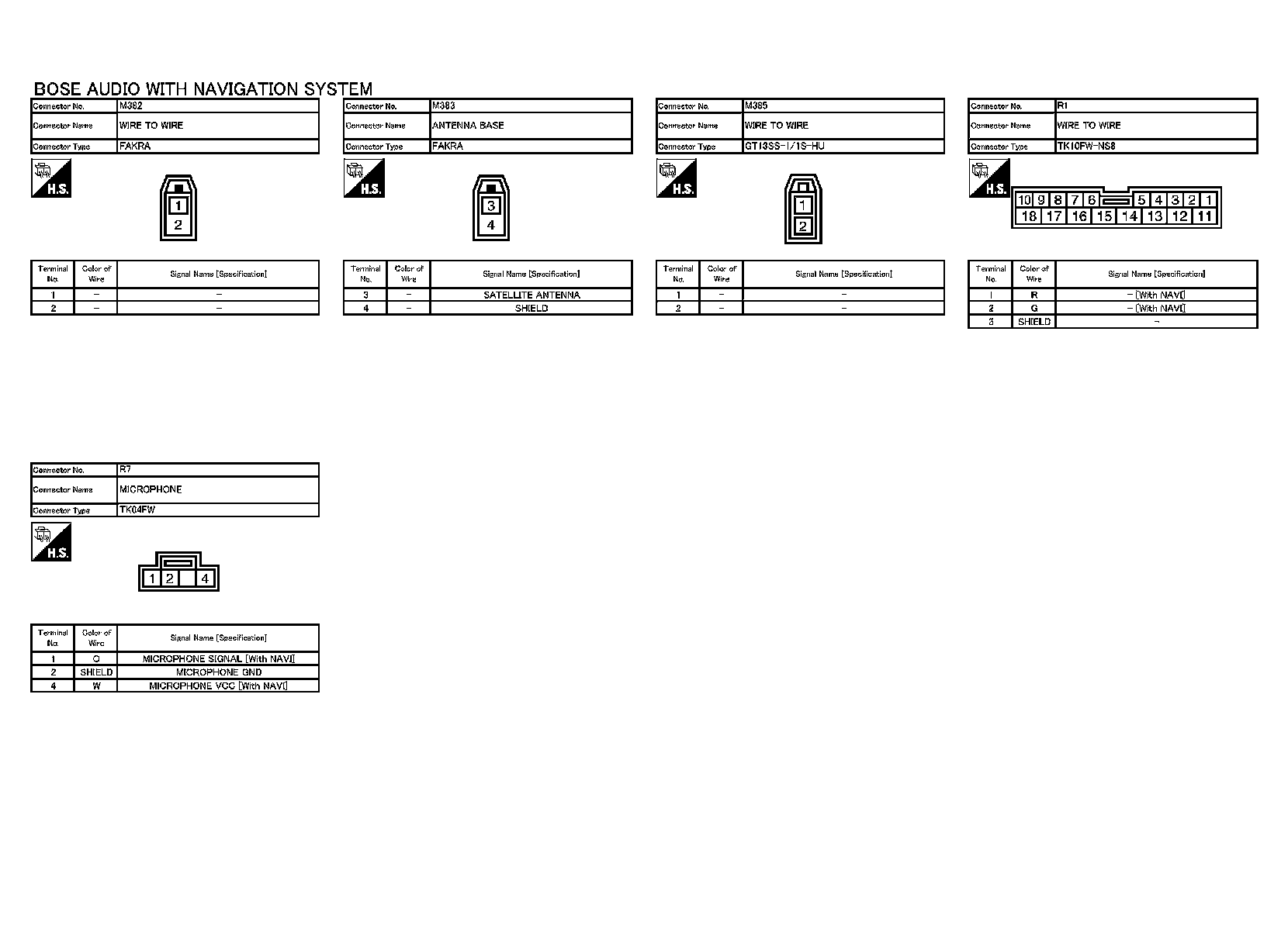

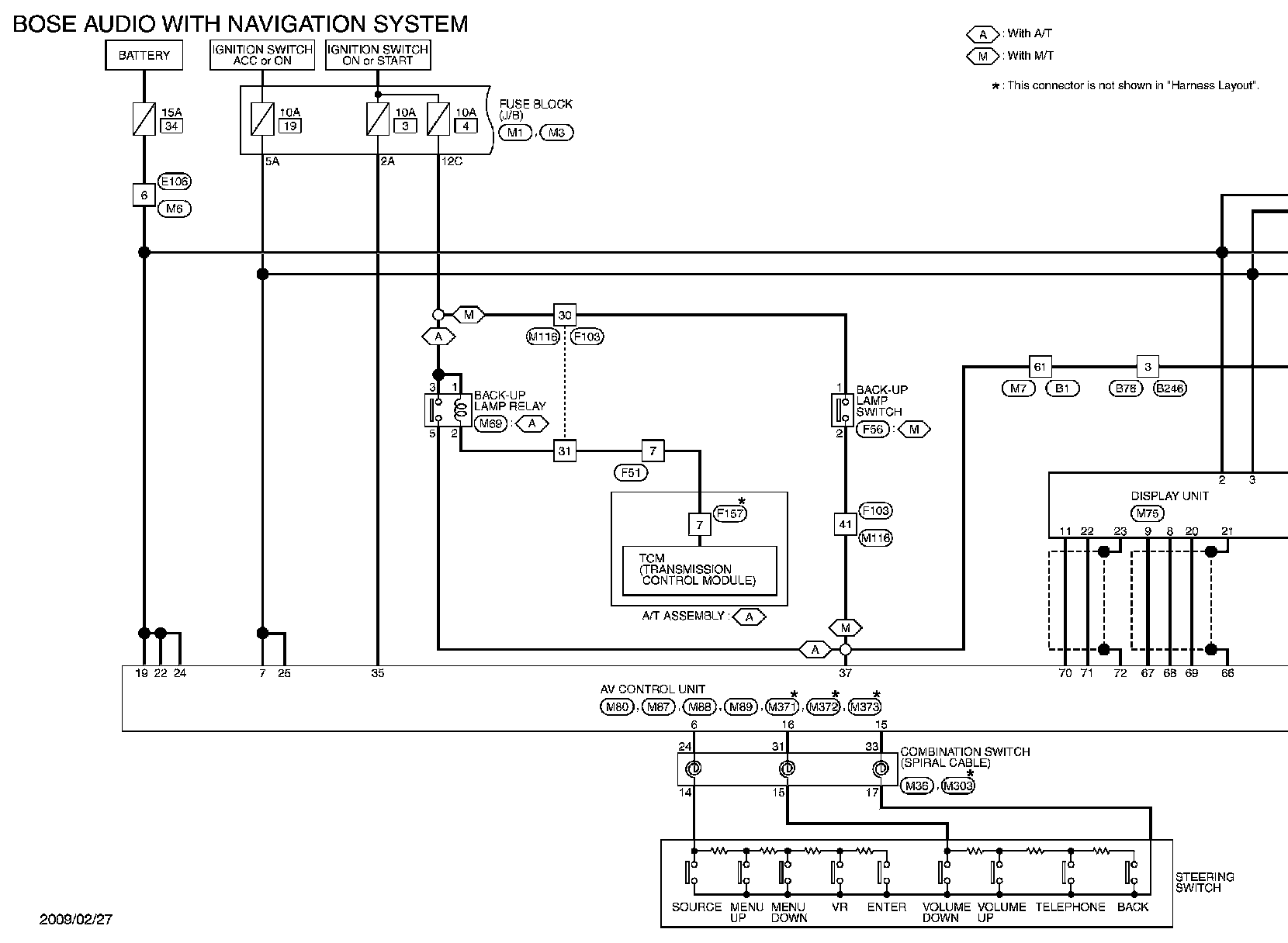

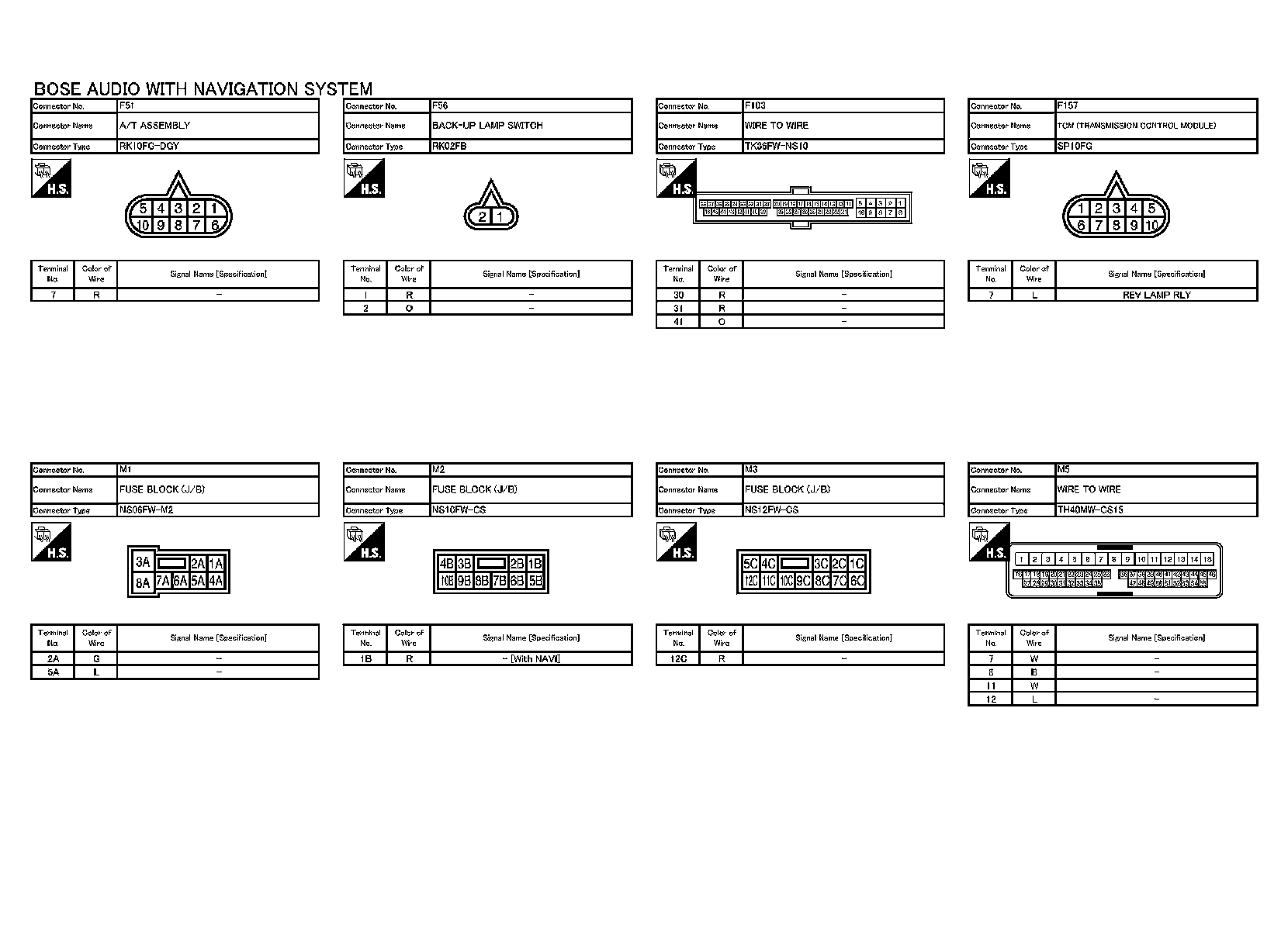

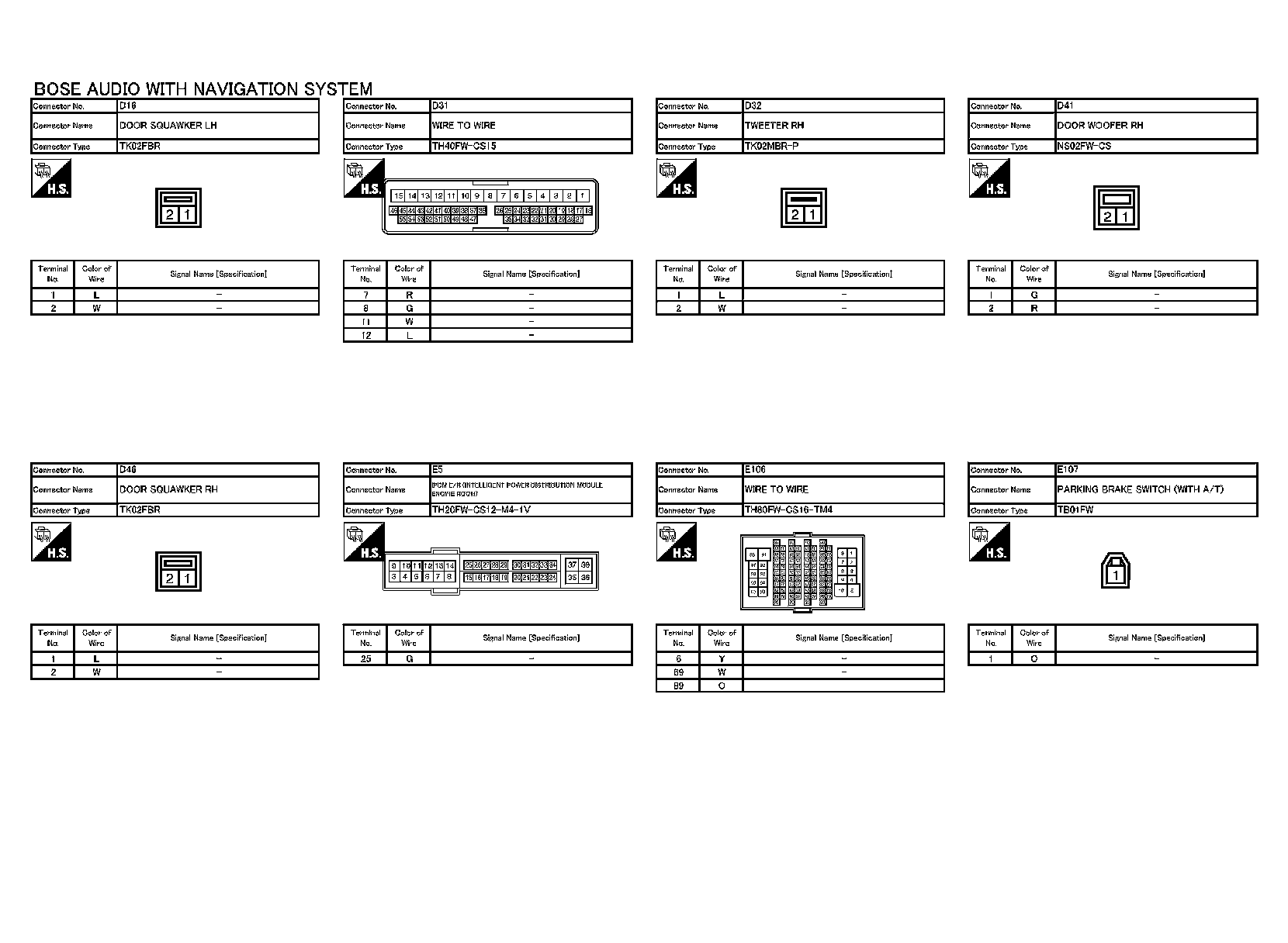

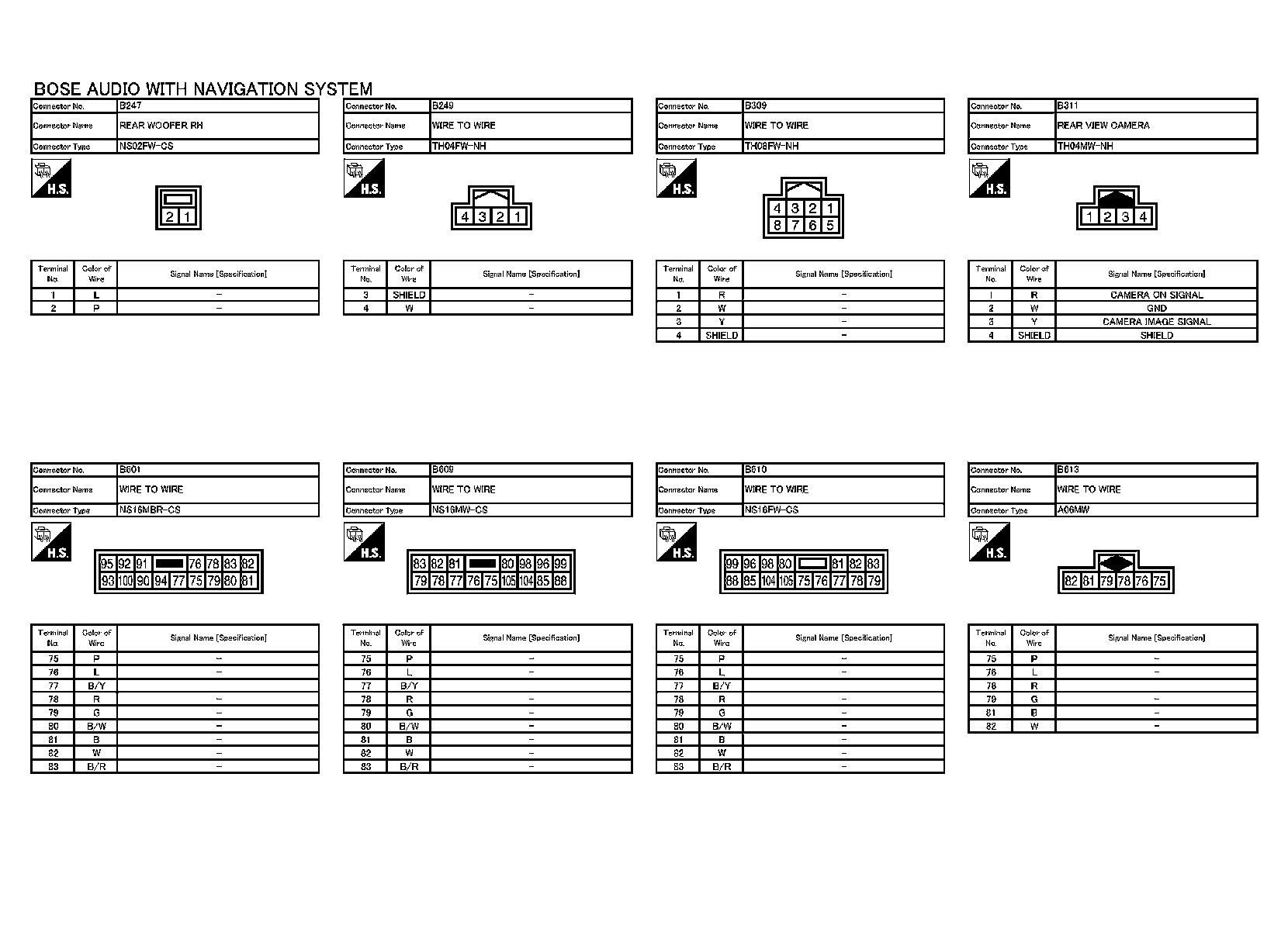

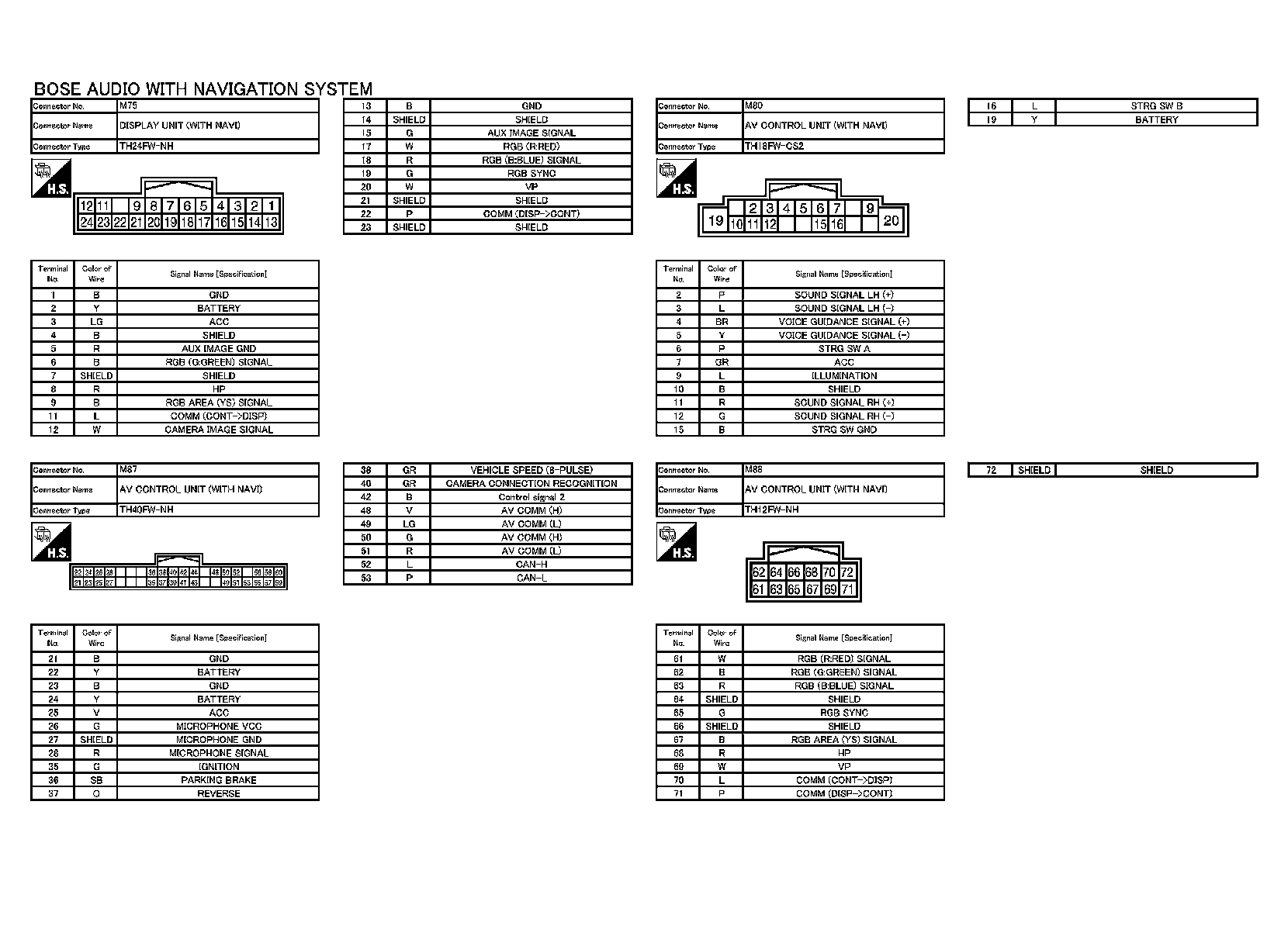

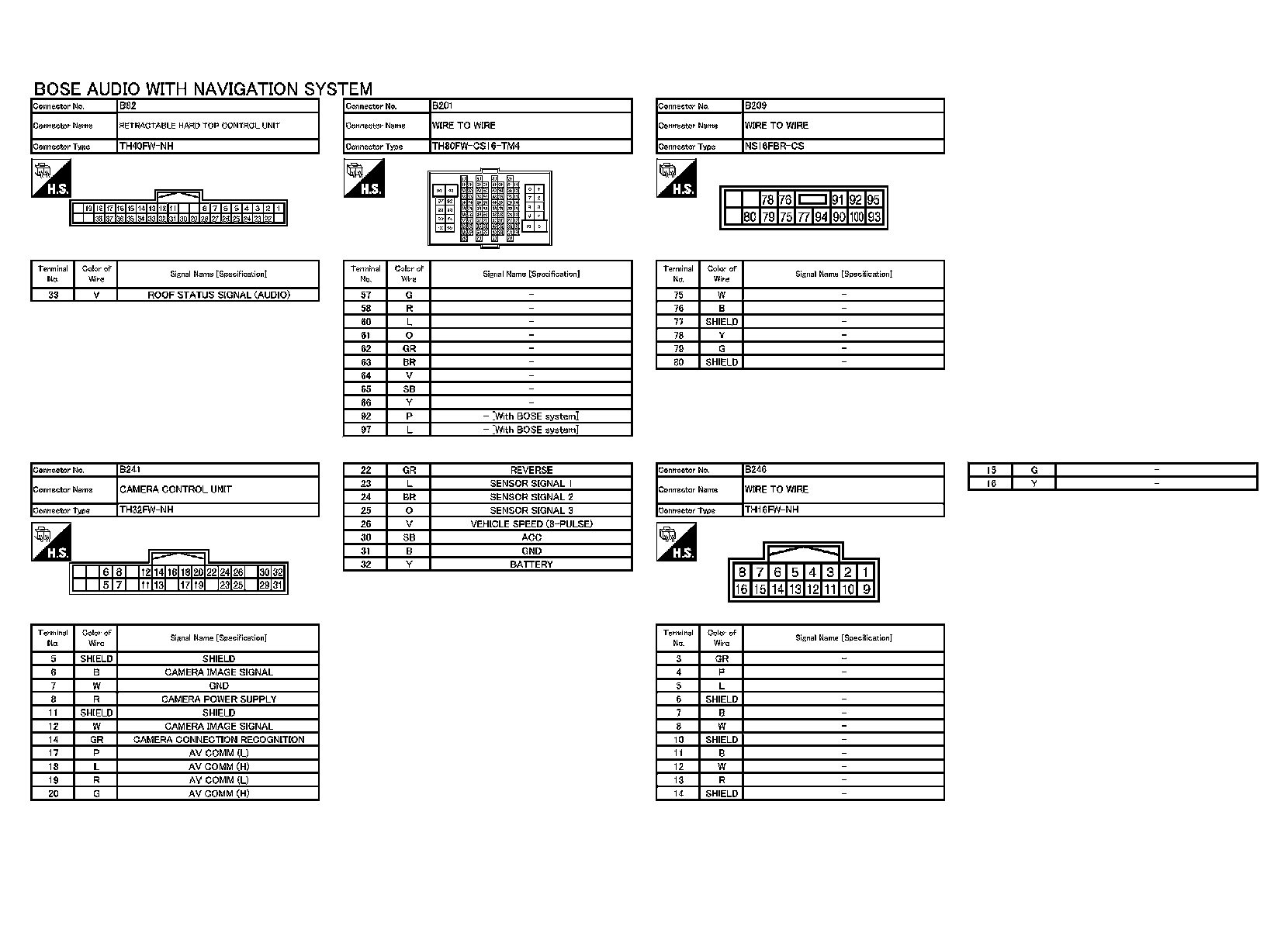

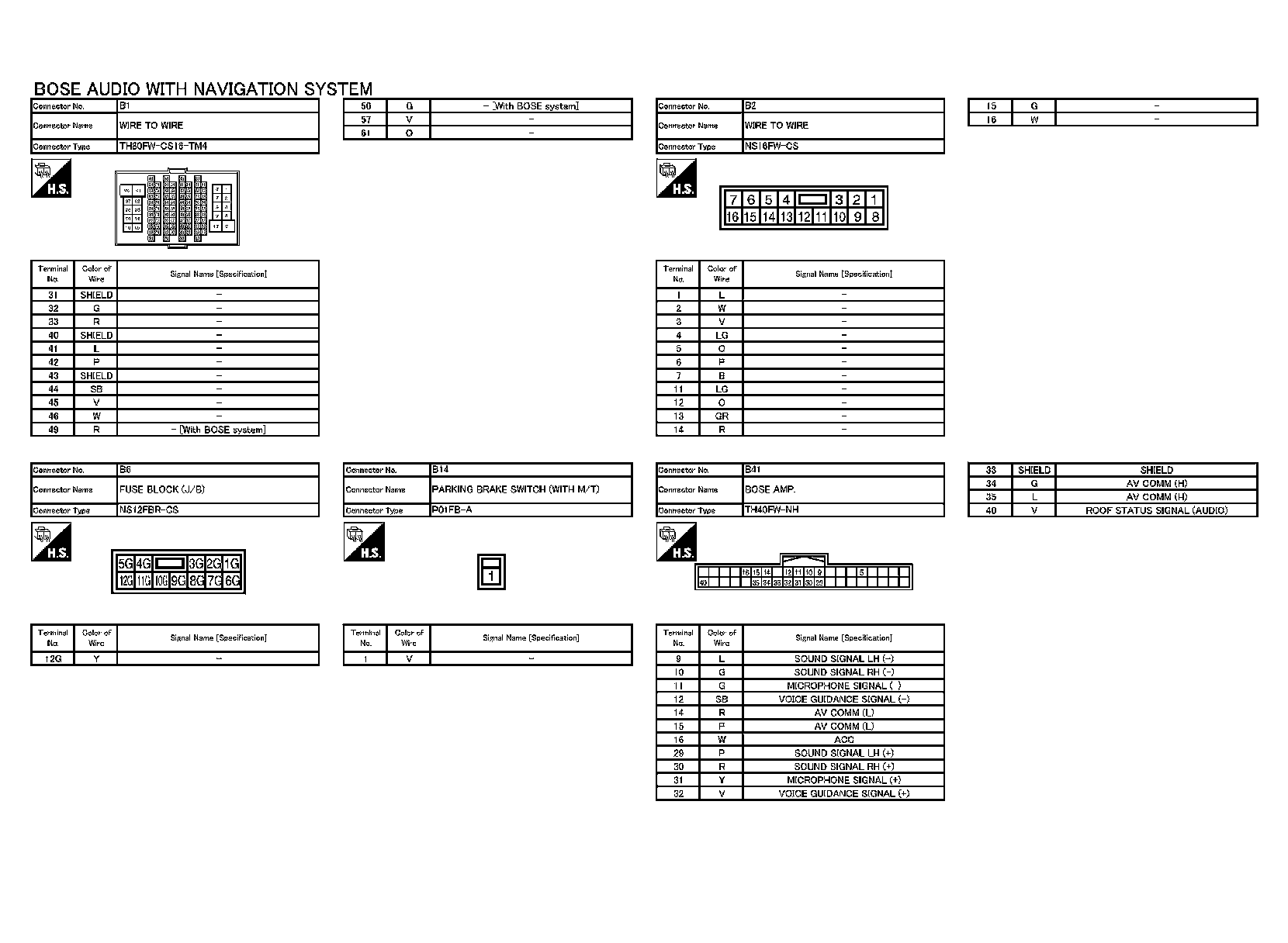

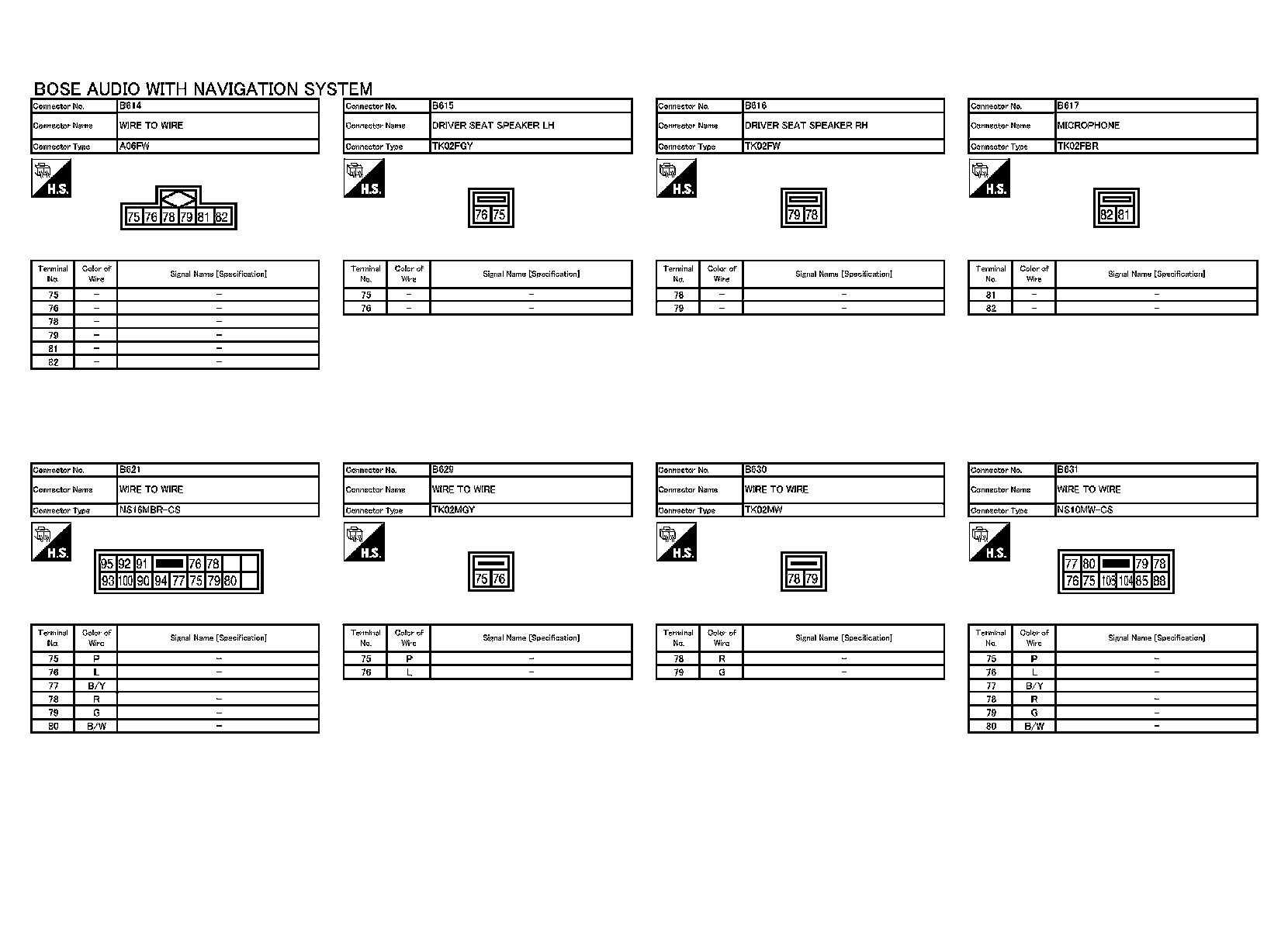

Wiring Diagram - BOSE AUDIO WITH NAVIGATION SYSTEM -


NOTE:

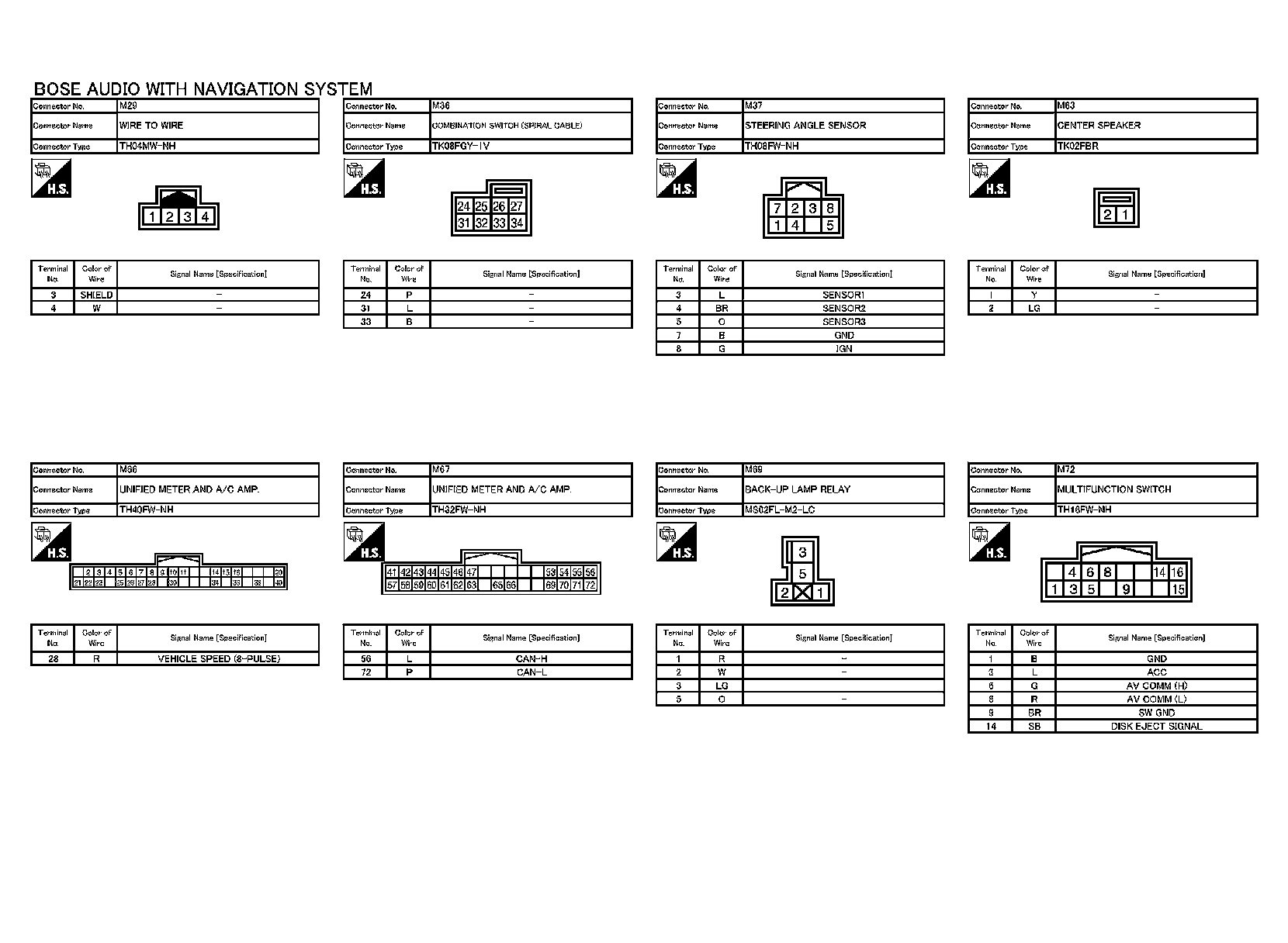

The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.
