Retractable Hard Top Control Unit





RETRACTABLE HARD TOP CONTROL UNIT

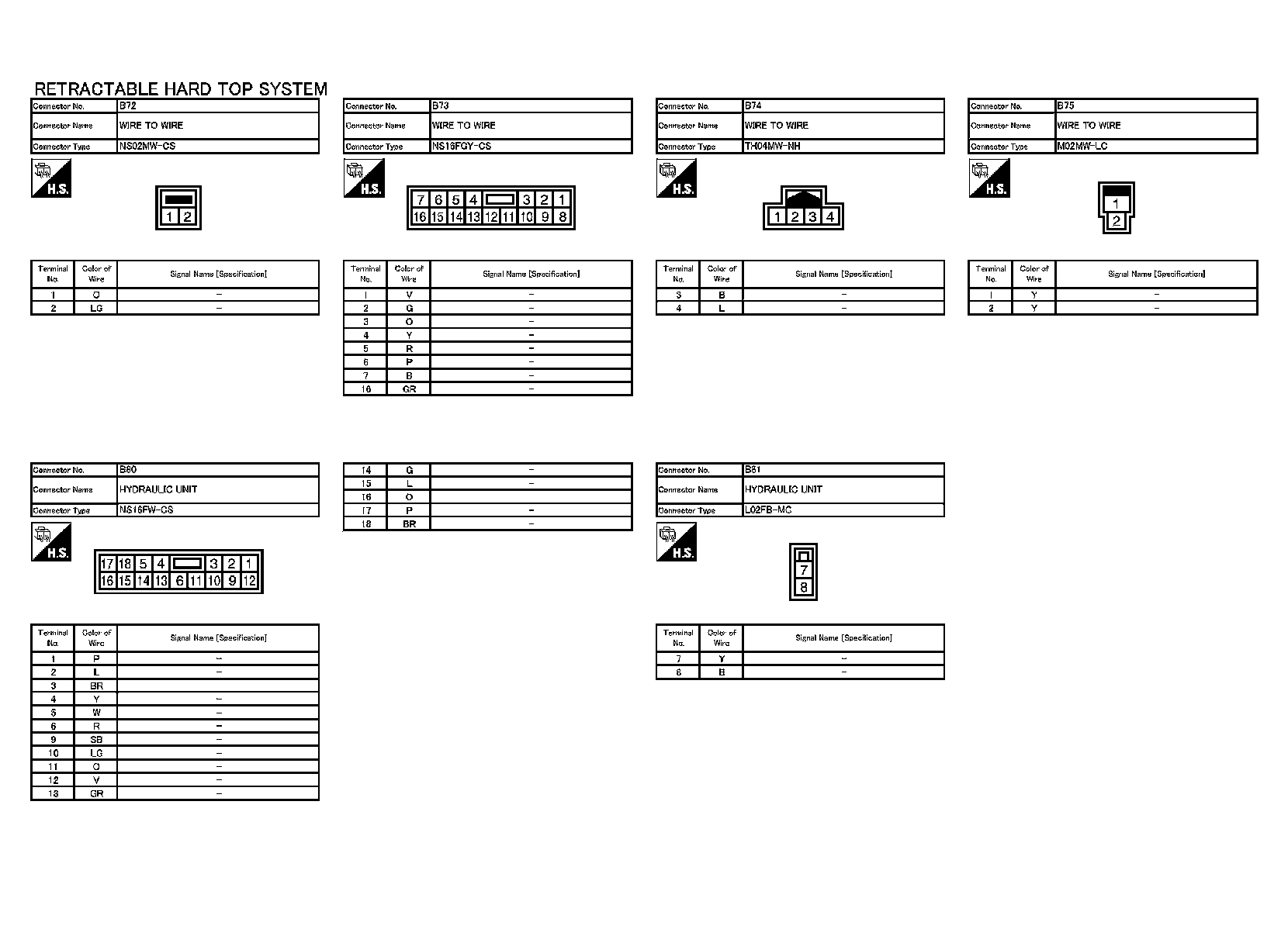

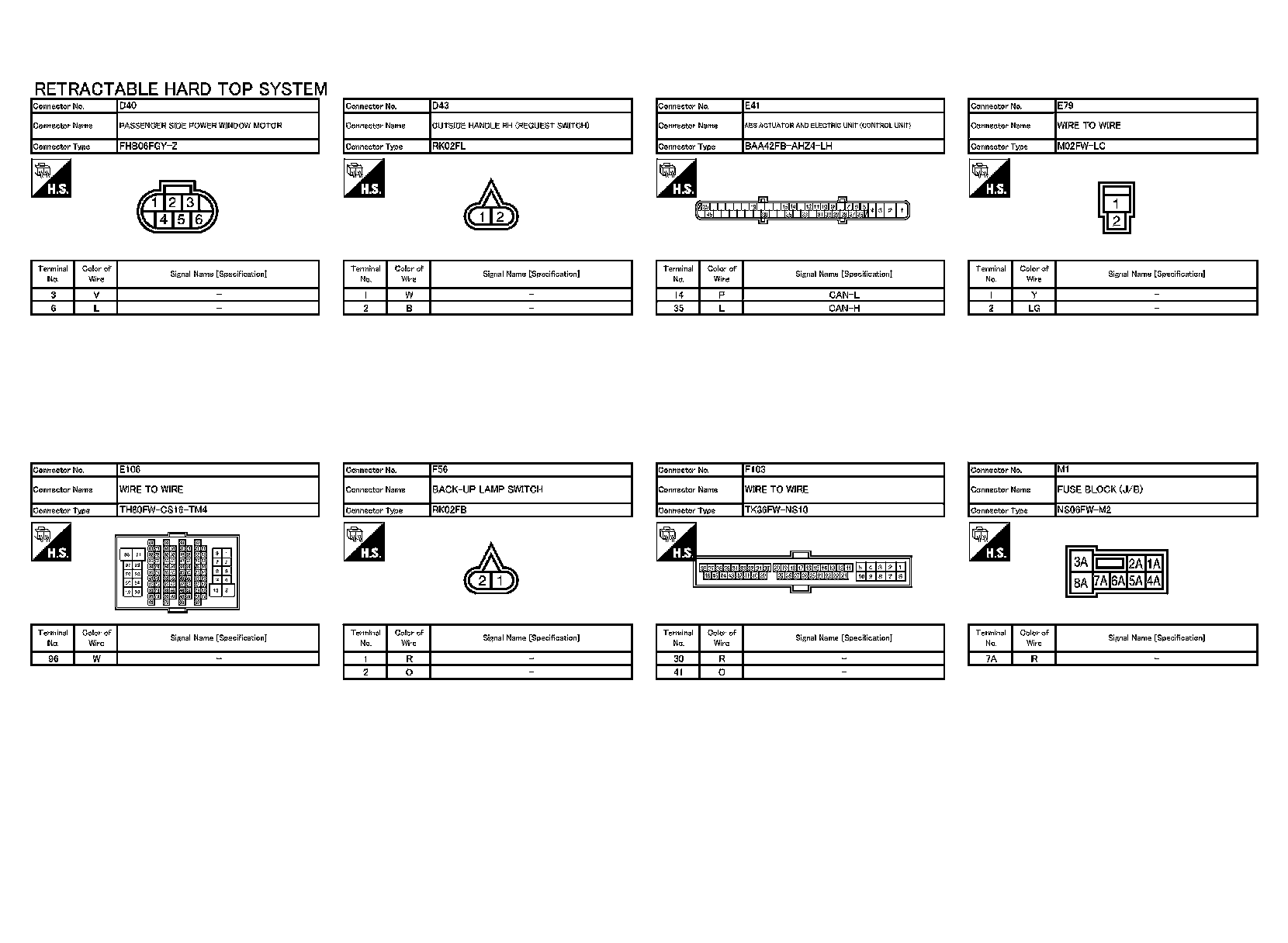

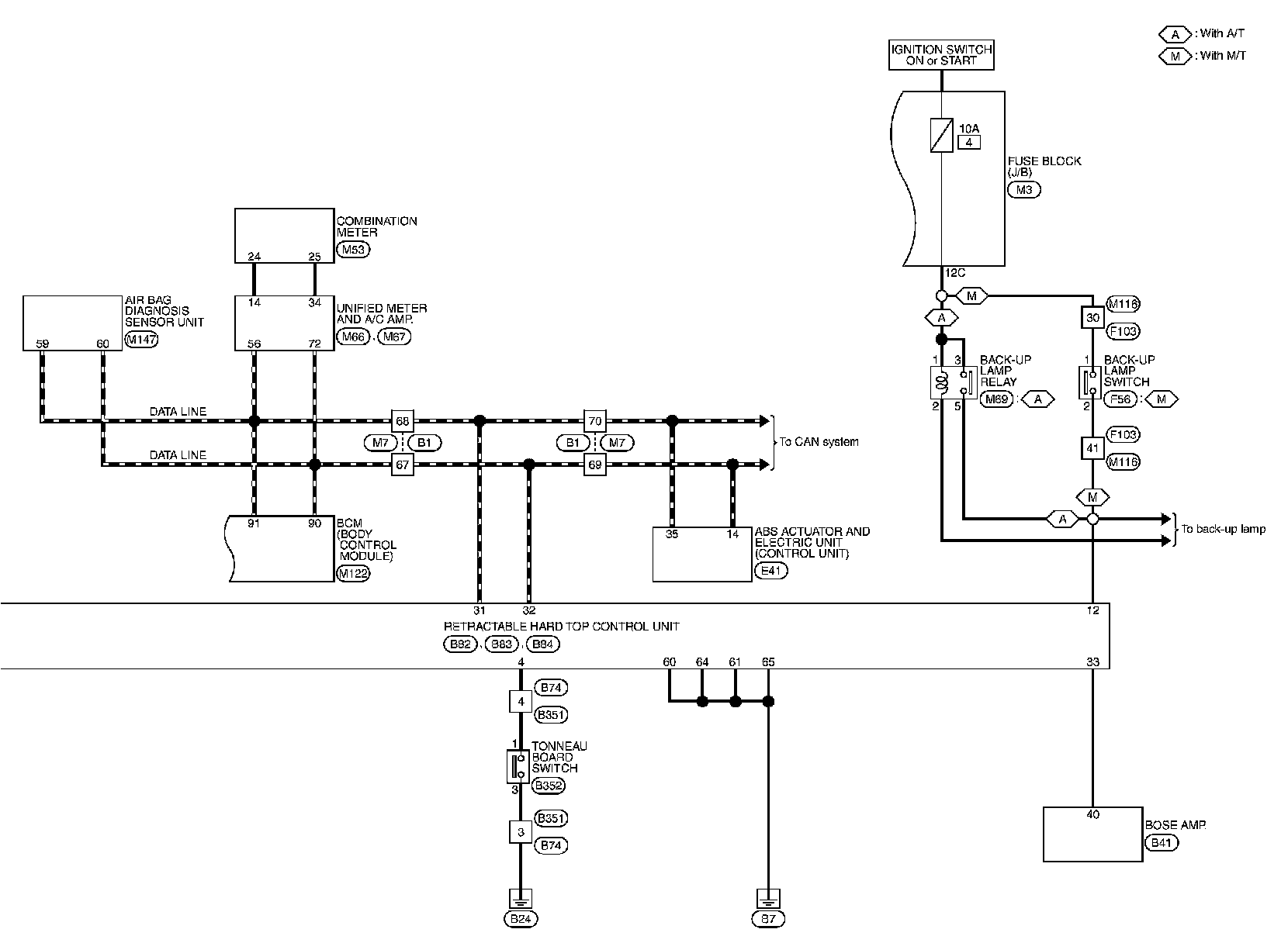

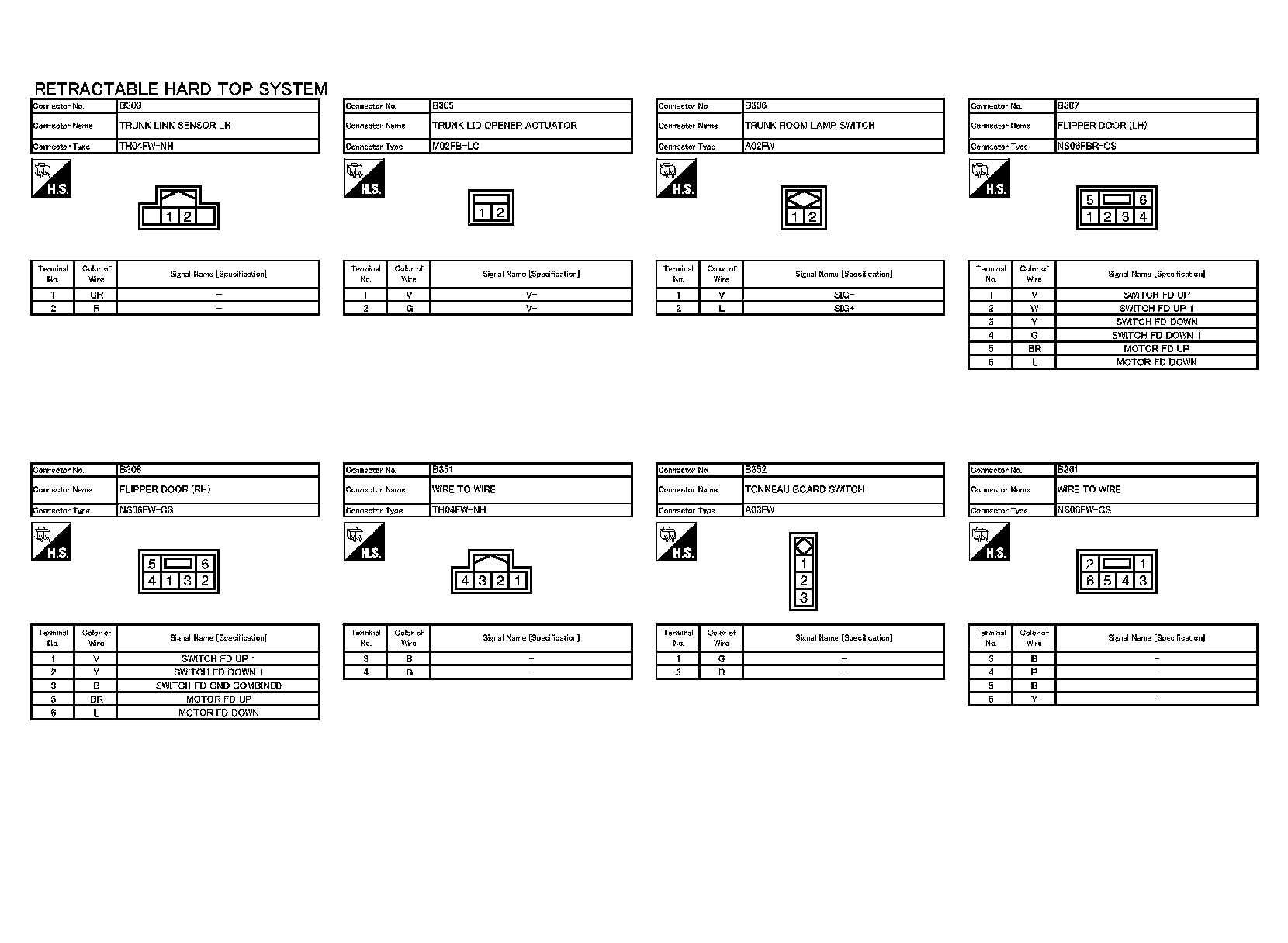

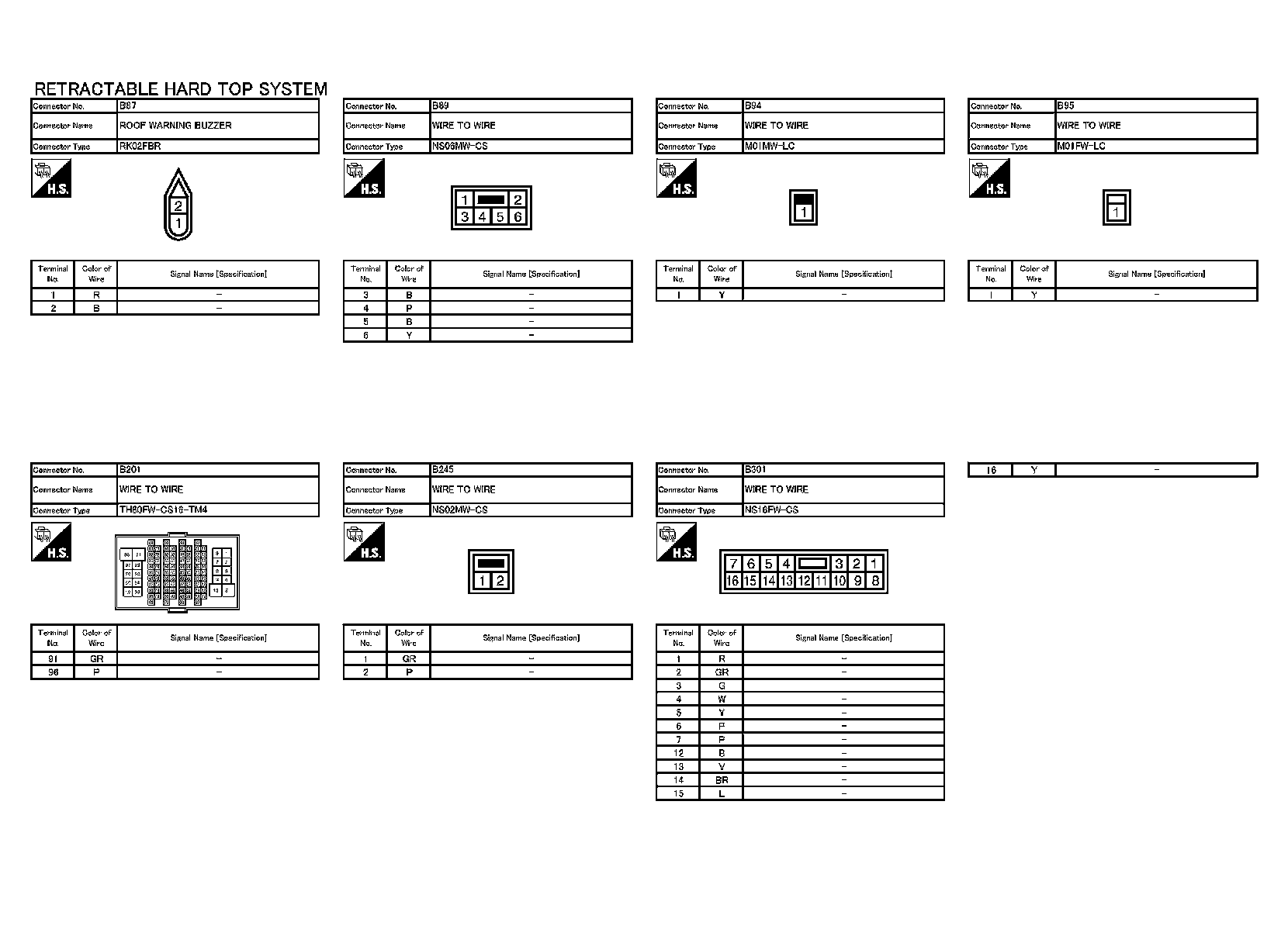

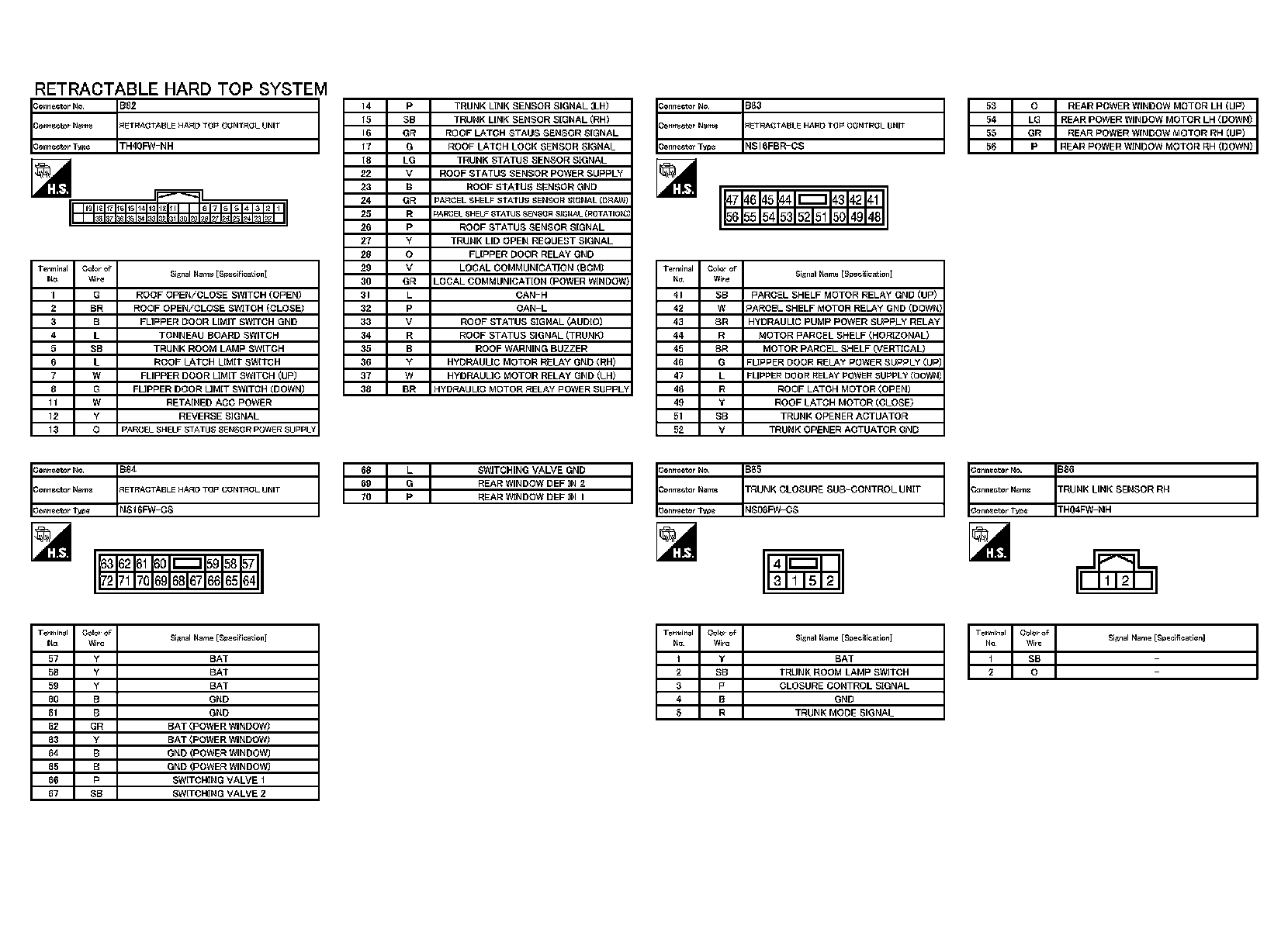

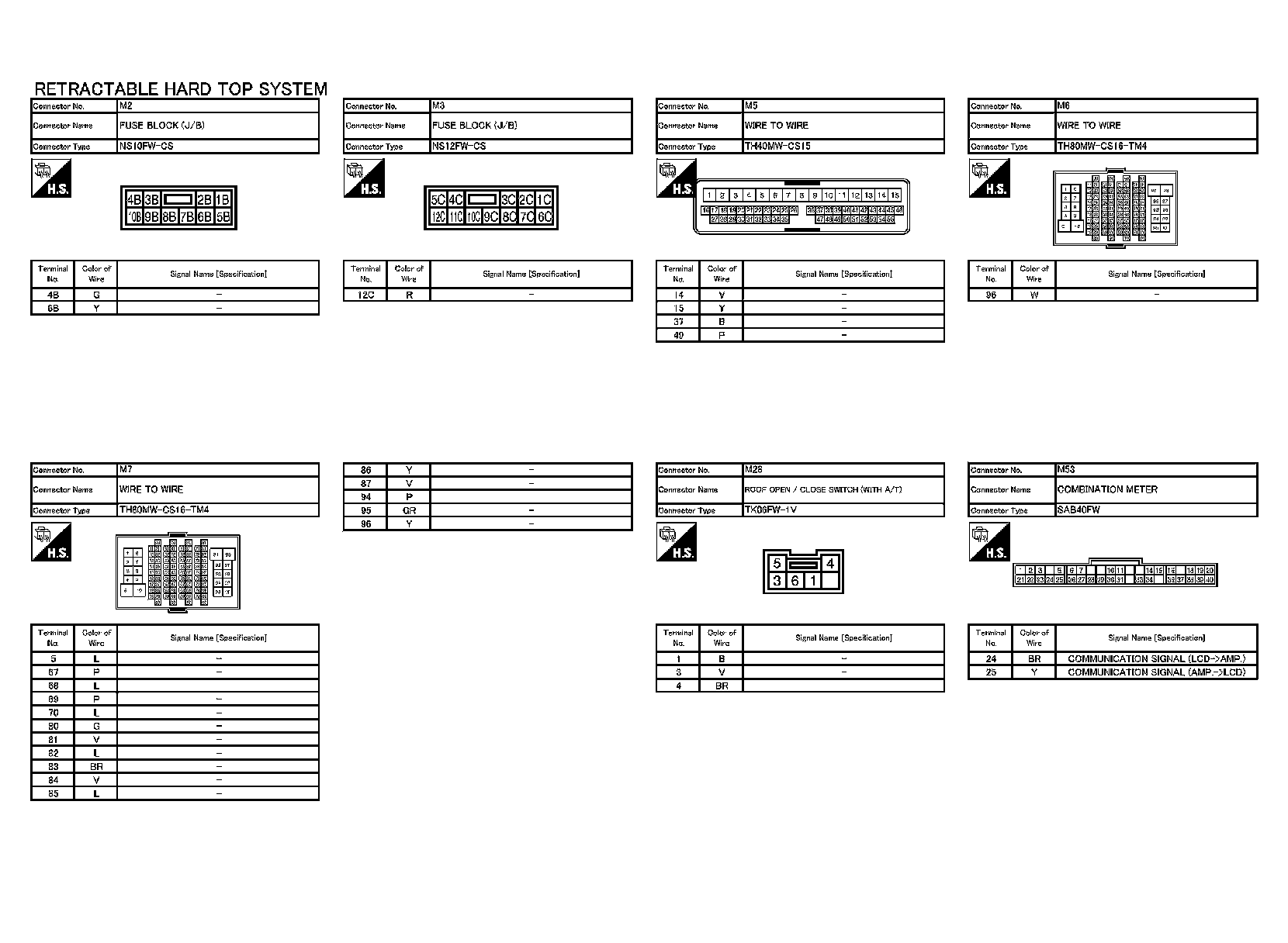

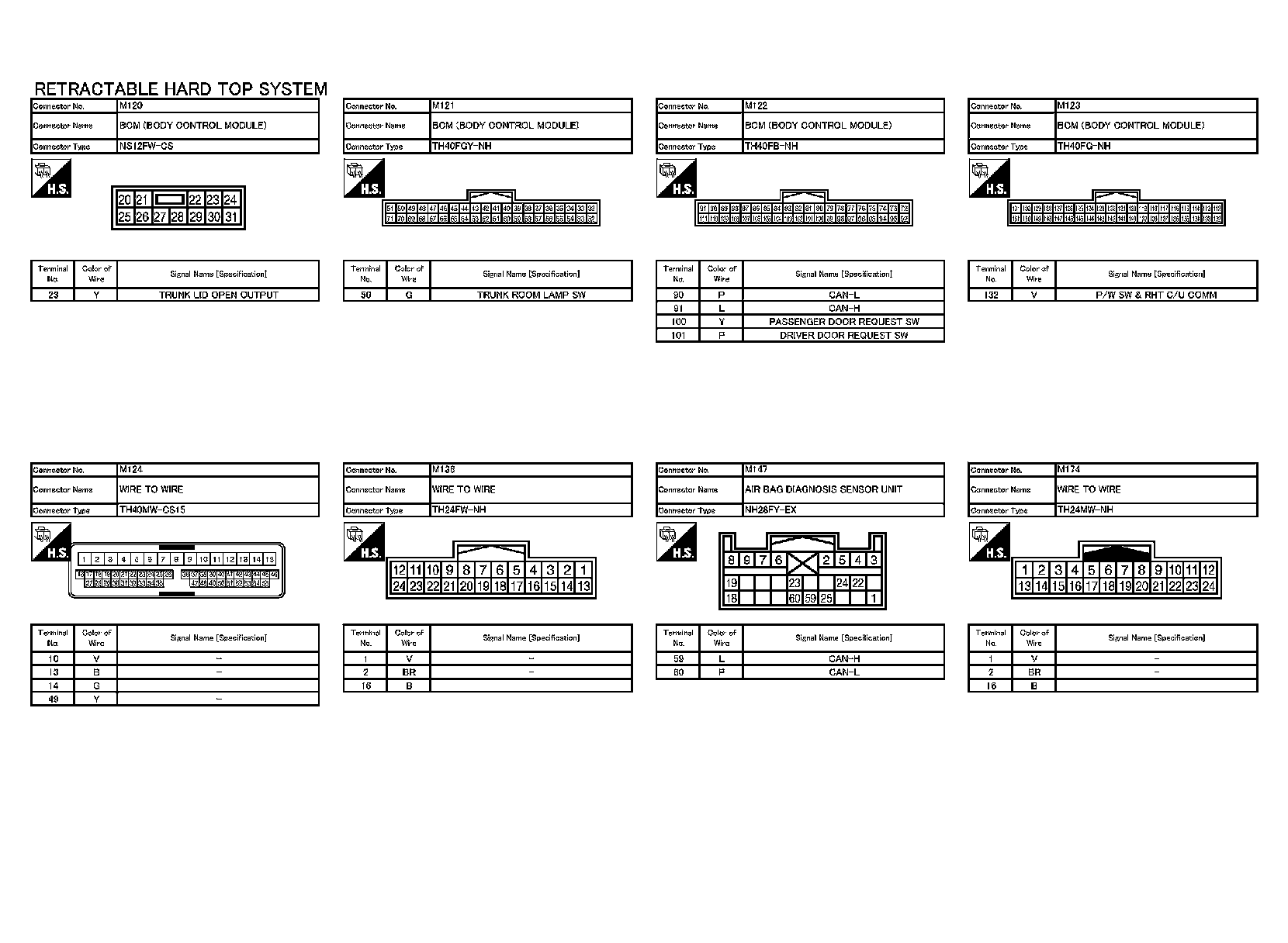

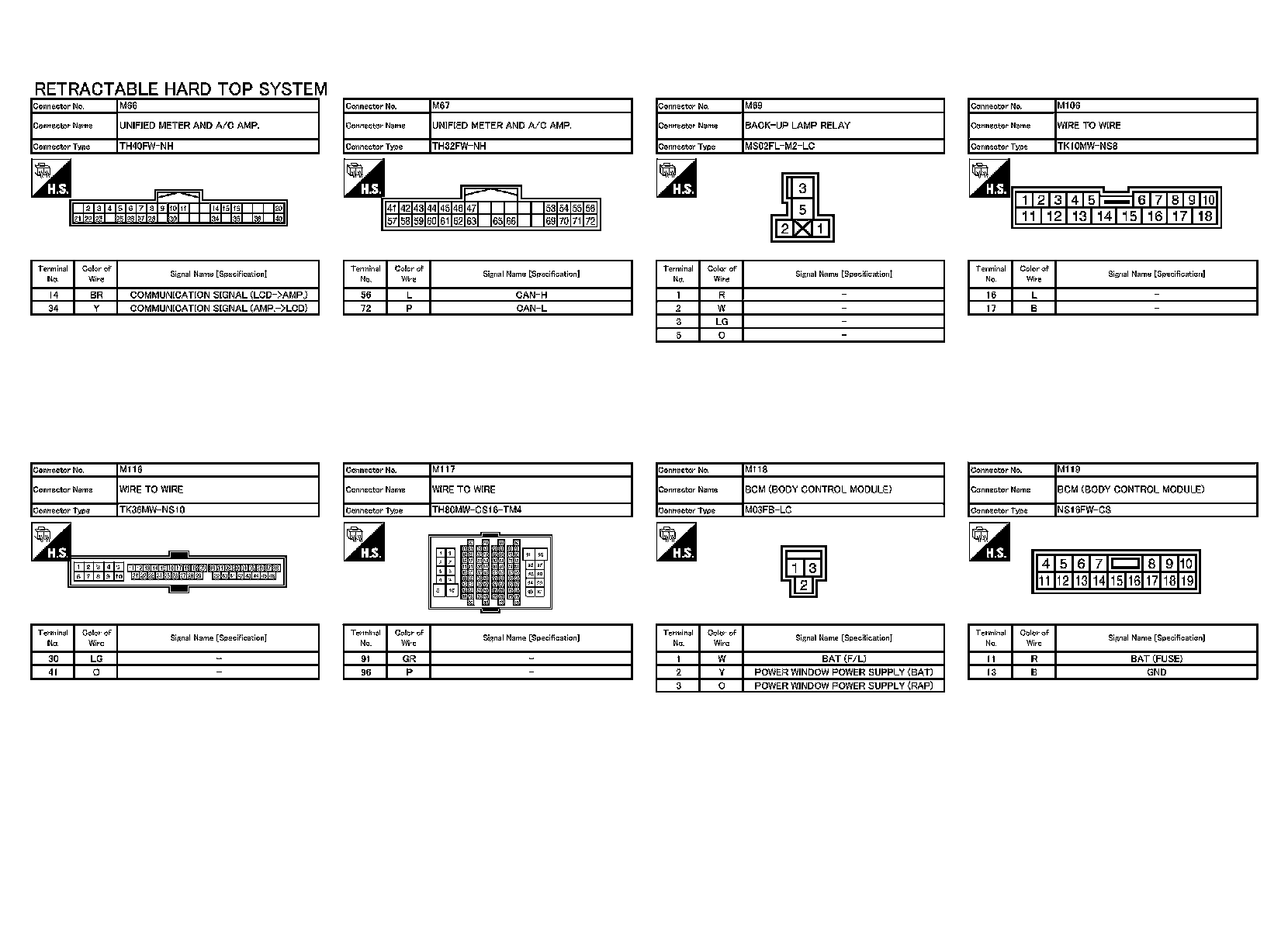

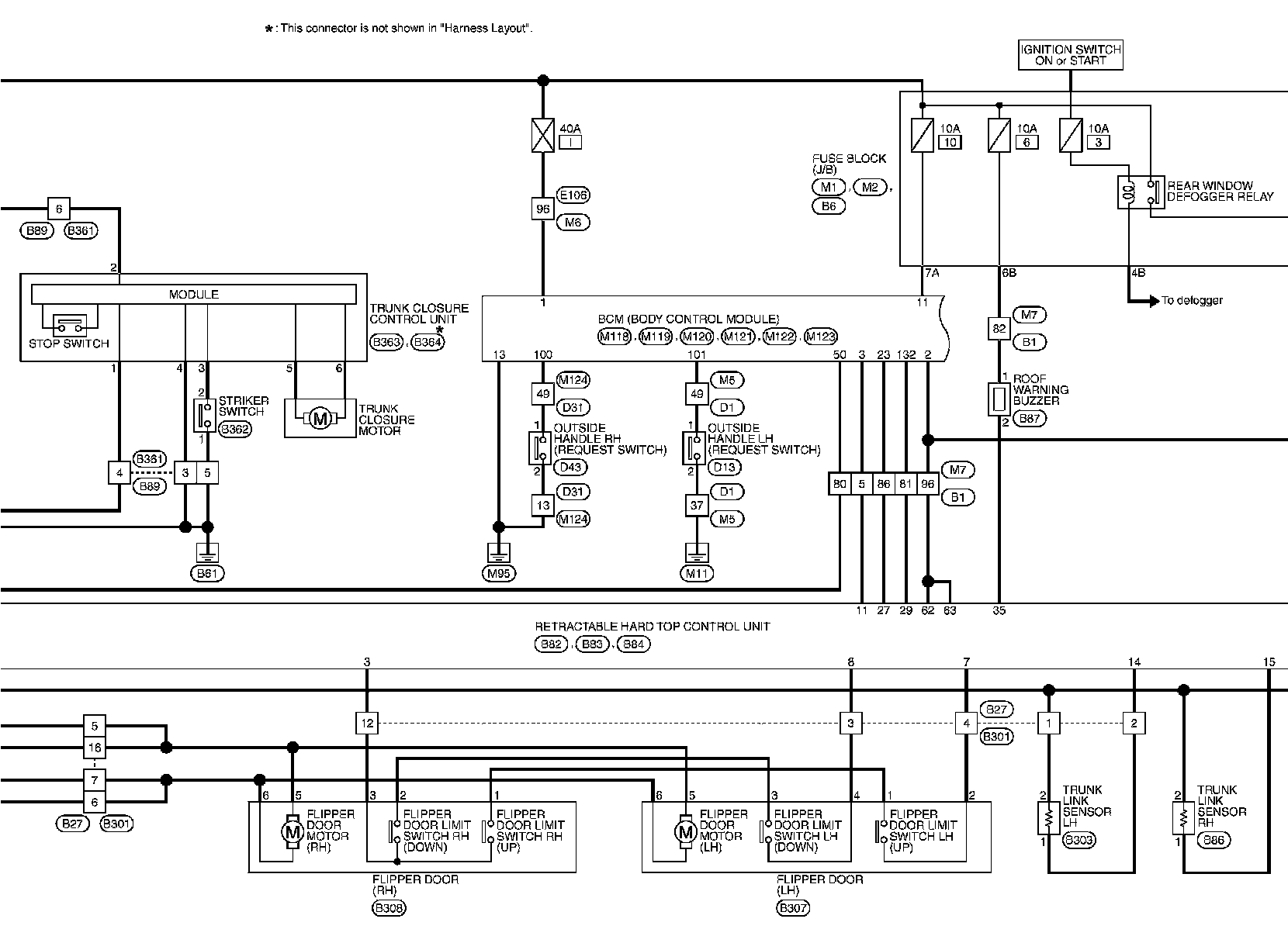

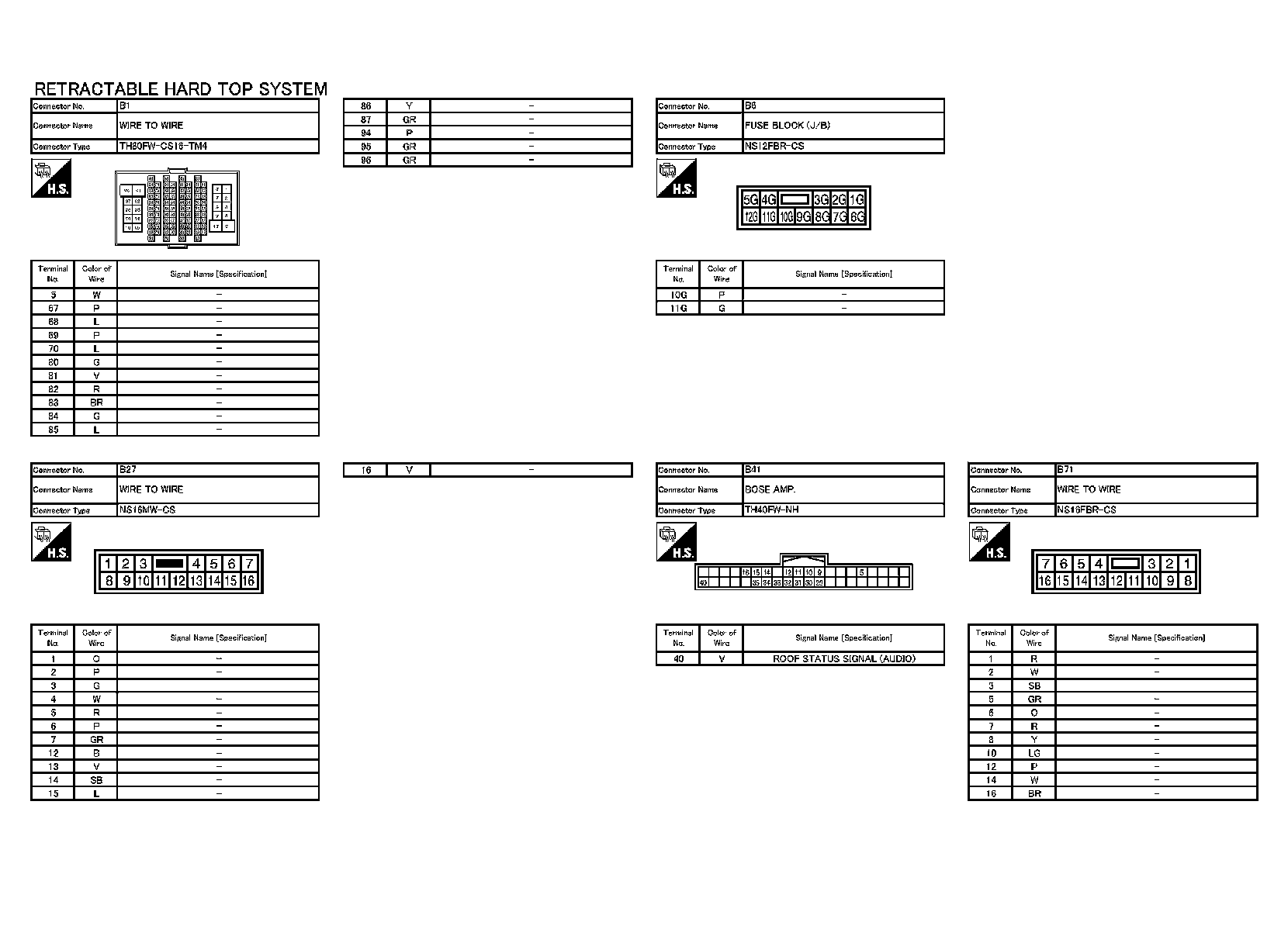

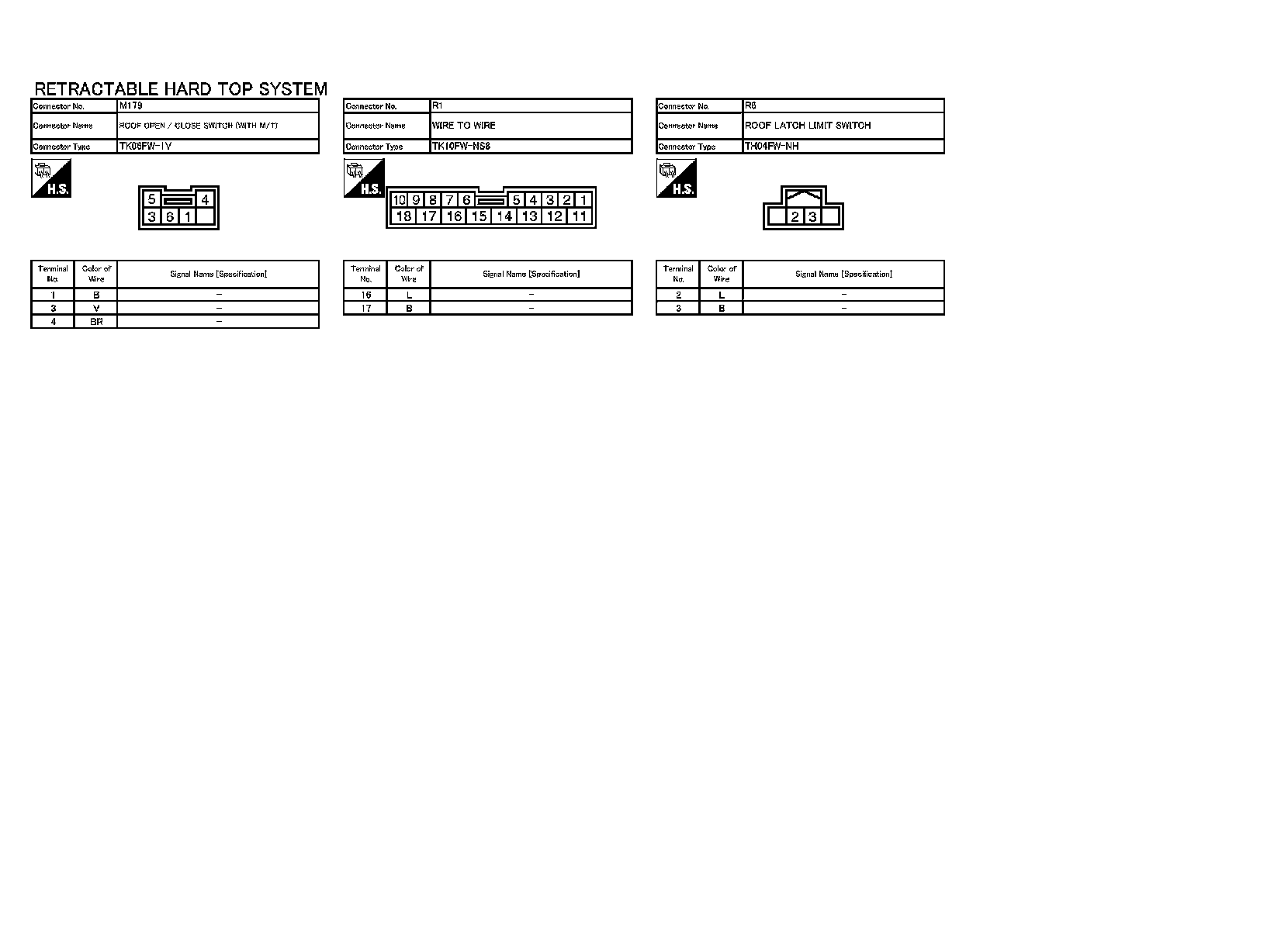

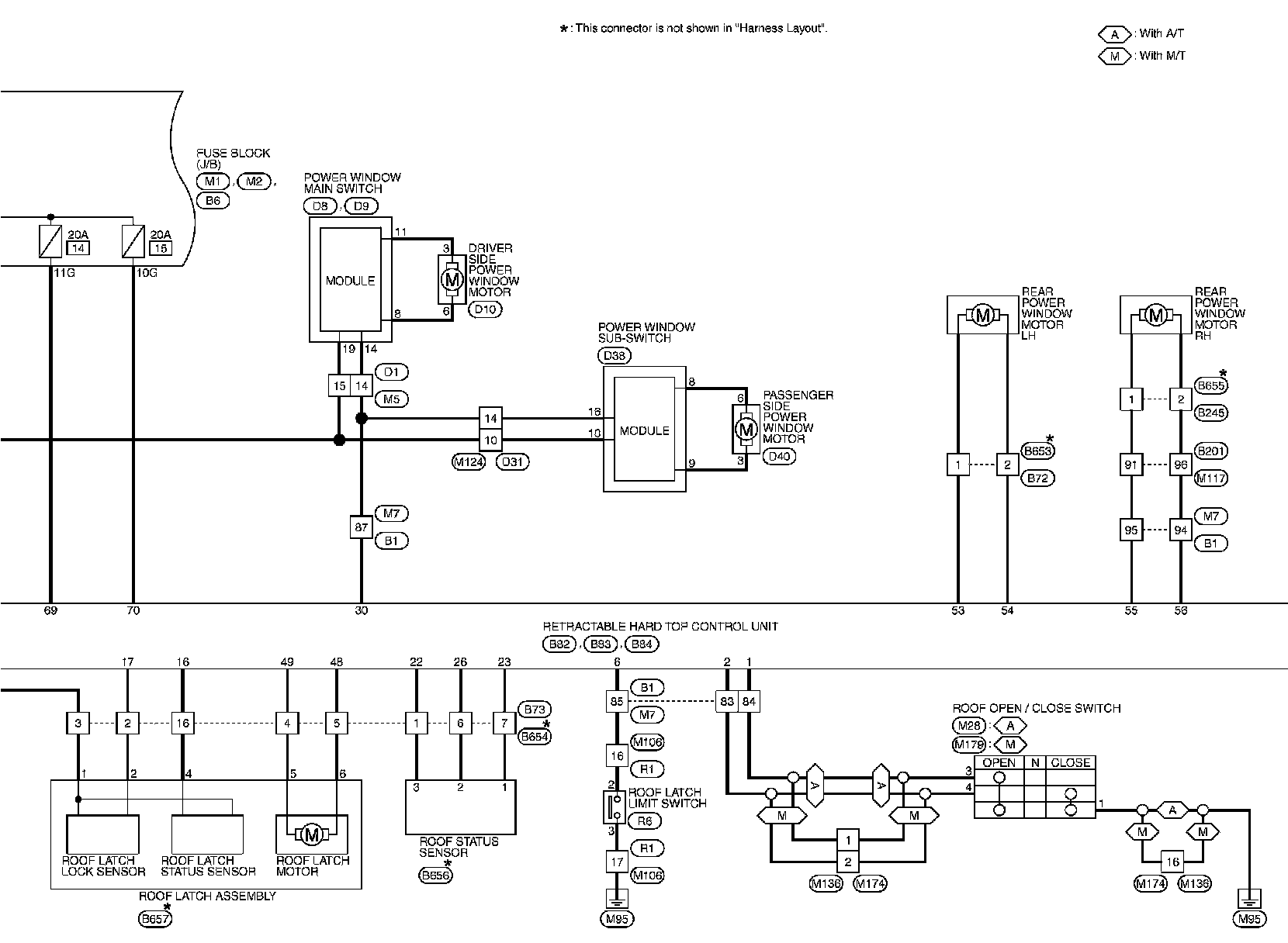

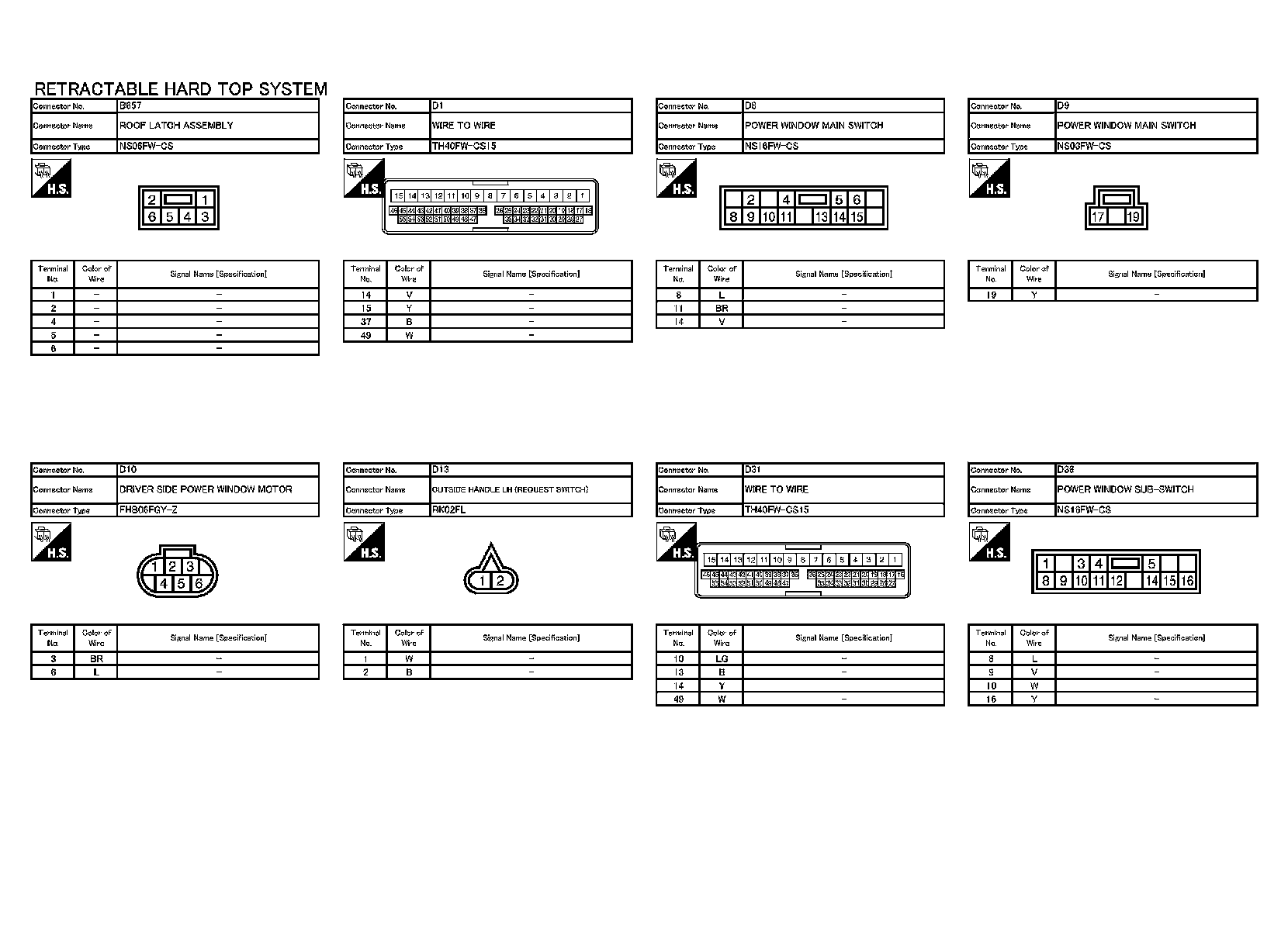

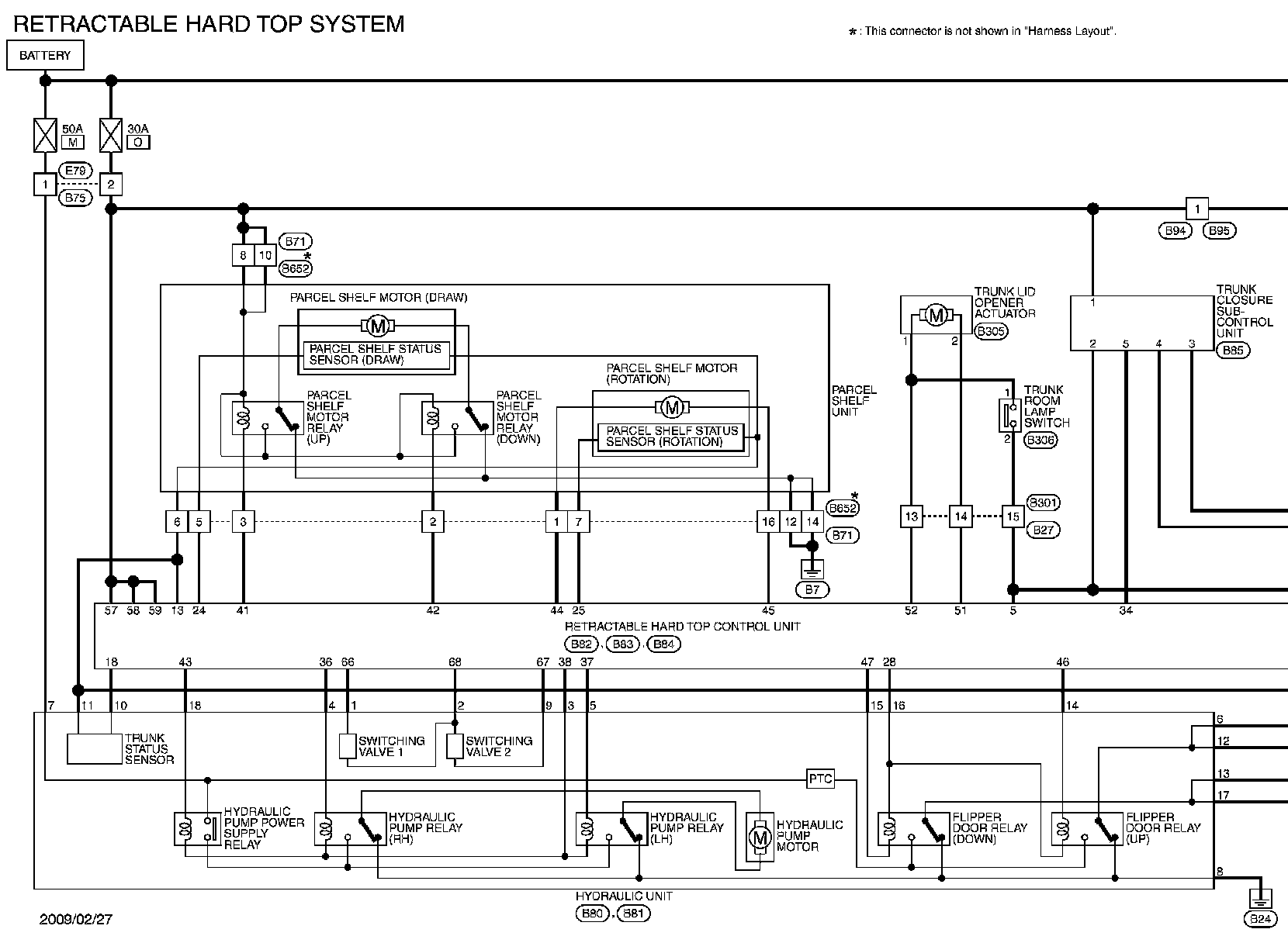

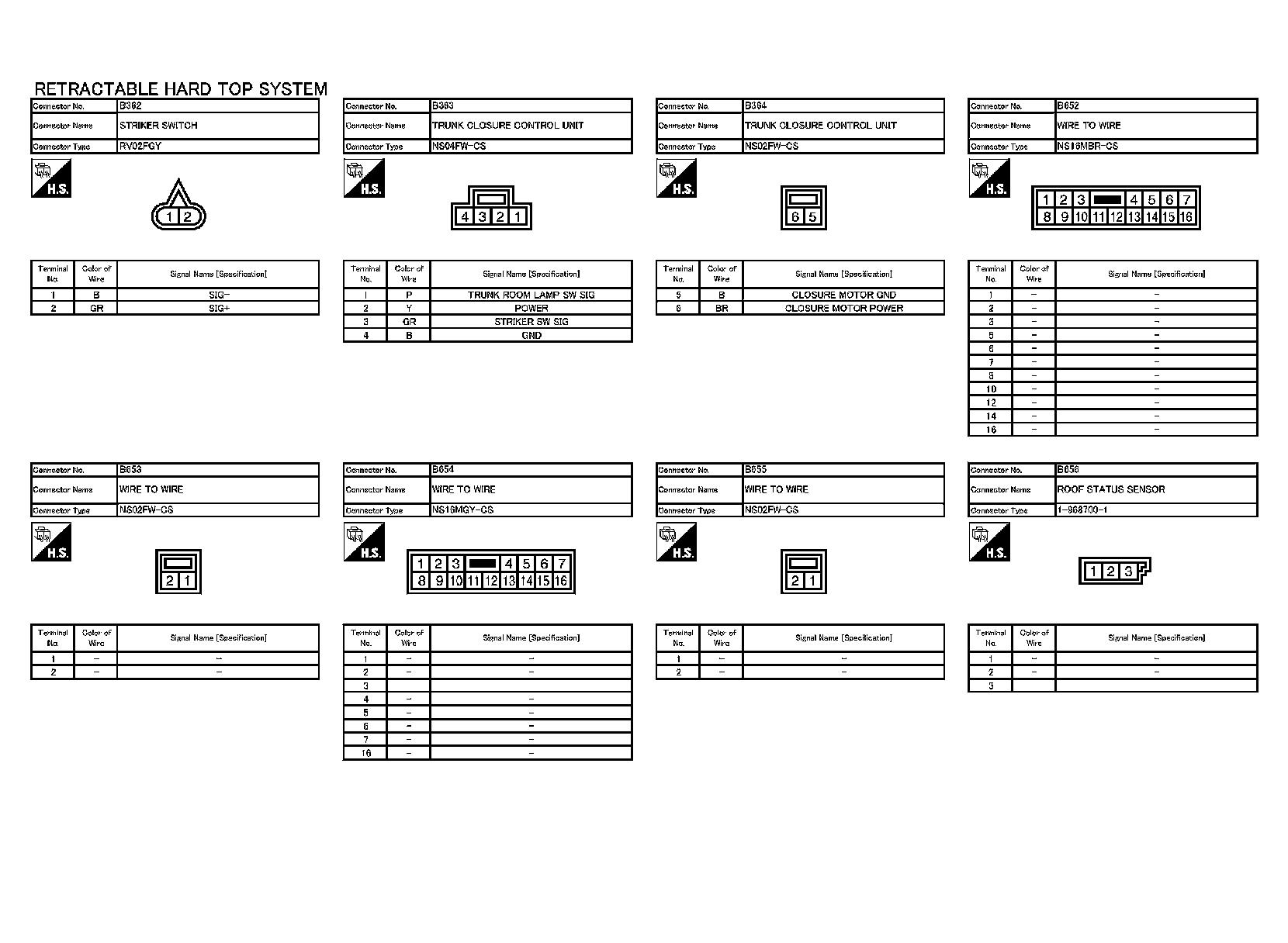

Wiring Diagram - RETRACTABLE HARD TOP SYSTEM -
