Wheel Speed Sensor
>>
Service and Repair
>>
Front Wheel Sensor
>>
Exploded View
Exploded View
WHEEL SENSOR

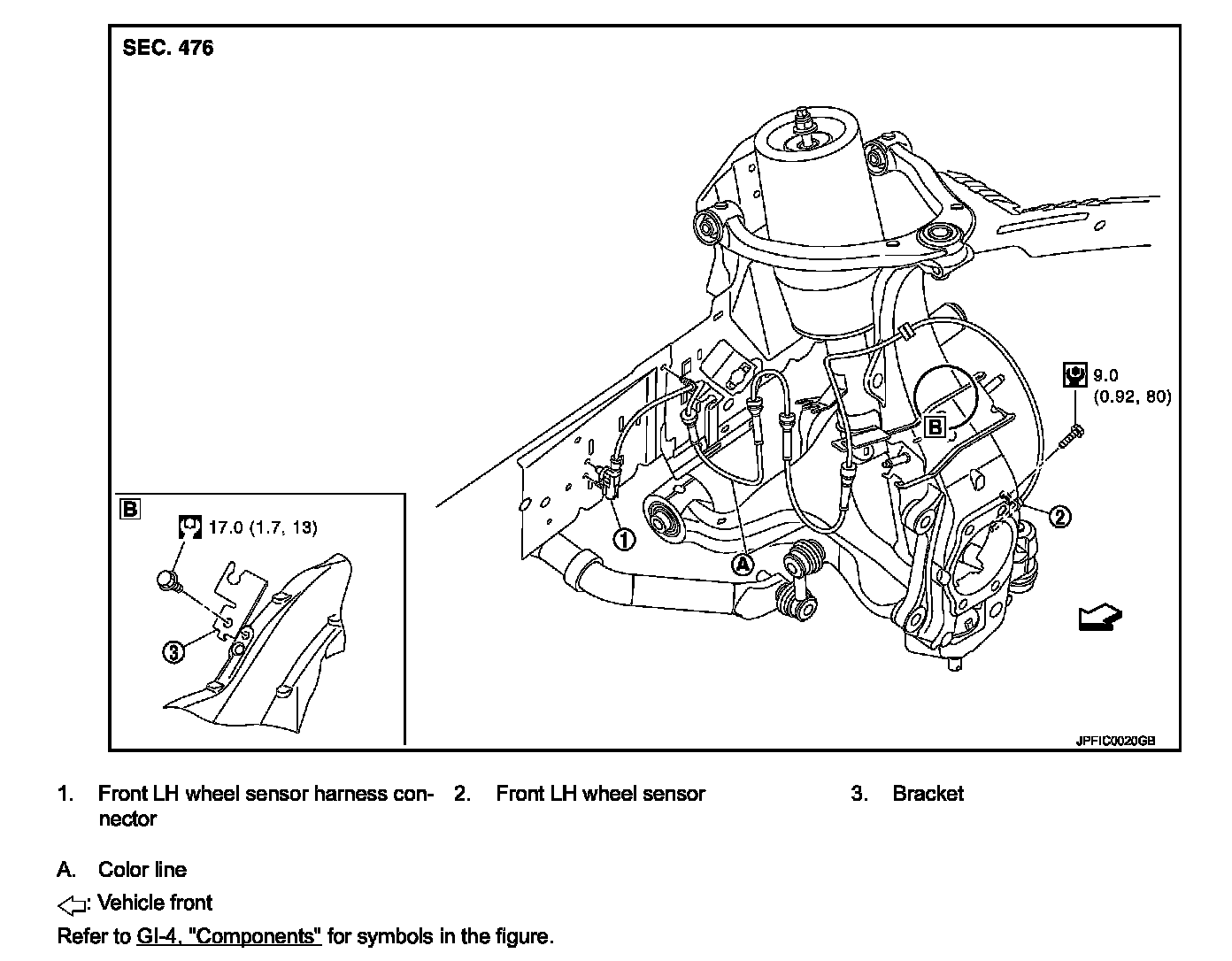

FRONT WHEEL SENSOR : Exploded View
NOTE:
The above figure (front side) shows left side. Right side is the mirror image.
