Exploded View





FRONT DISC BRAKE

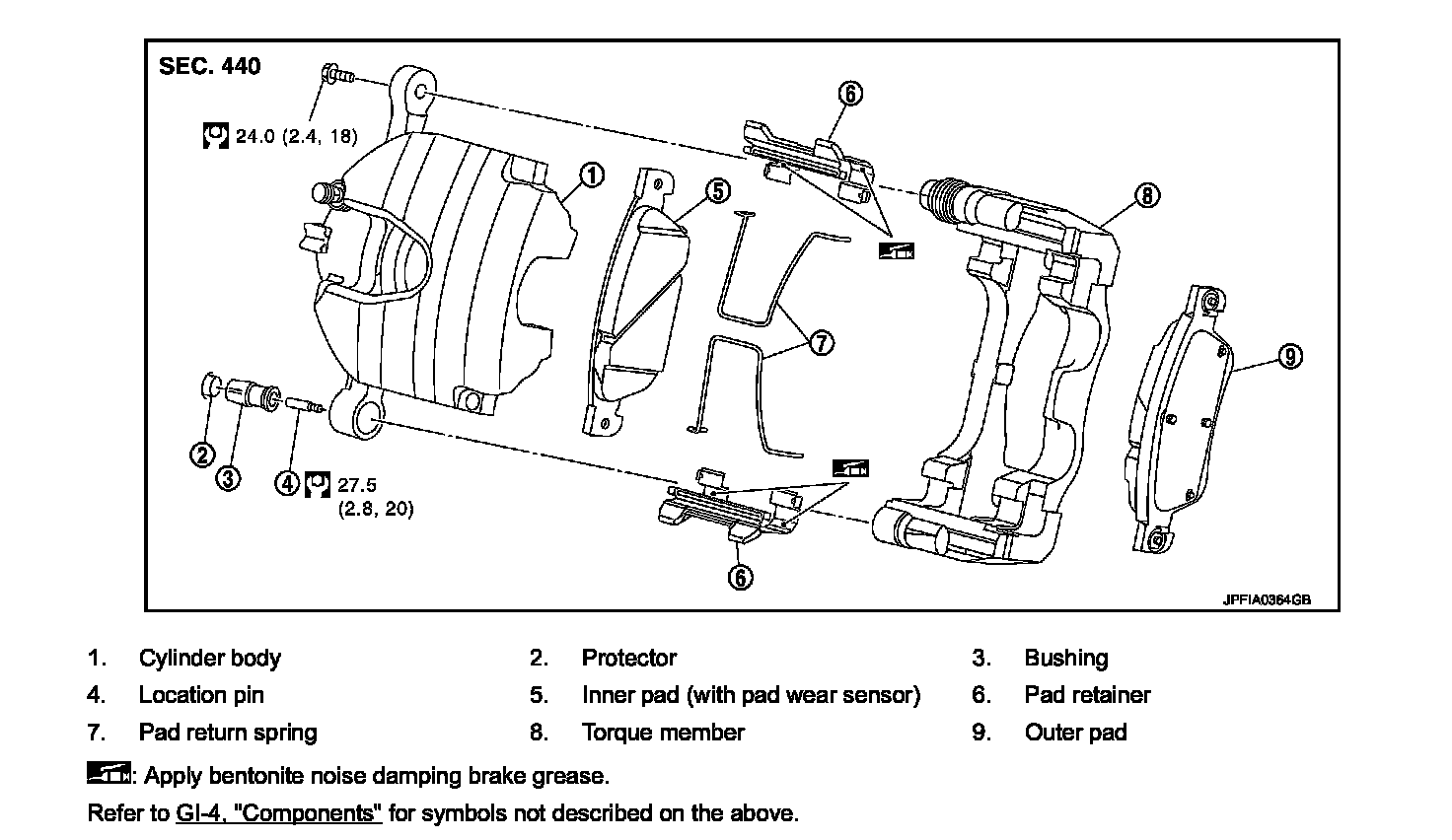

BRAKE PAD (1 PISTON TYPE) BRAKE PAD (1 PISTON TYPE) : Exploded View
