Pinout Values and Diagnostic Parameters

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)


Reference Value

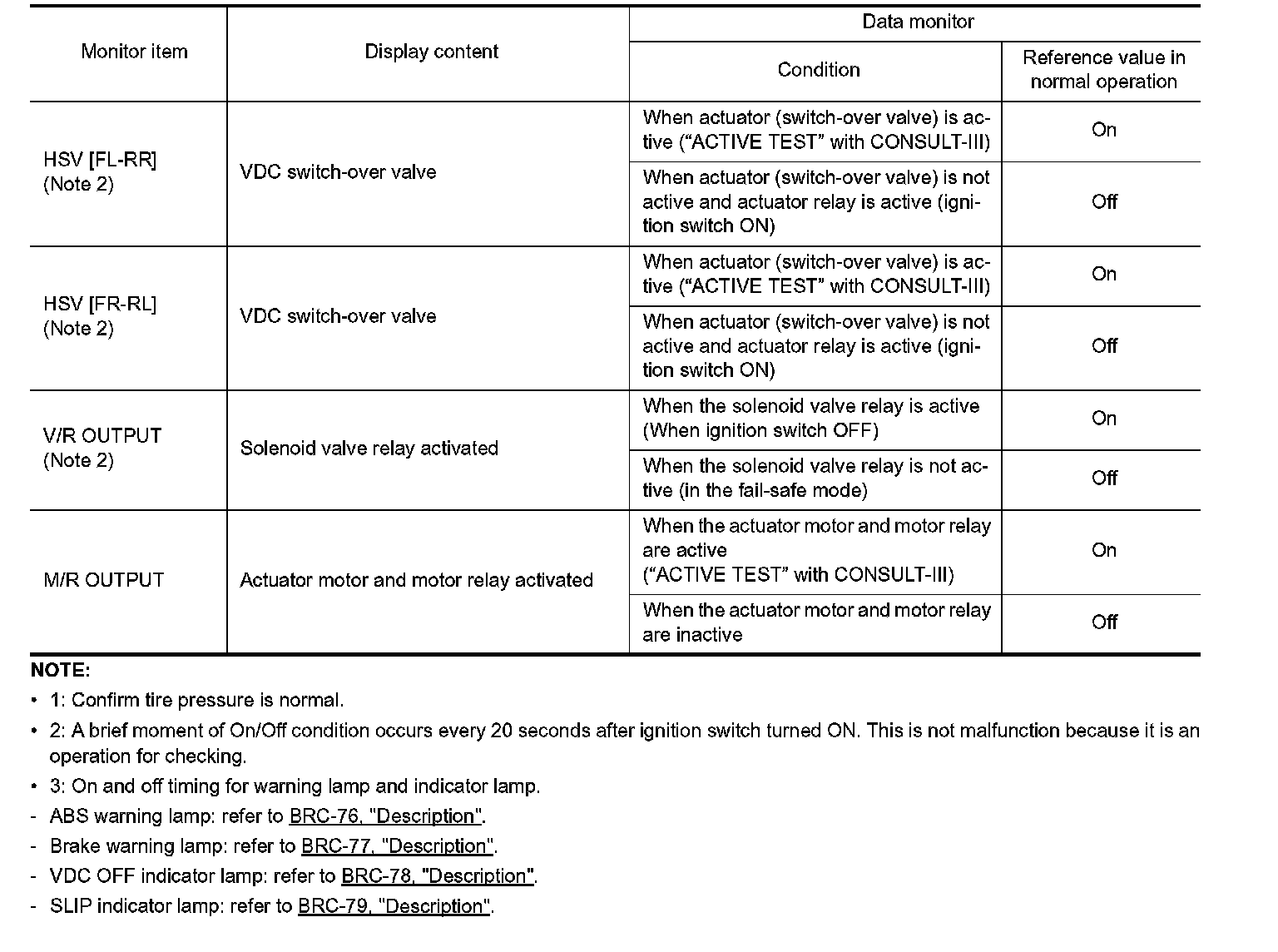

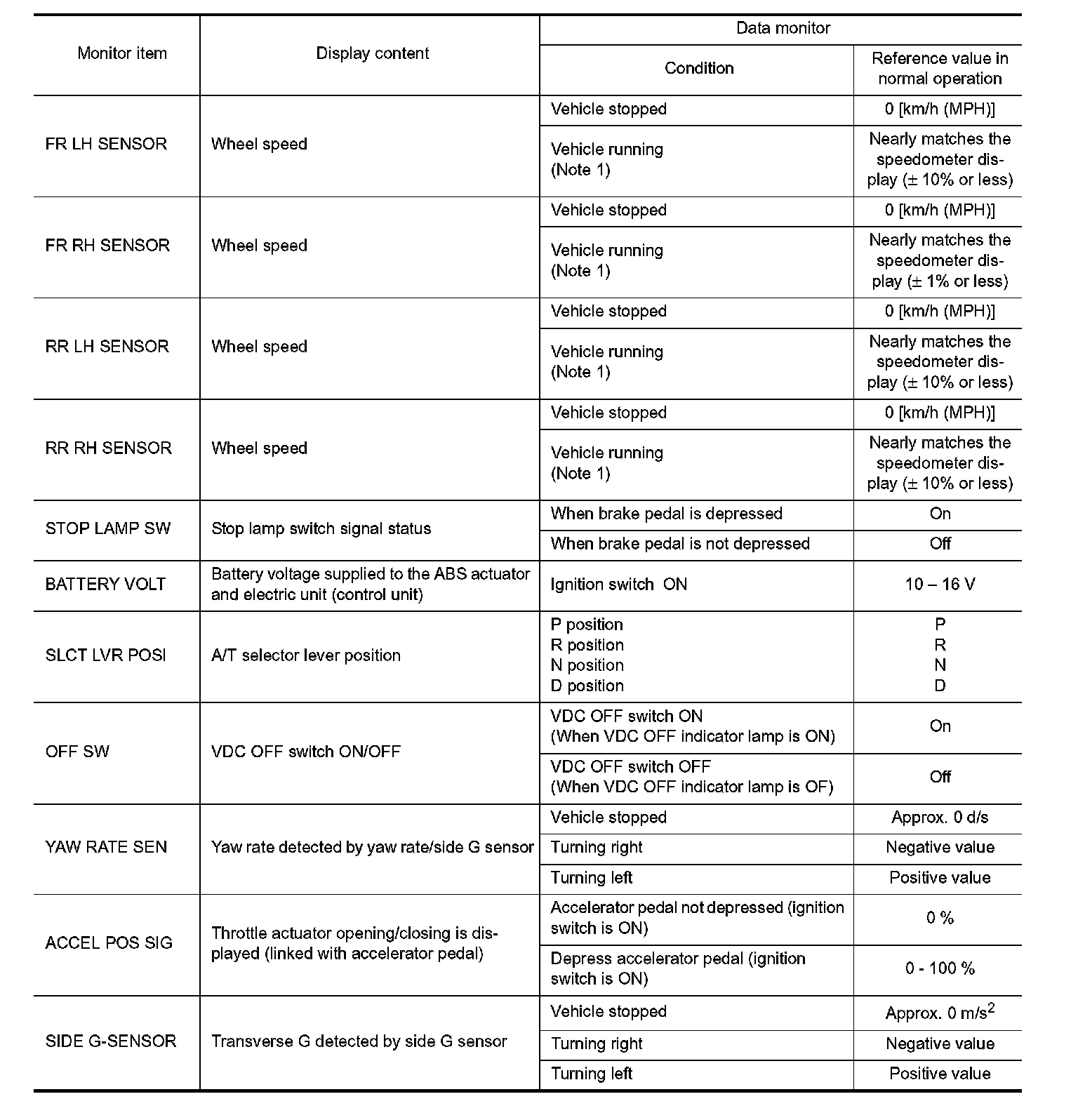

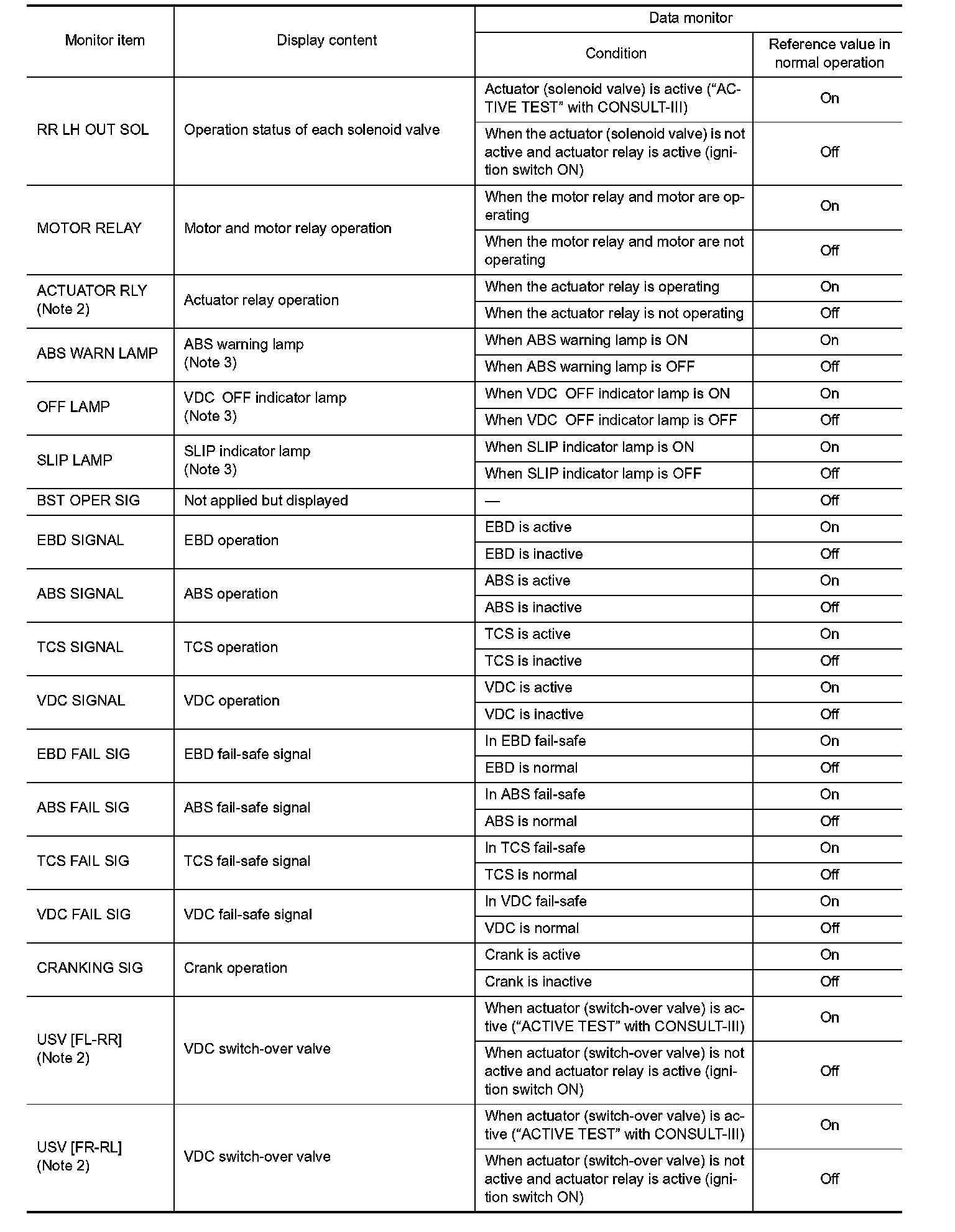

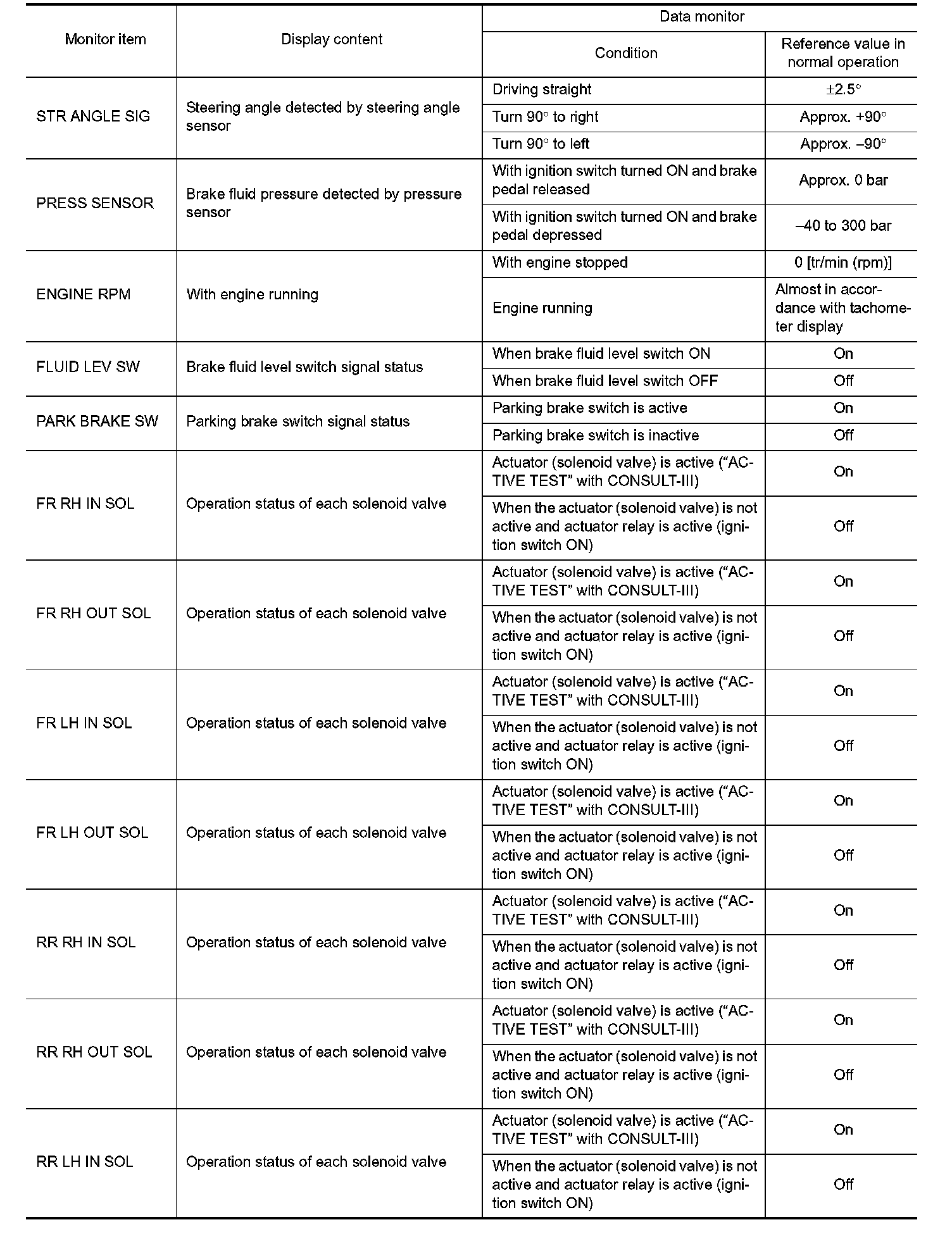

VALUES ON THE DIAGNOSIS TOOL

CAUTION:
The display shows the control unit calculation data, so a normal value might be displayed even in the event the output circuit (harness) is open or short-circuited.





















NOTE:
^ 1: Confirm tire pressure is normal.
^ 2: A brief moment of On/Off condition occurs every 20 seconds after ignition switch turned ON. This is not malfunction because it is an
operation for checking.
^ 3: On and off timing for warning lamp and indicator lamp.
- ABS warning lamp: refer to BRC-76, "Description".
- Brake warning lamp: refer to BRC-77, "Description".
- VDC OFF indicator lamp: refer to BRC-78, "Description".
- SLIP indicator lamp: refer to BRC-79, "Description".
