Diagnosis Procedure

VDC OFF INDICATOR LAMP

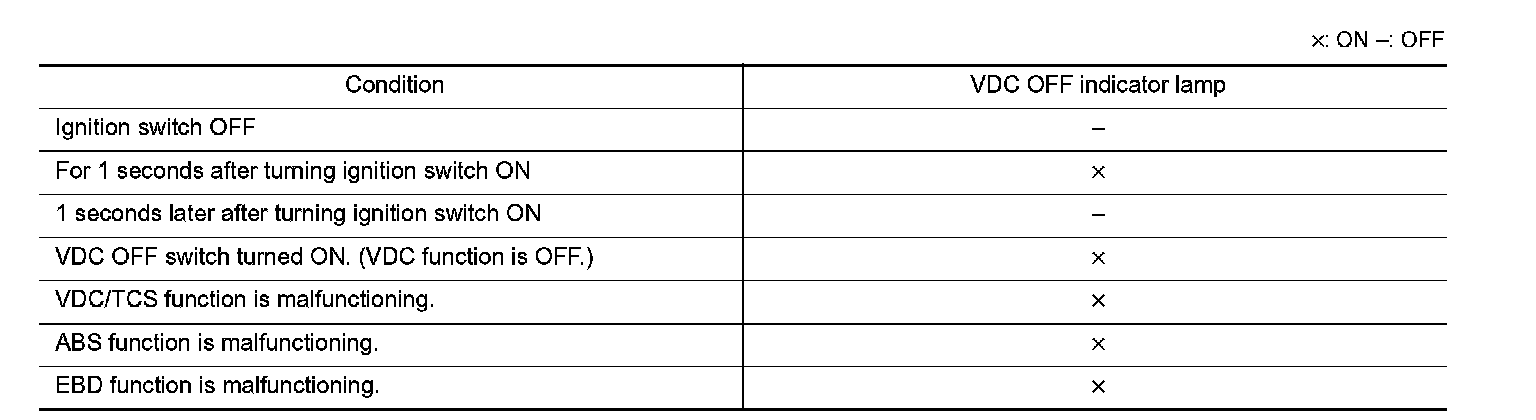

Description










VDC OFF INDICATOR LAMP


Diagnosis Procedure

1.PERFORM SELF-DIAGNOSIS
Perform ABS actuator and electric unit (control unit) self-diagnosis.
Is any DTC detected?
YES - Check the DTC.
NO - GO TO 2.
2.CHECK COMBINATION METER
Check if the indication and operation of combination meter are normal. Refer to Diagnosis System (Unified Meter and A/C AMP.).
Is the inspection result normal?
YES - Replace ABS actuator and electric unit (control unit). Refer to Exploded View.
NO - Repair or replace error-detected parts.
