Restraints - Revised Pre-Tensioner Seat Belt Retractor

Classification: RS11-001

Reference: ITB11-012

Date: February 14, 2011

2009-2010 G37 CONVERTIBLE; PRE-TENSIONER SEAT BELT RETRACTOR SERVICE INFORMATION

APPLIED VEHICLE: 2009-2010 G37

SERVICE INFORMATION

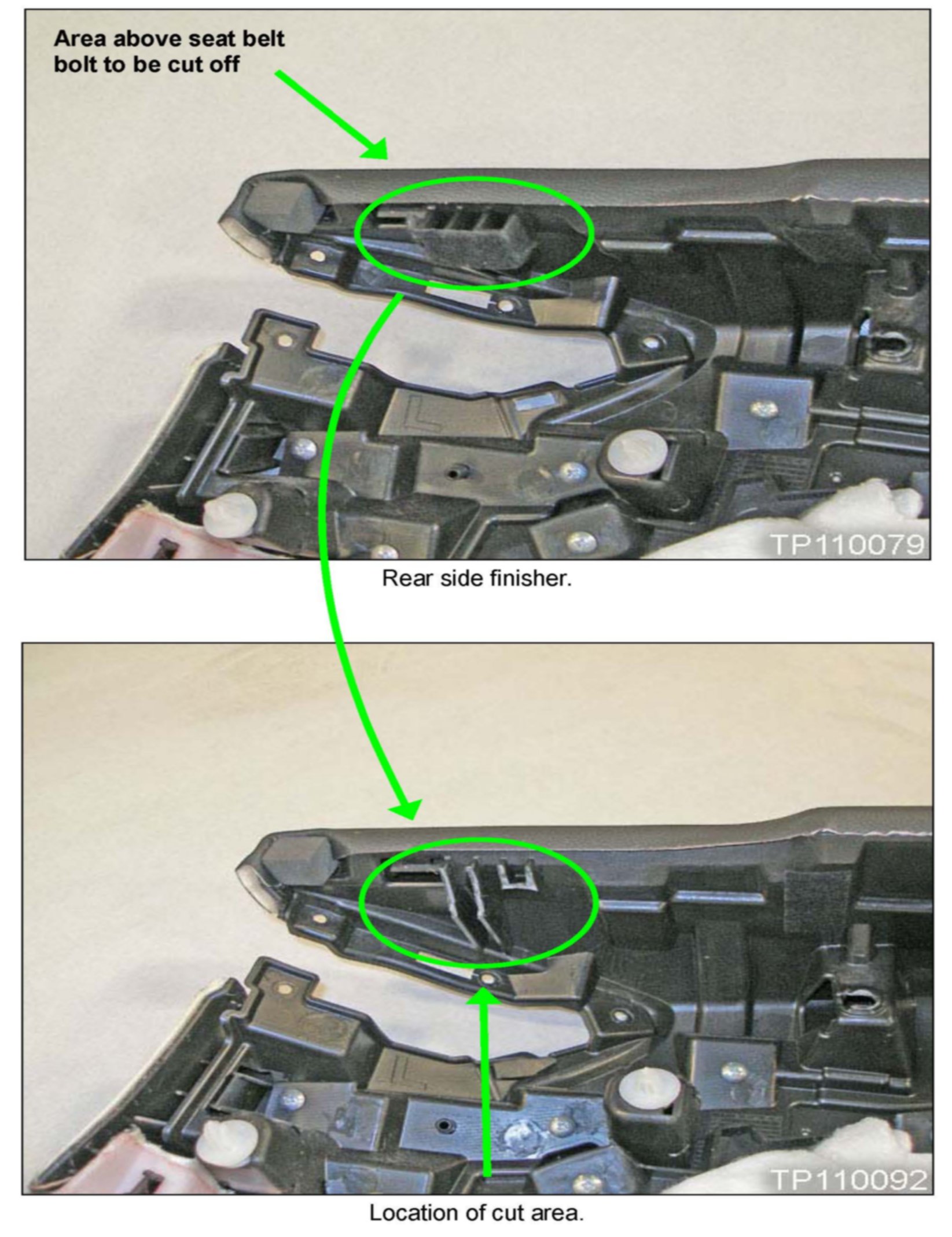

Replacement pre-tensioner seat belt retractors for 2009 - 2010 G37 Convertibles have been revised. The re-designed "D" ring is raised with a taller bolt and collar. When replacing a pre-tensioner seat belt retractor for any reason adjustments for additional clearance will need to be made to the related rear side finisher.

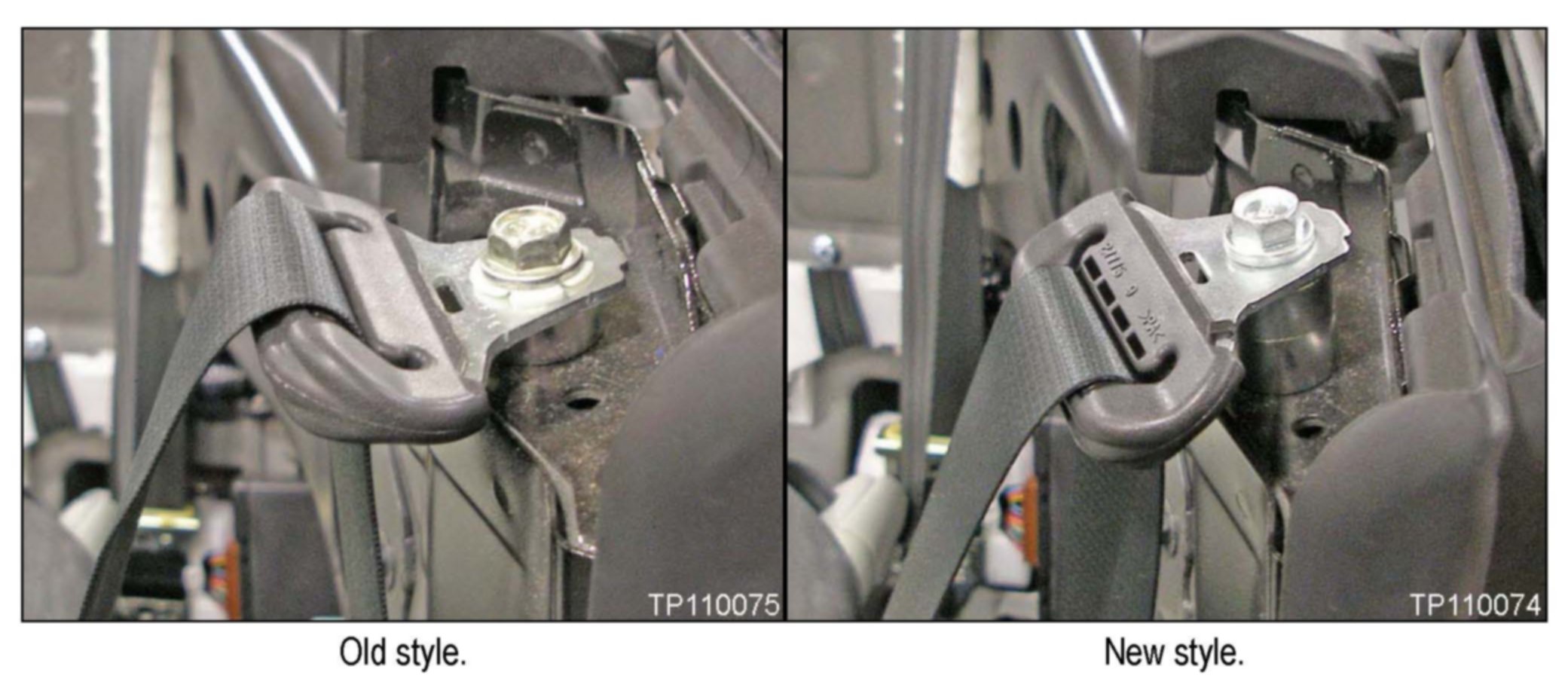

Refer to the illustrations above for differences between previous and revised "D" rings, bolts, and collars. Refer below for rear side finisher adjustments.

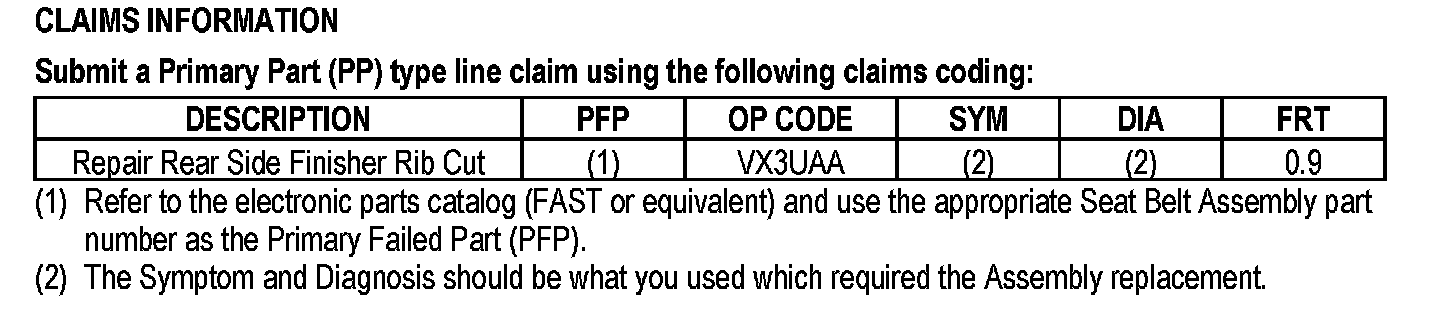

CLAIMS INFORMATION
