Component Inspection

HEATED SEAT SWITCH


DRIVER SIDE : Component Inspection

1.CHECK FRONT HEATED SEAT SWITCH
1. Turn ignition switch OFF.
2. Disconnect heated seat switch connector.

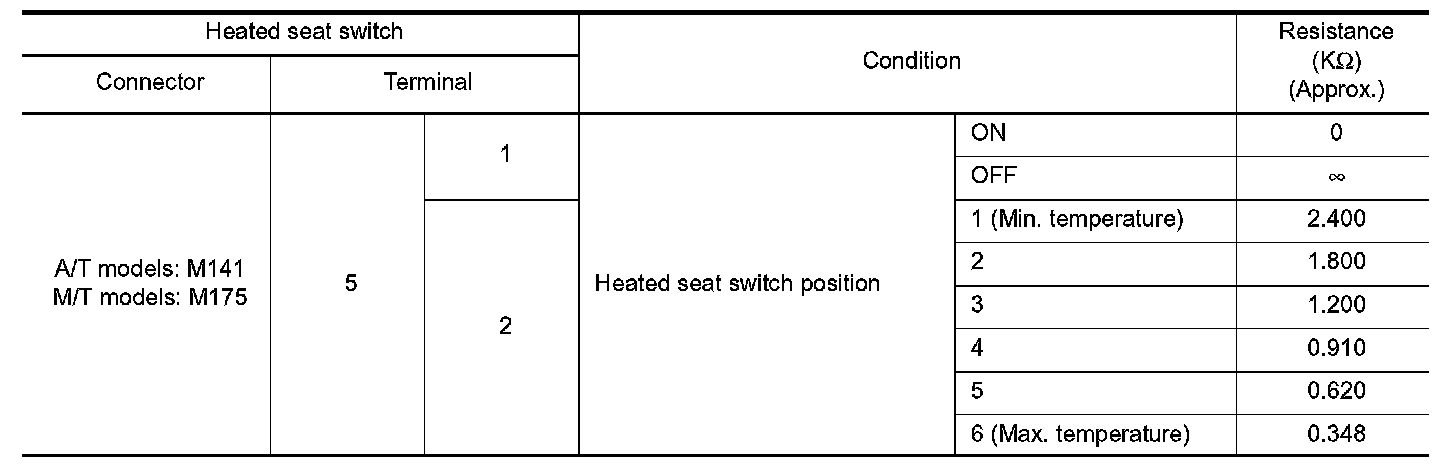

3. Check resistance between heated seat switch terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace heated seat switch. Refer to Removal and Installation.
