Diagnosis Procedure

SLIDING SWITCH


PASSENGER SIDE : Description

- Sliding switch is equipped to the power seat switch on the seat cushion side surface.
- The operation signal is input to the passenger seat control unit when the sliding switch is operated.




SLIDING SWITCH


PASSENGER SIDE : Diagnosis Procedure

1.CHECK SLIDING SWITCH SIGNAL
1. Turn ignition switch OFF.

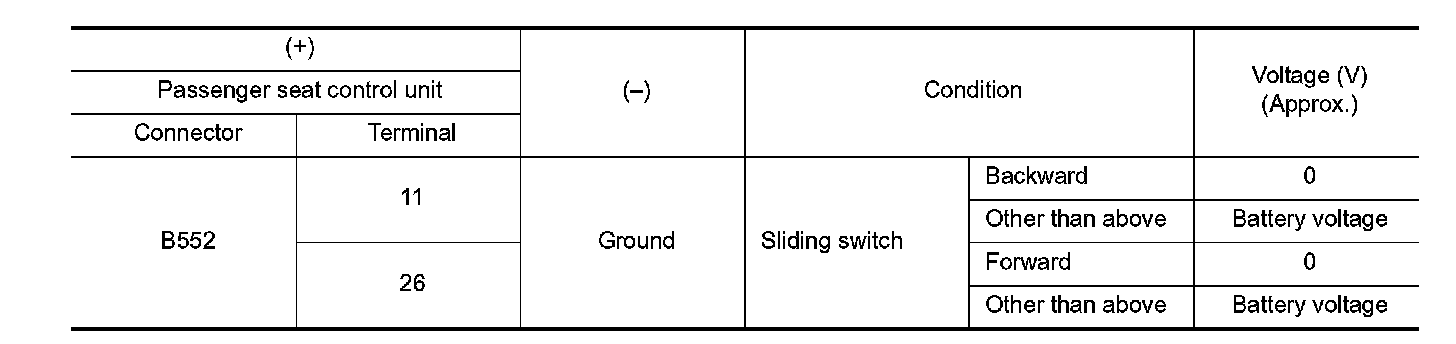

2. Check voltage between passenger seat control unit harness connector and ground.





Is the inspection result normal?
YES - Sliding switch circuit is OK.
NO - GO TO 2.
2.CHECK SLIDING SWITCH INPUT SIGNAL
1. Disconnect power seat switch connector.

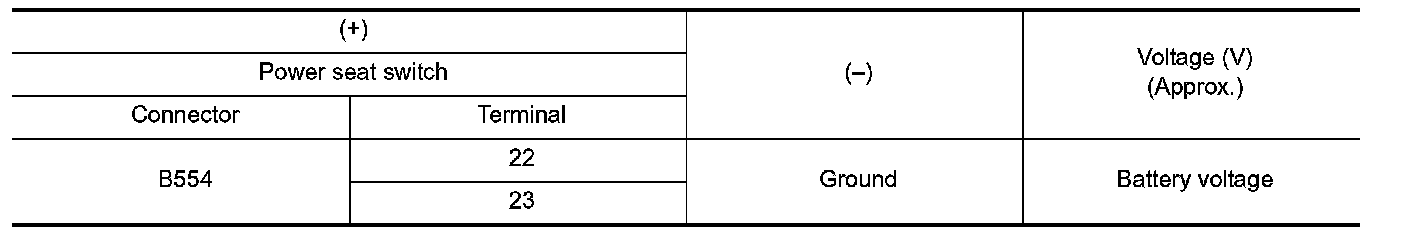

2. Check voltage between power seat switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - GO TO 3.
3.CHECK SLIDING SWITCH CIRCUIT
1. Disconnect sliding switch (seatback) connector.

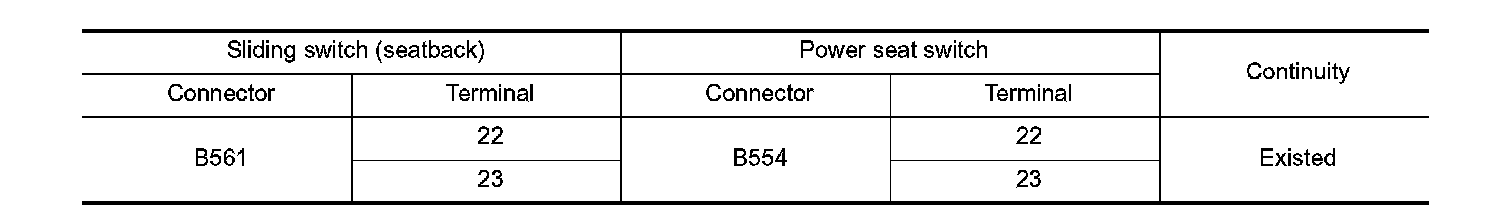

2. Check continuity between sliding switch (seatback) harness connector and power seat switch harness connector.

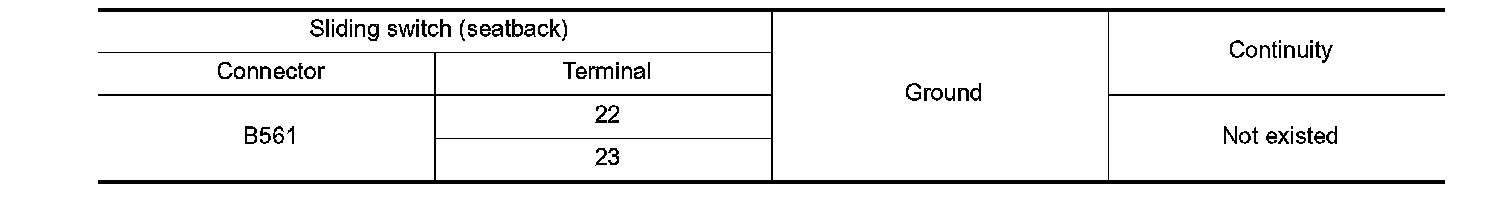

3. Check continuity between sliding switch (seatback) harness connector and ground.





Is the inspection result normal?
YES - GO TO 5.
NO - Repair or replace harness.
4.CHECK SLIDING SWITCH
Check sliding switch. Refer to Component Inspection.
Is the inspection result normal?
YES - GO TO 6.
NO - Replace power seat switch. Refer to Removal and Installation.
5.CHECK SLIDING SWITCH (SEATBACK)
Check sliding switch (seatback). Refer to Component Inspection.
Is the inspection result normal?
YES - GO TO 6.
NO - Replace sliding switch (seatback). Refer to Exploded View.
6.CHECK INTERMITTENT INCIDENT
Check intermittent incident. Refer to Intermittent Incident.
- INSPECTION END
