Component Function Check

SLIDING SWITCH


DRIVER SIDE : Component Function Check

1.CHECK FUNCTION
1. Turn ignition switch ON.
2. Select "SLIDE SW-FR", "SLIDE SW-RR" in the "Data monitor" mode using CONSULT-III.

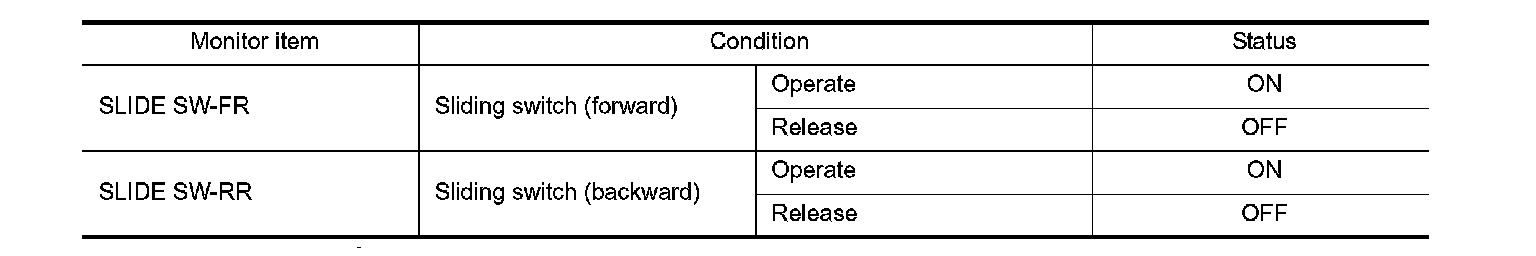

3. Check sliding switch signal under the following conditions.





Is the indication normal?
YES - Sliding switch function is OK.
NO - Refer to Diagnosis Procedure.
