Diagnosis Procedure

SLIDING MOTOR


DRIVER SIDE : Description

- The seat sliding motor is installed to the seat cushion frame.
- The seat sliding motor is activated with the driver seat control unit.
- The seat is slid forward/backward by changing the rotation direction of sliding motor.




SLIDING MOTOR


DRIVER SIDE : Diagnosis Procedure

1.CHECK SLIDING MOTOR POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect sliding motor connector.

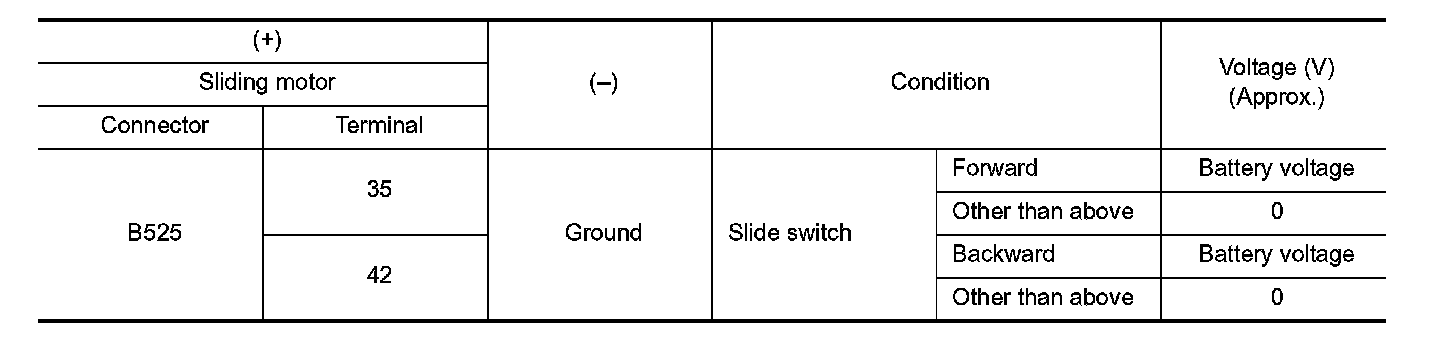

3. Check voltage between sliding motor harness connector and ground.





Is the inspection result normal?
YES - Replace sliding motor.
NO - GO TO 2.
2.CHECK SLIDING MOTOR CIRCUIT
1. Disconnect driver seat control unit connector.

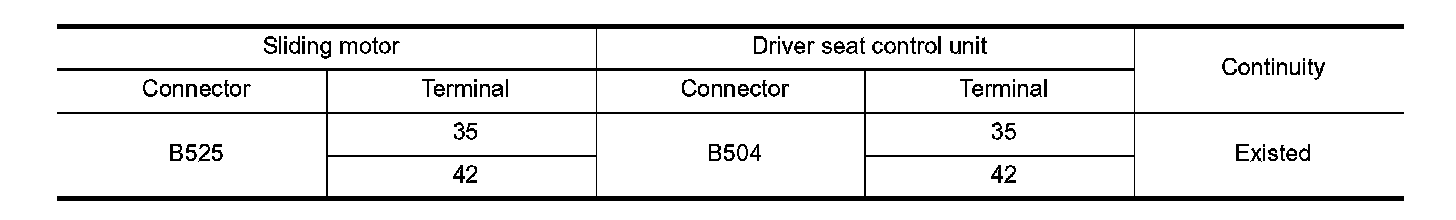

2. Check continuity between sliding motor harness connector and driver seat control unit harness connector.

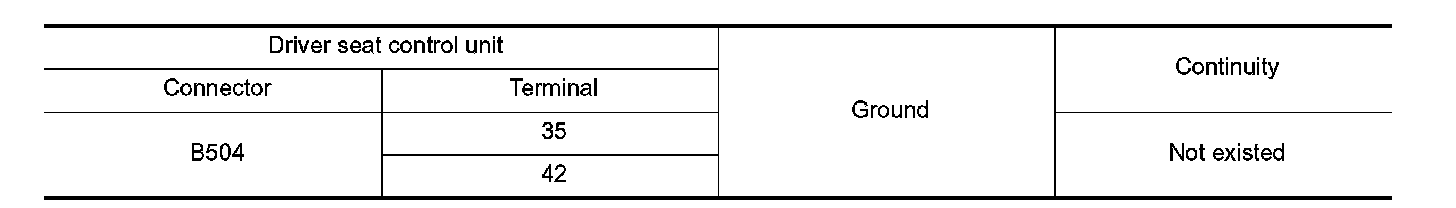

3. Check continuity between driver seat control unit harness connector and ground.





Is the inspection result normal?
YES - Replace driver seat control unit. Refer to Removal and Installation.
NO - Repair or replace harness.
