Diagnosis Procedure

SLIDING LIMIT SWITCH


PASSENGER SIDE : Description

- Sliding limit switch is installed on seat cushion frame.
- Sliding limit switch detects condition of seat sliding.




SLIDING LIMIT SWITCH


PASSENGER SIDE : Diagnosis Procedure

1.CHECK SLIDING LIMIT SWITCH SIGNAL
1. Turn ignition switch OFF.

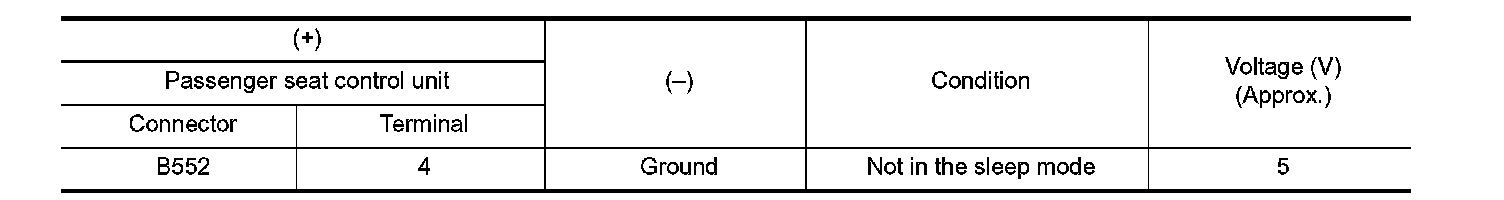

2. Check voltage between passenger seat control unit harness connector and ground.





Is the inspection result normal?
YES - Sliding switch circuit is OK.
NO - GO TO 2.
2.CHECK SLIDING LIMIT SWITCH CIRCUIT
1. Disconnect passenger seat control unit connector and sliding limit switch connector.

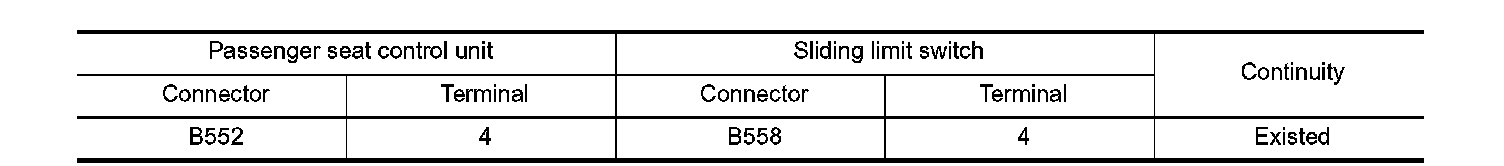

2. Check continuity between passenger seat control unit harness connector and sliding limit switch harness connector.

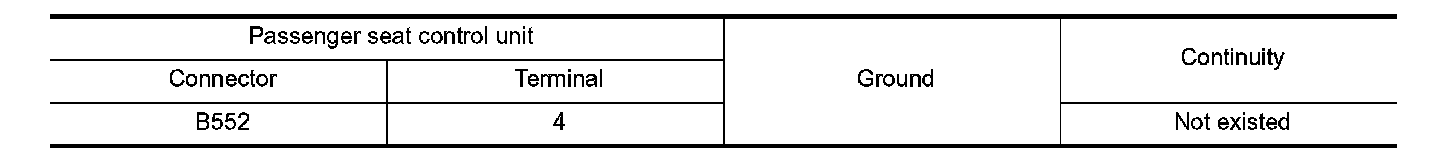

3. Check continuity between passenger seat control unit harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - Repair or replace harness.
3.CHECK SLIDING LIMIT SWITCH GROUND CIRCUIT

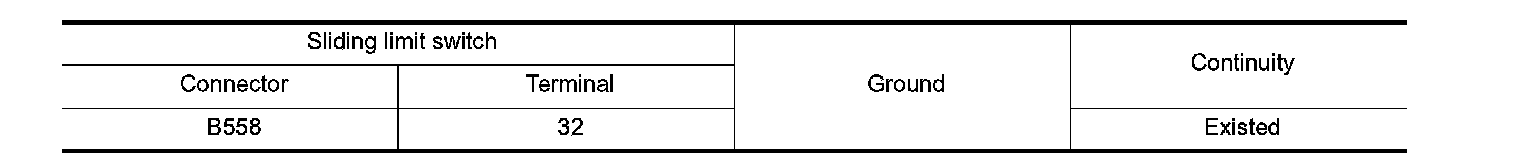

Check continuity between sliding limit switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace harness.
4.CHECK SLIDING LIMIT SWITCH
Check sliding limit switch. Refer to Component Inspection.
Is the inspection result normal?
YES - GO TO 5.
NO - Replace sliding limit switch. Refer to Exploded View.
5.CHECK PASSENGER SEAT CONTROL UNIT OUTPUT SIGNAL
1. Connect passenger seat control unit connector.

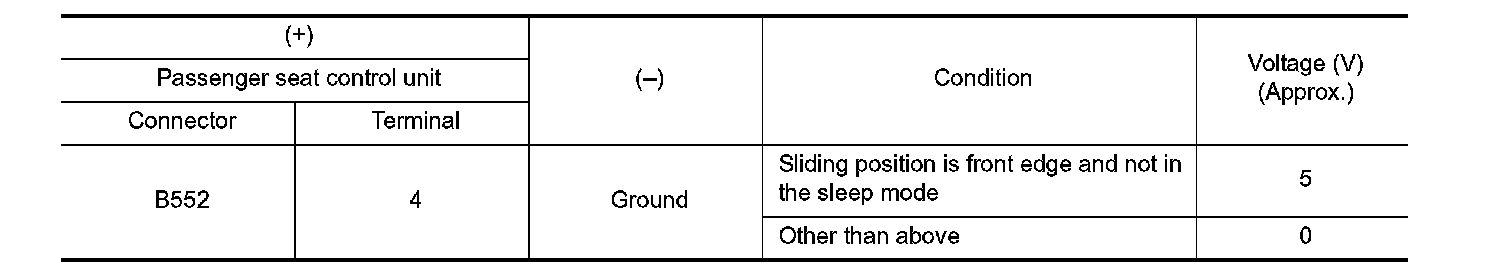

2. Check voltage between passenger seat control unit harness connector and ground.





Is the inspection result normal?
YES - GO TO 6.
NO - Replace passenger seat control unit. Refer to Removal and Installation.
6.CHECK INTERMITTENT INCIDENT
Check intermittent incident. Refer to Intermittent Incident.
- INSPECTION END
