Diagnosis Procedure

SLIDING LIMIT SWITCH


DRIVER SIDE : Description

- Sliding limit switch is installed on seat cushion frame.
- Sliding limit switch detects condition of seat sliding.




SLIDING LIMIT SWITCH


DRIVER SIDE : Diagnosis Procedure

1.CHECK SLIDING LIMIT SWITCH INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect sliding limit switch connector.

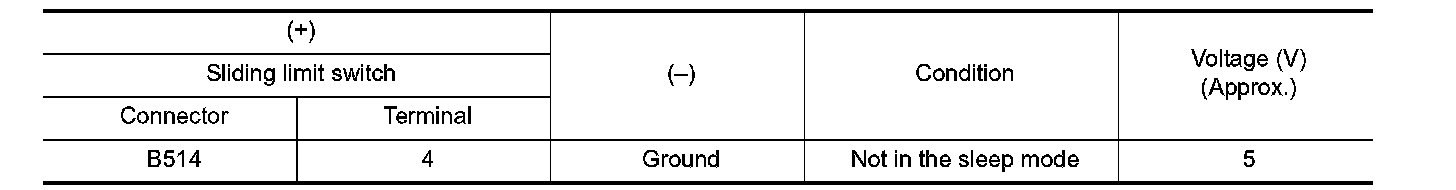

3. Check voltage between sliding limit switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 2.
2.CHECK SLIDING LIMIT SWITCH CIRCUIT
1. Disconnect driver seat control unit connector.

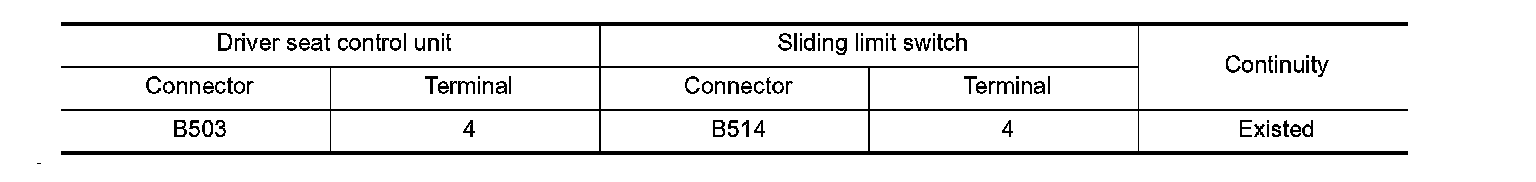

2. Check continuity between driver seat control unit harness connector and sliding limit switch harness connector.

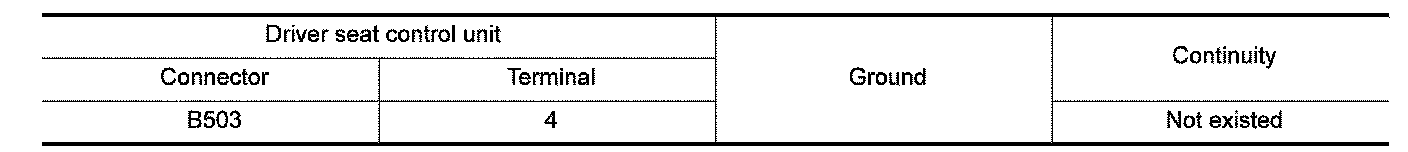

3. Check continuity between driver seat control unit harness connector and ground.





Is the inspection result normal?
YES - Replace driver seat control unit. Refer to Removal and Installation.
NO - Repair or replace harness.
3.CHECK SLIDING LIMIT SWITCH GROUND CIRCUIT
Check continuity between sliding limit switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace harness.
4.CHECK SLIDING LIMIT SWITCH
Check sliding limit switch. Refer to Component Inspection.
Is the inspection result normal?
YES - GO TO 5.
NO - Replace sliding limit switch. Refer to Exploded View.
5.CHECK INTERMITTENT INCIDENT
Check intermittent incident. Refer to Intermittent Incident.
- INSPECTION END
