Diagnosis Procedure

SEATBACK HEATER


PASSENGER SIDE : Description

Warms the seat cushion.




SEATBACK HEATER


PASSENGER SIDE : Diagnosis Procedure

1.CHECK SEATBACK HEATER
1. Turn ignition switch OFF.
2. Disconnect seatback heater connector.

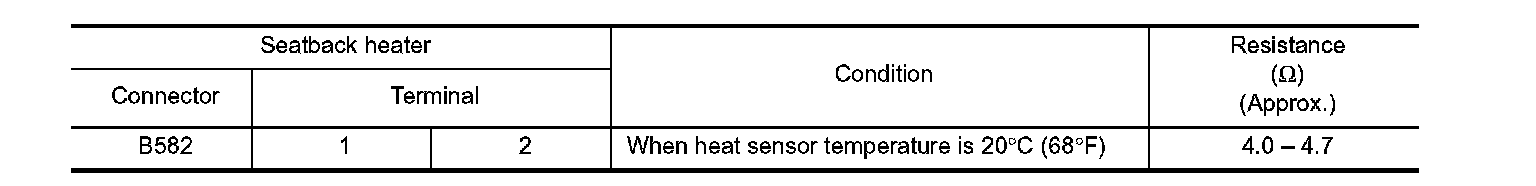

3. Check resistance between seatback heater terminals.






NOTE:
Resistance value changes according to temperature.
Is the inspection result normal?
YES - Replace seat cushion heater. Refer to Exploded View.
NO - Replace seatback heater. Refer to Exploded View.
