Component Inspection

SEAT CUSHION HEATER


DRIVER SIDE : Component Inspection

1.CHECK SEAT CUSHION HEATER
1. Turn ignition switch OFF.
2. Disconnect seat cushion heater connector and seatback heater connector.

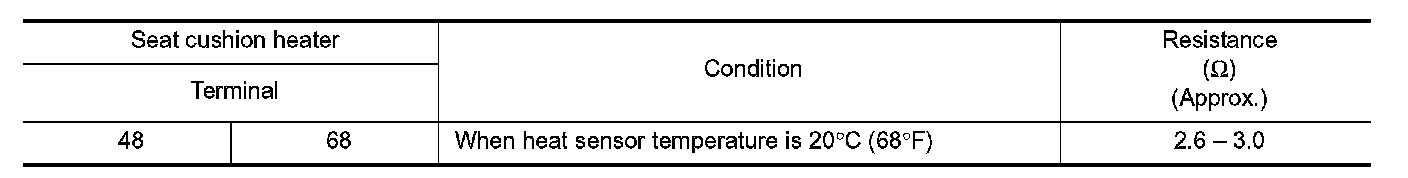

3. Check resistance between seat cushion heater terminals.






NOTE:
Resistance value changes according to temperature.
Is the inspection result normal?
YES - INSPECTION END
NO - Replace seat cushion heater. Refer to Exploded View.
