Component Inspection

SEAT BELT BUCKLE SWITCH


DRIVER SIDE : Component Inspection

1.CHECK SEAT BELT BUCKLE SWITCH (DRIVER SIDE)
1. Turn ignition switch OFF.
2. Disconnect seat belt buckle switch (driver side) connector.

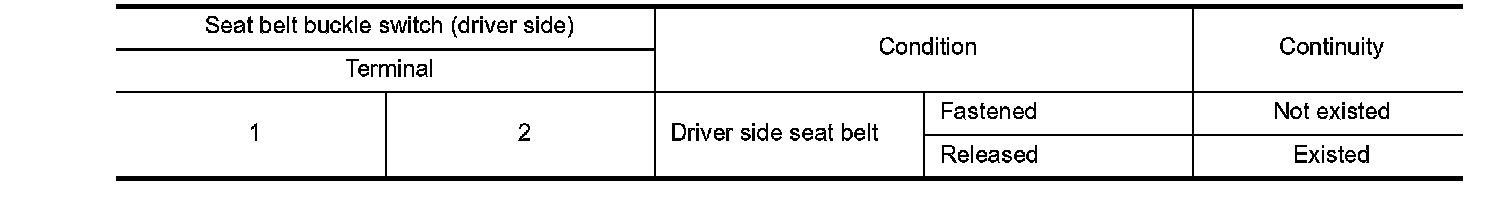

3. Check continuity between seat belt buckle switch (driver side) terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace seat belt buckle switch (driver side). Refer to Exploded View.
