Diagnosis Procedure

POWER WALK-IN SWITCH


DRIVER SIDE : Description

- Power walk-in switch is installed on seatback.
- The operation signal is input to driver seat control unit when power walk-in switch is operated.




POWER WALK-IN SWITCH


DRIVER SIDE : Diagnosis Procedure

1.CHECK POWER WALK-IN SWITCH SIGNAL
1. Turn ignition switch OFF.
2. Disconnect power walk-in switch connector.

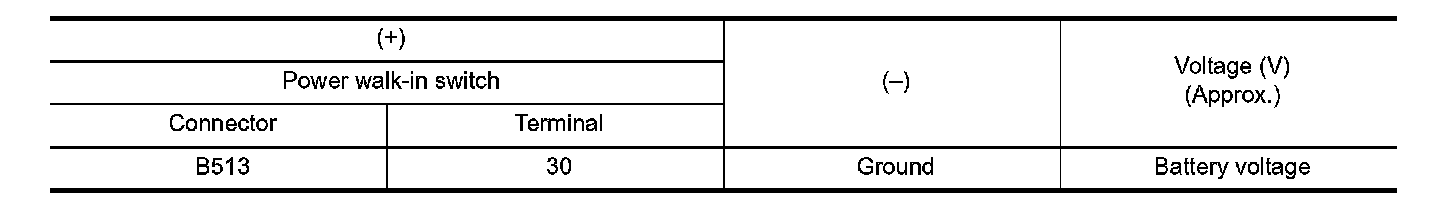

3. Check voltage between power walk-in switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 2.
2.CHECK POWER WALK-IN SWITCH CIRCUIT
1. Disconnect driver seat control unit connector.
2. Check continuity between driver seat control unit harness connector and power walk-in switch harness connector.

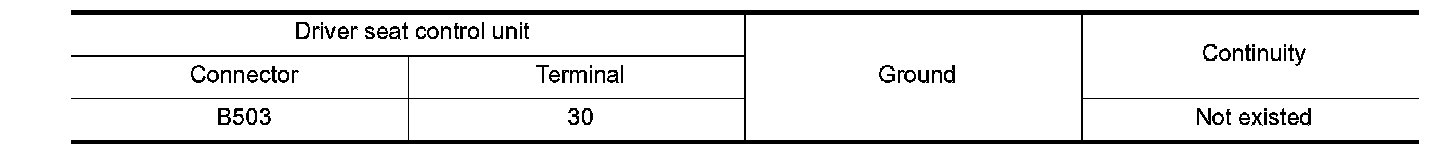

3. Check continuity between driver seat control unit harness connector and ground.





Is the inspection result normal?
YES - Replace driver seat control unit. Refer to Removal and Installation.
NO - Repair or replace harness.
3.CHECK POWER WALK-IN SWITCH GROUND CIRCUIT

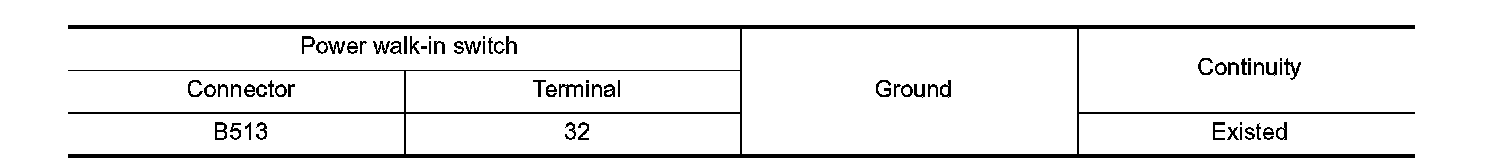

Check continuity between power walk-in switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace harness.
4.CHECK POWER WALK-IN SWITCH
Check power walk-in switch. Refer to Component Inspection.
Is the inspection result normal?
YES - GO TO 5.
NO - Replace power walk-in switch. Refer to Exploded View.
5.CHECK INTERMITTENT INCIDENT
Check intermittent incident. Refer to Intermittent Incident.
- INSPECTION END
