Component Function Check

POWER WALK-IN SWITCH


DRIVER SIDE : Component Function Check

1.CHECK FUNCTION
1. Turn ignition switch ON.
2. Select "WALK-IN SW" in the "Data Monitor" mode using CONSULT-III.

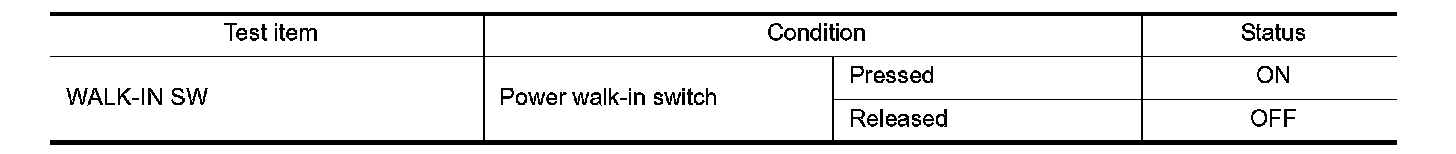

3. Check the power walk-in switch signal under the following condition.





Is the indication normal?
YES - Power walk-in switch function is OK.
NO - Refer to Diagnosis Procedure.
