Component Inspection

POWER SUPPLY AND GROUND CIRCUIT


CLIMATE CONTROLLED SEAT CONTROL UNIT : Component Inspection

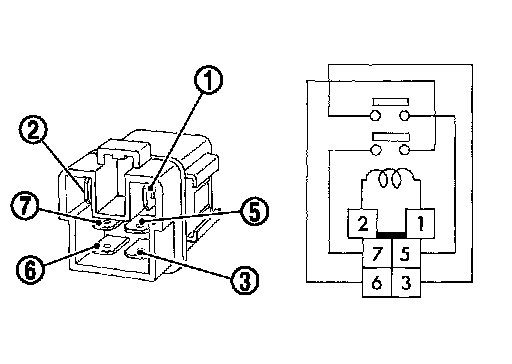

1.CHECK CLIMATE CONTROLLED SEAT
RELAY
1. Turn ignition switch OFF.
2. Disconnect climate controlled seat relay.

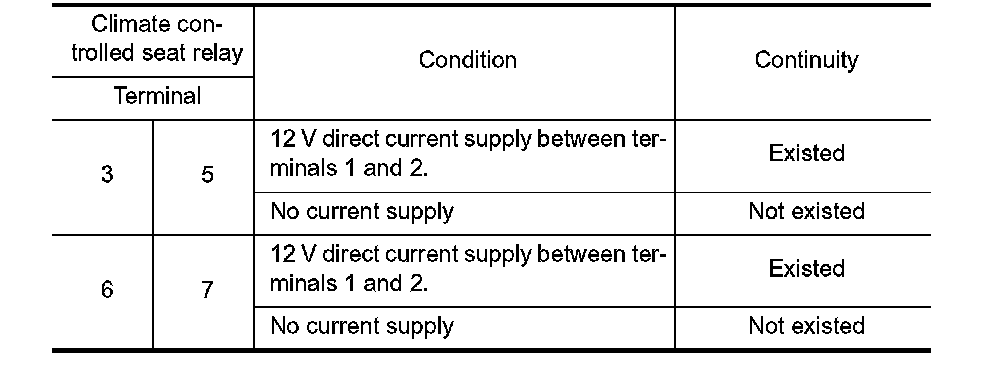

3. Check climate controlled seat relay.





Is the inspection result normal?
YES - INSPECTION END.
NO - Replace climate controlled seat relay.
