Component Function Check





ROOF OPEN/CLOSE SWITCH


Component Function Check

1.CHECK FUNCTION

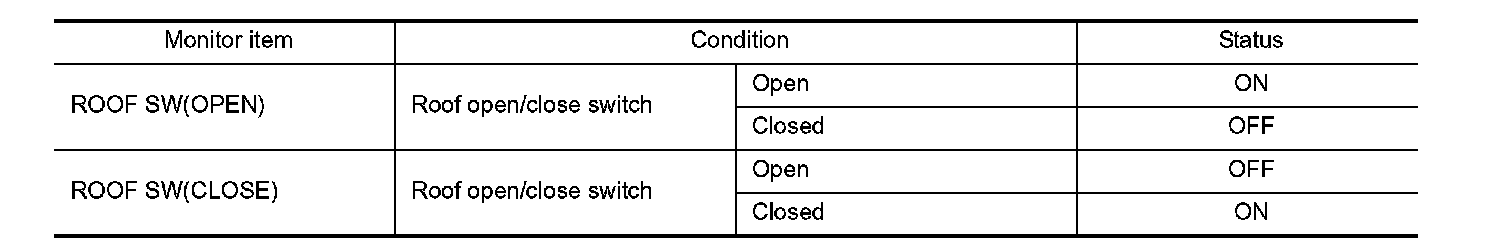

Check ("ROOF SW(OPEN)" or "ROOF SW(CLOSE)") in retractable hard top control unit "Data Monitor" mode using CONSULT-III.





Is the inspection result normal?
YES - Roof open/close switch is normal.
NO - Refer to Diagnosis Procedure.
