Diagnosis Procedure

RETRACTABLE HARD TOP CONTROL UNIT


Description

Retractable hard top control unit detects roof state and controls rear defogger.




RETRACTABLE HARD TOP CONTROL UNIT


Diagnosis Procedure

1.CHECK FUSE
1. Turn ignition switch OFF.
2. Check the following.
- 20A fuse [No.14, located in fuse block (J/B)]
- 20A fuse [No.15, located in fuse block (J/B)]
Is the inspection result normal
YES - GO TO 2.
NO - Replace the blown fuse after repairing the affected circuit if a fuse is blown.
2.CHECK RETRACTABLE HARD TOP CONTROL UNIT CIRCUIT
1. Disconnect retractable hard top control unit connector and fuse block (J/B) connector.

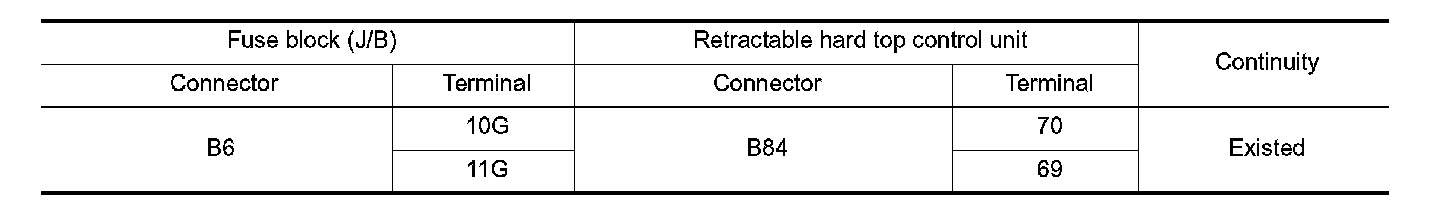

2. Check continuity between retractable hard top control unit and fuse block (J/B) harness connector.

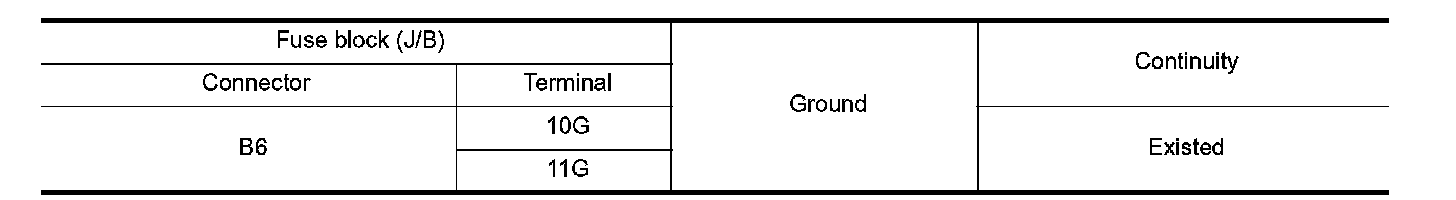

3. Check continuity between retractable hard top control unit and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - Repair or replace harness and ground.
3.CHECK FUSE BLOCK (J/B)
1. Turn ignition switch ON.

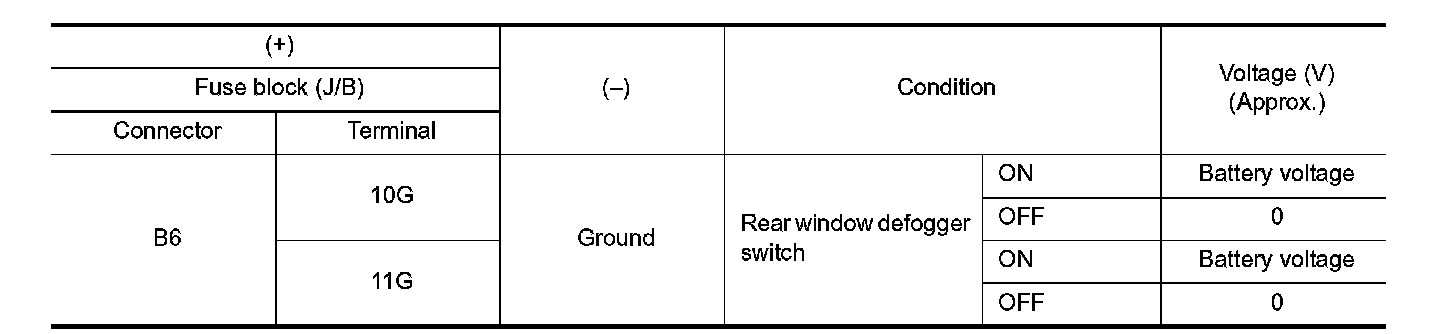

2. Check voltage between fuse block (J/B) (fuse block side) and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace fuse block (J/B).
4.CHECK INTERMITTENT INCIDENT
Check intermittent incident. Refer to Intermittent Incident
- INSPECTION END.
