Parcel Shelf Motor (Draw)

PARCEL SHELF MOTOR (DRAW)


Description

Parcel shelf is installed in trunk room and integrates parcel shelf motor (rotation) and parcel shelf motor (draw). During sequential operations of retractable hard top system, parcel shelf motor (rotation) rotates parcel shelf board, parcel shelf motor (draw) draws parcel shelf board.




PARCEL SHELF MOTOR (DRAW)


Diagnosis Procedure

1.CHECK PARCEL SHELF MOTOR (DRAW) CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect retractable hard top control unit connector and parcel shelf unit connector.

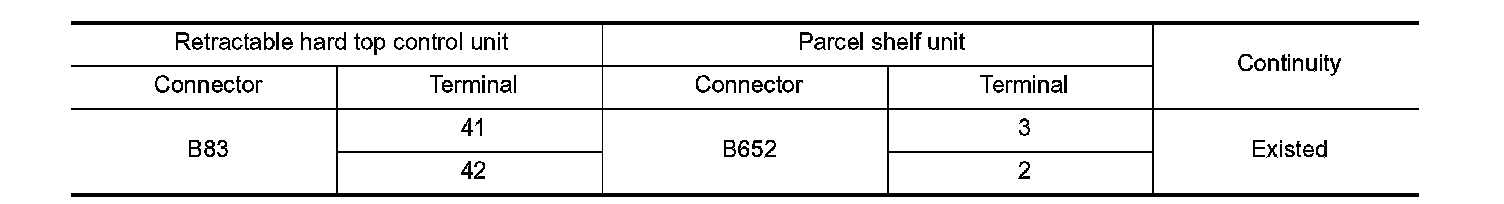

3. Check the continuity between retractable hard top control unit harness connector and parcel shelf unit harness connector.





4. Check harness for short to ground.
Is the inspection result normal?
YES - GO TO 2.
NO - Repair or replace harness.
2.CHECK PARCEL SHELF MOTOR (DRAW) GROUND CIRCUIT

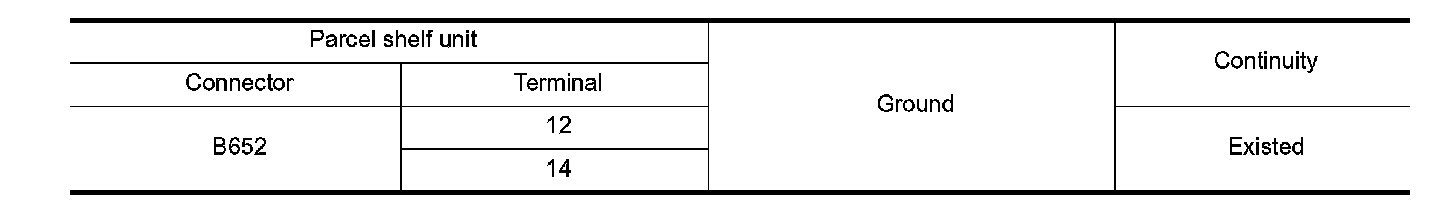

1. Check the continuity between parcel shelf unit harness connector and ground.





2. Check harness for short to ground.
Is the inspection result normal?
YES - GO TO 3.
NO - Repair or replace harness.
3.CHECK PARCEL SHELF MOTOR (DRAW) POWER SUPPLY
1. Turn ignition switch OFF.
2. Connect retractable hard top control unit connector.
3. Turn ignition switch ON.

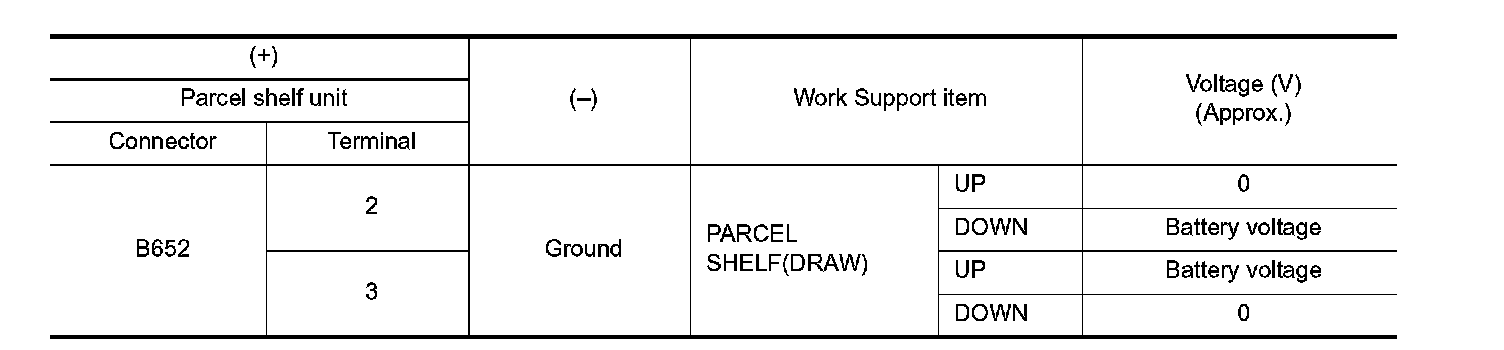

4. Check the voltage between parcel shelf unit harness connector and ground with CONSULT-III.





Is the inspection result normal?
YES - Replace parcel shelf unit. Refer to Removal and Installation.
NO - Replace retractable hard top control unit. Refer to Service and Repair.
