Diagnosis Procedure

FLIPPER DOOR LIMIT SWITCH


Description

Flipper door (LH/RH) is installed on trunk lid back side. Each flipper door integrates flipper door motor and flipper door limit switch. Up and down operations are performed by flipper door motor. Up and down positions of flipper door are detected by flipper door limit switch.




FLIPPER DOOR LIMIT SWITCH


Diagnosis Procedure

1.CHECK ROOF OPEN/CLOSE SWITCH POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect roof open/close switch connector.
3. Turn ignition switch ON.
4. Check the voltage between roof open/close switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 2.
2.CHECK ROOF OPEN/CLOSE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect retractable hard top control unit connector.

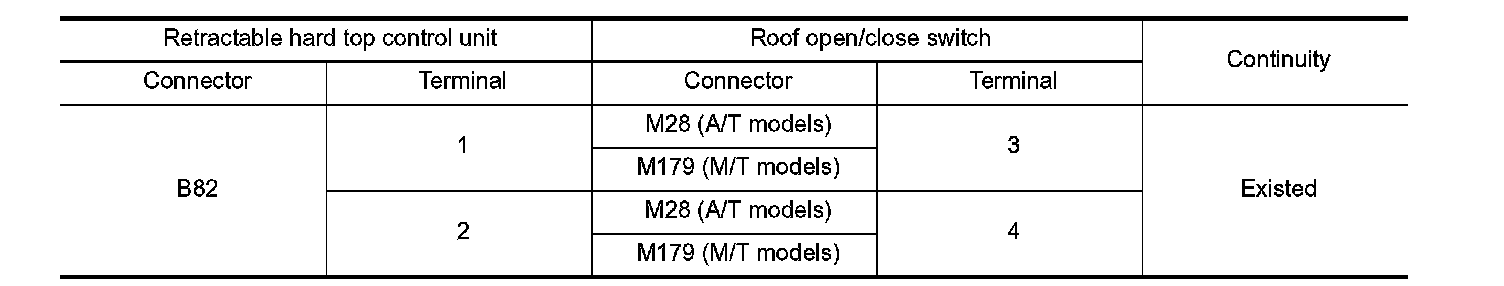

3. Check the continuity between retractable hard top control unit harness connector and roof open/close switch harness connector.





4. Check harness for short to ground.
Is the inspection result normal?
YES - GO TO 5.
NO - Repair or replace harness.
3.CHECK ROOF OPEN/CLOSE SWITCH GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect retractable hard top control unit connector.

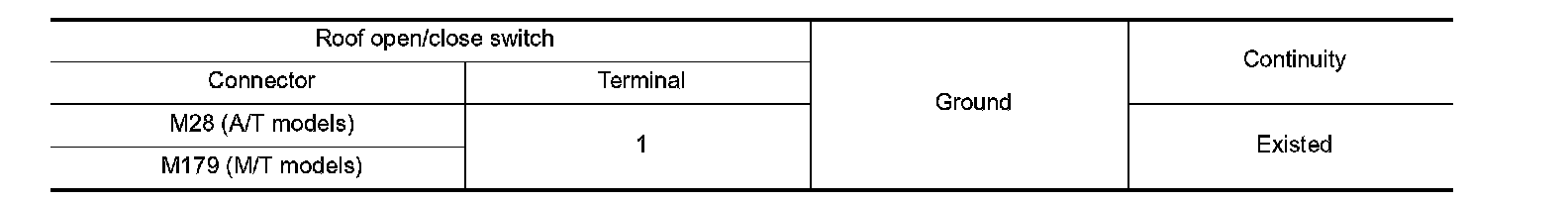

3. Check the continuity between roof open/close switch harness connector and ground.





4. Check harness for short to ground.
Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace harness.
4.CHECK ROOF OPEN/CLOSE SWITCH
Refer to B170B.
Is the inspection result normal?
YES - GO TO 5.
NO - Replace roof open/close switch. Refer to Retractable Hard Top System.
5.REPLACE RETRACTABLE HARD TOP CONTROL UNIT
1. Replace retractable hard top control unit. Refer to Retractable Hard Top System.
2. Refer to Special Repair Requirement.
Is the inspection result normal?
YES - INSPECTION END
NO - GO TO 6.
6.CHECK INTERMITTENT INCIDENT
Refer to Intermittent Incident.
- INSPECTION END
