Removal and Installation

CENTER ROOF PANEL


Removal and Installation


REMOVAL

CAUTION:
Protect the rear fender with a fender protector.

NOTE:
Operate roof manually if it does not operate electrically. Refer to .
1. Remove headlining. Refer to Removal and Installation.
2. Remove trunk room trim. Refer to Removal and Installation.





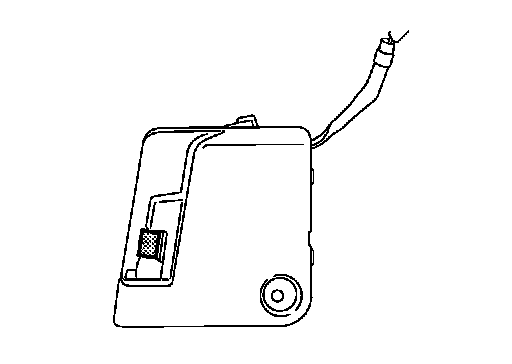

3. Put small piece to the tonneau board switch, connect harness connector to vehicle.

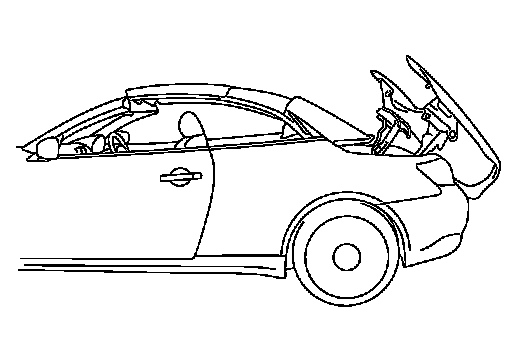

4. Stop roof as shown in the figure (during open operation).





5. Remove rear side trim. Refer to Exploded View.
6. Put matching mark on center roof panel.
7. Loosen center roof panel mounting TORX bolts, record shim quantity, and remove shims.
8. Remove center roof panel mounting TORX bolts and remove center roof panel.

INSTALLATION
1. Temporarily fix center roof panel to roof link.
2. Insert shims between center roof panel and roof link according to recorded shim quantity.
3. Align matching mark and tighten TORX bolts.
4. Install rear side trim. Refer to Exploded View.

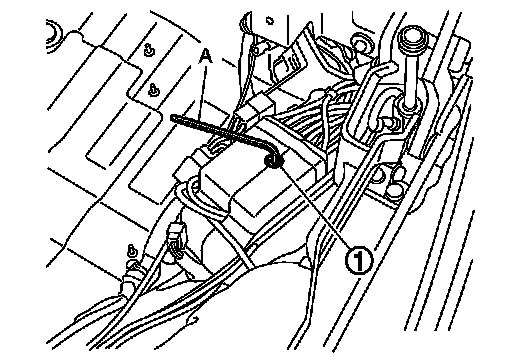

5. Open hydraulic unit valve (1) slowly while supporting roof. Using a hexagon wrench (A).
6. Open and close roof manually and check that interference is not detected.

CAUTION:
- This operation requires two people.
- Keep hands away from the moving parts.
7. Close hydraulic unit valve.
8. Install trunk room trim. Refer to Removal and Installation.
9. Perform center roof panel adjustment. Refer to Center Roof Panel.
10. Install headlining. Refer to Removal and Installation.
