Home >> Infiniti >> 2009 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Locations >> Retractable Hard Top System Control >> Roof Latch Function

Roof Latch Function





RETRACTABLE HARD TOP SYSTEM CONTROL

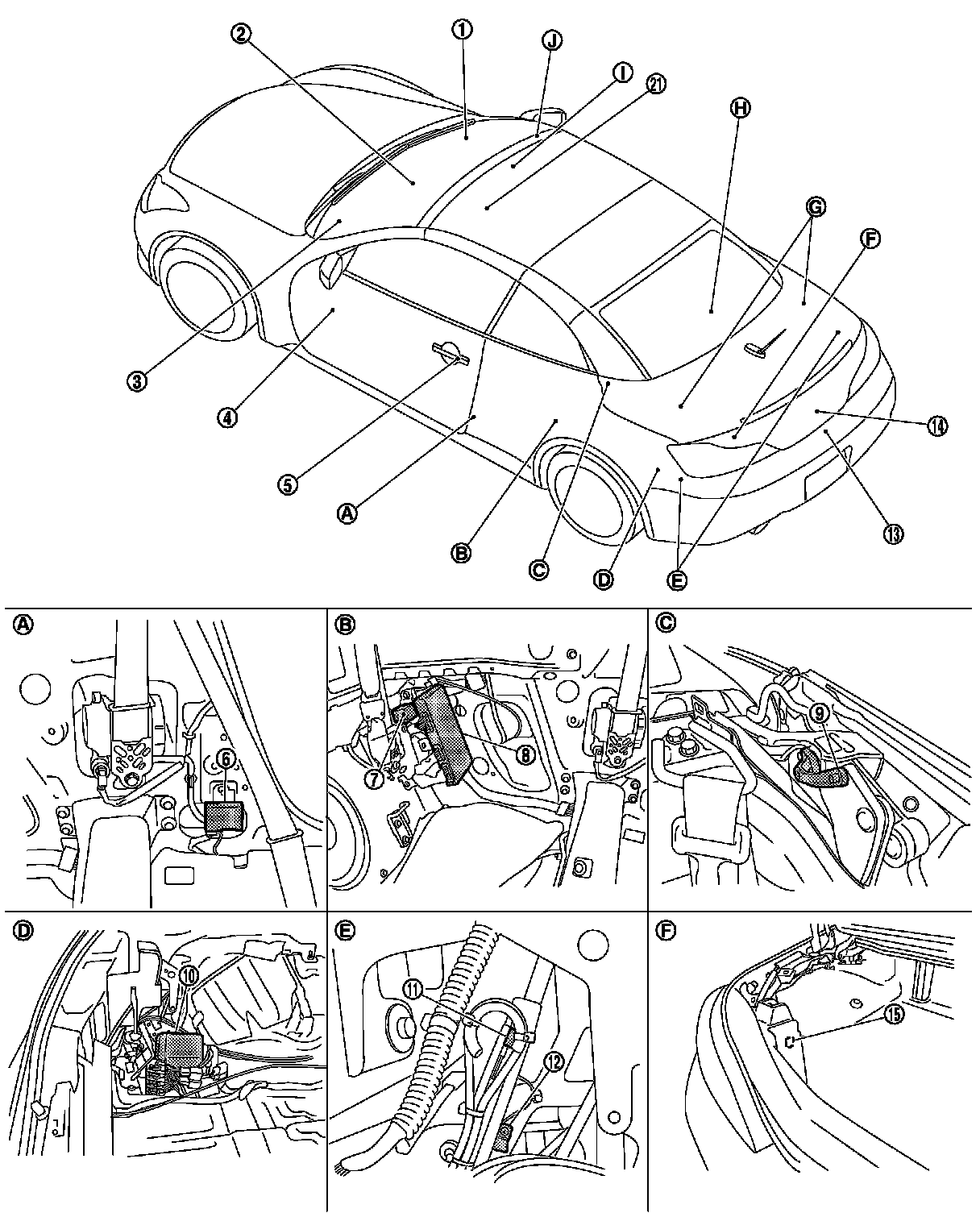

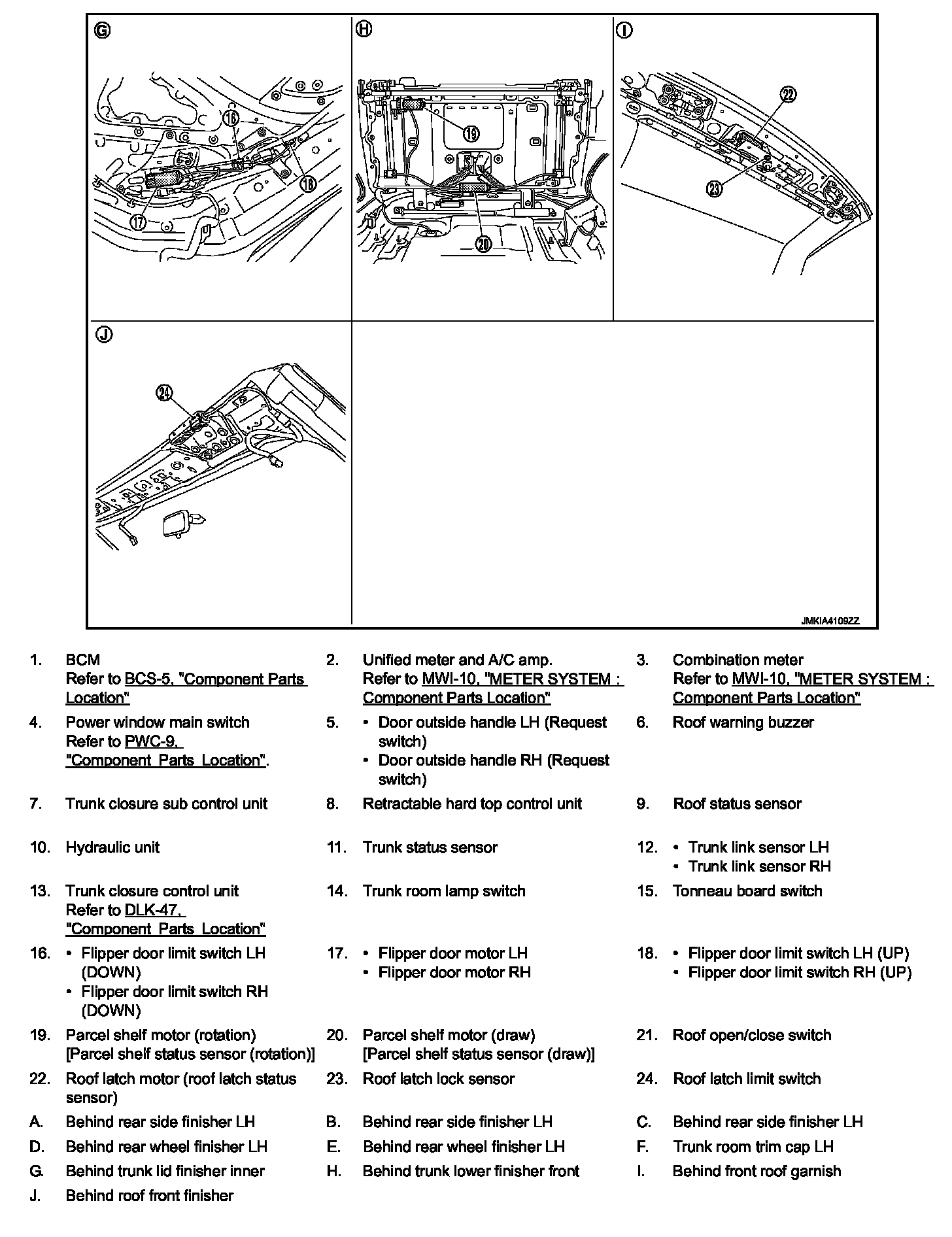

ROOF LATCH FUNCTION : Component Parts Location
