Flipper Door Function





RETRACTABLE HARD TOP SYSTEM CONTROL

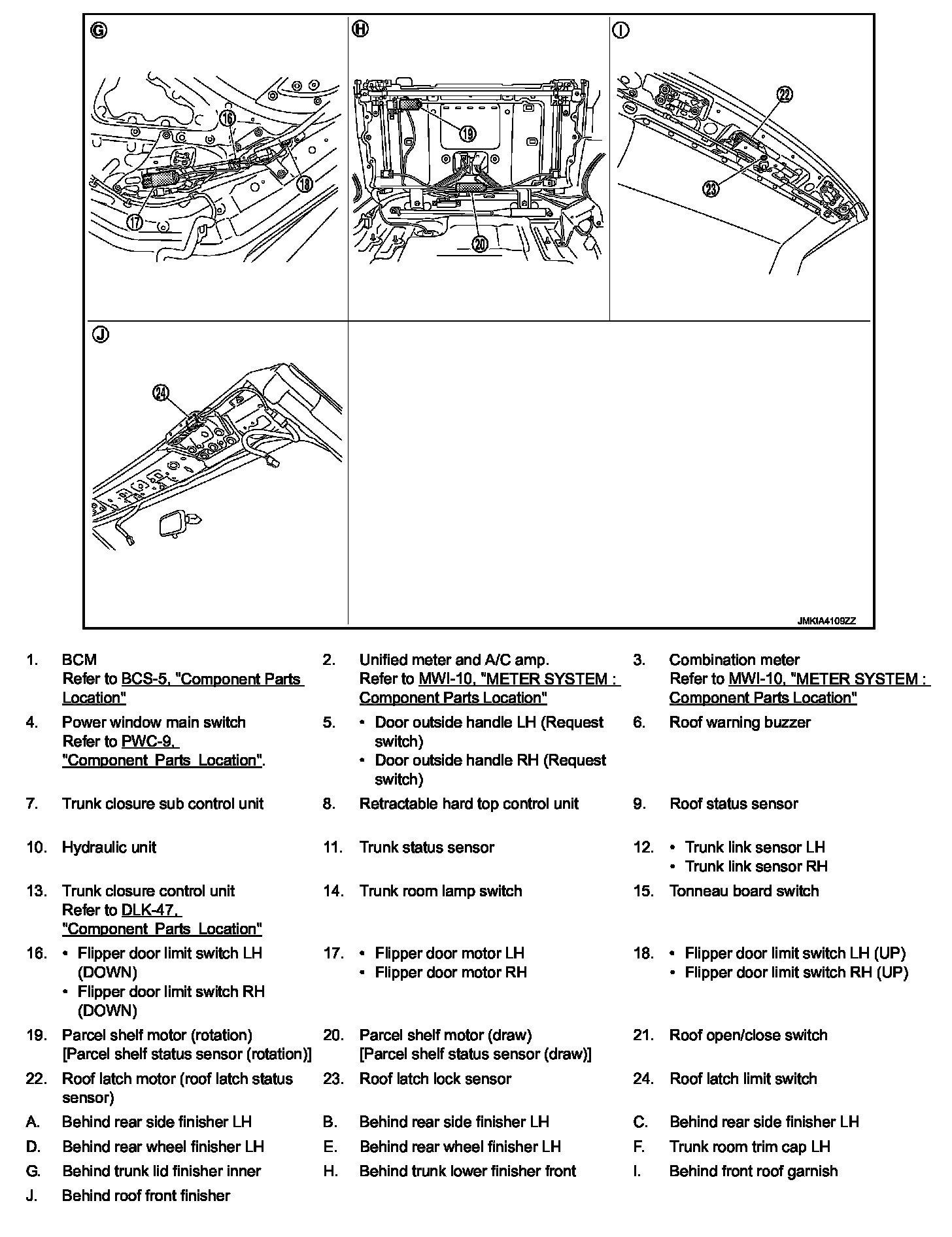

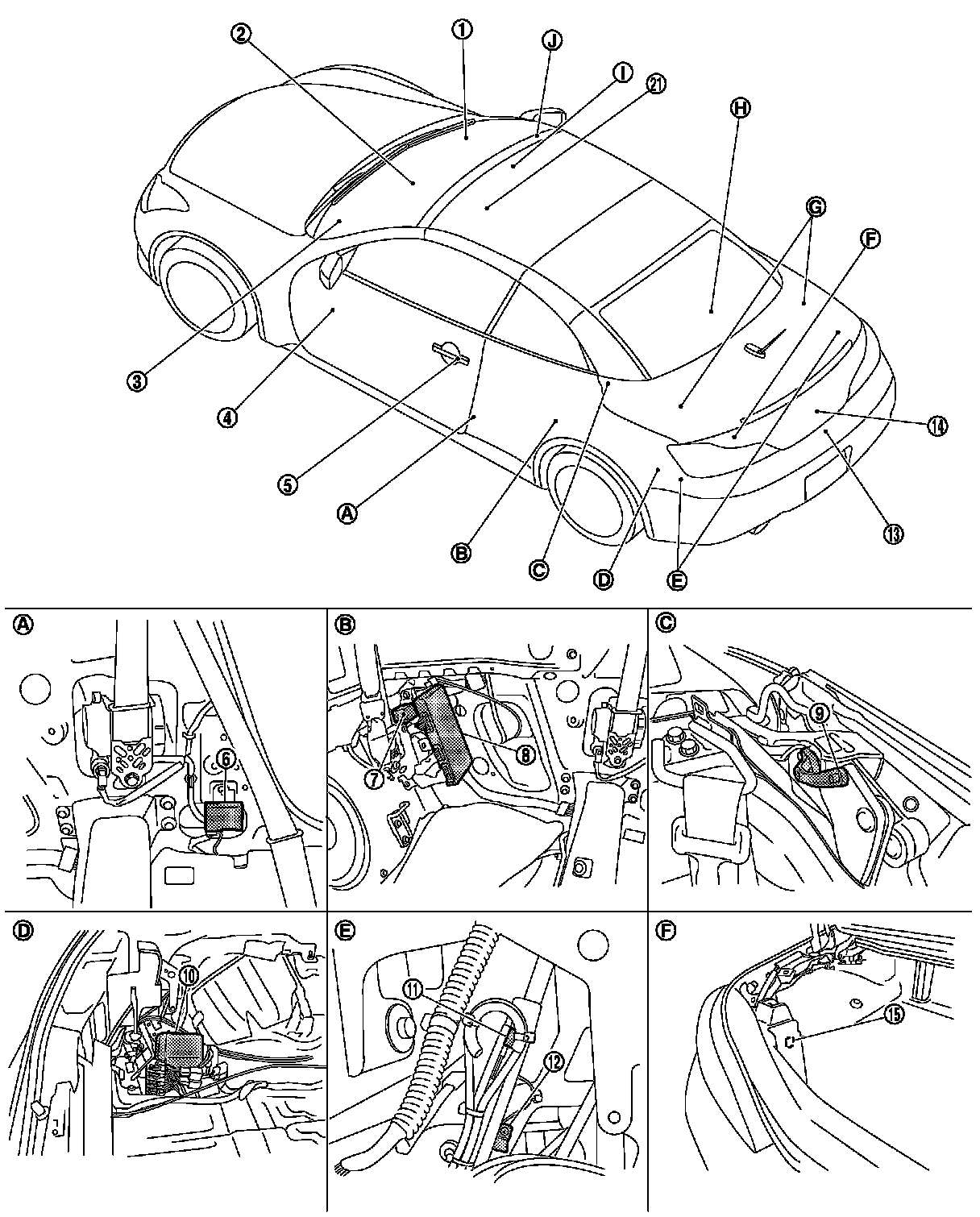

FLIPPER DOOR FUNCTION : Component Parts Location
