Trunk Closure Sub-Control Unit





TRUNK CLOSURE SUB-CONTROL UNIT

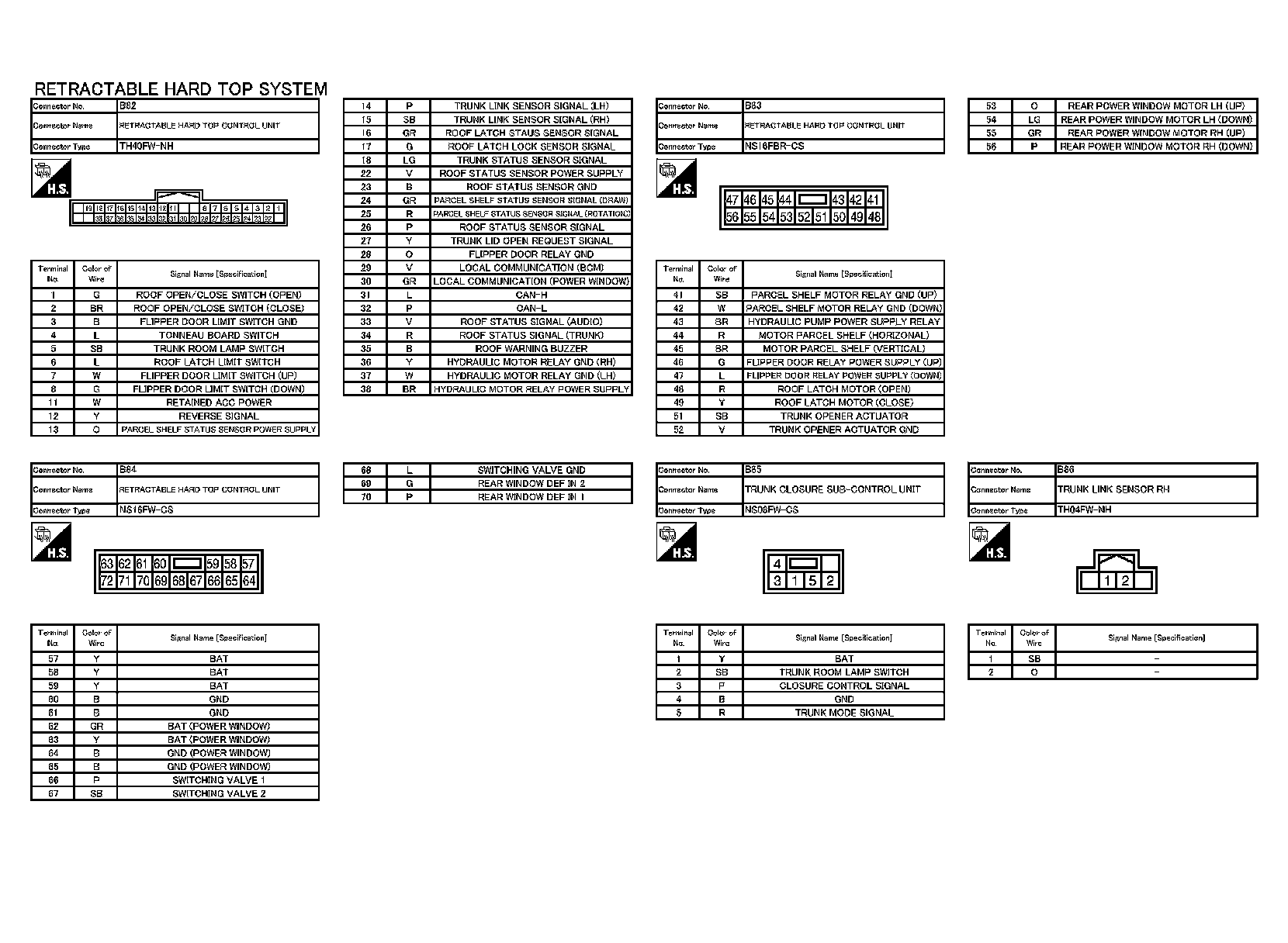

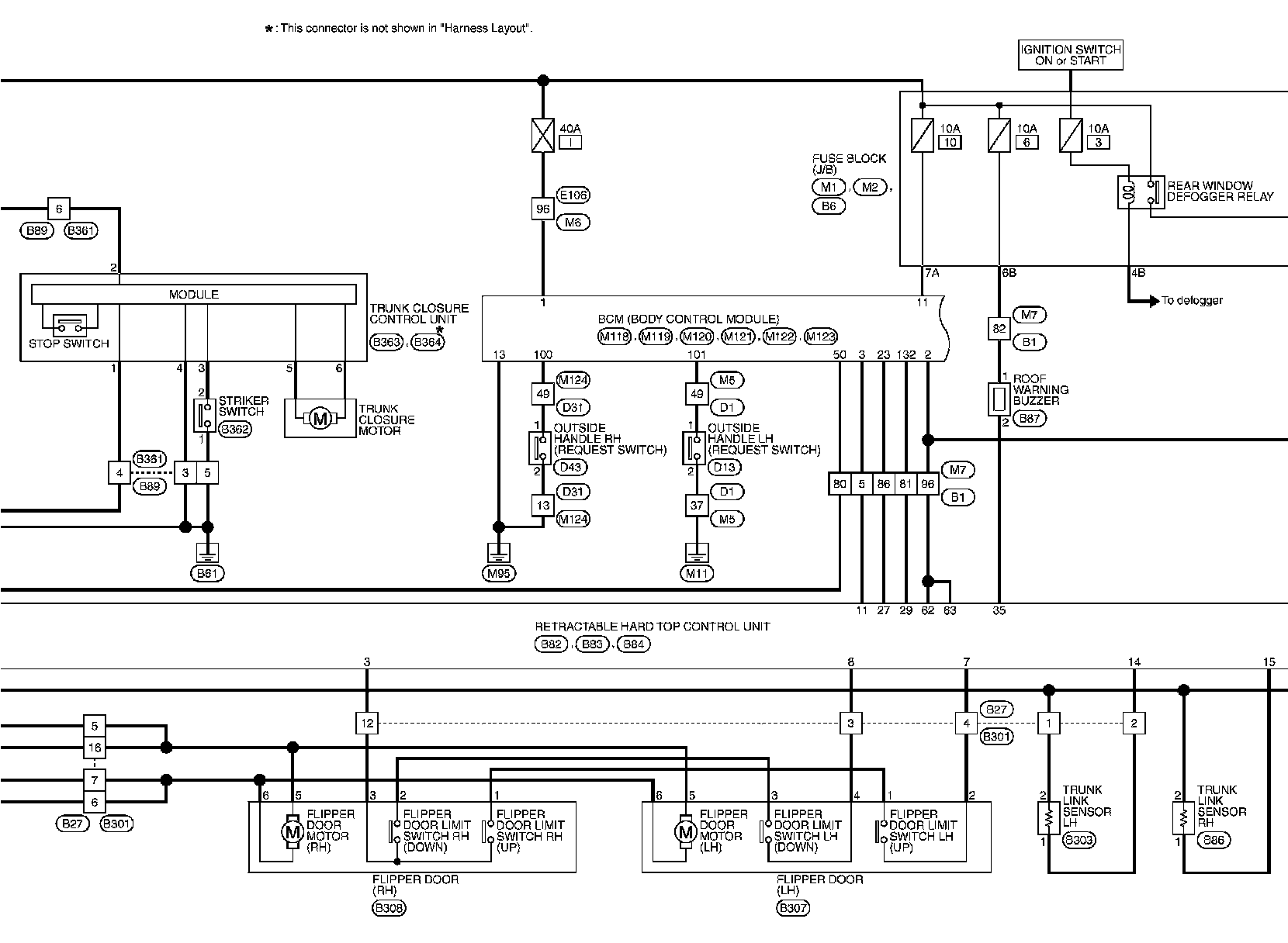

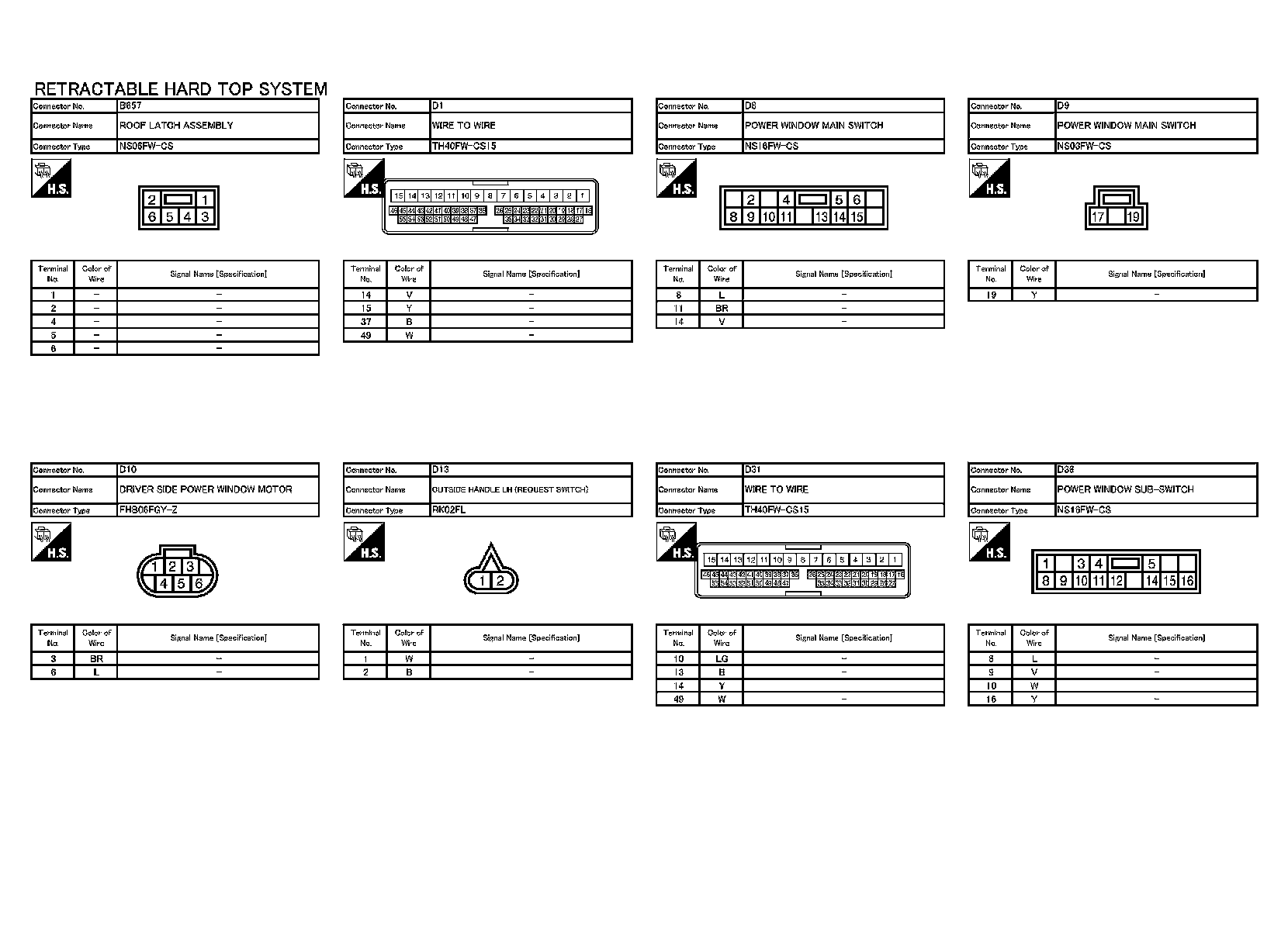

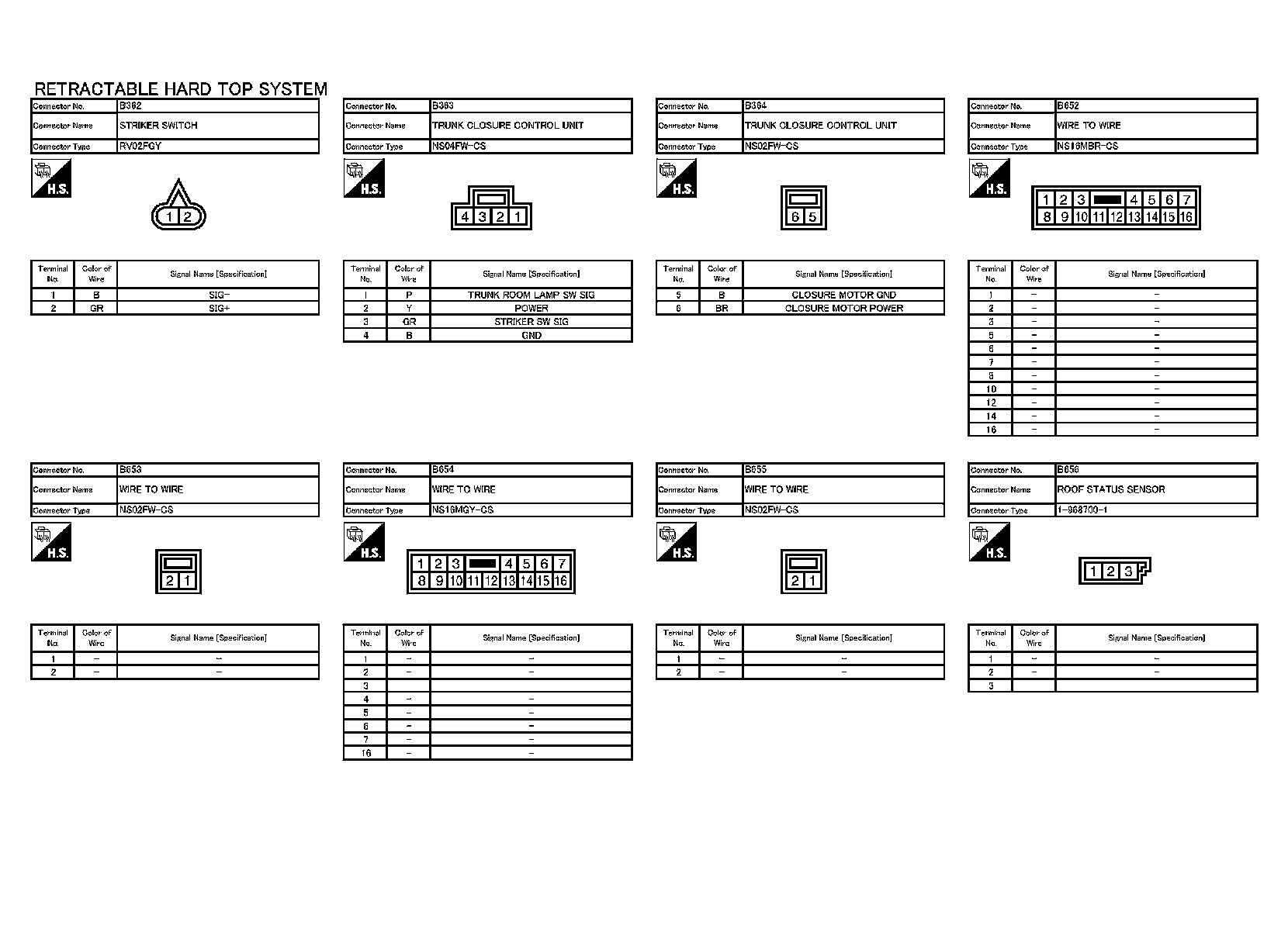

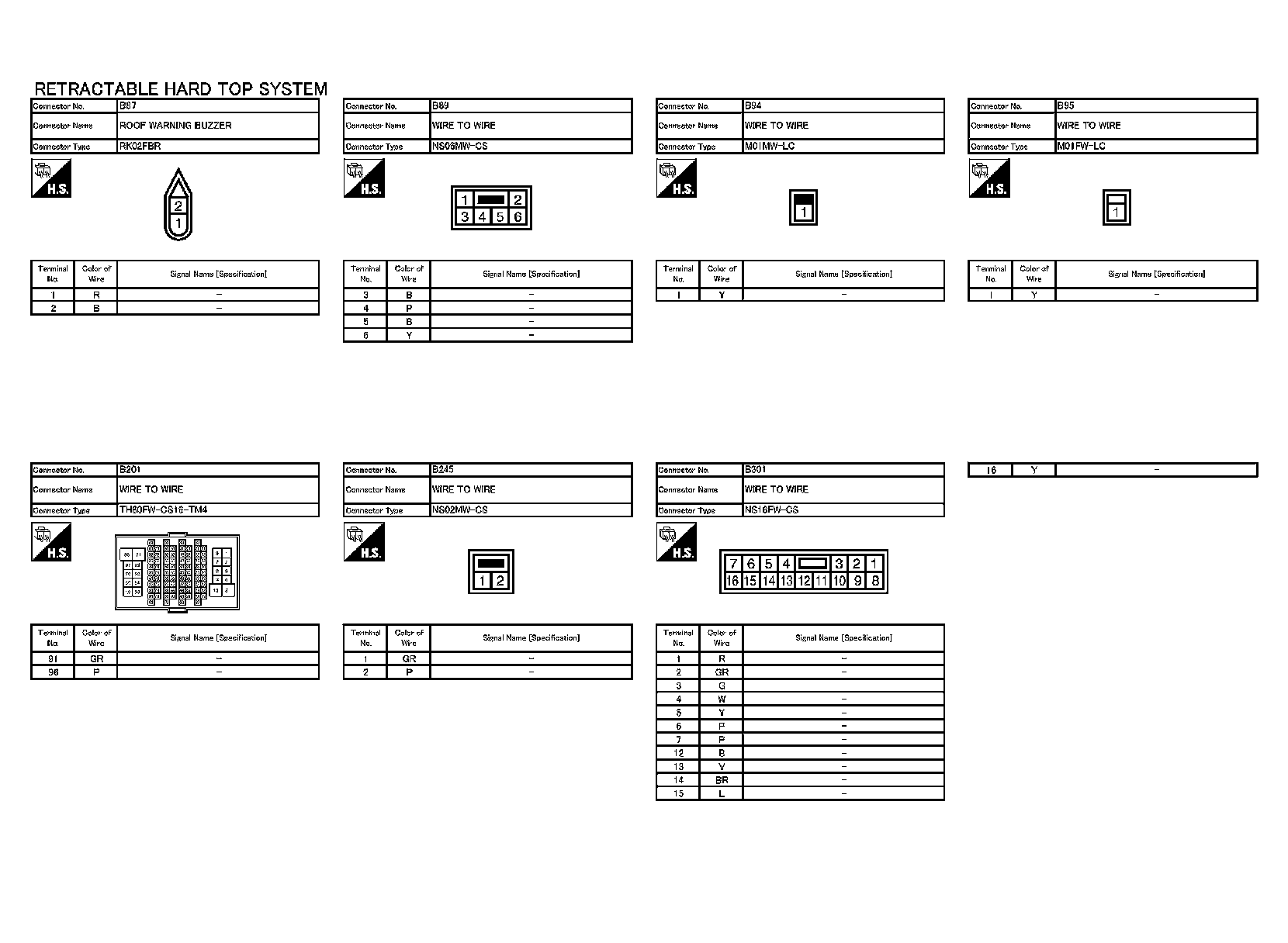

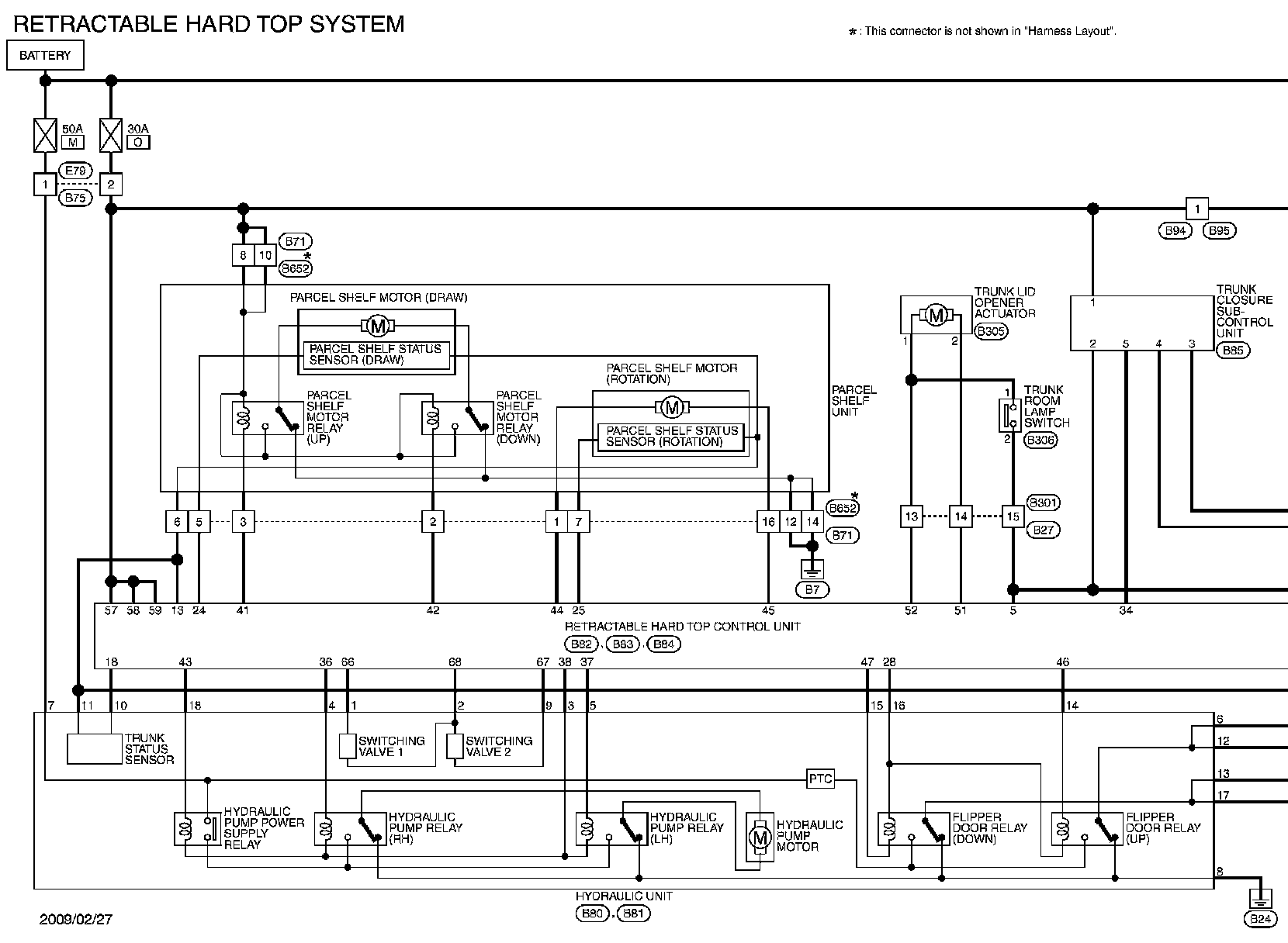

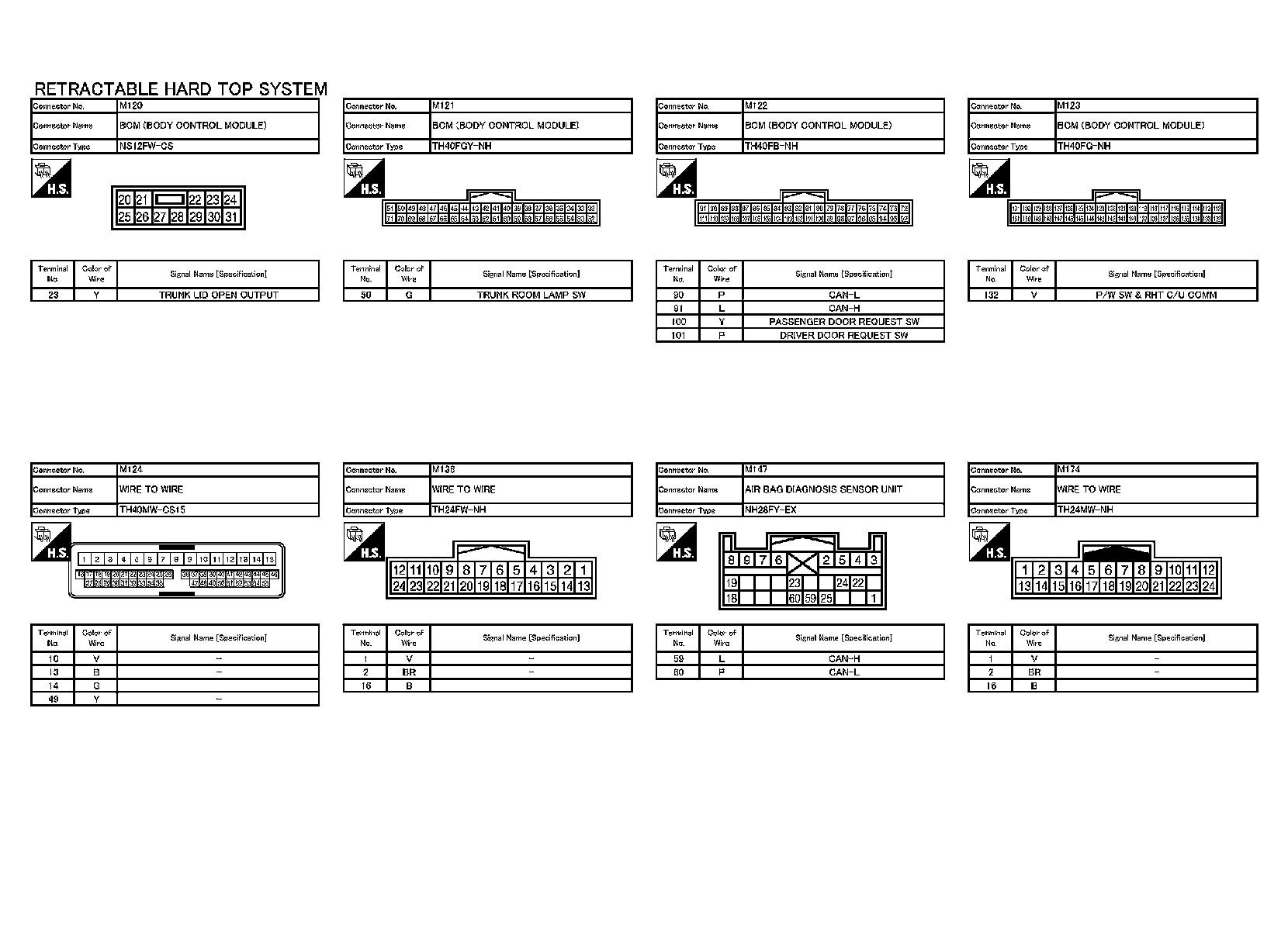

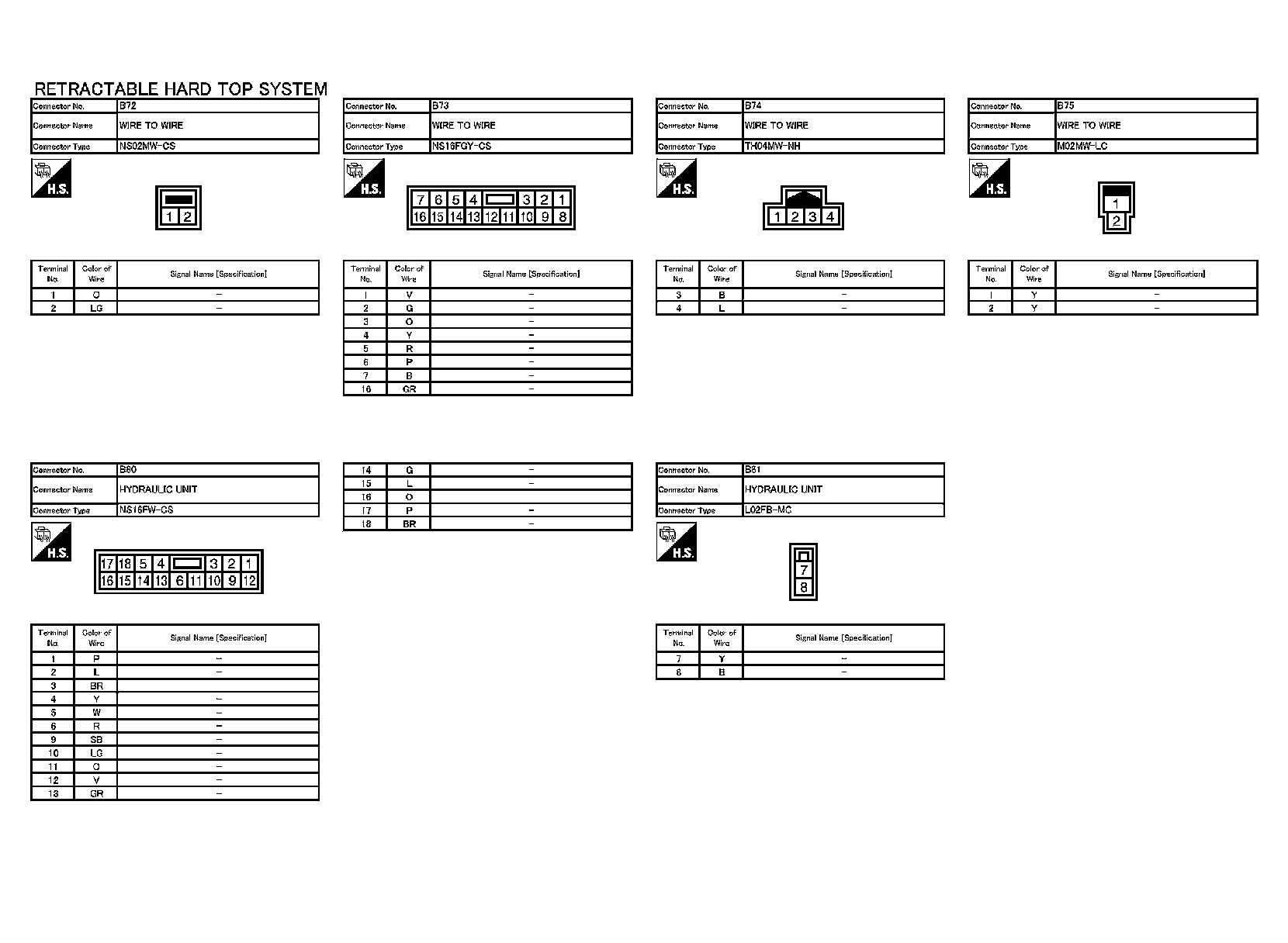

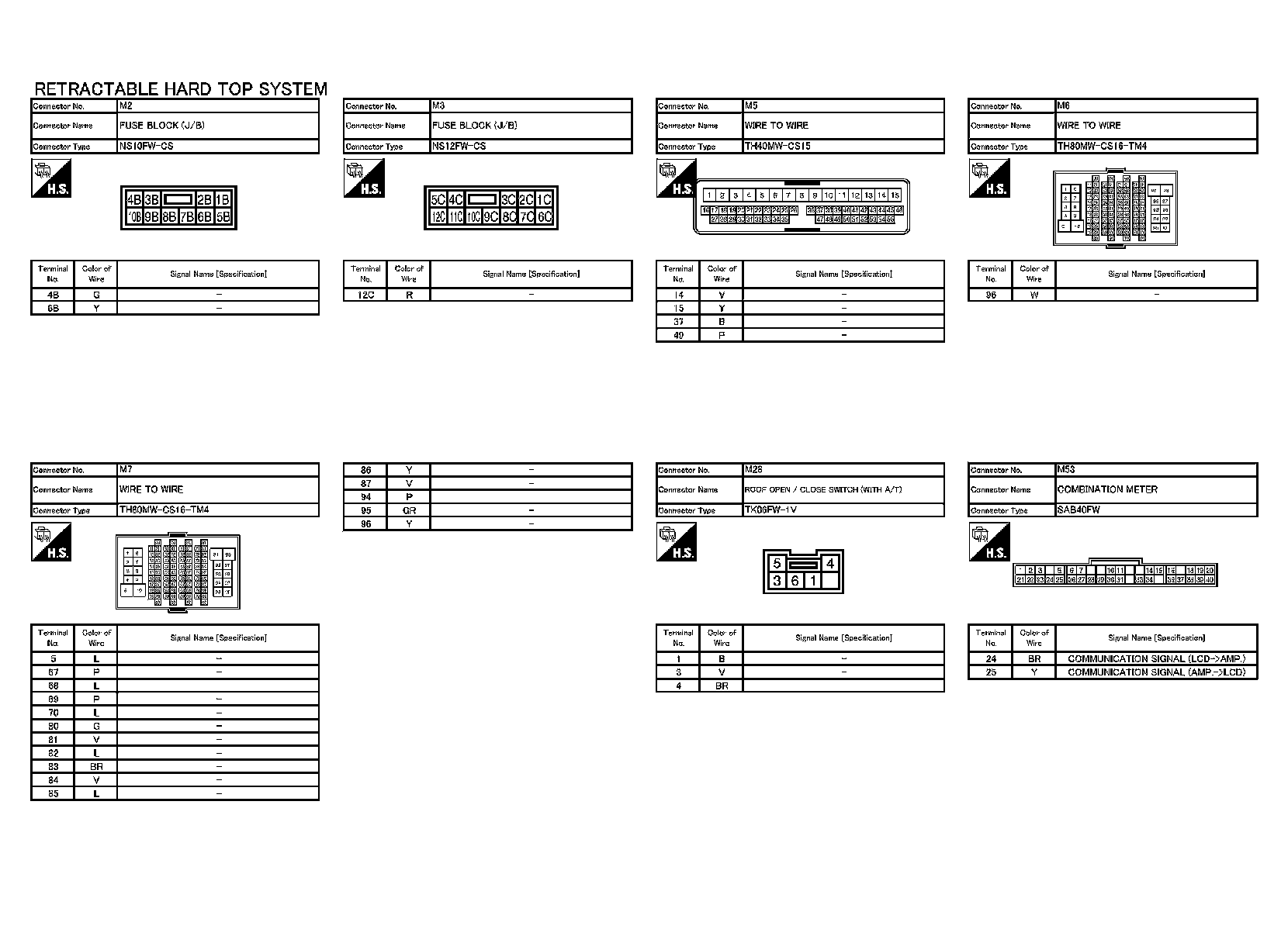

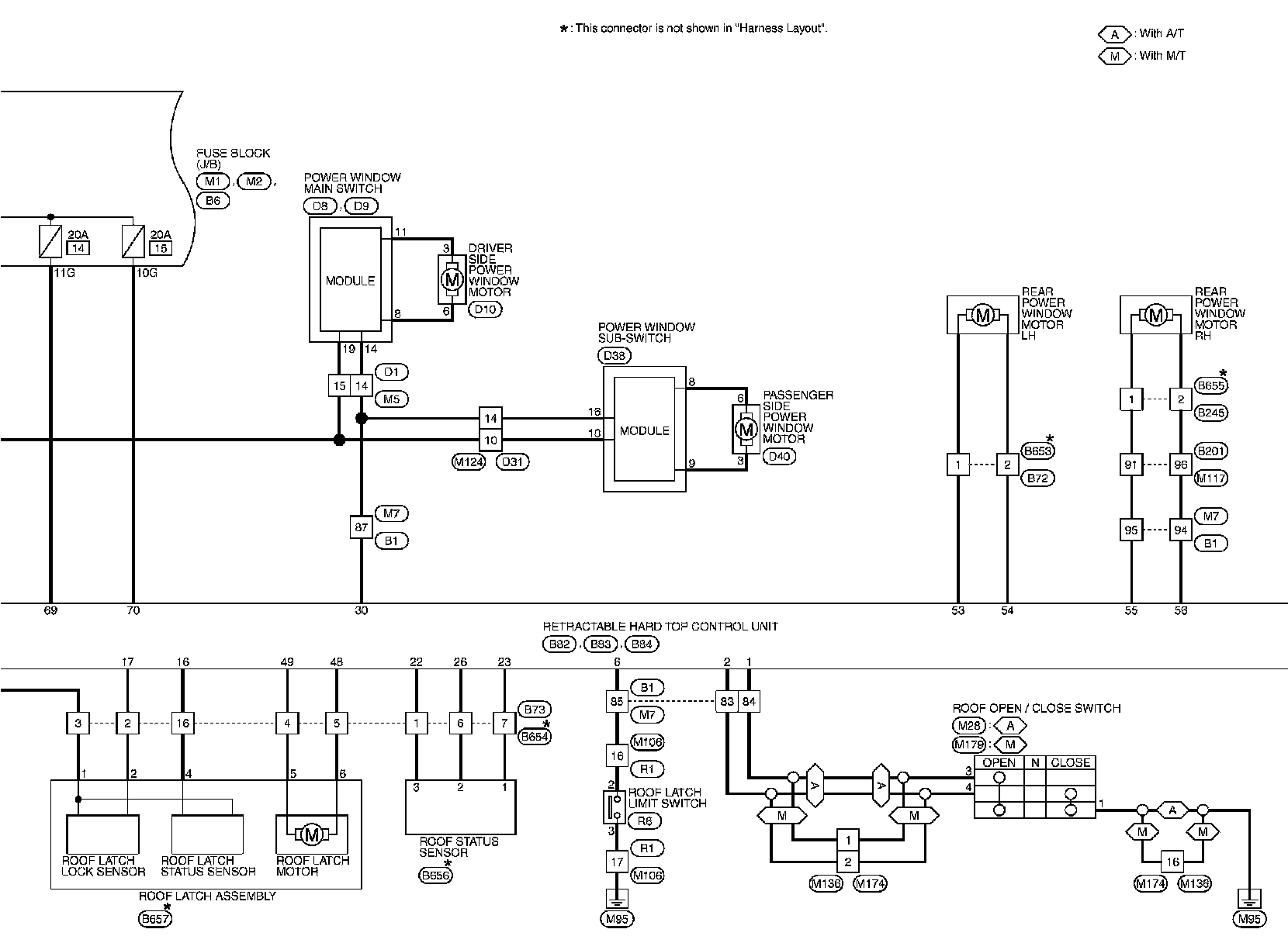

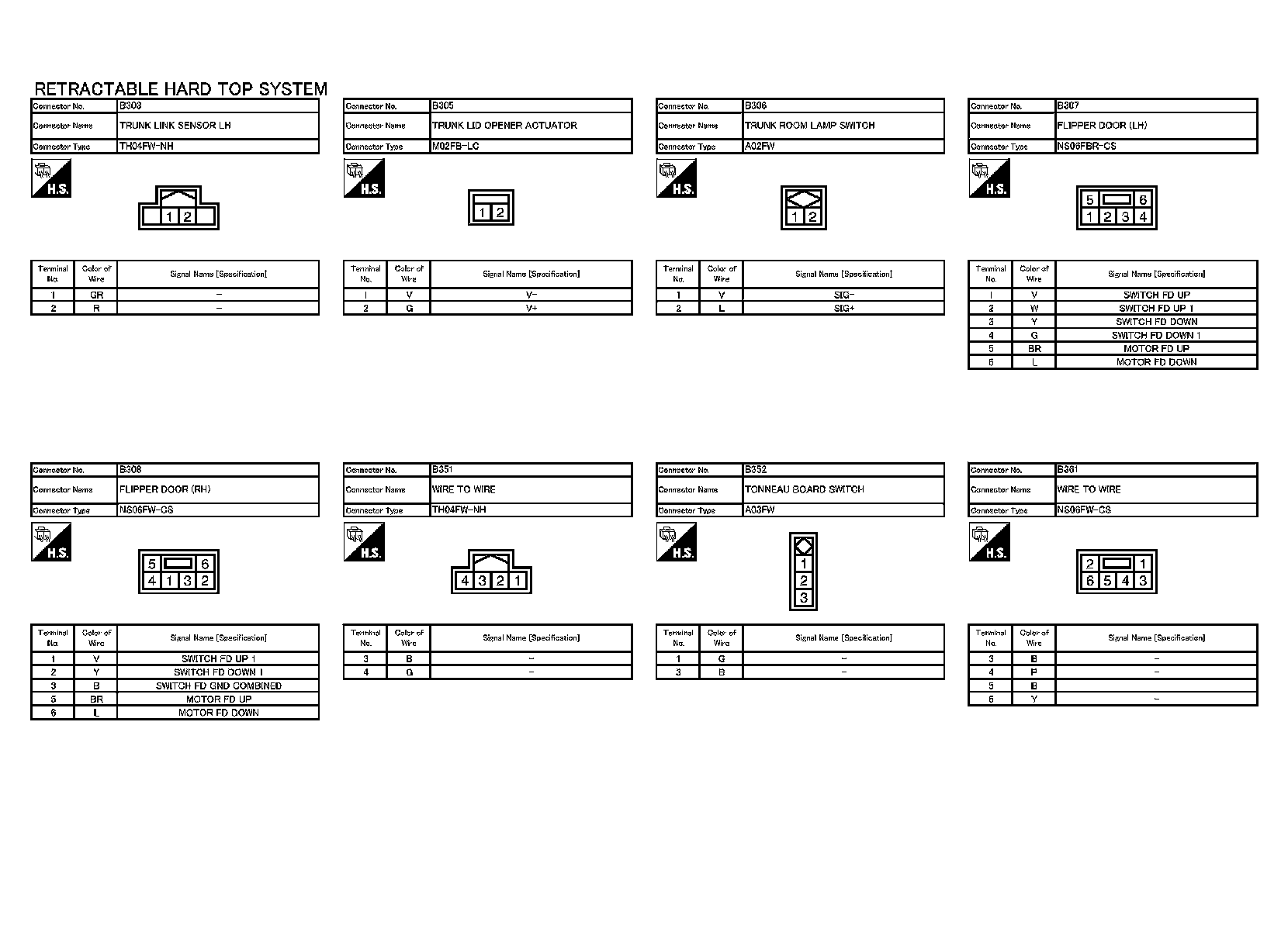

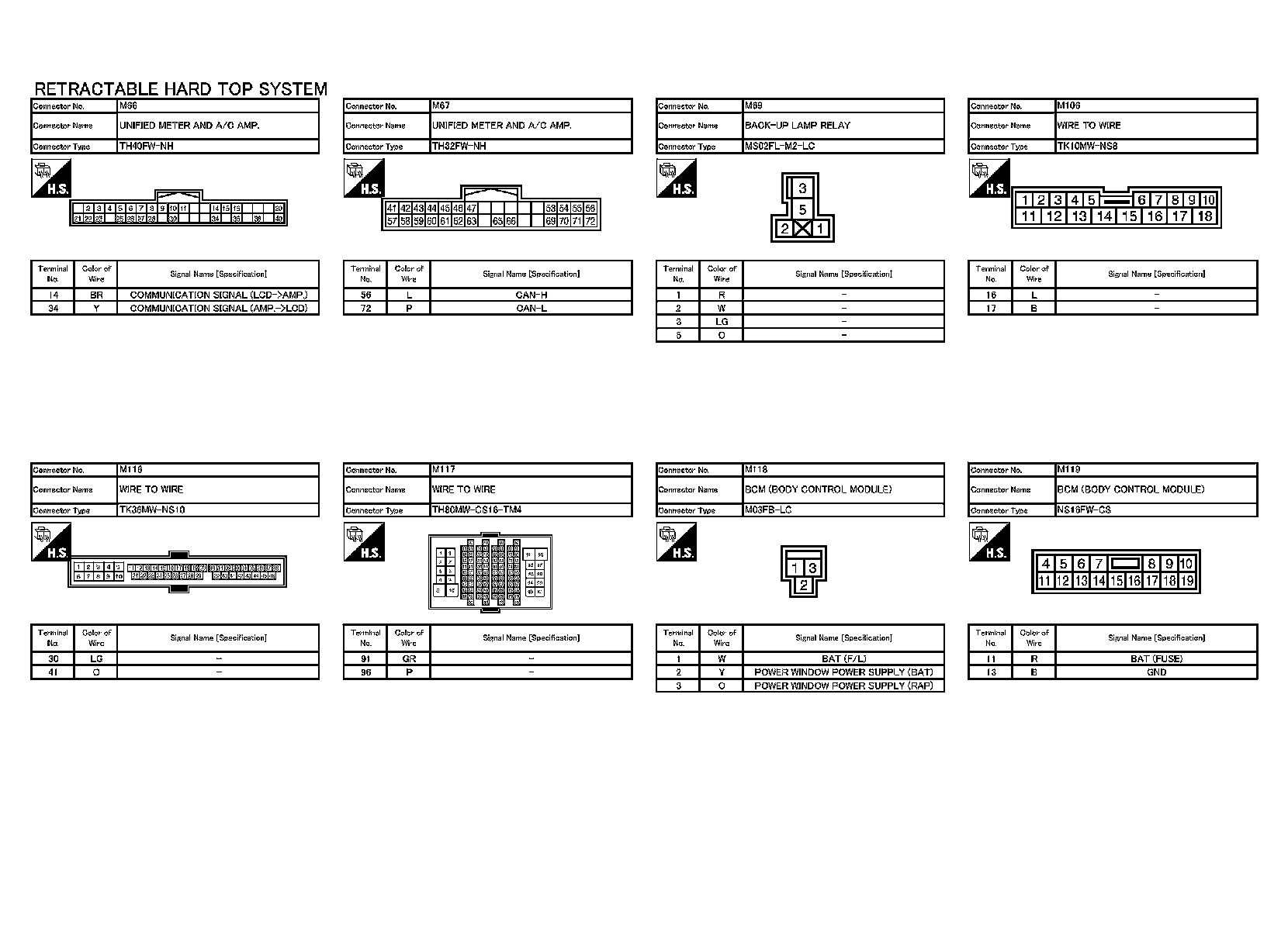

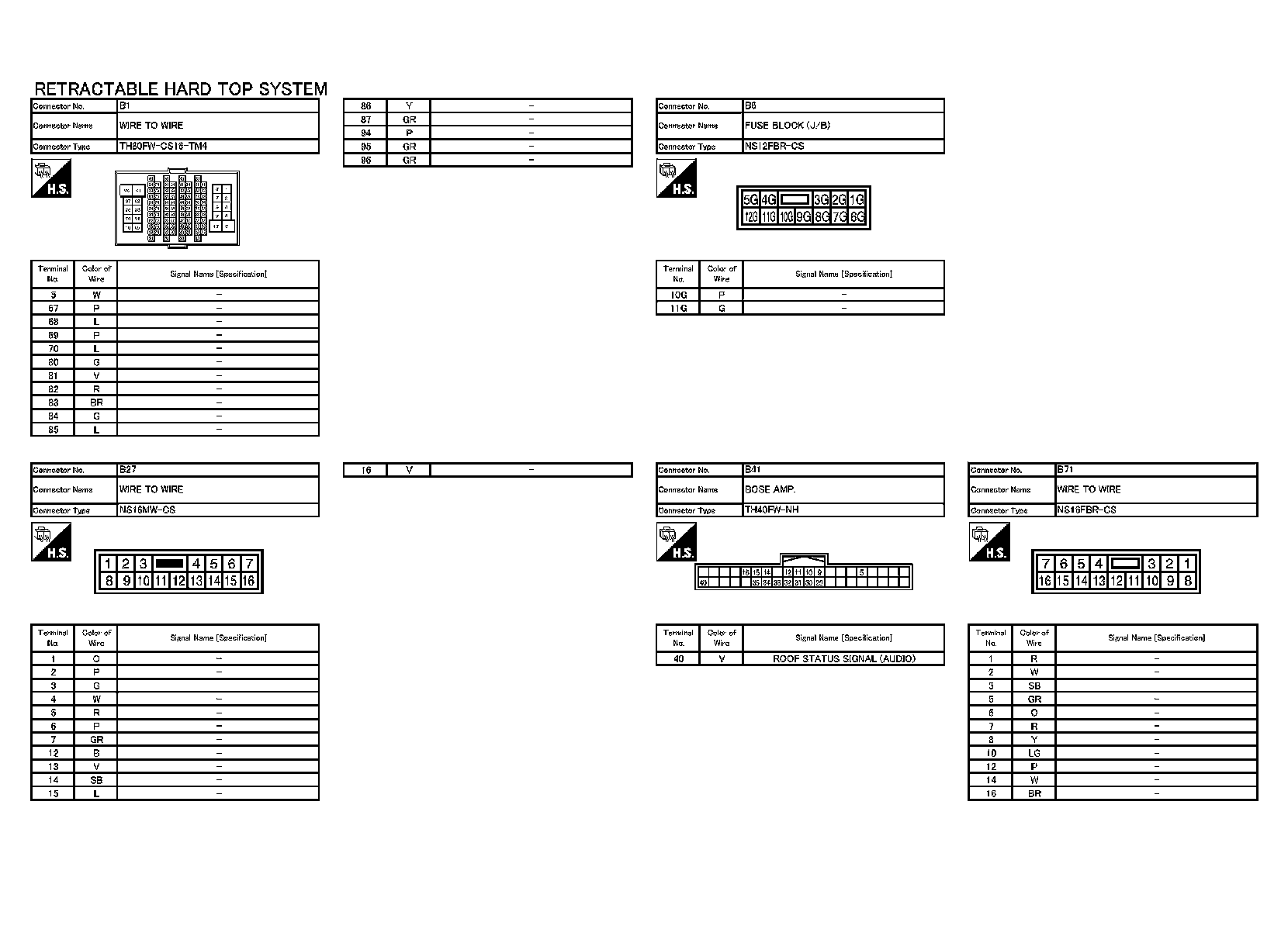

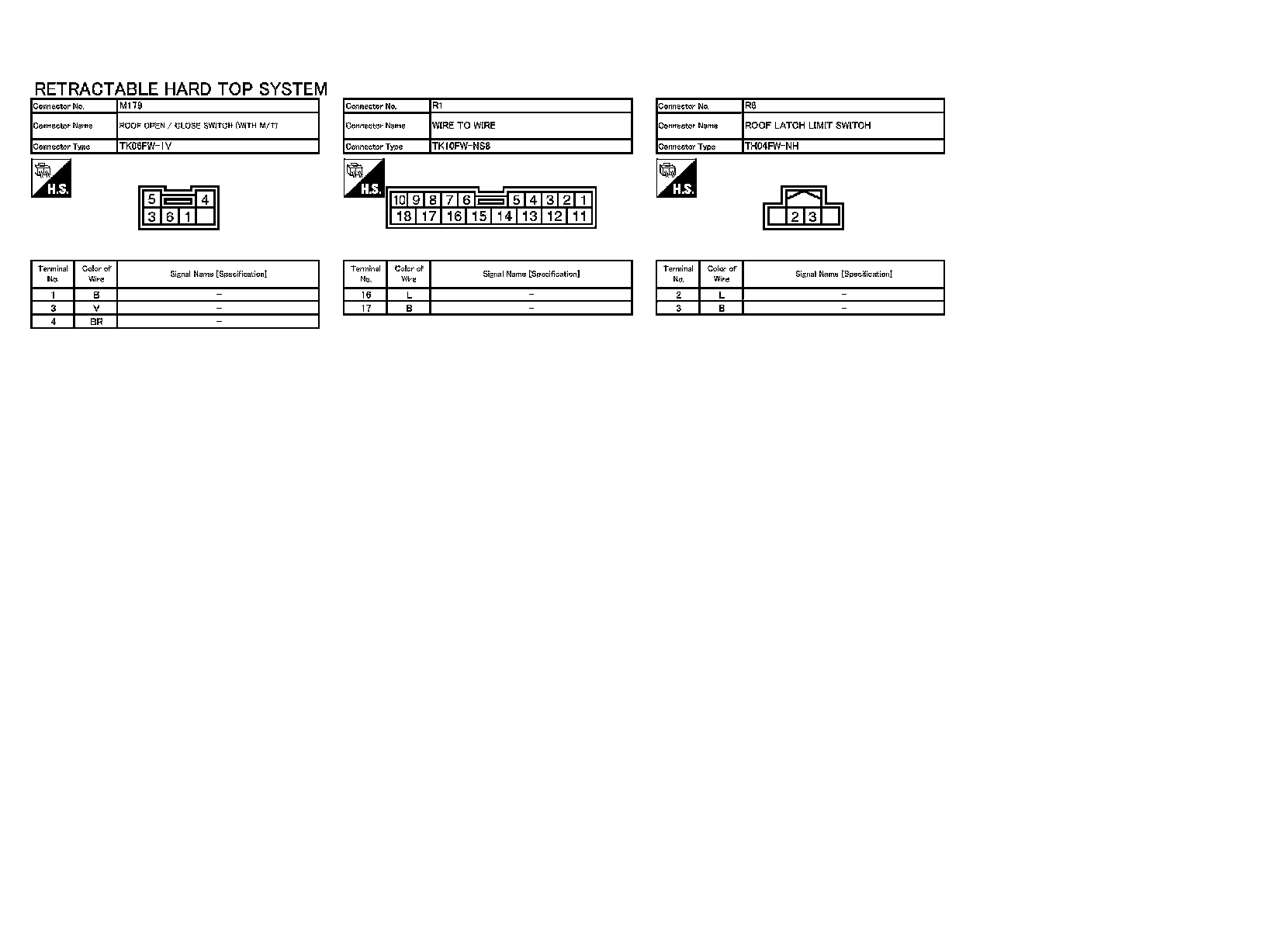

Wiring Diagram - RETRACTABLE HARD TOP SYSTEM -
