System Description

RETRACTABLE HARD TOP SYSTEM CONTROL


FLIPPER DOOR FUNCTION : System Description


SYSTEM DESCRIPTION
Flipper door (LH/RH) is installed on trunk lid back side. Each flipper door integrates flipper door motor and flipper door limit switch. Up and down operations are performed by flipper door motor. Up and down positions of flipper door are detected by flipper door limit switch.
Retractable hard top control unit performs open and close operations of retractable hard top system interlocking with flipper door and other retractable hard top components.

SEQUENCE OF FLIPPER DOOR
There are 3 states in flipper door. Open and close operations of retractable hard top system are performed interlocking with other retractable hard top components. (For interlocking with other components, refer to System Description. )
Parts state (CONSULT-III display) according to sequential flipper door operations is as shown in the following table.

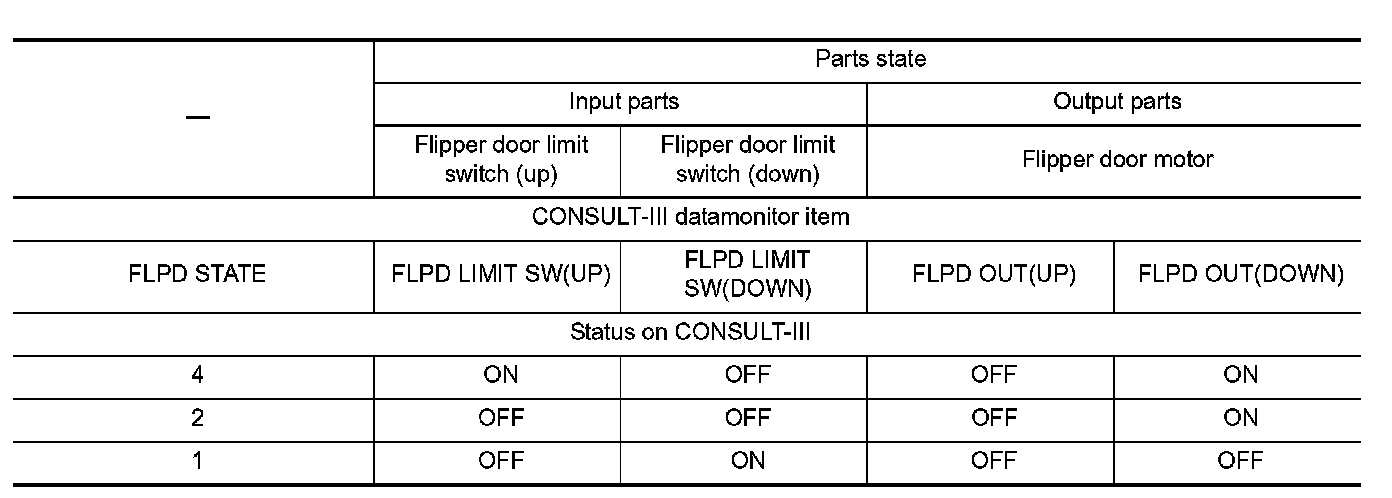

Up Operation

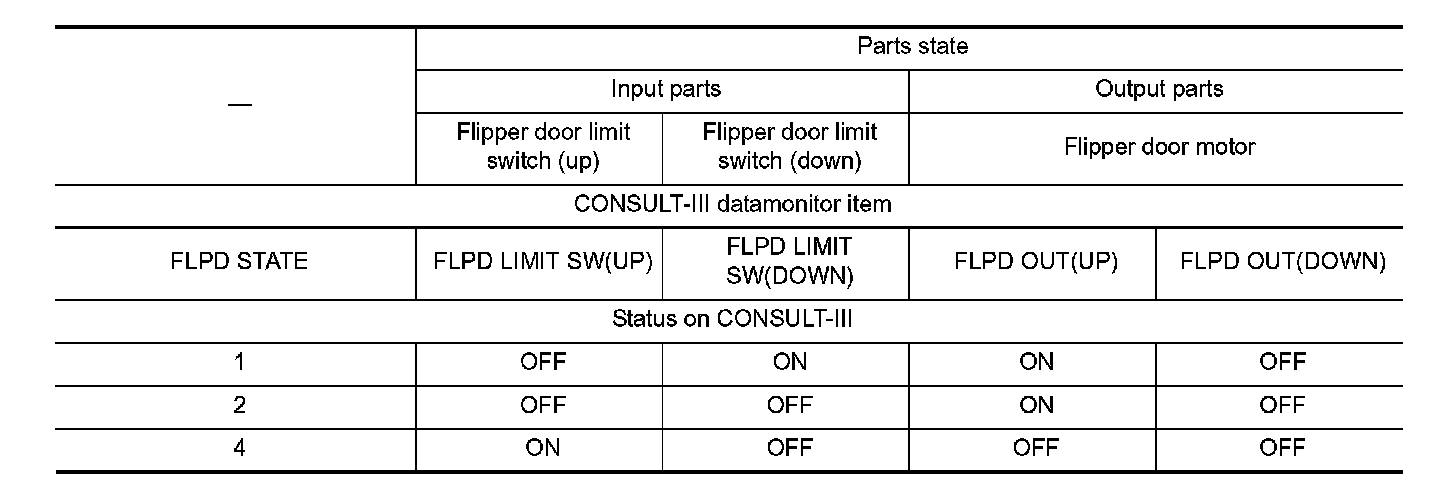

Down Operation
