Removal and Installation

FRONT LATCH ASSEMBLY


Removal and Installation


REMOVAL
1. Remove roof front finisher. Refer to Removal and Installation.
2. Disconnect roof latch limit switch harness connector.
3. Remove mounting bolts, and then remove front latch assembly.

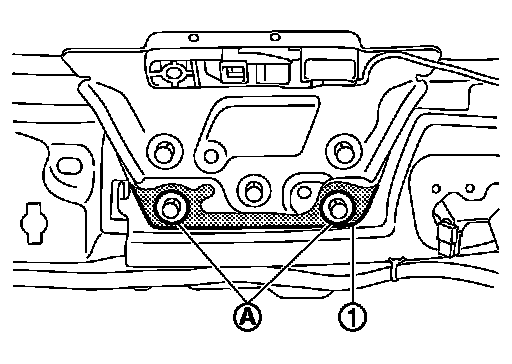

CAUTION:
- Never loosen mounting bolts (A).





- Never remove latch plate (LH/RH) (1).

INSTALLATION
Install in the reverse order of removal.

NOTE:
- Perform initialization according to the work after installing front latch assembly. Refer to Description.
- Adjust door glass and quarter window glass. Refer to Inspection.
- Perform water leakage test. Refer to Water Leakage Test.
