Center Roof Panel

CENTER ROOF PANEL


Adjustment

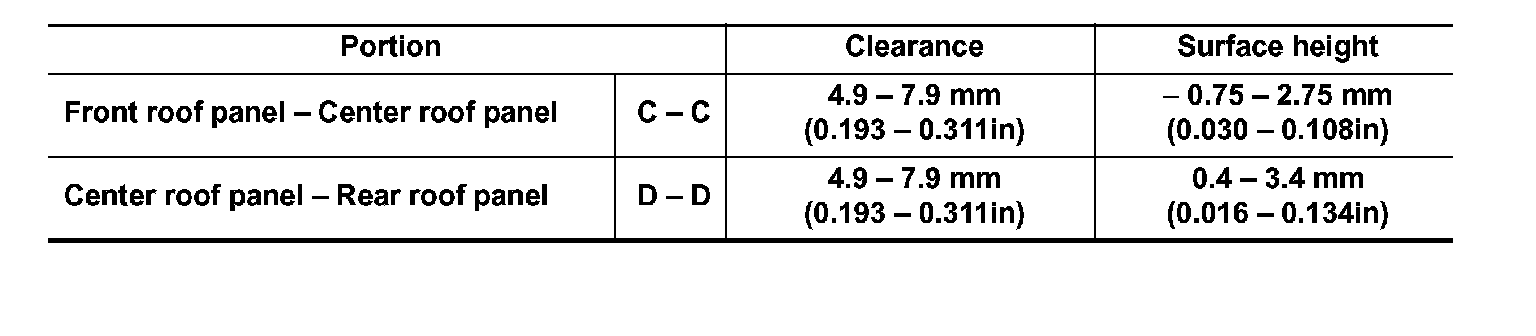

Check the clearance and the surface height between center roof panel and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures shown below.

CAUTION:
Fully close roof. Check that front and rear lock is locked.





1. Remove headlining. Refer to Removal and Installation.

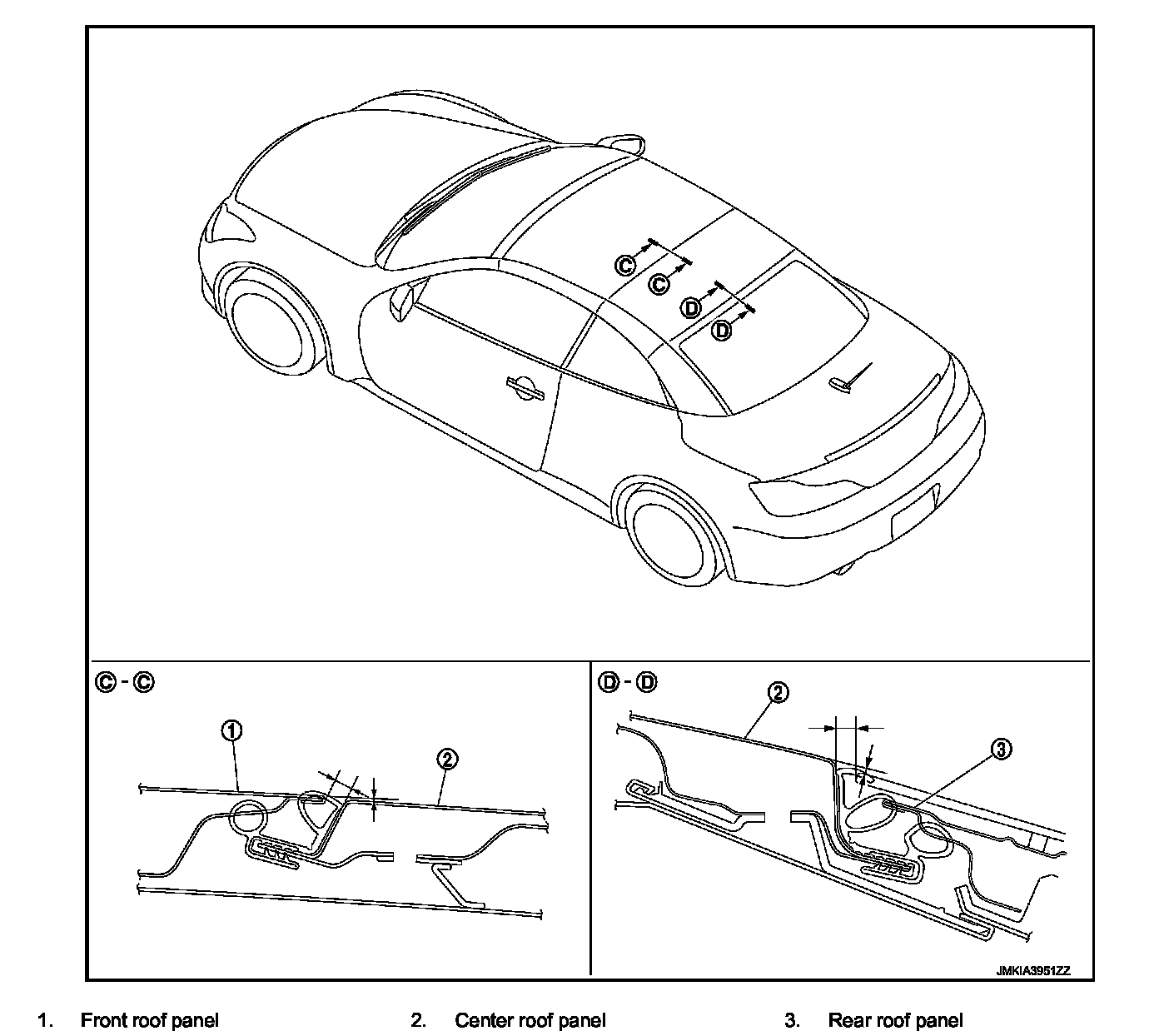

2. Stop roof as shown in the figure (during open operation).
3. Loosen center roof panel mounting TORX bolt.
4. Adjust center roof panel.
- If surface height difference is out of the specified value, and then adjust using shims.
- If clearance is out of the specified value, and slide center roof panel to front or rear direction.
5. Tighten each TORX bolt to the specified torque. Refer to Exploded View.
6. If D � D is out of the specified value, adjust rear roof panel. Refer to Rear Roof Panel.
7. Open and close roof. Check that lock and unlock operation is normal several times.
8. Perform initialization according to the work after adjusting center roof panel. Refer to Description Special Repair Requirement, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Description".
9. Adjust door glass and quarter window glass. Refer to Inspection.
10. Perform water leakage test. Refer to Water Leakage Test.
11. Install headlining. Refer to Removal and Installation.
