Removal and Installation

AUTOMATIC DRIVE POSITIONER CONTROL UNIT


Removal and Installation


REMOVAL

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
1. Remove the battery negative terminal.





2. Remove the instrument driver lower panel. Refer to Removal and Installation.

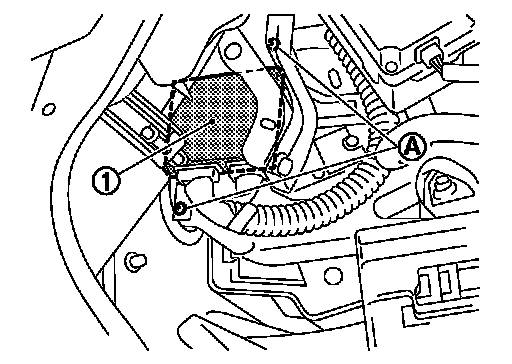

3. Remove the screws (A).
4. Remove automatic drive positioner control unit (1).

INSTALLATION
Install in the reverse order of removal.

CAUTION:
Always clamp the harness to the right place.
