Component Tests and General Diagnostics

DOOR MIRROR SYSTEM


Component Inspection

1.CHECK DOOR MIRROR REMOTE CONTROL SWITCH
1. Turn ignition switch OFF.
2. Disconnect door mirror remote control switch connector.

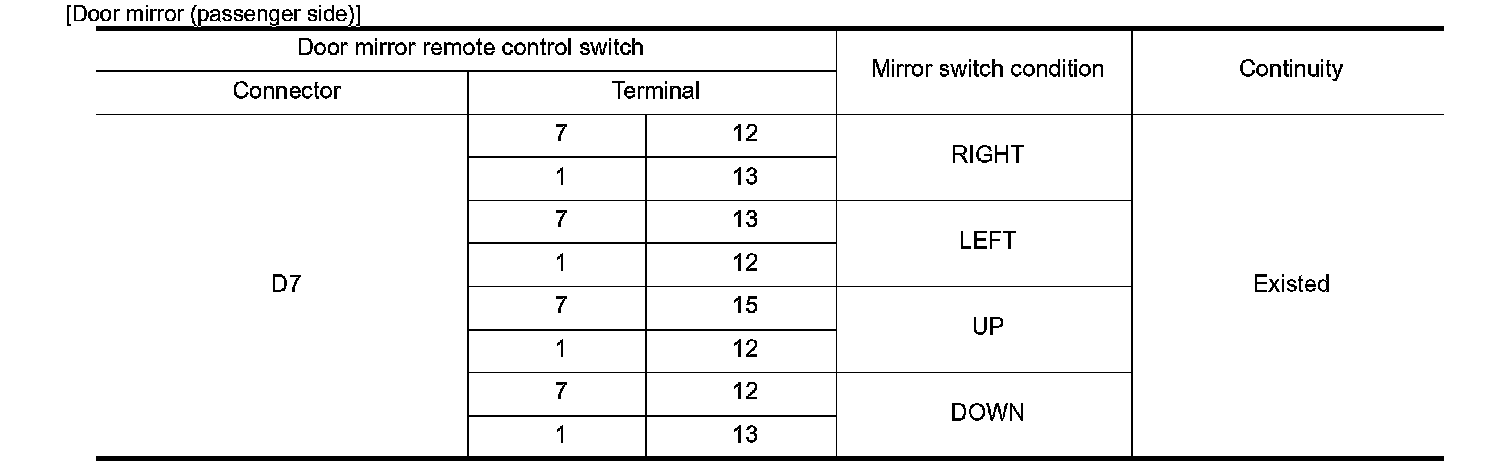

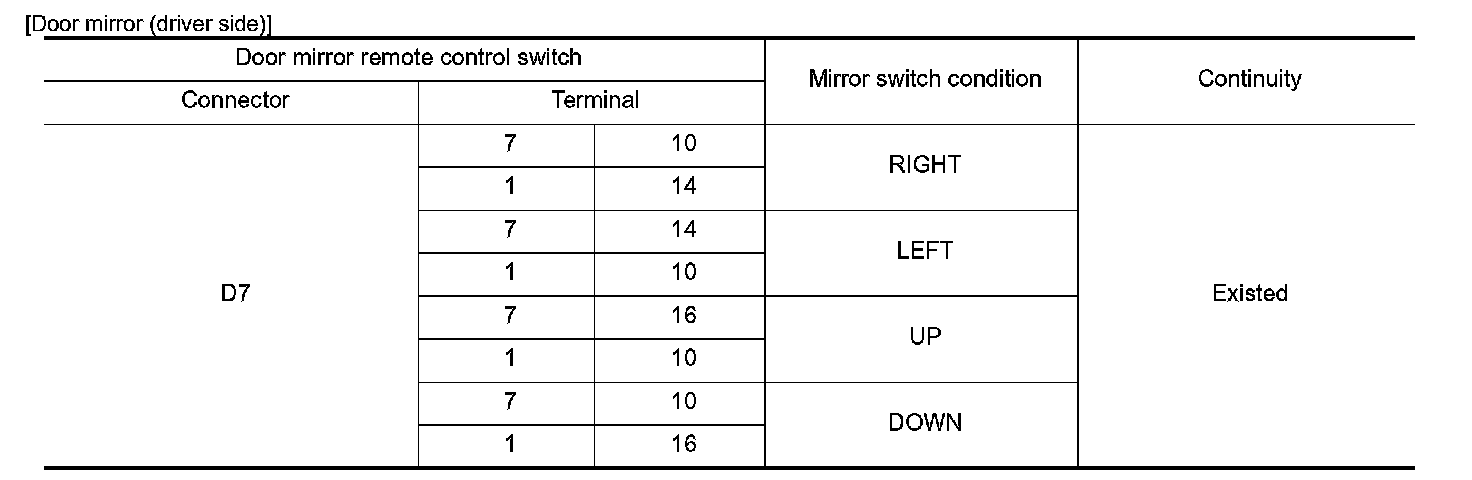

3. Check door mirror remote control switch.








Is the inspection result normal?
YES - INSPECTION END.
NO - Replace door mirror remote control switch.Refer to Removal and Installation.
