Inside Mirror
>>
Exploded View
Exploded View
INSIDE MIRROR
Exploded View

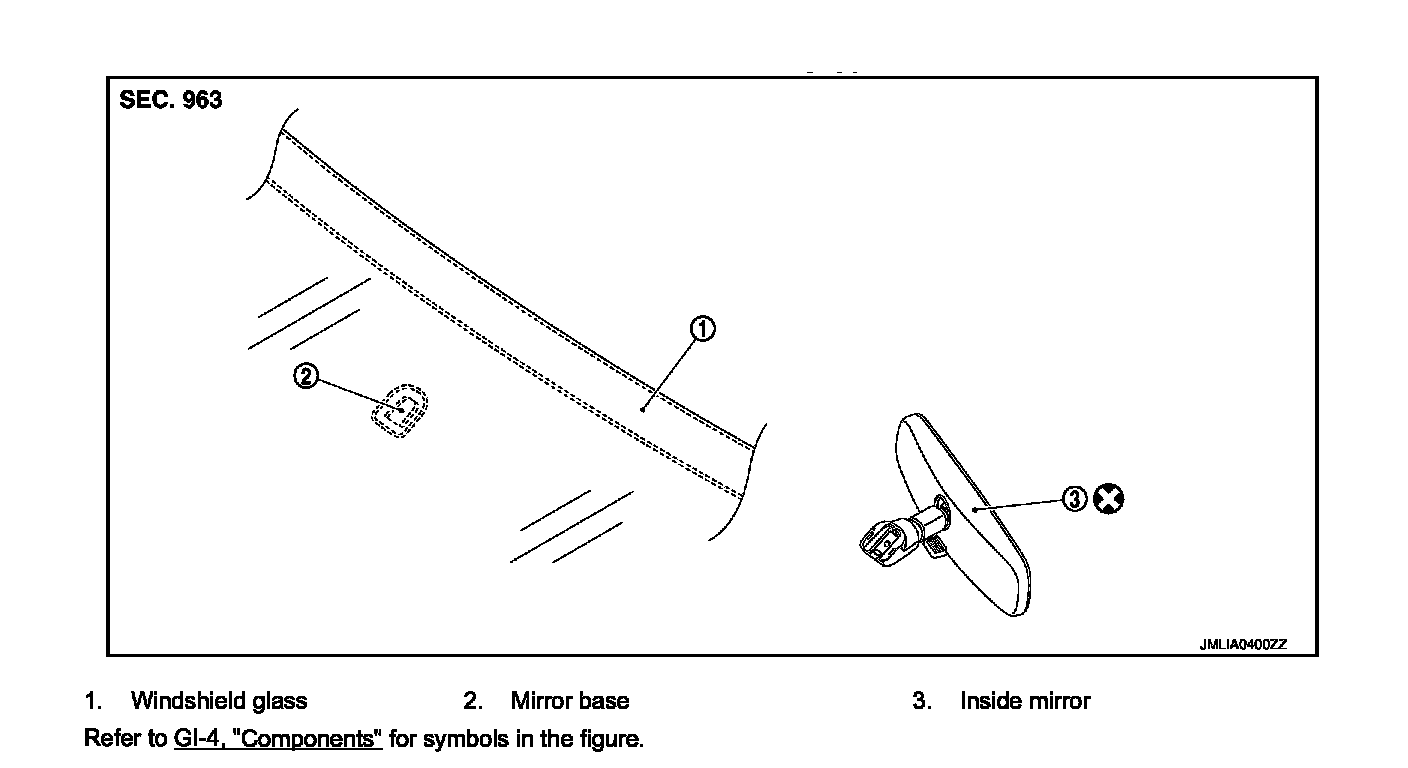

Manual anti-dazzling type

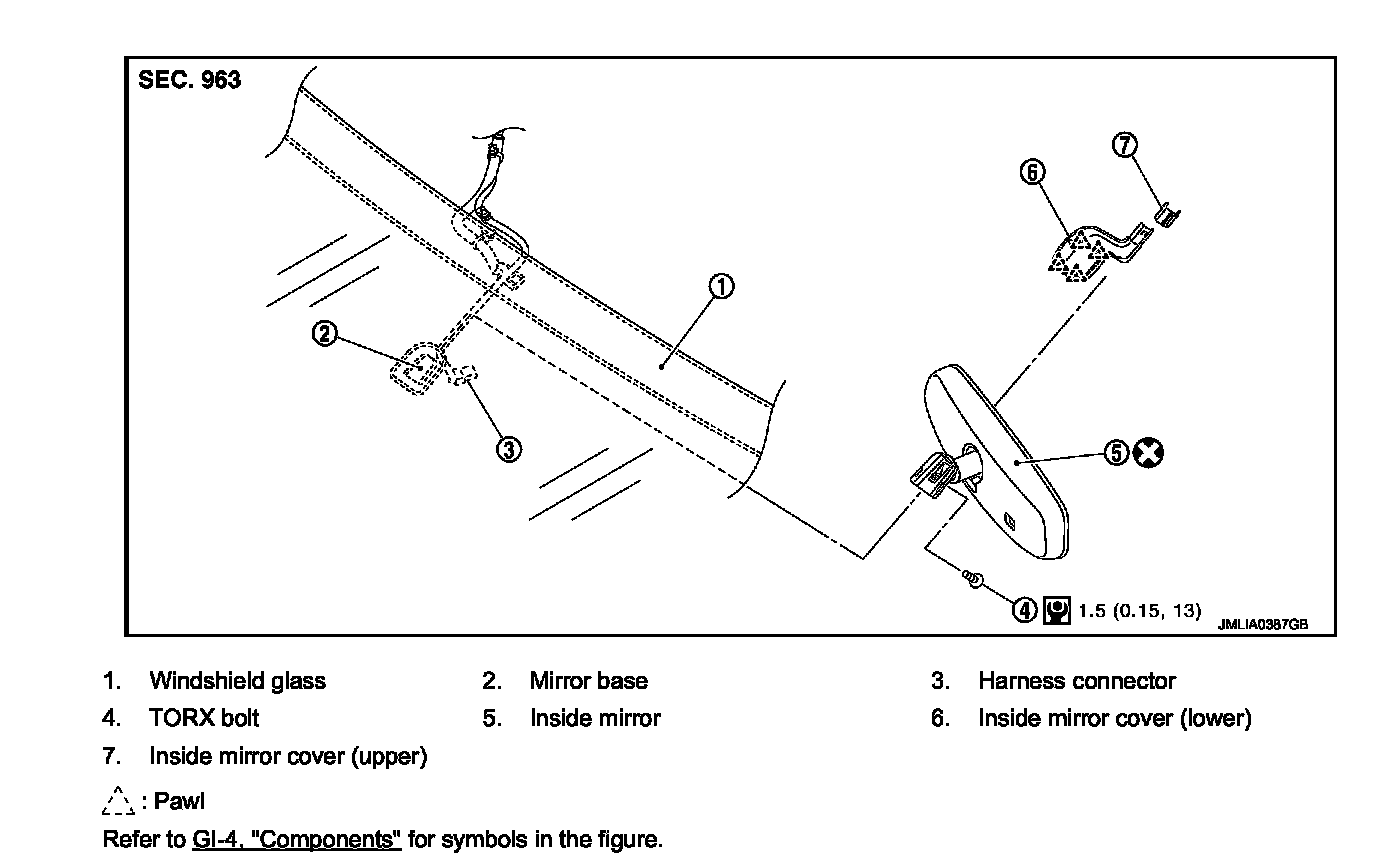

Auto anti-dazzling type
