Component Function Check

SLIDING LIMIT SWITCH


Component Function Check

1.CHECK FUNCTION
1. Select "FWD LIMIT SW" in the "Data Monitor" mode using CONSULT-III.

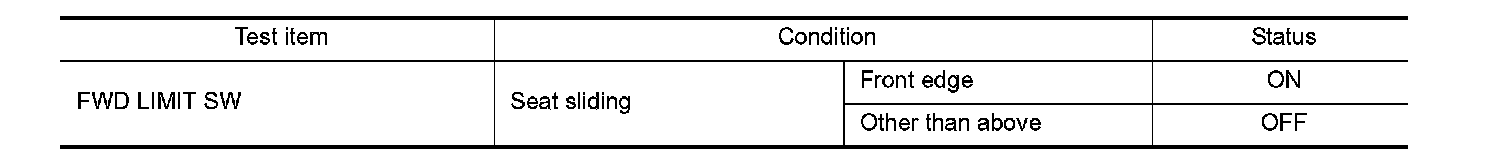

2. Check the sliding limit switch signal under the following condition.





Is the indication normal?
YES - INSPECTION END
NO - Perform diagnosis procedure. Refer to Diagnosis Procedure.
