Component Inspection

SEAT BELT BUCKLE SWITCH


Component Inspection

1.CHECK SEAT BELT BUCKLE SWITCH
1. Turn ignition switch OFF.
2. Disconnect seat belt buckle switch connector.

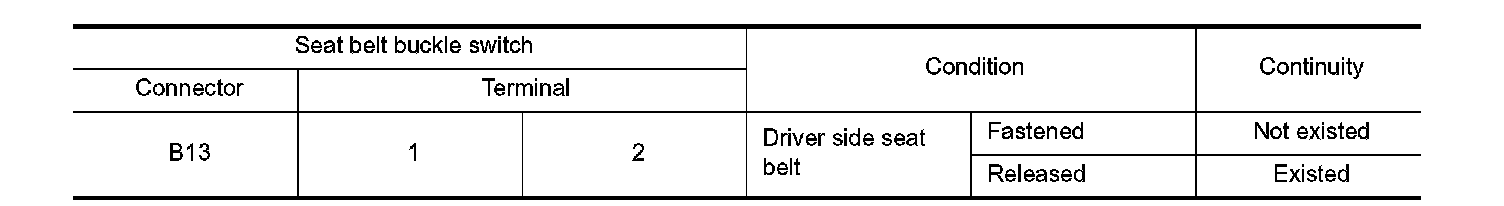

3. Check continuity between seat belt buckle switch terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace seat belt buckle switch (Built in seat belt buckle). Refer to Exploded View.
