Driver Seat Control Unit (With Automatic Drive Positioner)





DRIVER SEAT CONTROL UNIT (WITH AUTOMATIC DRIVE POSITIONER)

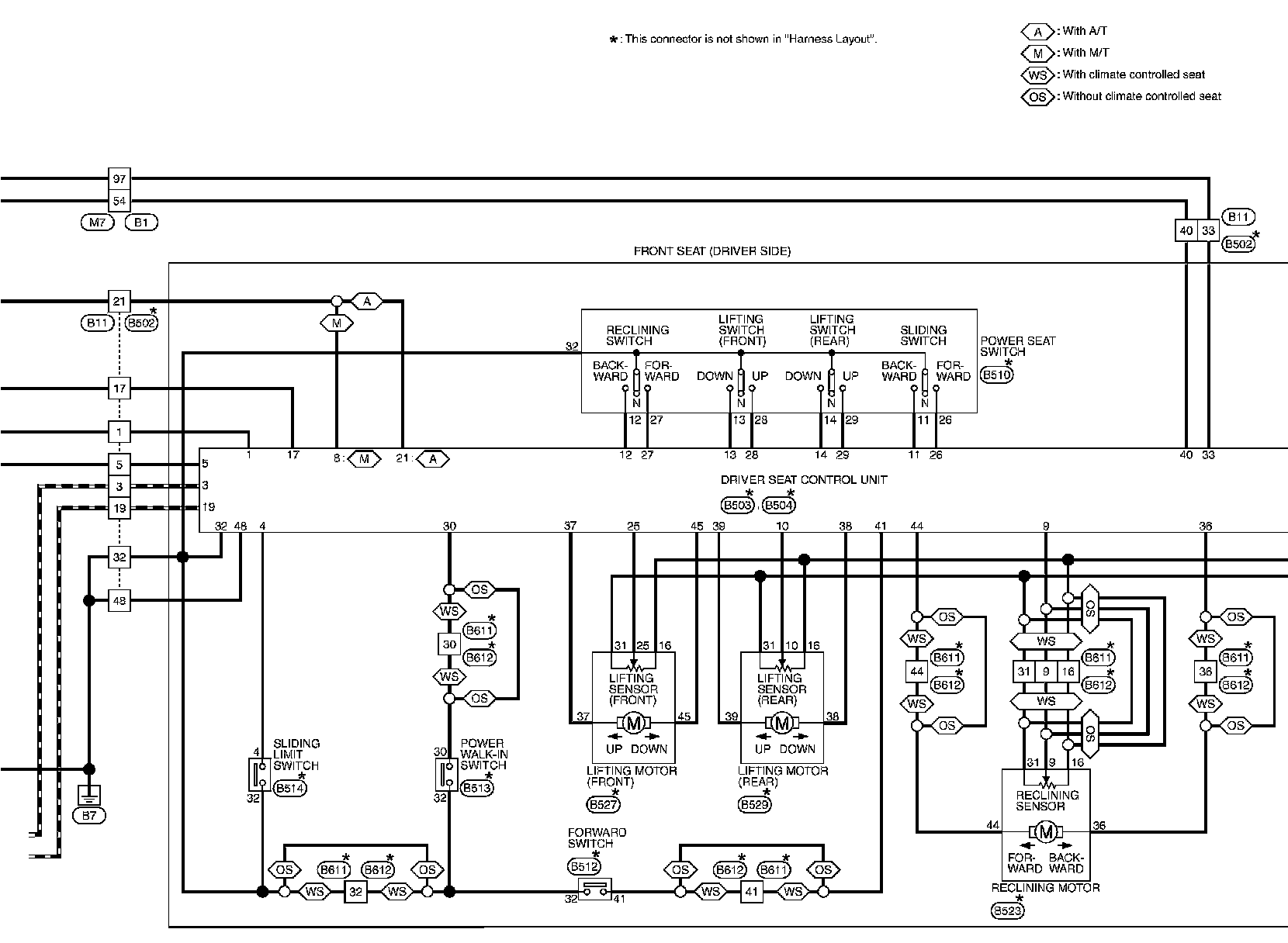

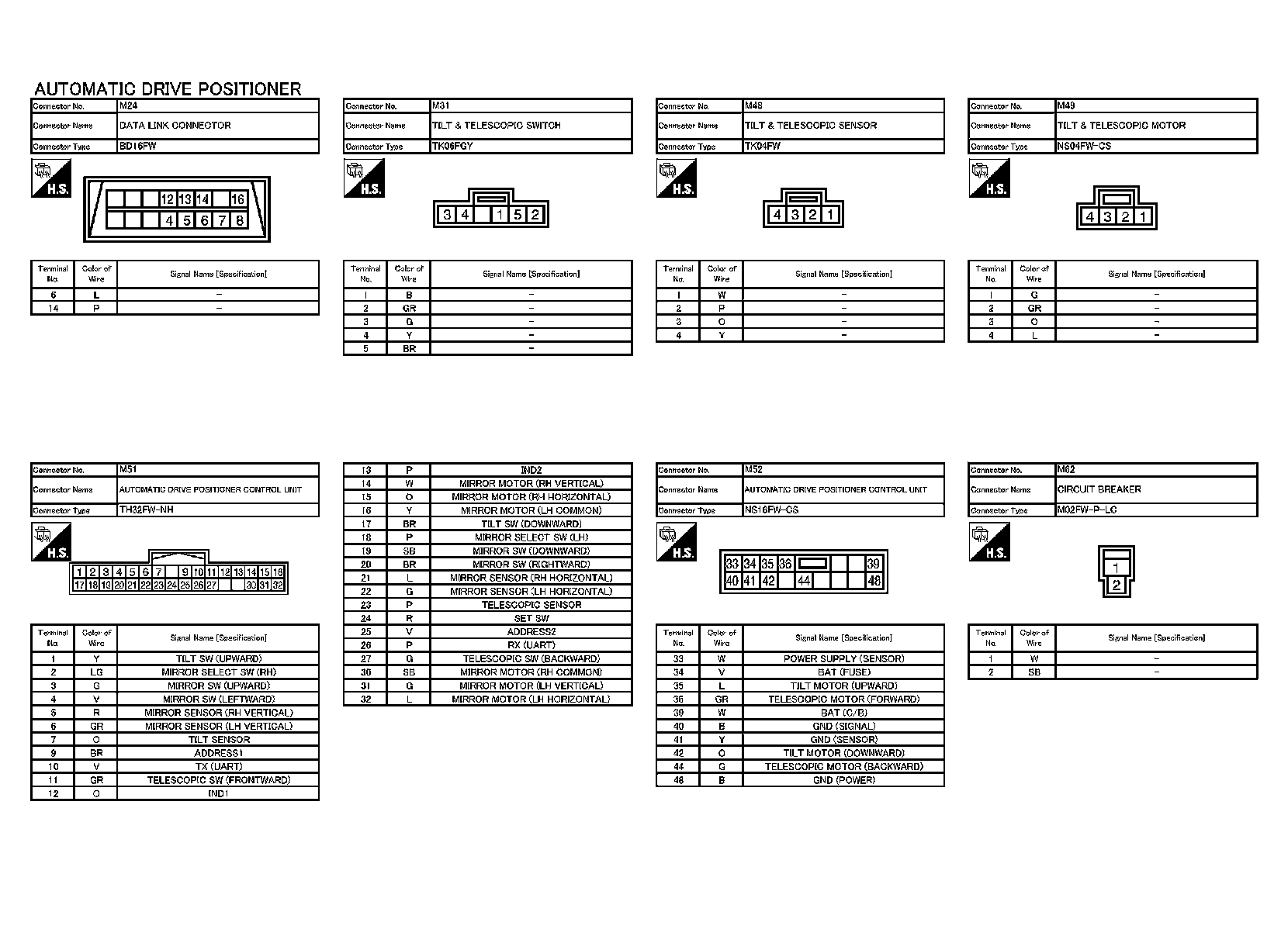

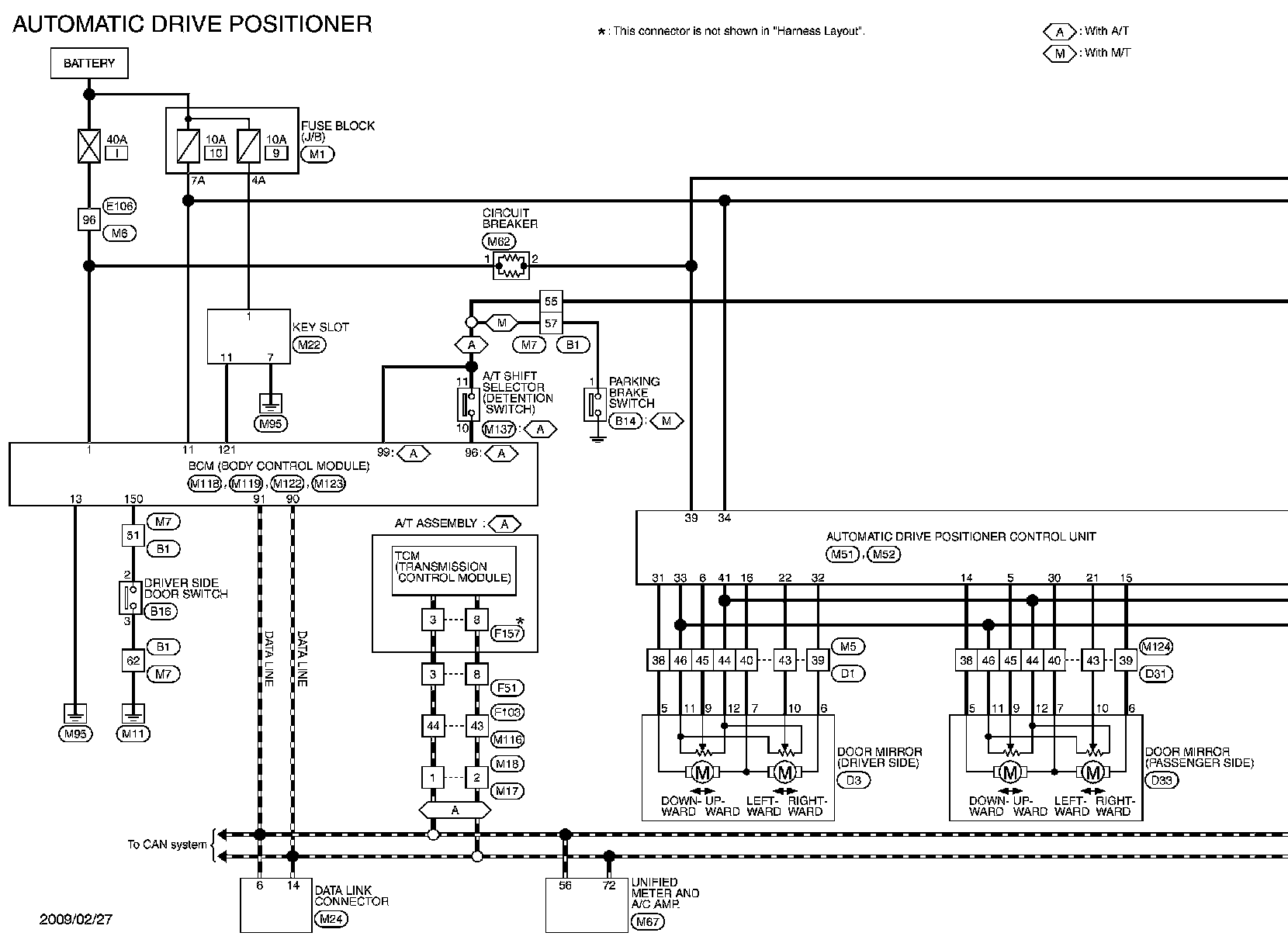

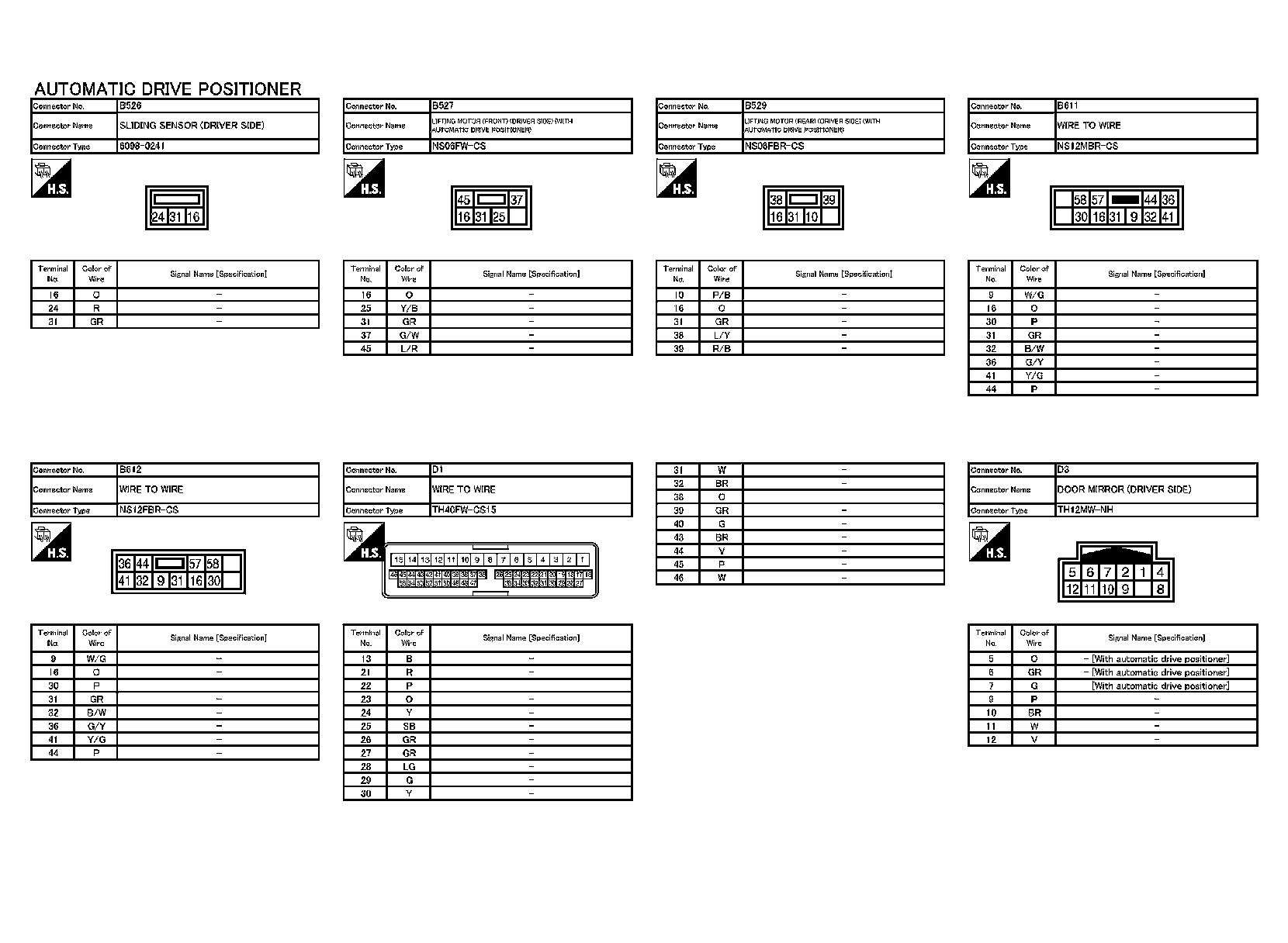

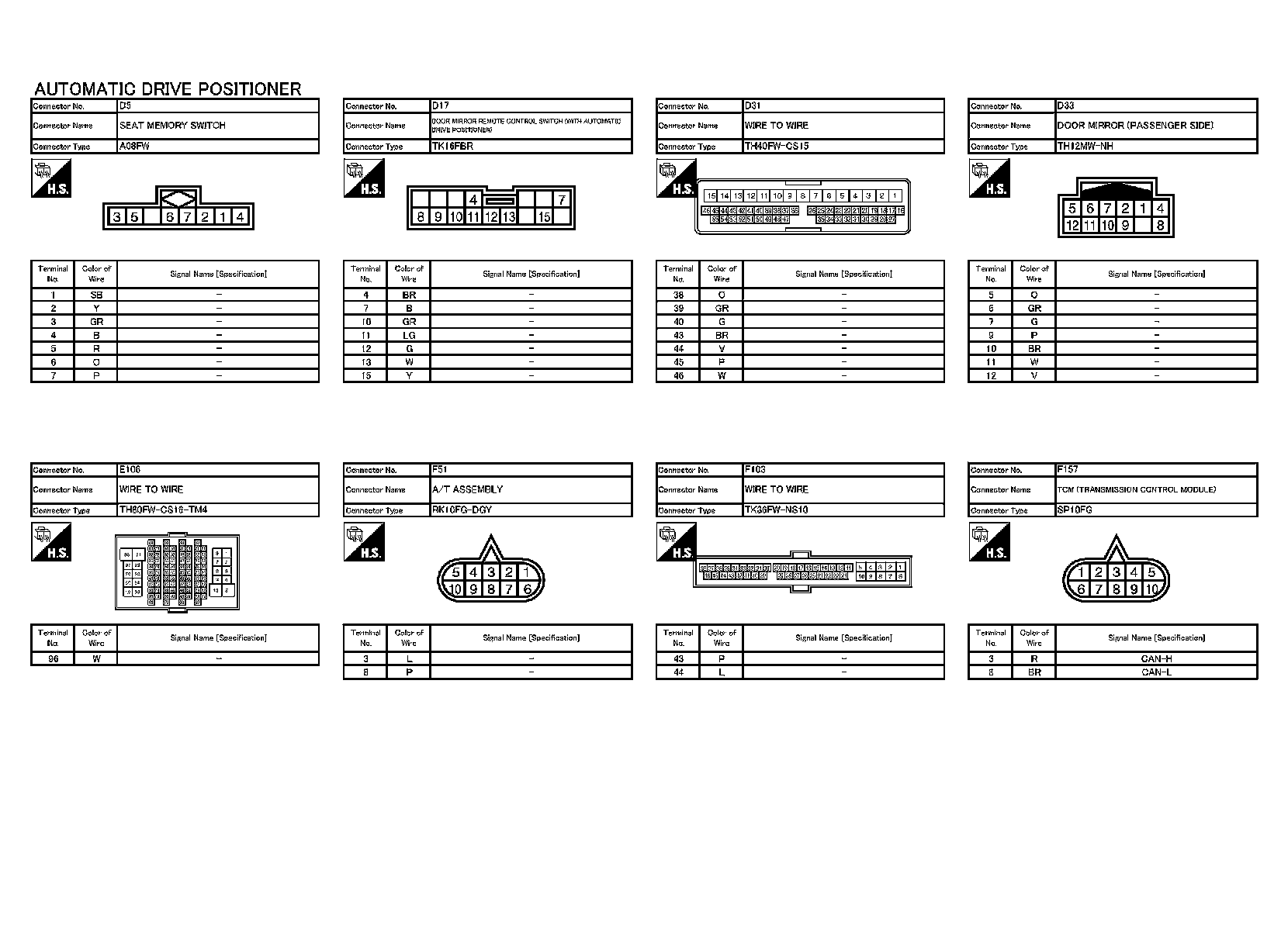

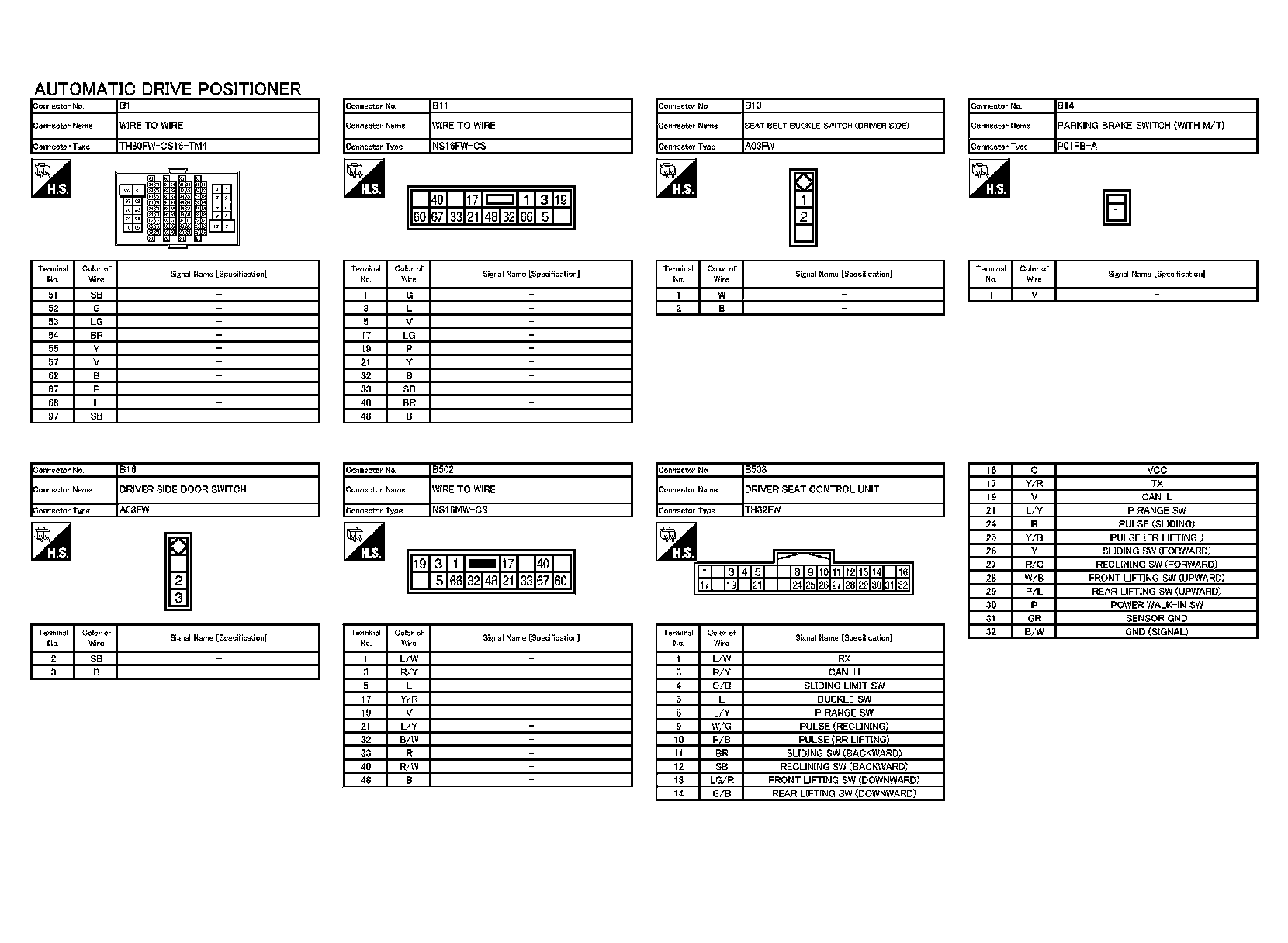

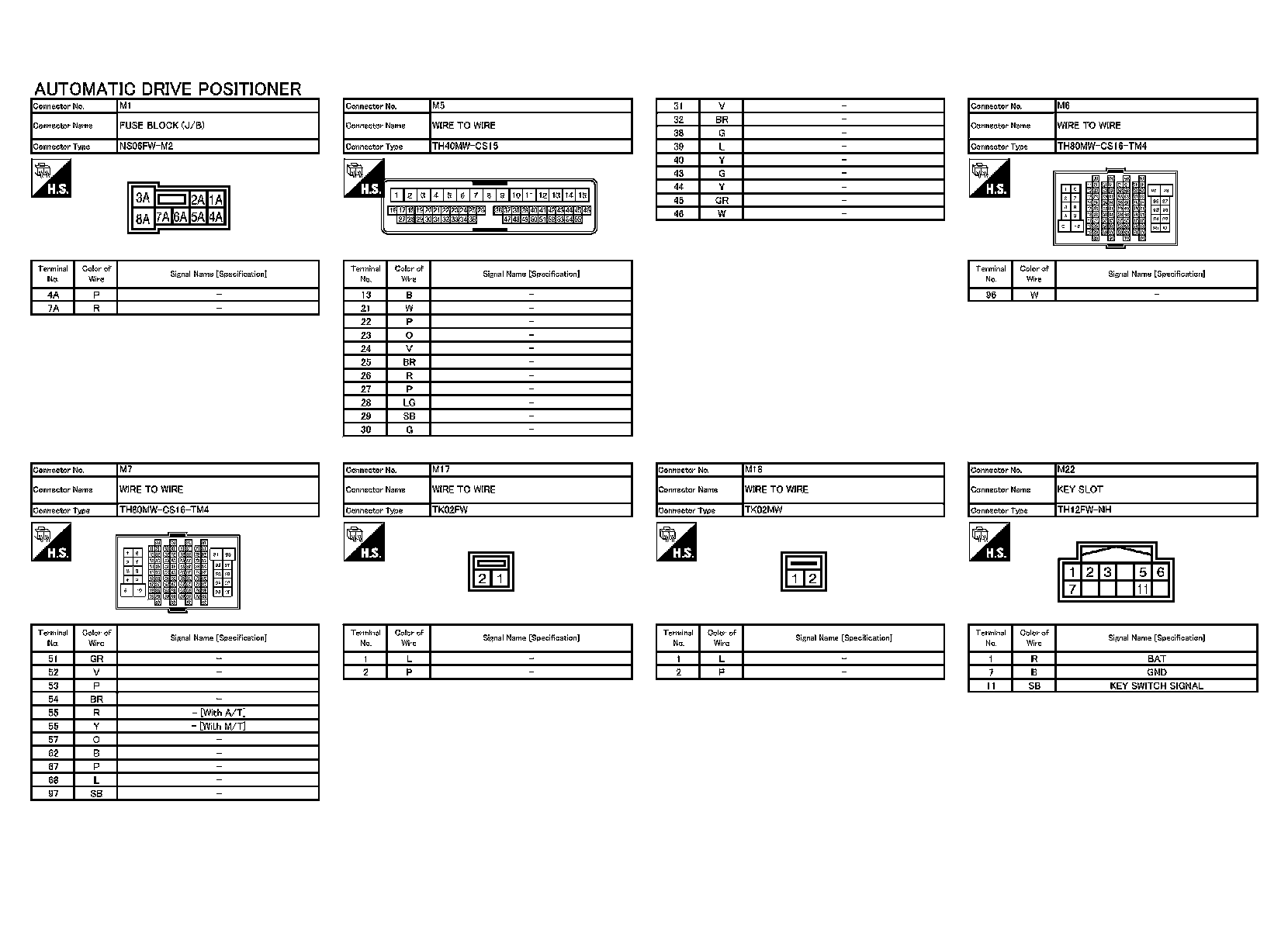

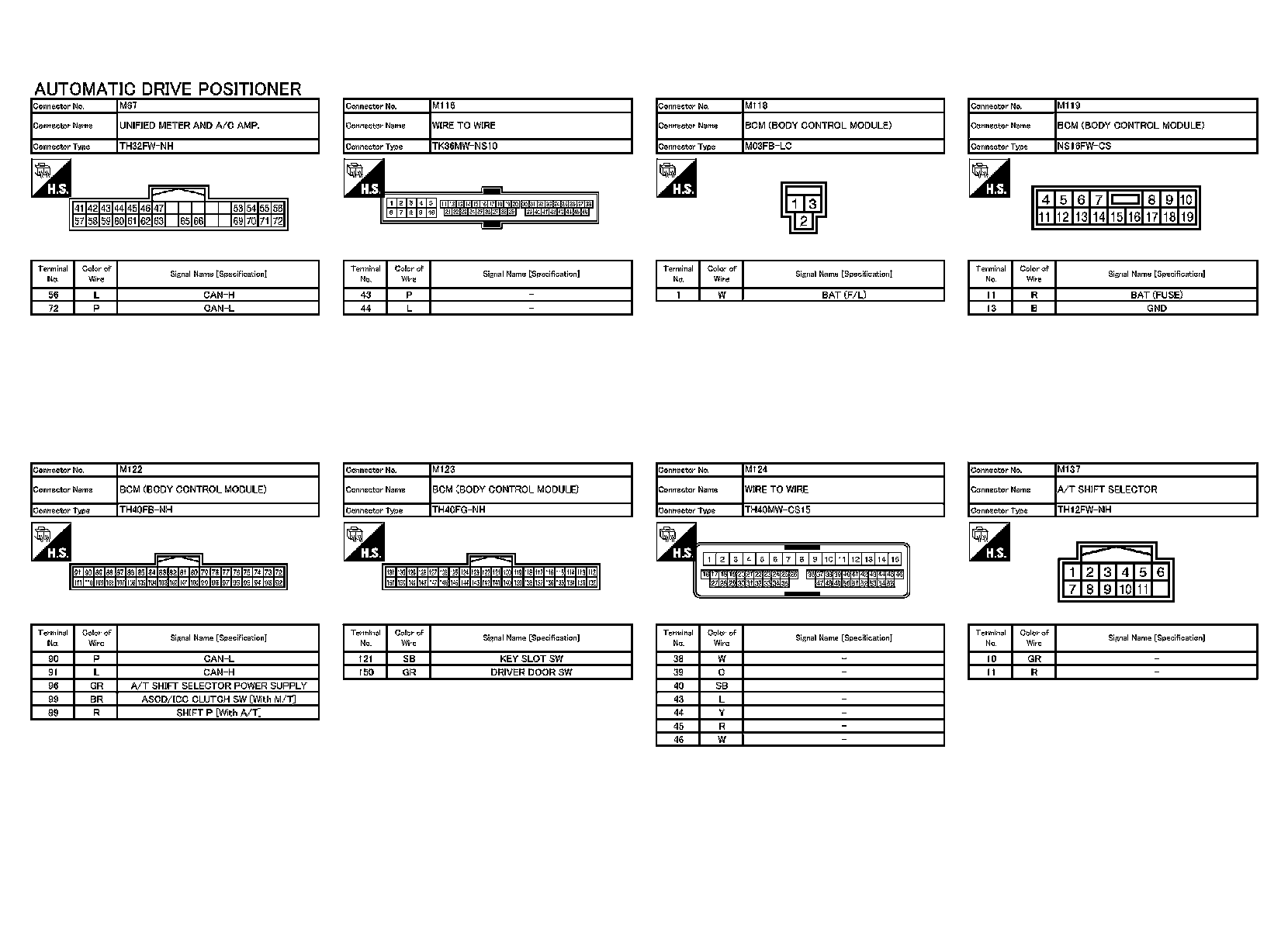

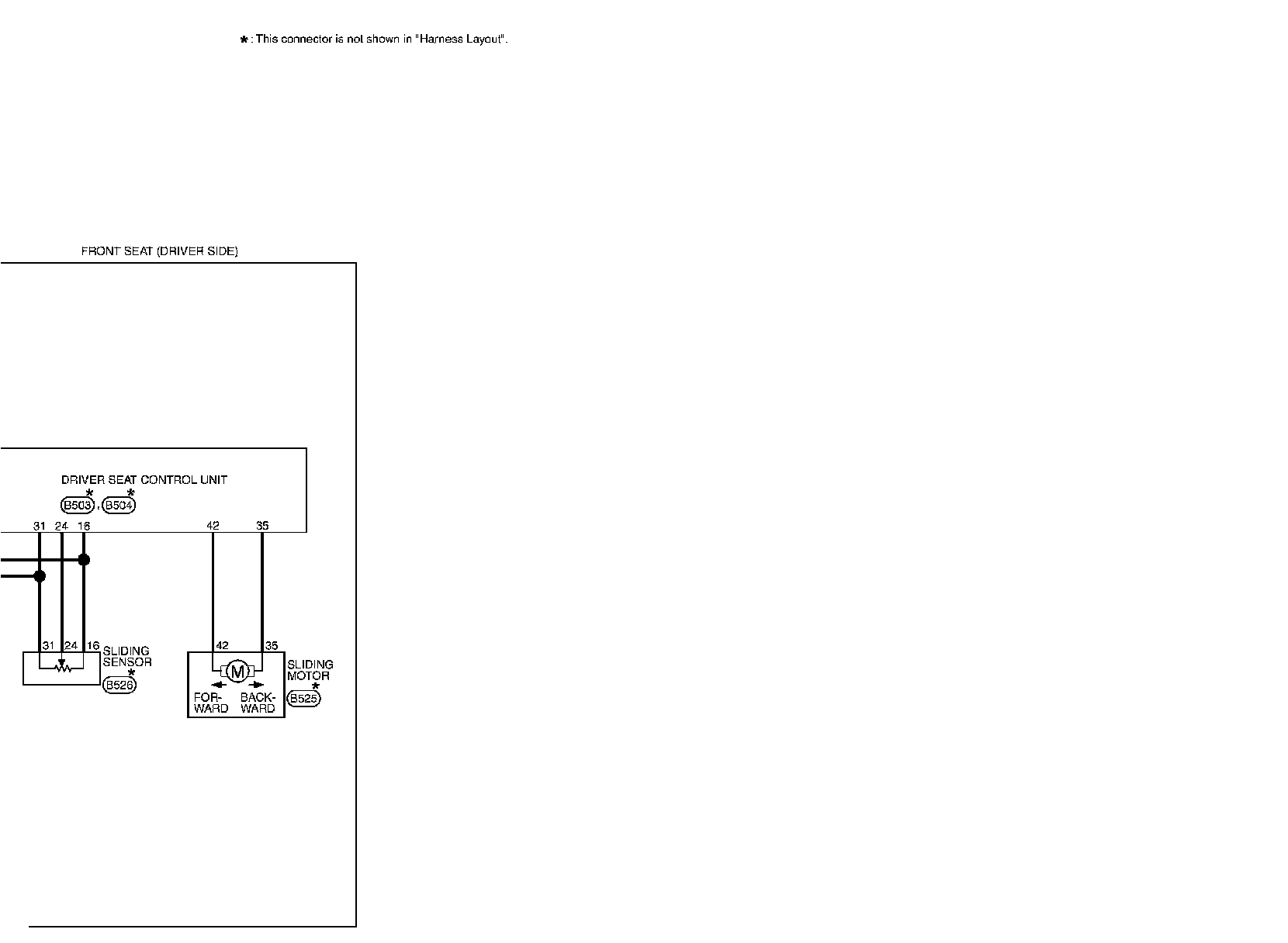

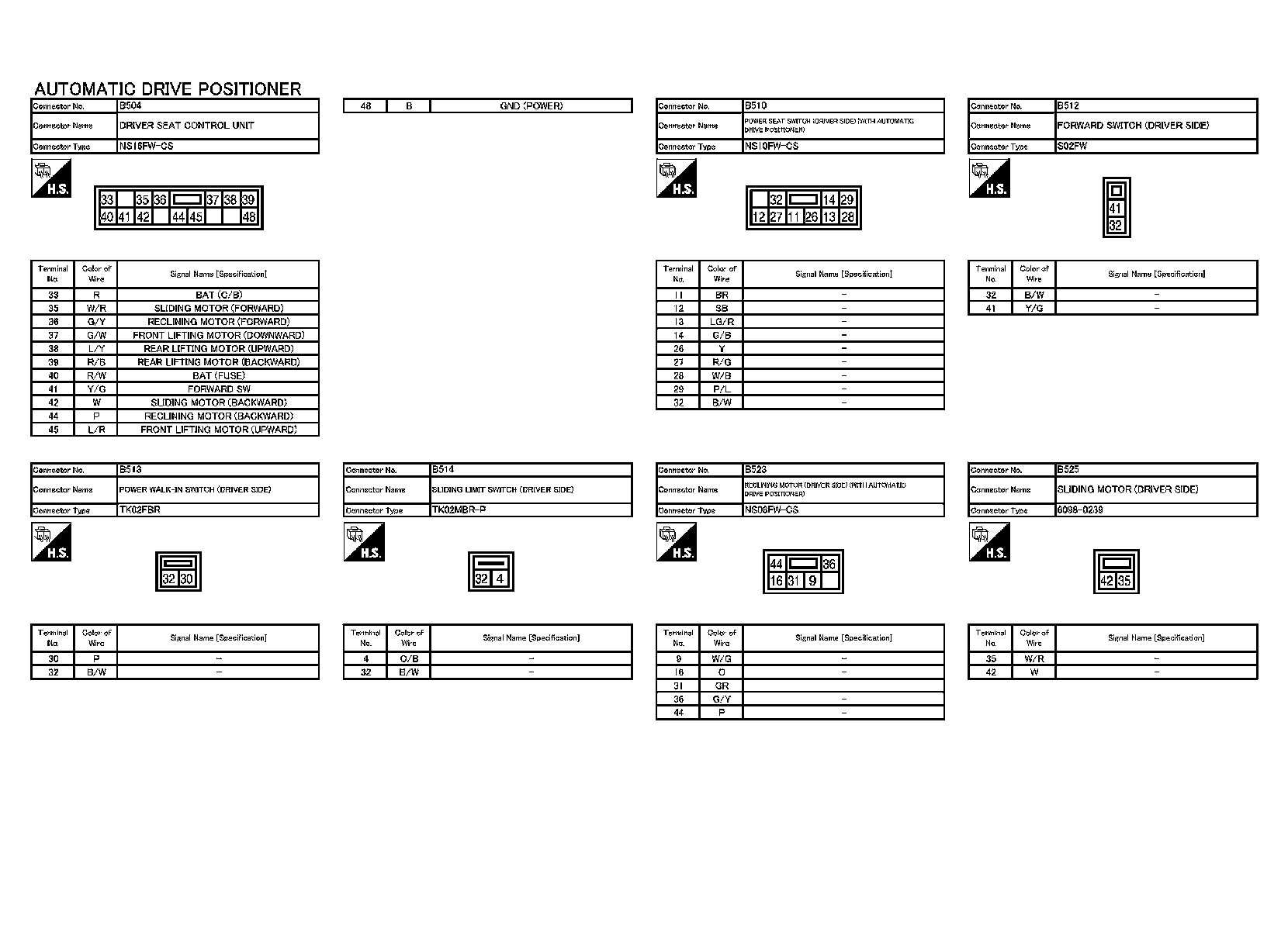

Wiring Diagram - AUTOMATIC DRIVE POSITIONER CONTROL SYSTEM -
