Diagnosis System (Retractable Hard Top Control Unit)

DIAGNOSIS SYSTEM (RETRACTABLE HARD TOP CONTROL UNIT)


CONSULT-III Function


APPLICATION ITEM

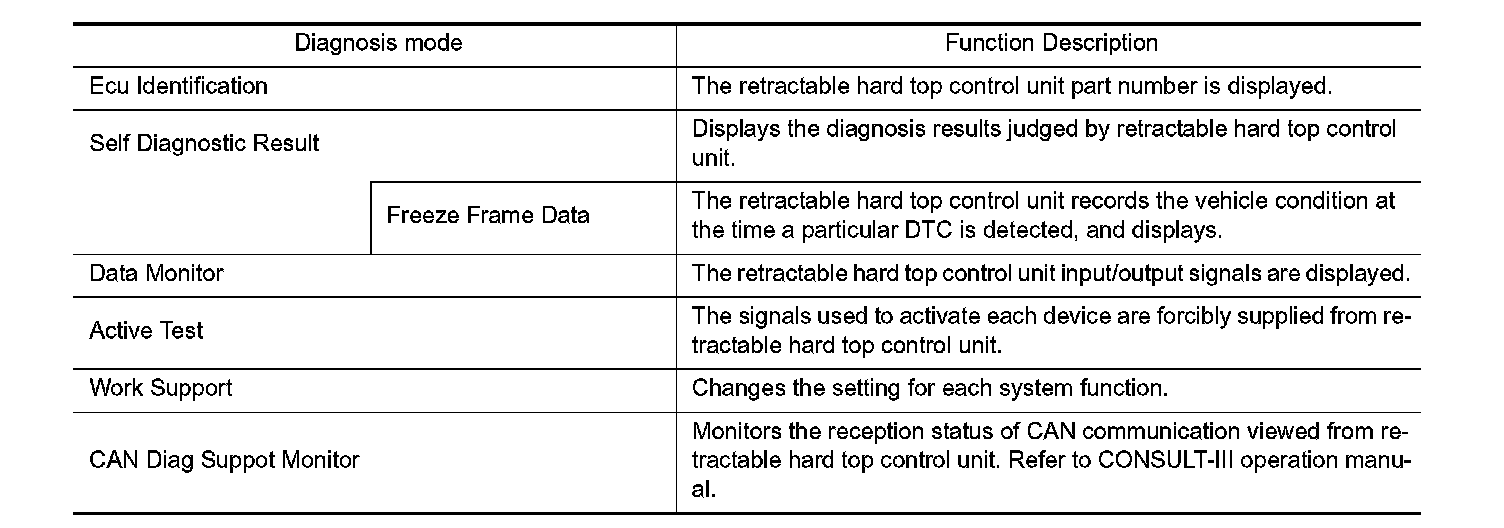

CONSULT-III performs the following functions via CAN communication with retractable hard top control unit.

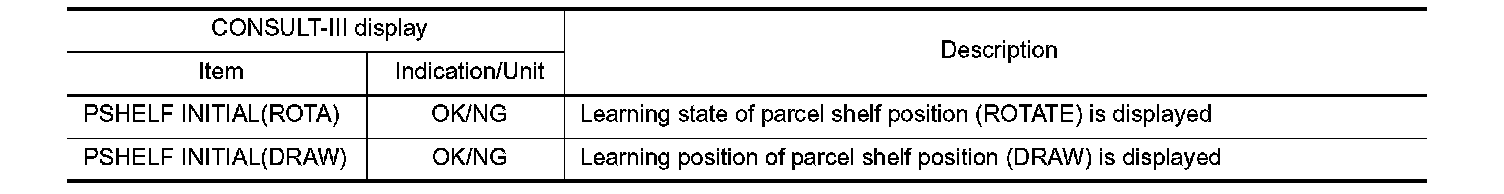

WORK SUPPORT











SELF-DIAG RESULT
Refer to Testing and Inspection.

Freeze Frame Data
The retractable hard top control unit records the following vehicle condition at the time a particular DTC is detected, and displays on CONSULT-III.

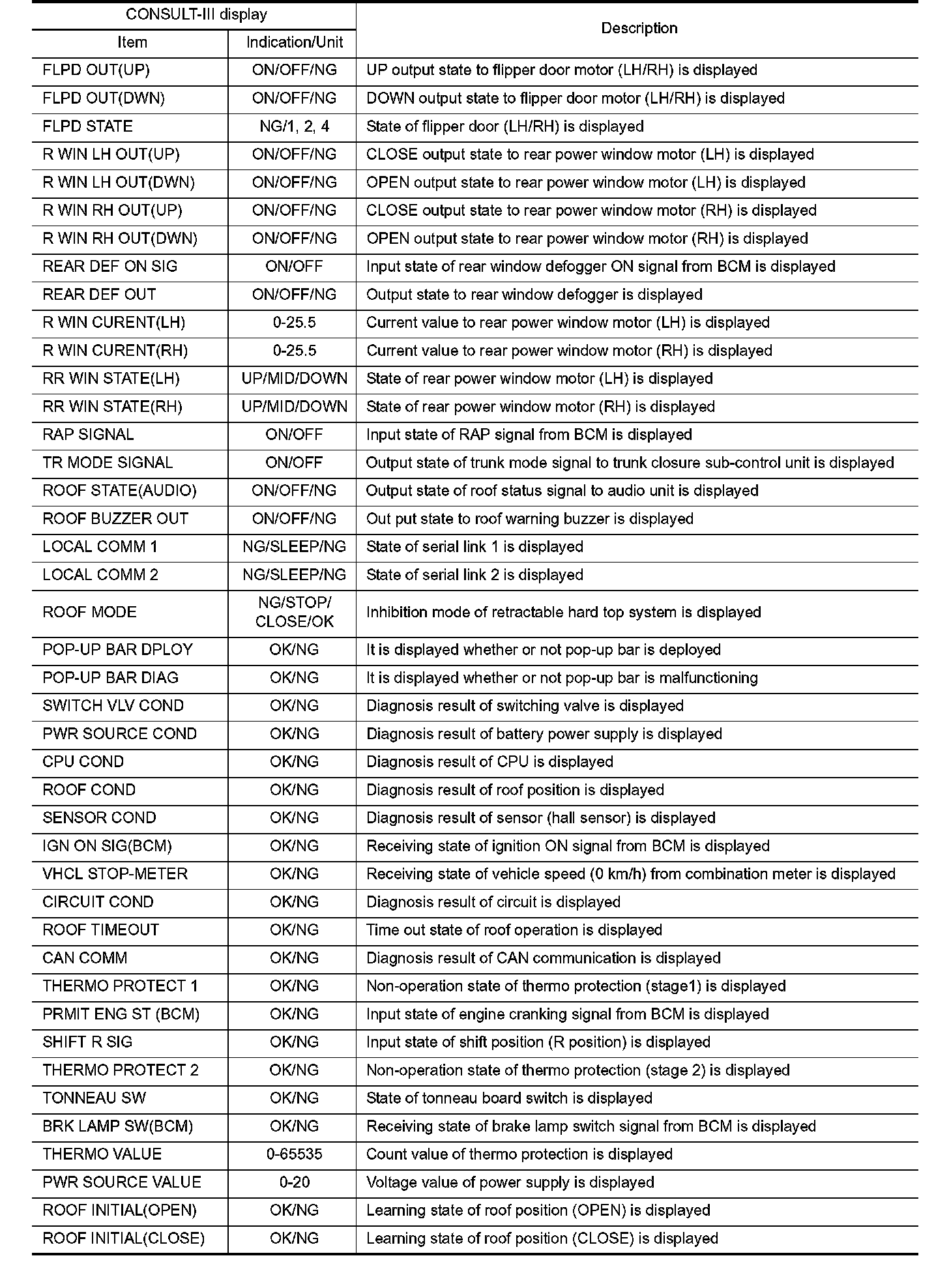

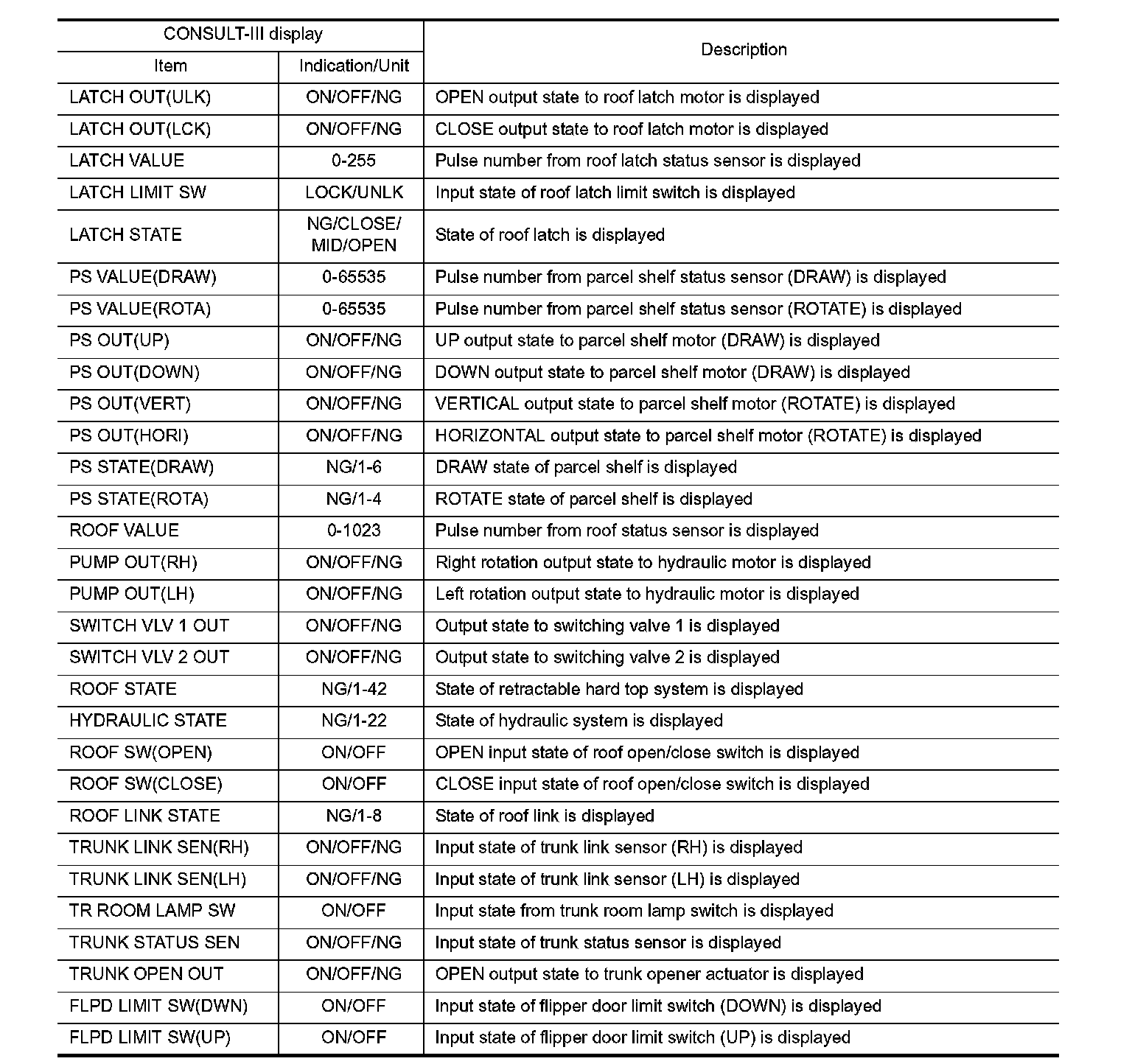

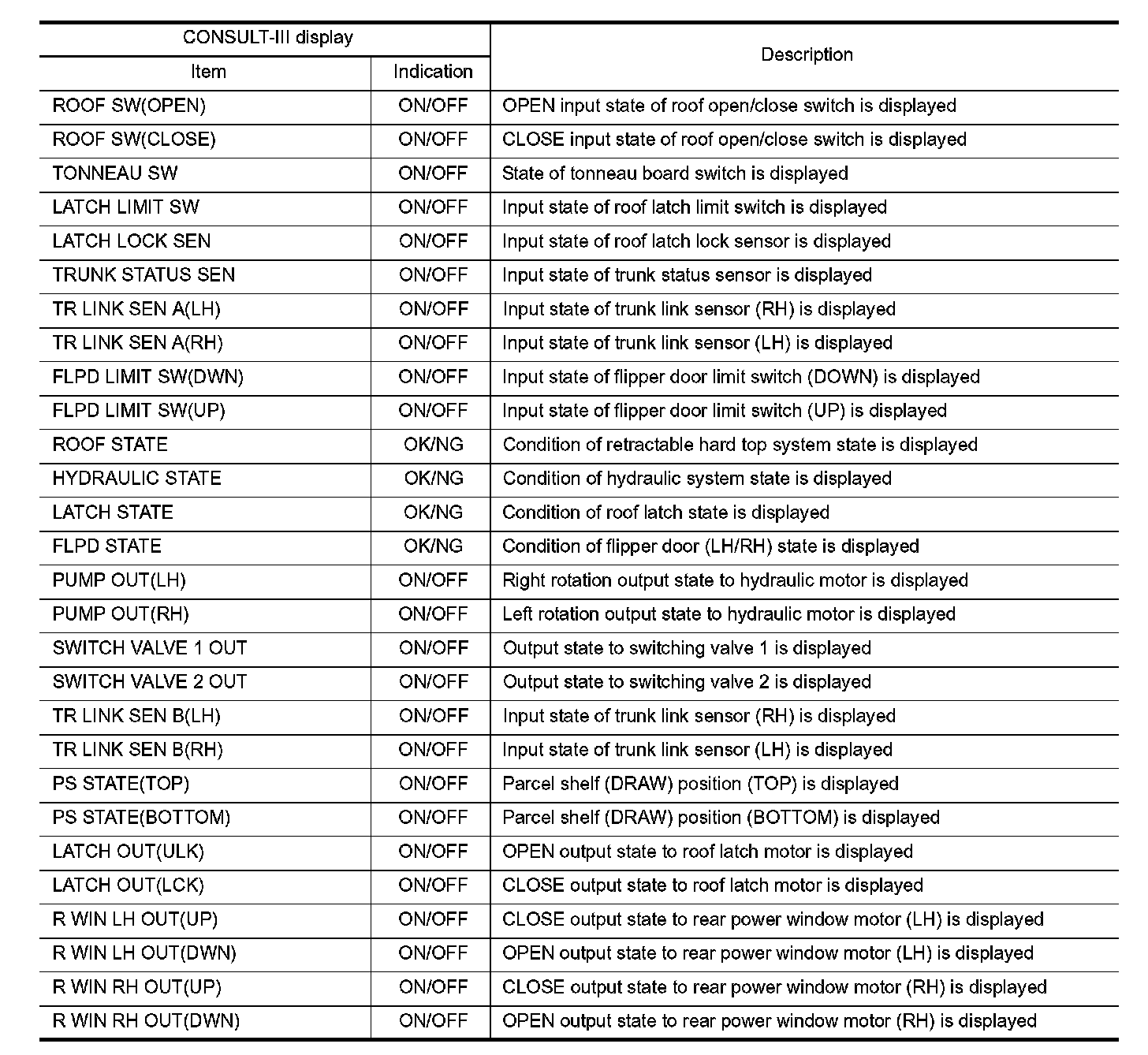

DATA MONITOR

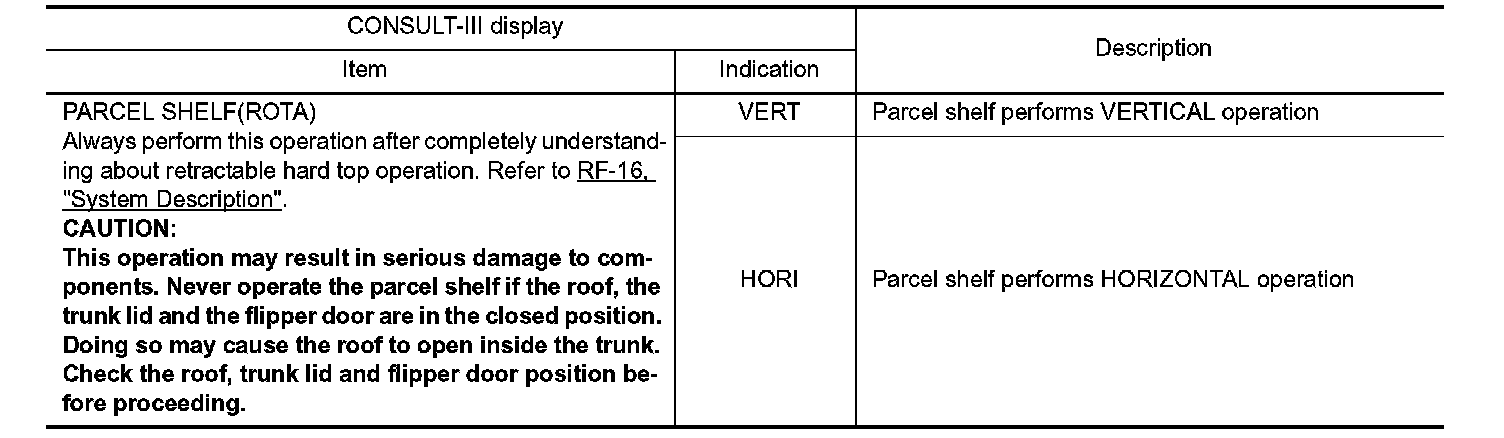

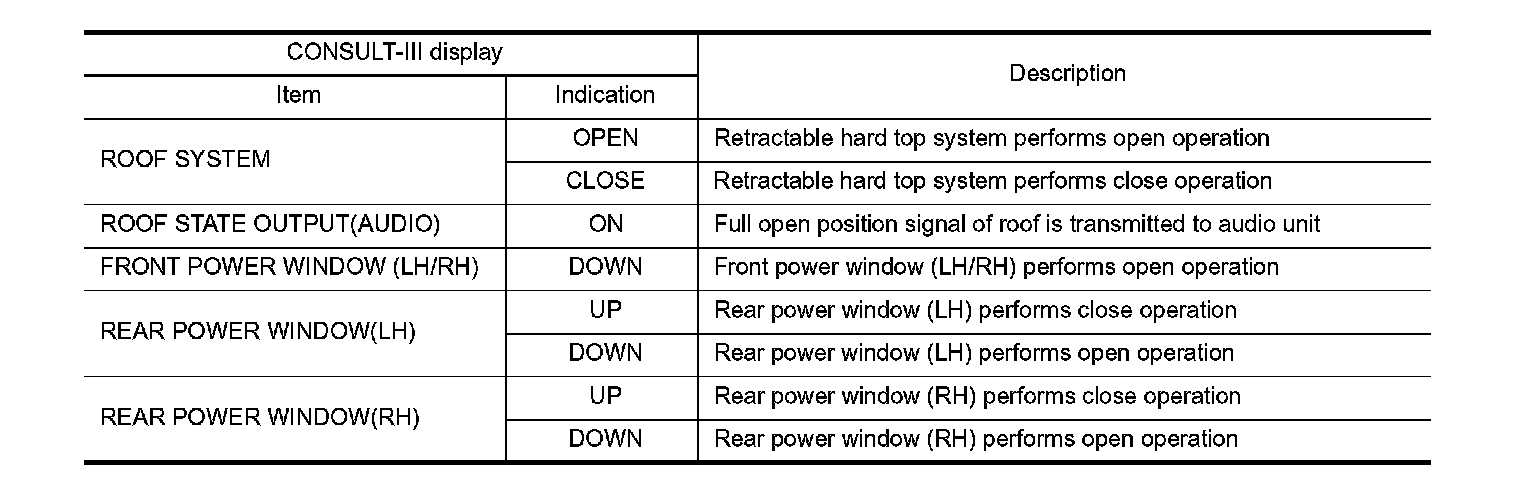

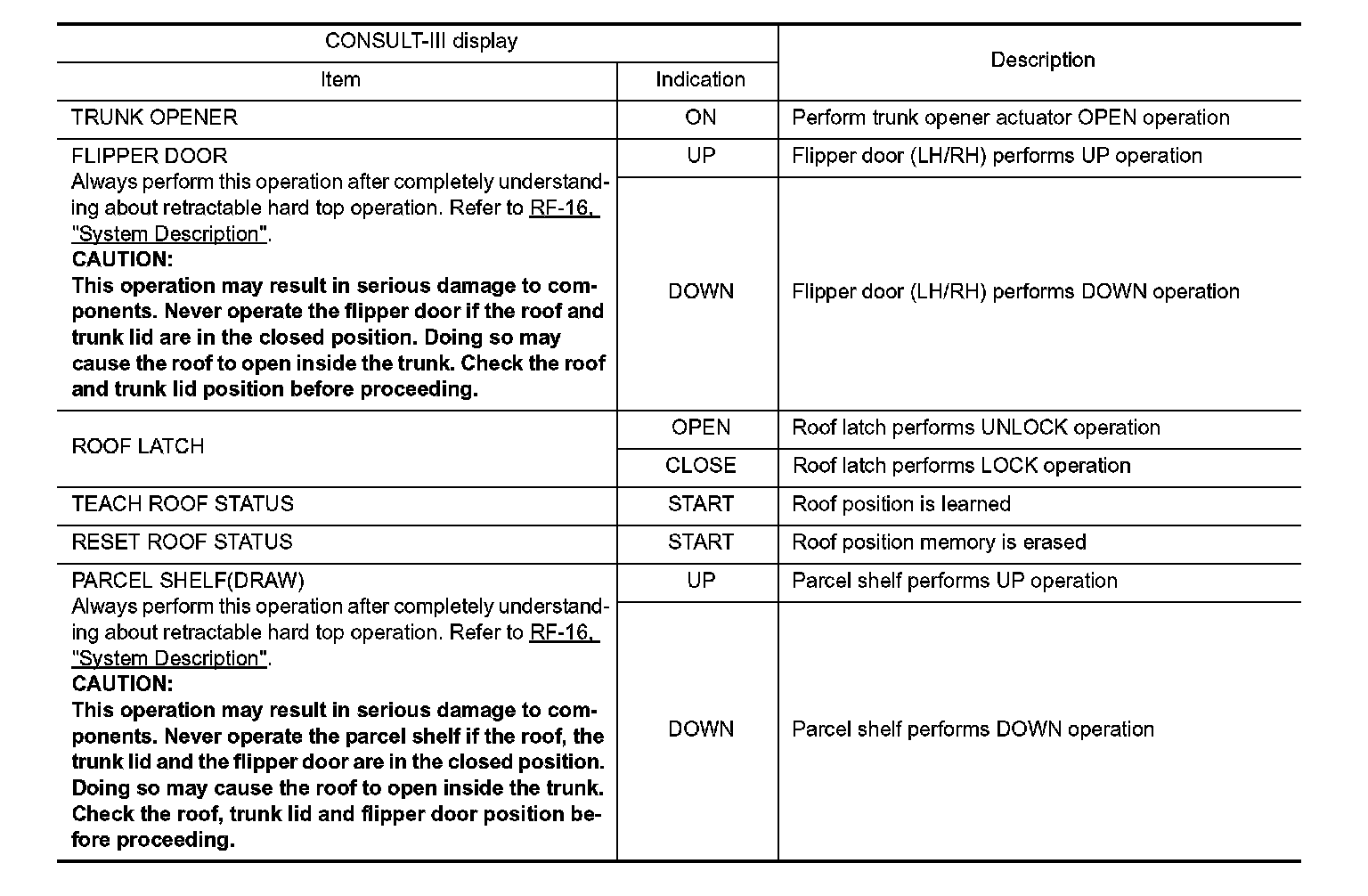

ACTIVE TEST
