Component Inspection

DOOR REQUEST SWITCH


Component Inspection

1.CHECK DOOR REQUEST SWITCH
1. Turn ignition switch OFF.
2. Disconnect malfunctioning outside handle connector.

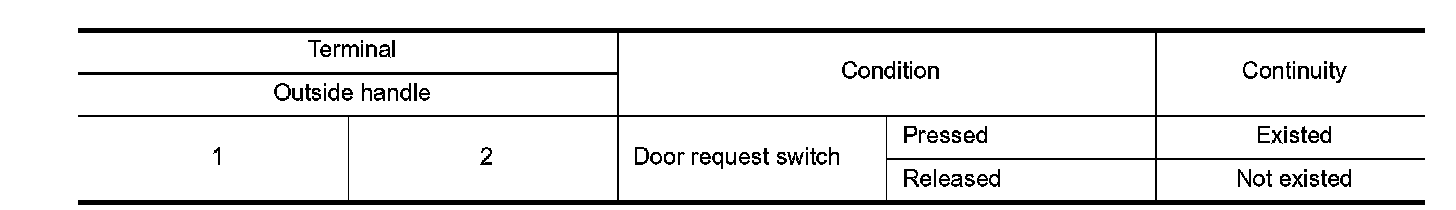

3. Check continuity between malfunctioning outside handle terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace malfunctioning outside handle. Refer to Removal and Installation.
