Component Function Check

DOOR LOCK AND UNLOCK SWITCH


PASSENGER SIDE : Component Function Check

1.CHECK FUNCTION

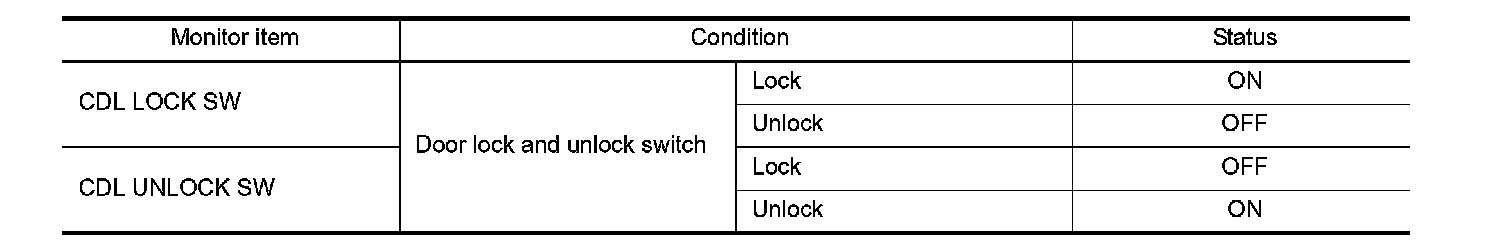

Check ("CDL LOCK SW ", "CDL UNLOCK SW") in BCM "Data Monitor" mode using CONSULT-III.





Is the inspection result normal?
YES - Door lock and unlock switch is OK.
NO - Refer to Diagnosis Procedure.
