Diagnosis Procedure

DOOR KEY CYLINDER SWITCH


Description

Power window main switch detects condition of the door key cylinder switch and transmits to BCM as the
LOCK or UNLOCK signals.




DOOR KEY CYLINDER SWITCH


Diagnosis Procedure

1.CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect driver side door lock assembly connector.

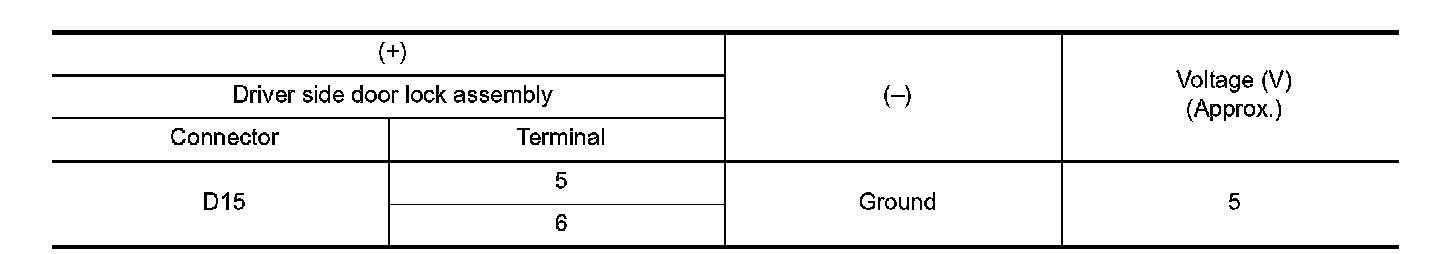

3. Check voltage between driver side door lock assembly harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 2.
2.CHECK DOOR KEY CYLINDER SWITCH SIGNAL CIRCUIT
1. Disconnect power window main switch connector.
2. Check continuity between power window main switch harness connector and driver side door lock assembly harness connector.

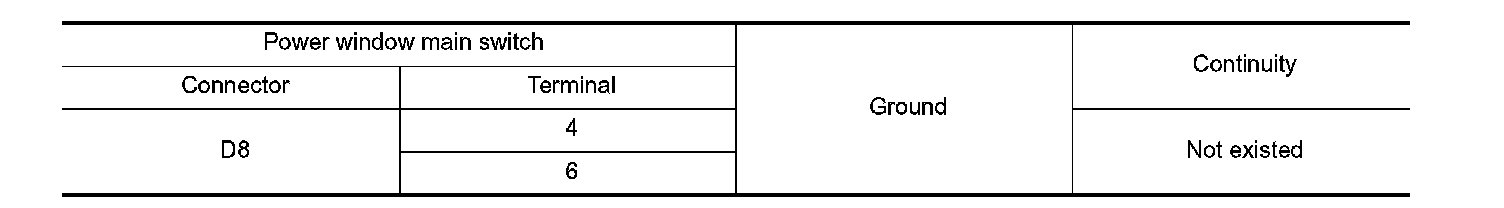

3. Check continuity between power window main switch harness connector and ground.





Is the inspection result normal?
YES - Replace power window main switch. Refer to Service and Repair.
NO - Repair or replace harness.
3.CHECK DOOR KEY CYLINDER SWITCH GROUND CIRCUIT

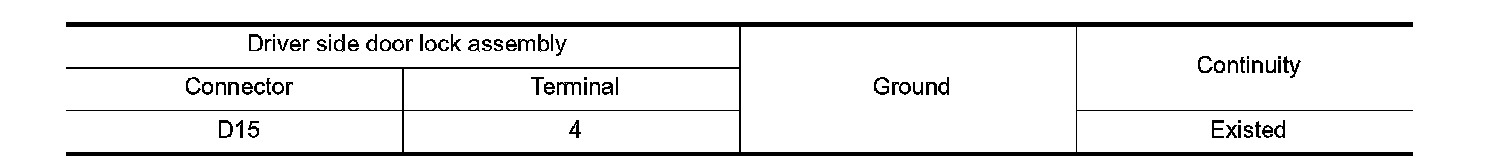

Check continuity between driver side door lock assembly harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace harness.
4.CHECK DOOR KEY CYLINDER SWITCH
Refer to Component Inspection.
Is the inspection result normal?
YES - GO TO 5.
NO - Replace door key cylinder switch (driver side door lock assembly). Refer to Exploded View Removal and Installation, "DOOR LOCK : Removal and Installation".
5.CHECK INTERMITTENT INCIDENT
Refer to Intermittent Incident.
- INSPECTION END
