Component Function Check

DOOR KEY CYLINDER SWITCH


Component Function Check

1.CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL

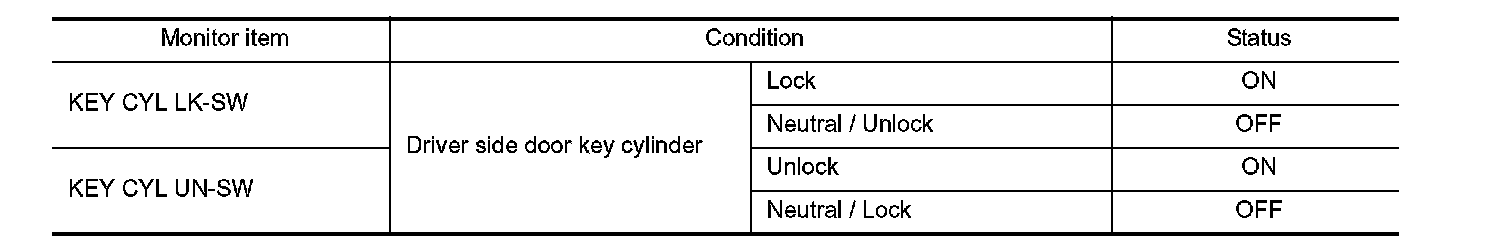

Check ("KEY CYL LK-SW", "KEY CYL UN-SW") in BCM "Data Monitor" mode using CONSULT-III.





Is the inspection result normal?
YES - Door key cylinder switch is OK.
NO - Refer to Diagnosis Procedure.
