Home >> Infiniti >> 2009 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Service and Repair >> Door Switch

Door Switch





DOOR SWITCH


Removal and Installation


REMOVAL

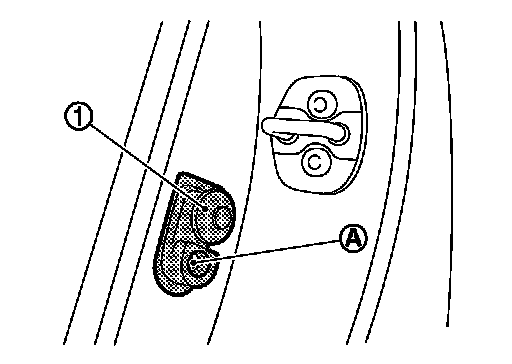

1. Remove the door switch mounting bolt (A), and then remove door switch (1).






INSTALLATION
Install in the reverse order of removal.
