Component Function Check

UNLOCK SENSOR


Component Function Check

1.CHECK FUNCTION

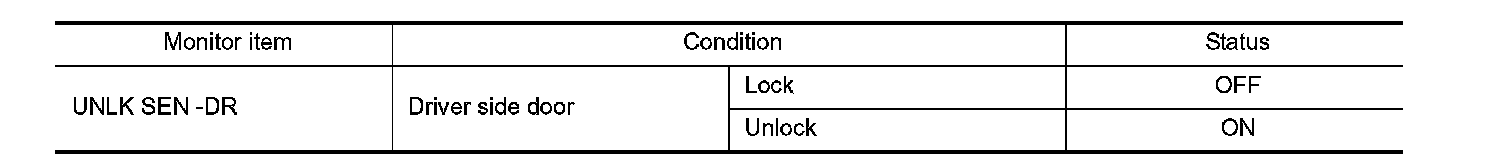

Check ("UNLK SEN -DR") in BCM "Data Monitor" mode using CONSULT-III.





Is the inspection result normal?
YES - Unlock sensor is OK.
NO - Refer to Diagnosis Procedure.
