Removal and Installation

REMOTE KEYLESS ENTRY RECEIVER


Removal and Installation


REMOVAL
1. Remove the instrument assist lower panel. Refer to Removal and Installation.

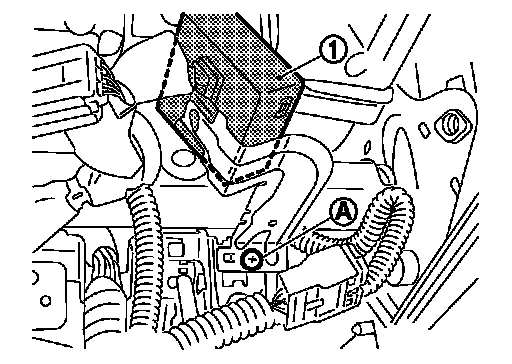

2. Remove the remote keyless entry receiver mounting bolt (A), and then remove remote keyless entry receiver (1).

INSTALLATION
Install in the reverse order of removal.
