Removal and Installation

INSIDE KEY ANTENNA


CONSOLE : Removal and Installation


REMOVAL
1. Remove the console ashtray.
2. Remove the console rear finisher (2). Refer to Removal and Installation.

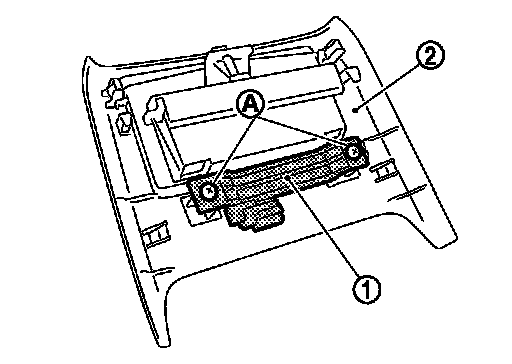

3. Remove the inside key antenna mounting screw (A), and then remove inside key antenna (console) (1) from console rear finisher.

INSTALLATION
Install in the reverse order of removal.
