Removal and Installation

INSTRUMENT PANEL ASSEMBLY


Removal and Installation


WORK STEP

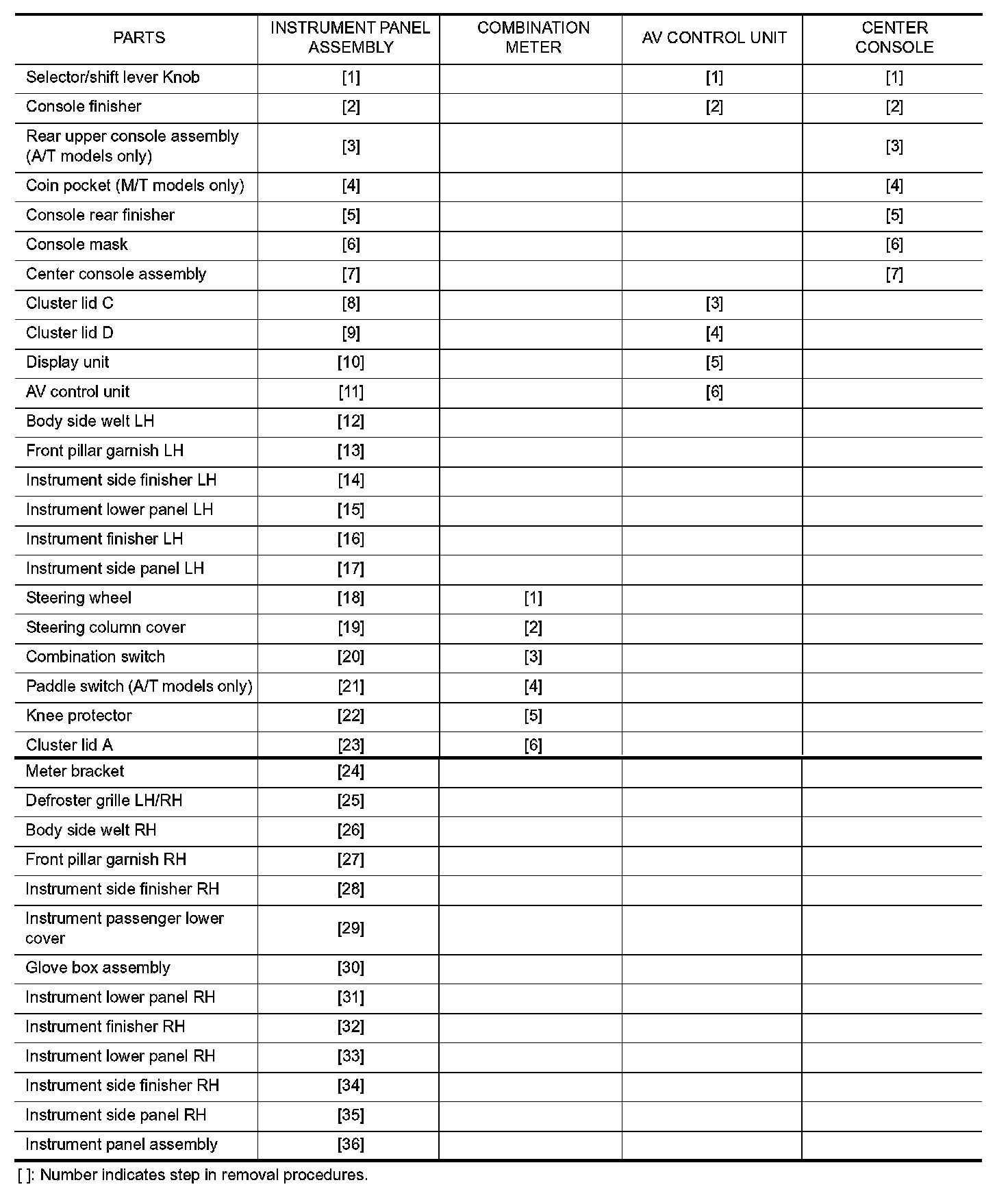

When removing instrument panel assembly, combination meter, audio unit, center console take steps in the order shown by the number below.






CAUTION:
When removing, always use a remover tool that is made of plastic.

REMOVAL
1. Put selector lever in drive position (A/T models only).
2. Remove selector lever knob (A/T models only). Refer to Removal and Installation.
3. Remove shift lever knob (M/T models only). Refer to Removal and Installation.

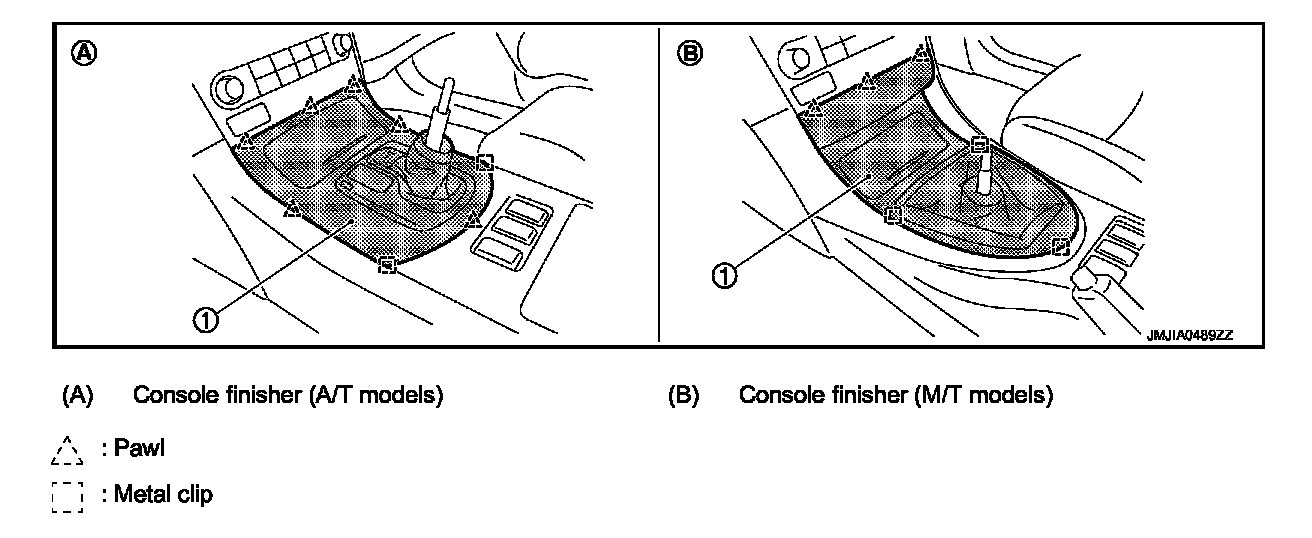

4. Remove console finisher.





- Remove clips from rear of console finisher (1), and then remove pawl of front.
- Pull console finisher upward to disengage from center console.
- Disconnect harness connectors.

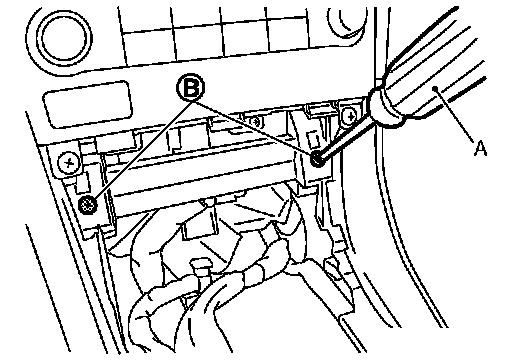

5. Remove screws (B) of center console front side with screw driver (A).

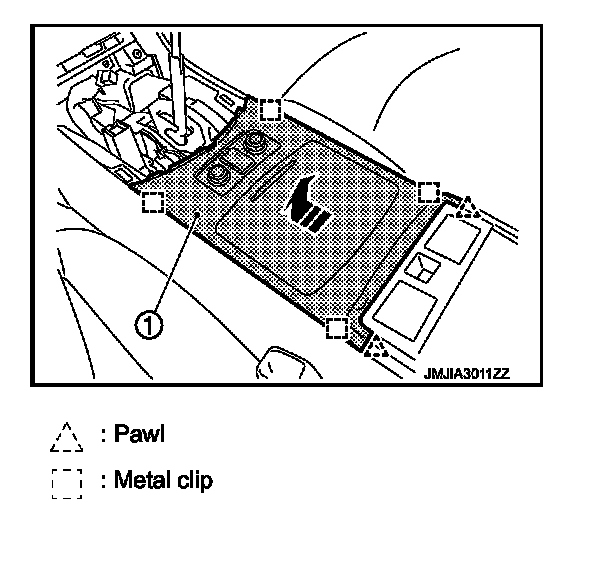

6. Remove rear upper console assembly (A/T models only).





- Slide forward, pull up rear upper console assembly (1), and disconnect metal clips.
- Disconnect heated seat switch harness connectors. (with heated seat)

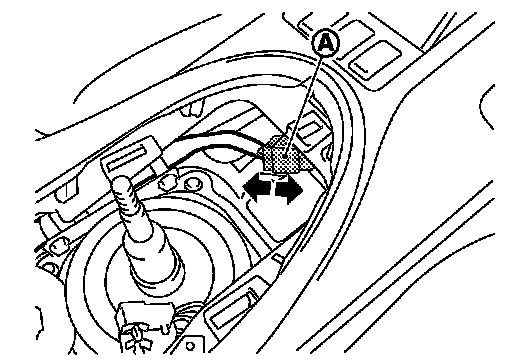

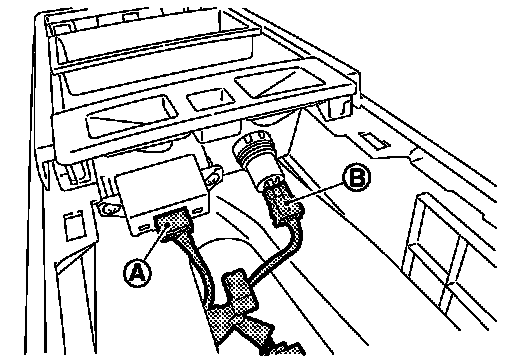

7. Disconnect auxiliary input jacks connector (A) and power socket harness connector (B) (A/T models only).

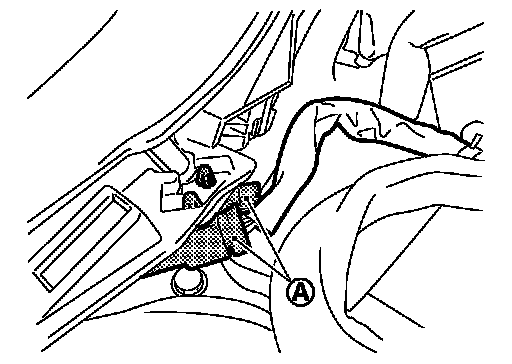

8. Disconnect console sub harness connectors (A) (M/T models only).





9. Disconnect heated seat switch connector (A) (M/T models with heated seat only).
10. Remove coin pocket fixing pawl using a remover tool (A), and then remove coin pocket (1) (M/T models only).

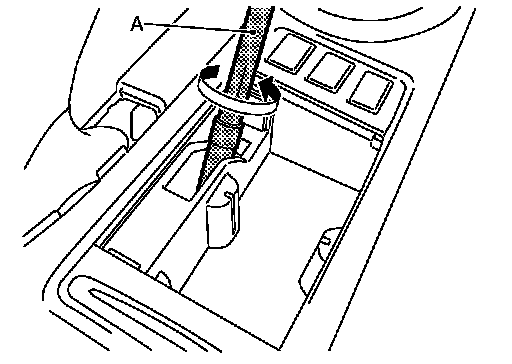

11. Insert a deep-well socket wrench (A) to rotate adjusting nut to loosen cable sufficiently (M/T models only). Refer to Parking Brake System Lever Type.

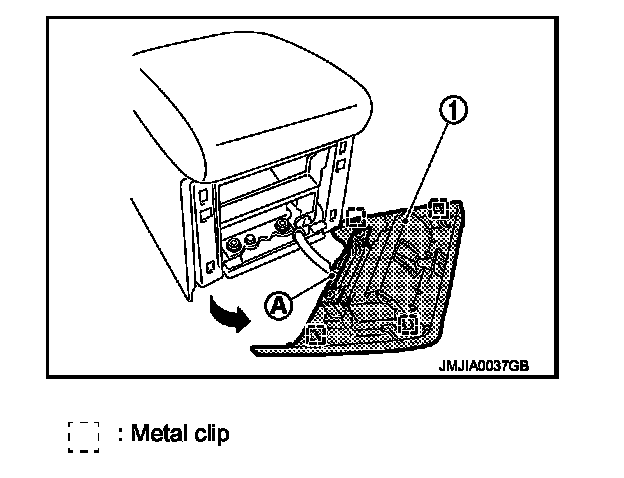

12. Remove console rear finisher.
- Pull back the console rear finisher (1).

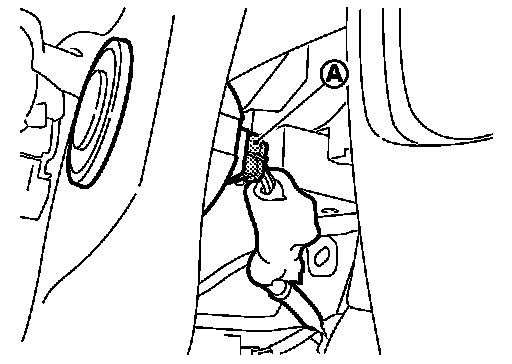

- Disconnect inside key antenna connector (A).

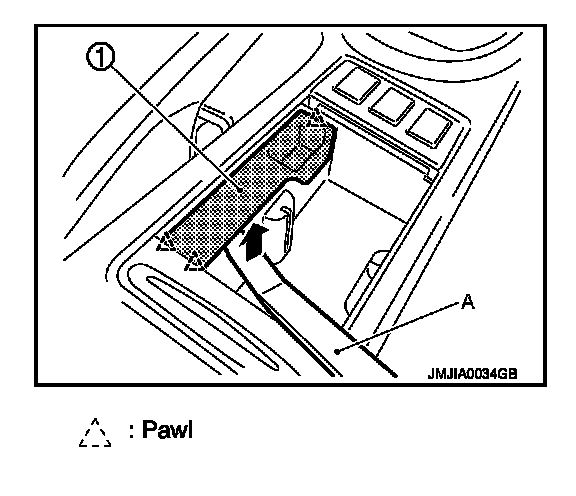

13. Remove console mask.





- Open the console lid.
- Pull up console mask (1) by using a remover tool (C), and disengage pawls.

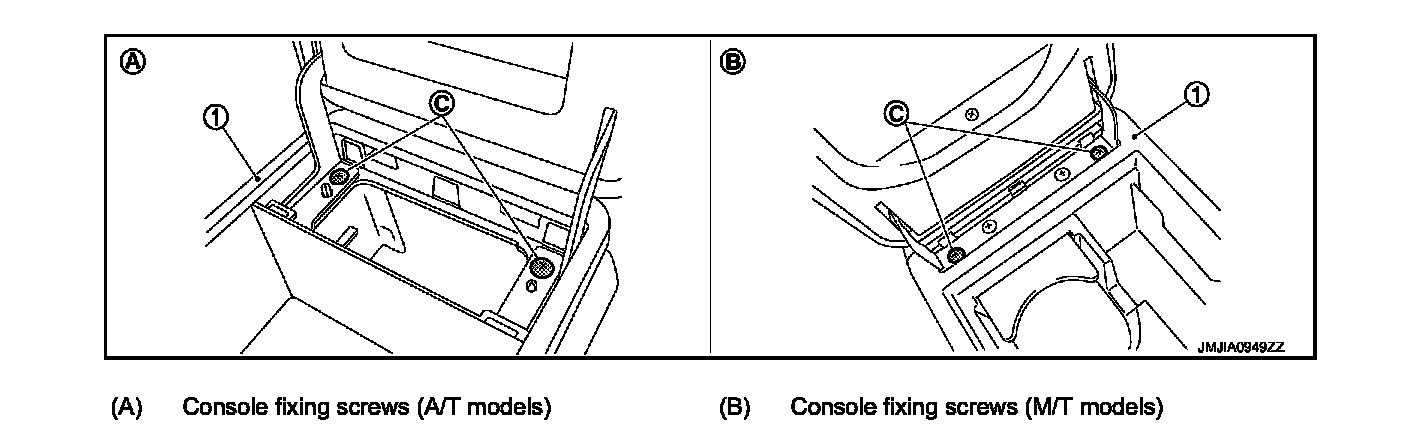

14. Remove screws (C) of center console rear side, and then remove center console assembly (1).

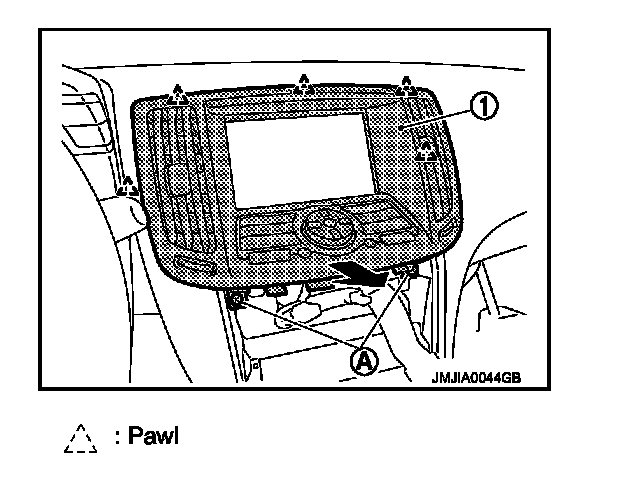

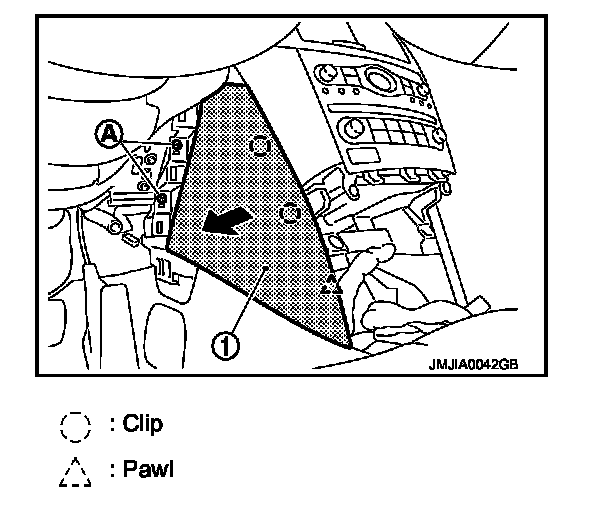

15. Remove cluster lid C.
- Remove cluster lid C fixing screws (A).
- Pull back cluster lid C (1).
- Disconnect harness connectors.





16. Remove cluster lid D.
- Remove cluster lid D fixing screw (A).
- Pull back cluster lid D (1).
- Disconnect harness connectors.

17. Remove display unit. Refer to Exploded View.





18. Disconnect center speaker harness connector (A). (with center speaker)
19. Remove screw (B).

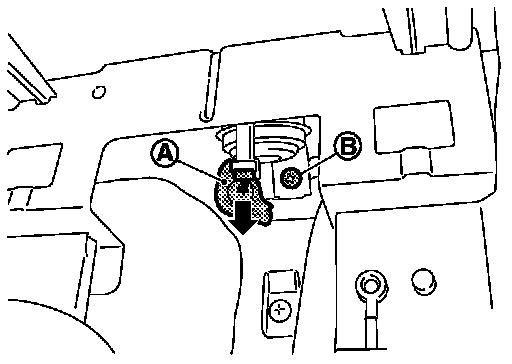

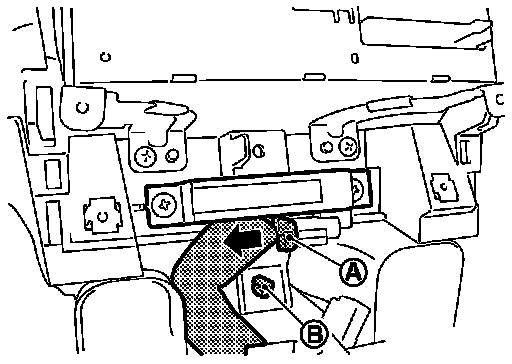

20. Disconnect inside key antenna connector (A) and clip (B) located under audio unit.

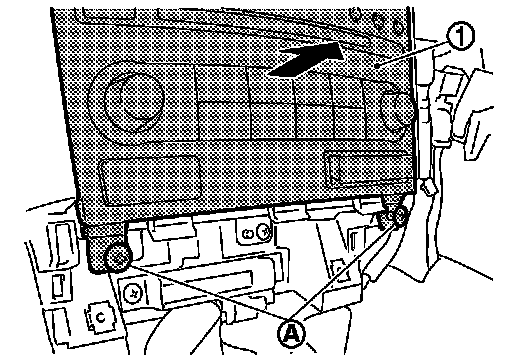

21. Remove AV control unit. Refer to Base Audio Without Navigation.
22. Remove body side welt LH. Refer to Exploded View.
23. Remove front pillar garnish LH. Refer to Exploded View.

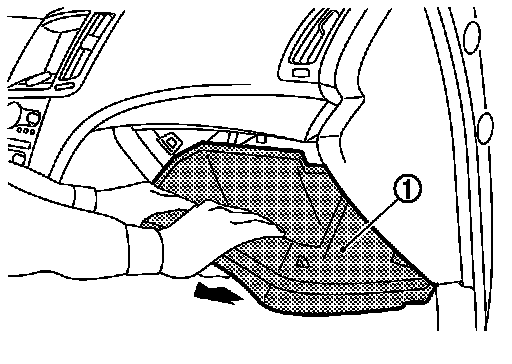

24. Remove instrument side finisher LH.
- Insert a remover tool into lower space.
- Pull the instrument side finisher LH (1) crosswise.

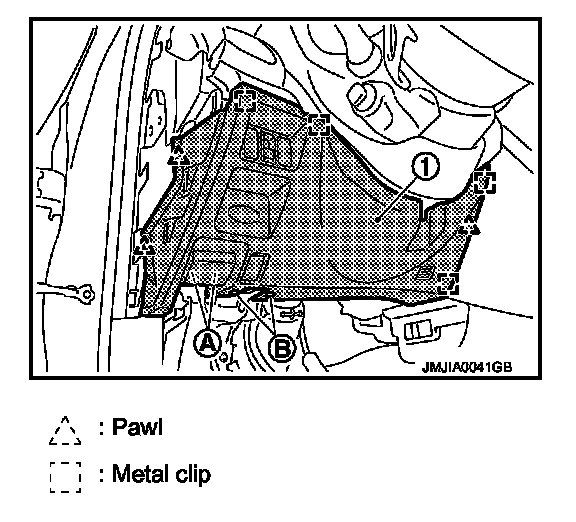

25. Remove instrument lower panel LH.
- Remove hood opener mounting bolts (A). Refer to Exploded View.
- Remove data link connector fixing screws (B).
- Pull back instrument lower panel LH (1).
- Disconnect harness connectors.

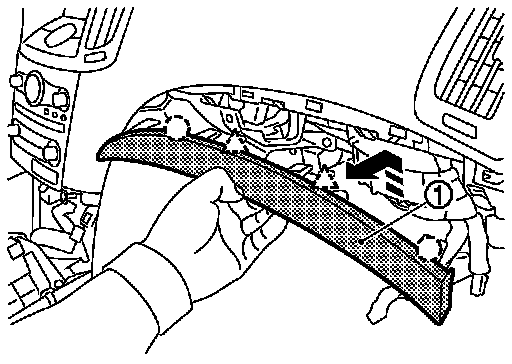

26. Remove instrument finisher A.
Pull instrument finisher A (1) upward, and then disengage pawls.





27. Remove instrument side panel LH.
- Remove instrument side panel fixing screw (A).
- Pull the instrument side panel LH (1) crosswise.

28. Remove steering wheel assembly. Refer to Exploded View.

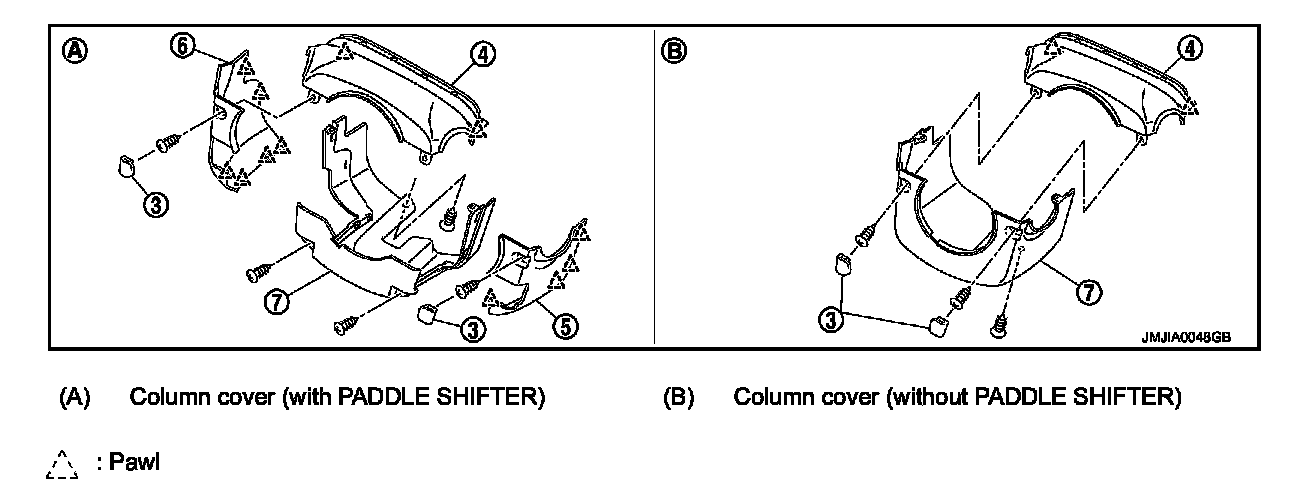

29. Remove steering column covers.

CAUTION:
When removing the column covers, to facilitate the work operation remove first the steering wheel.

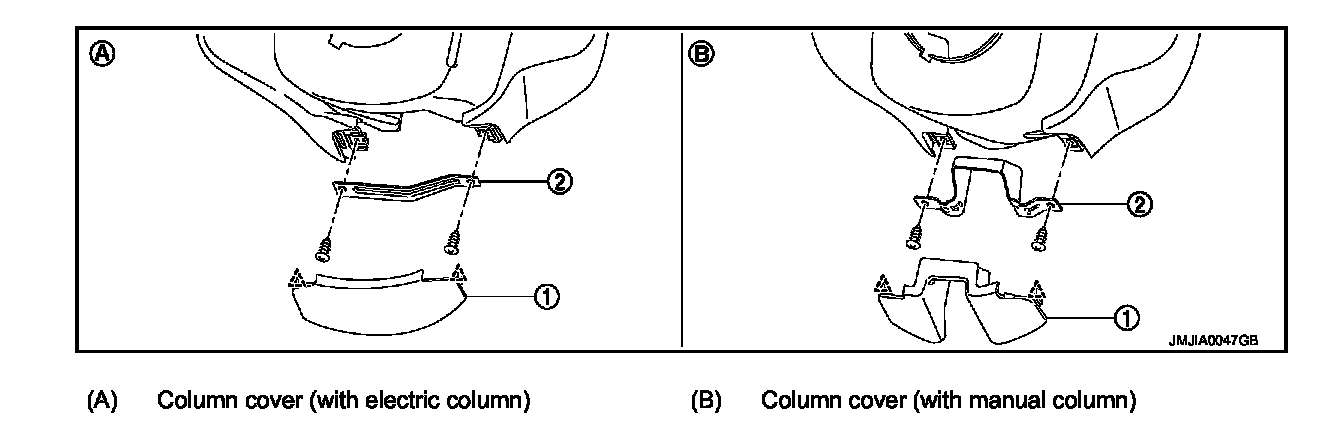

- Remove steering column front lower cover (1).
- Remove cluster lid A lower bracket (2).





- Remove steering column mask (3) and screws.
- Pull up steering column cover upper (4).
- Remove steering column side cover RH (5) (with PADDLE SHIFTER).
- Pull the steering column side cover LH (6) to the left side (with PADDLE SHIFTER).
- Disconnect ADP steering switch connector (with ADP).
- Remove steering column side cover LH.
- Remove screws, and then remove steering column lower cover (7).

30. Remove spiral cable and steering angle sensor. Refer to Exploded View.
31. Remove combination switch. Refer to Exploded View.
32. Remove paddle switch LH/RH (with PADDLE SHIFTER). Refer to Exploded View.
33. Remove cluster lid A.

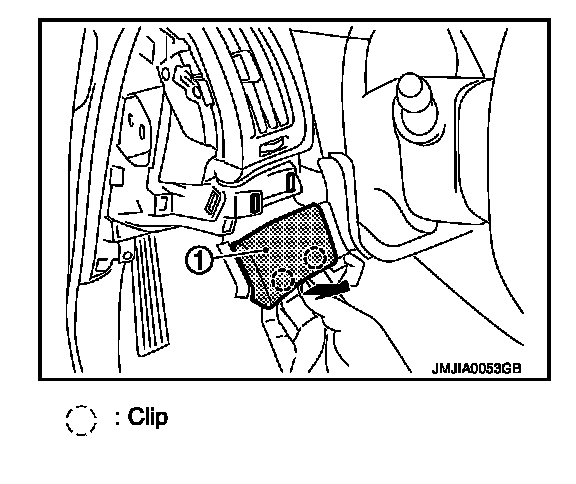

- Remove knee protector mounting bolts (A) with power tool, and then remove knee protector (1).

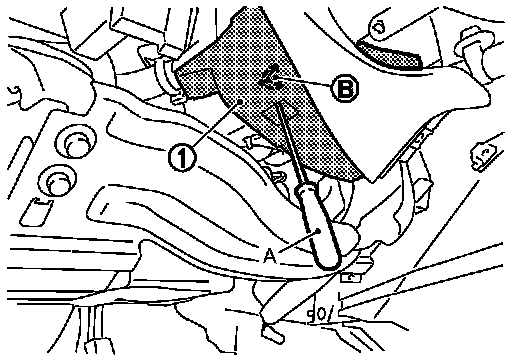

- Disengage harness cover fixing pawl (B) by using tool (A) located under the column shaft.





- Pull down harness cover (1). (with harness cover)





- Remove cluster lid A (combination meter) mounting bolts (A).
- Disconnect push button ignition switch harness connector (A).





- Pull back cluster lid A, and disconnect combination meter connectors.

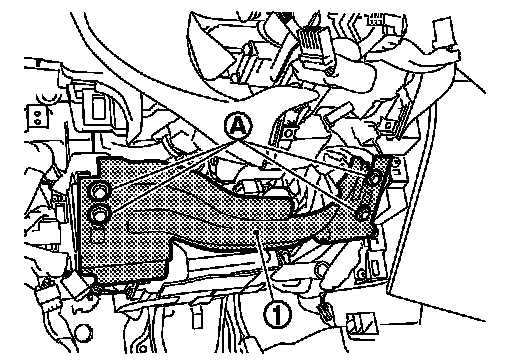

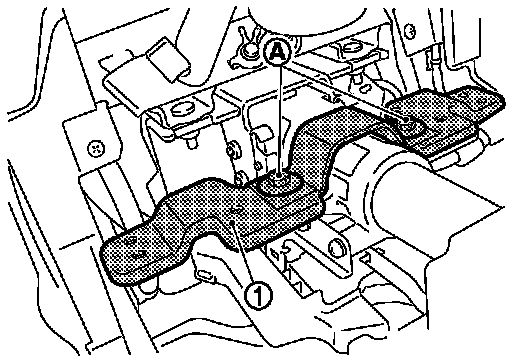

34. Remove meter bracket mounting bolts (A), and then remove meter bracket (1).





35. Remove front defroster grille LH. Refer to Front Defroster Grille.
- Pull upward, disengage pawls.
- Disconnect harness connector.
36. Remove front defroster grille RH. Refer to Front Defroster Grille.
- Pull upward, disengaged pawls.
- Disconnect harness connector.
37. Remove body side welt RH. Refer to Exploded View.
38. Remove front pillar garnish RH. Refer to Exploded View.





39. Remove instrument side finisher RH.
- Insert a remover tool into lower space.
- Pull the instrument side finisher RH (1) crosswise.





40. Remove instrument passenger lower cover.
- Pull downward, disengaged pawls.
- Pull back instrument passenger lower cover (1).

41. Remove glove box assembly.
- Open the glove box.





- Pull up glove box assembly (1).

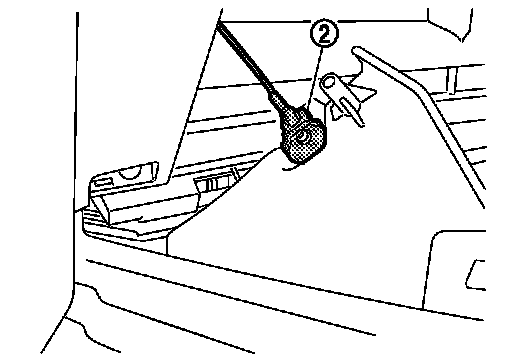

- Remove damper pin (2) of left side.

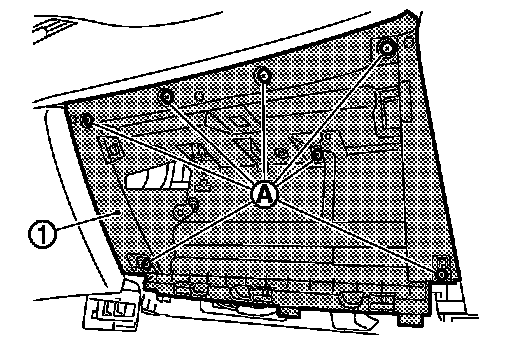

42. Remove instrument lower panel RH.
- Remove instrument lower panel RH fixing screws (A) with power tool.

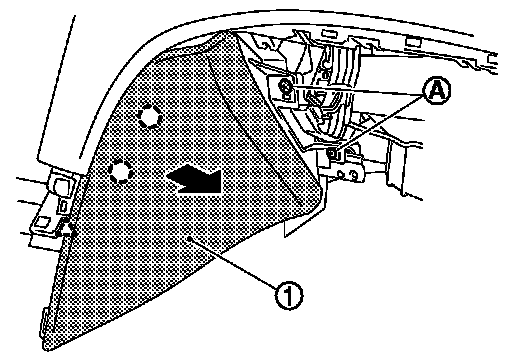

- Pull back instrument lower panel RH (1).
- Disconnect harness connector.

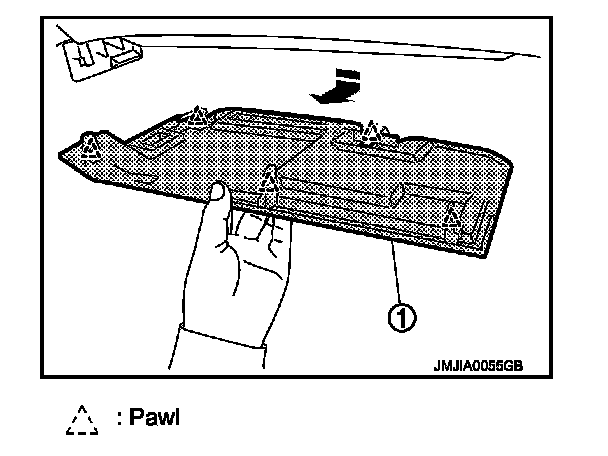

43. Remove instrument finisher B.
Pull instrument finisher B (1) upward then disengage pawls.





44. Remove instrument side panel RH.
- Remove instrument side panel fixing screw (A).
- Pull the instrument side panel RH (1) crosswise.

45. Disconnect passenger air bag module connector. Refer to Removal and Installation.
46. Remove passenger air bag module mounting bolt. Refer to Exploded View.

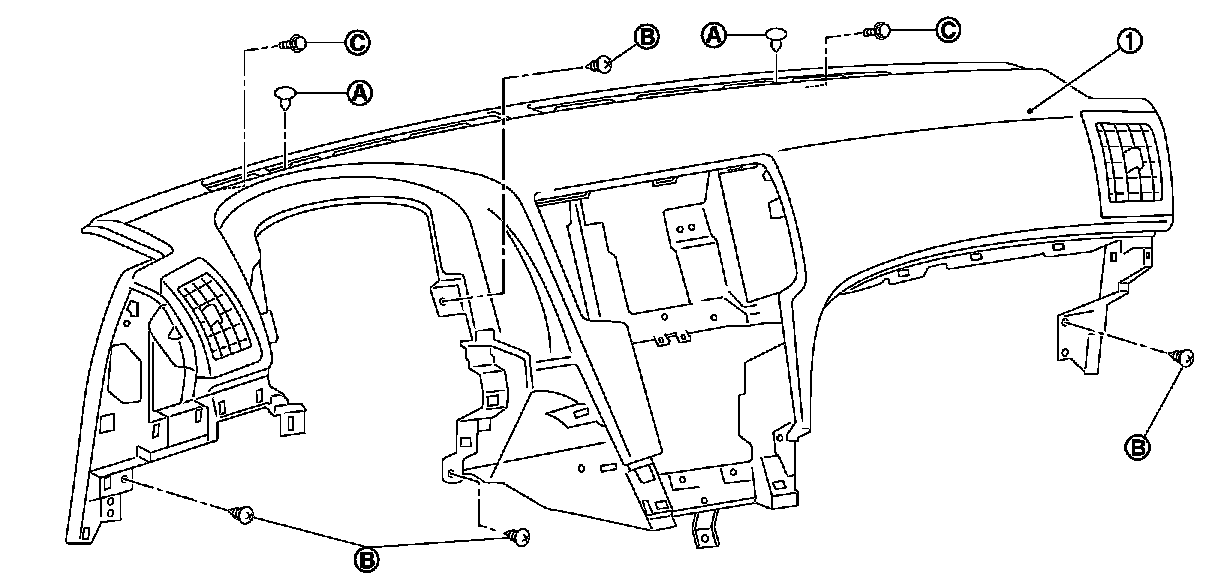

47. Remove instrument panel assembly.
- Remove defroster nozzle fixing clips (A).
- Remove screws (B) and bolts (C) with power tool, and then remove instrument panel assembly (1).






CAUTION:
When removing instrument panel, 2 workers are required so as to prevent it from dropping.
48. Remove the following parts after removing instrument panel assembly.
- Center speaker: Refer to BOSE Audio Without Navigation.
- Front passenger air bag module: Refer to Removal and Installation.
- Side ventilator grille LH/RH: Refer to Side Ventilator Grille.
- Inside key antenna: Refer to Exploded View.
- Combination meter: Refer to Exploded View.
- Center speaker grille
- Antenna feeder

INSTALLATION
Install in the reverse order of removal.
