Removal and Installation

CENTER CONSOLE ASSEMBLY


Removal and Installation


CAUTION:
When removing, always use a remover tool that is made of plastic.

REMOVAL
1. Put selector lever in drive position (A/T models only).
2. Remove selector lever knob (A/T models only). Refer to Exploded View.
3. Remove shift lever knob (M/T models only). Refer to Exploded View.

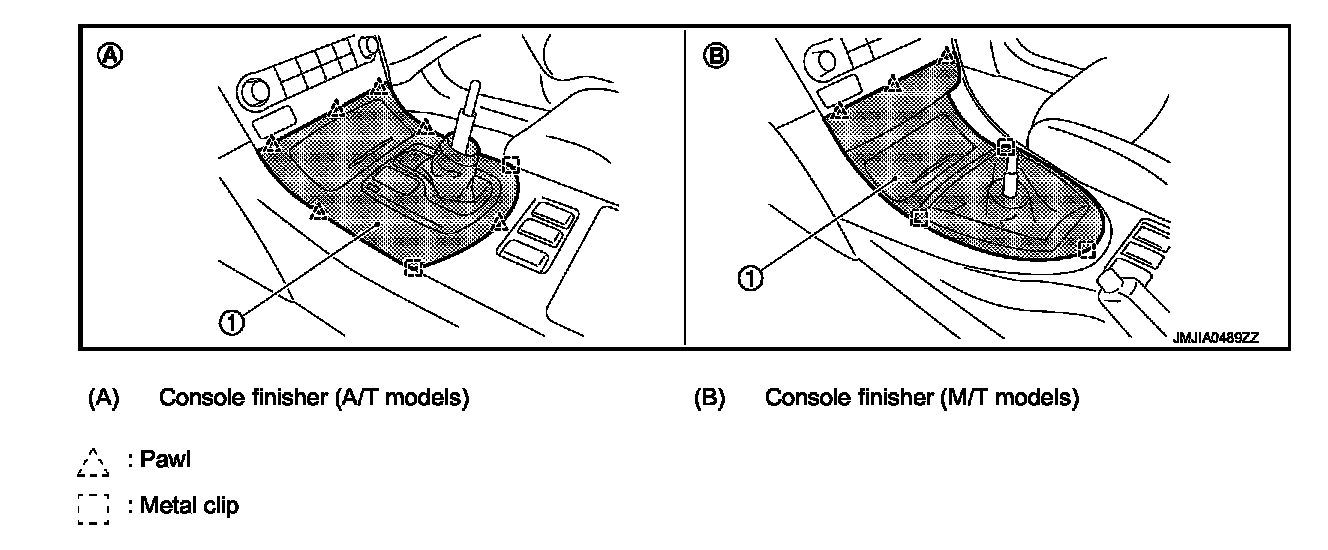

4. Remove console finisher.





- Remove clips from rear of console finisher (1), and then remove pawl of front.
- Pull console finisher (1) upward to disengage from center console.
- Disconnect harness connectors.

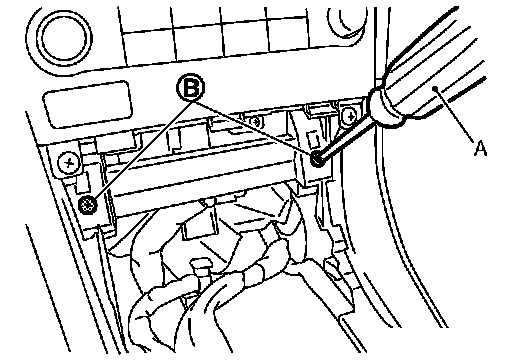

5. Remove screws (B) from center console front side with screwdriver (A).

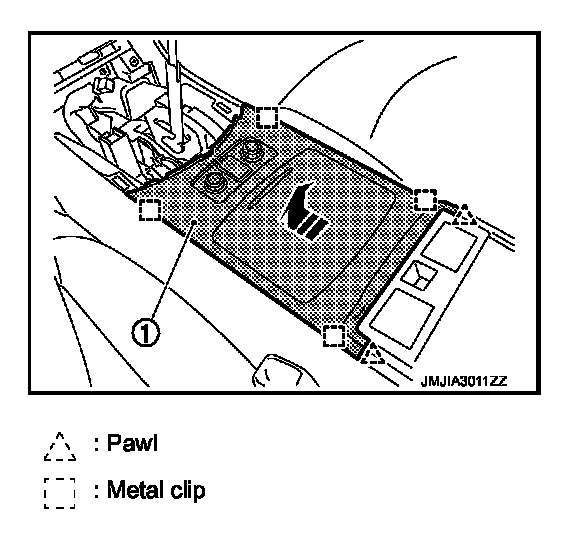

6. Remove rear upper console assembly (A/T models only).





- Slide to front, pull up rear upper console assembly (1), and disconnect metal clips.
- Disconnect heated seat switch harness connectors. (with heated seat)

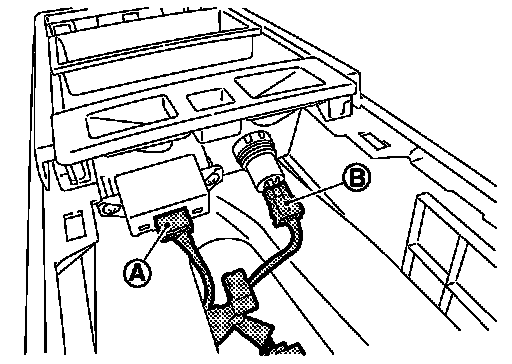

7. Disconnect auxiliary input jacks connector (A) and power socket harness connector (B) (A/T models only).

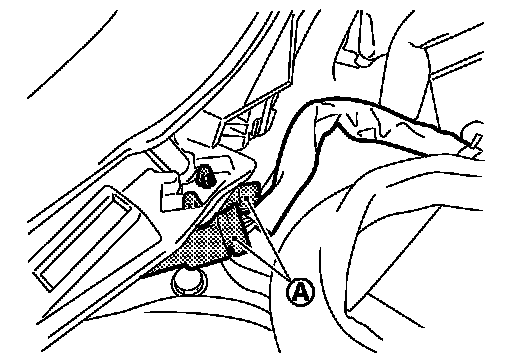

8. Disconnect console sub harness connectors (A) (M/T models only).

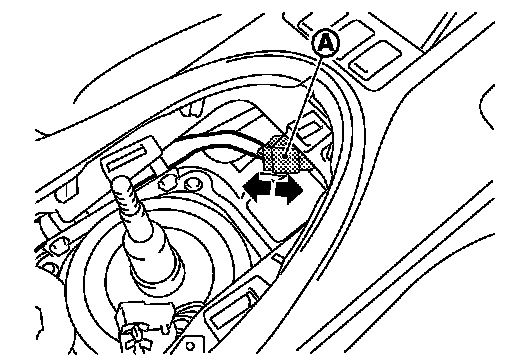

9. Disconnect heated seat switch connector (A) (M/T models with heated seat only).

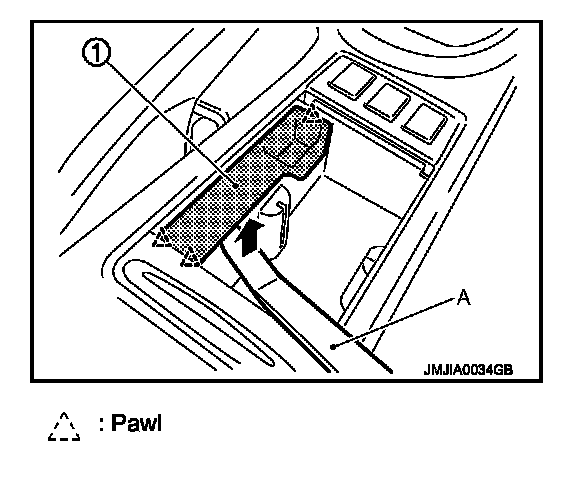

10. Remove coin pocket fixing pawls using a remover tool (A), and then remove coin pocket (1) (M/T models only).

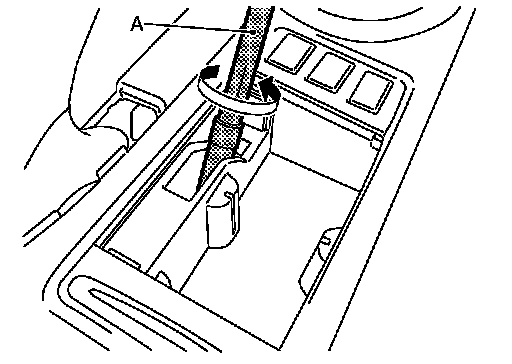

11. Insert a deep-well socket wrench (A) to rotate adjusting nut to loosen cable sufficiently (M/T models only). Refer to Parking Brake System Lever Type.

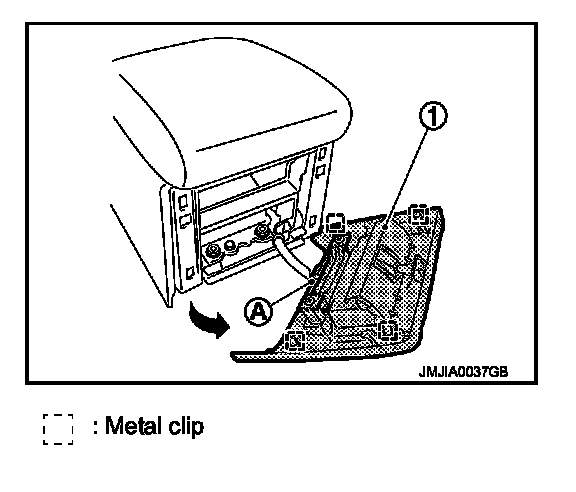

12. Remove console rear finisher.
- Pull back the console rear finisher (1).





- Disconnect inside key antenna connector (A).

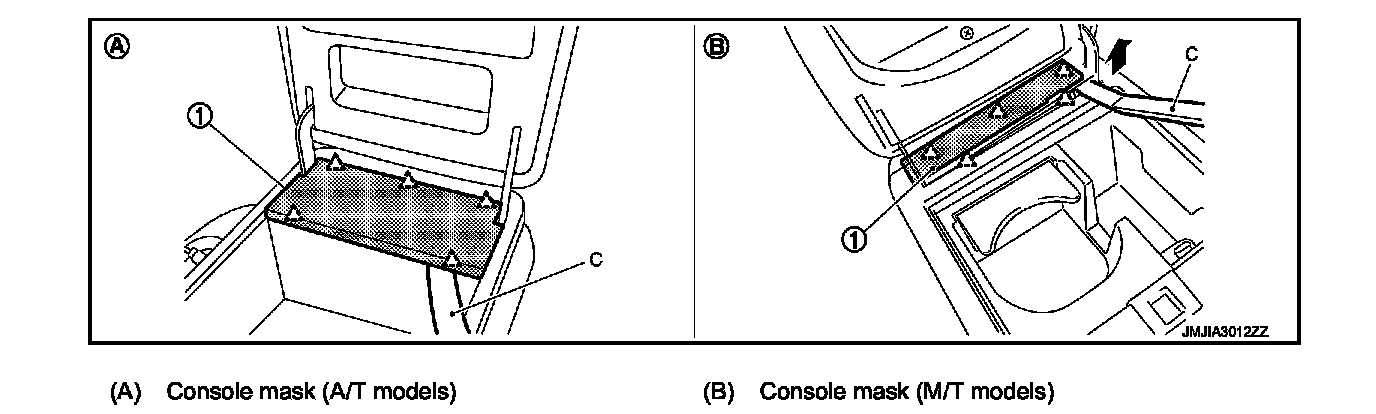

13. Remove console mask.





- Open the console lid.
- Pull up console mask (1) by using a remover tool (C), and disengage pawls.

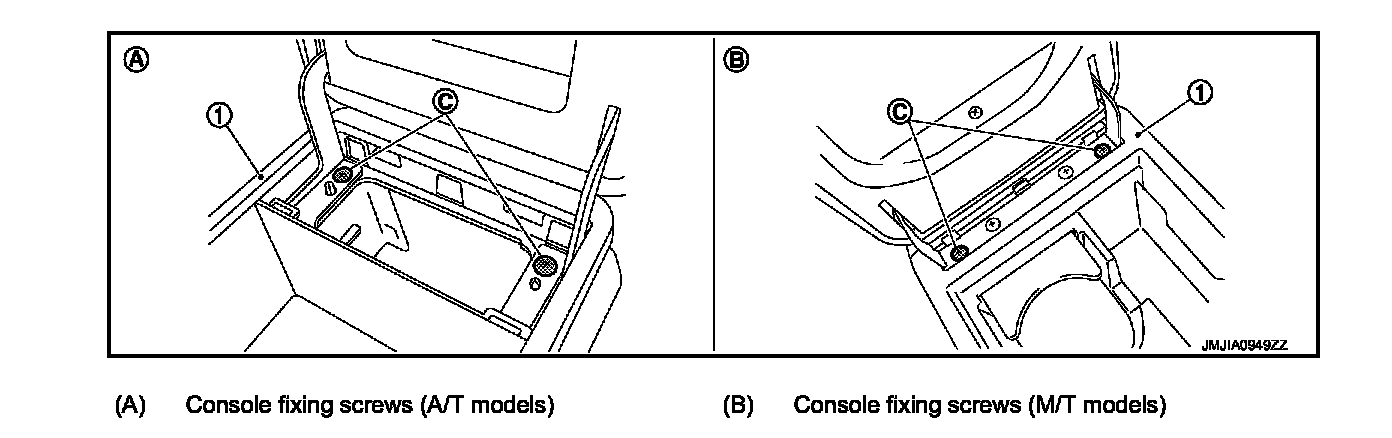

14. Remove screws (C) from center console rear side, and then remove center console assembly (1).





INSTALLATION
Install in the reverse order of removal.
