Exploded View





CENTER CONSOLE ASSEMBLY


Exploded View


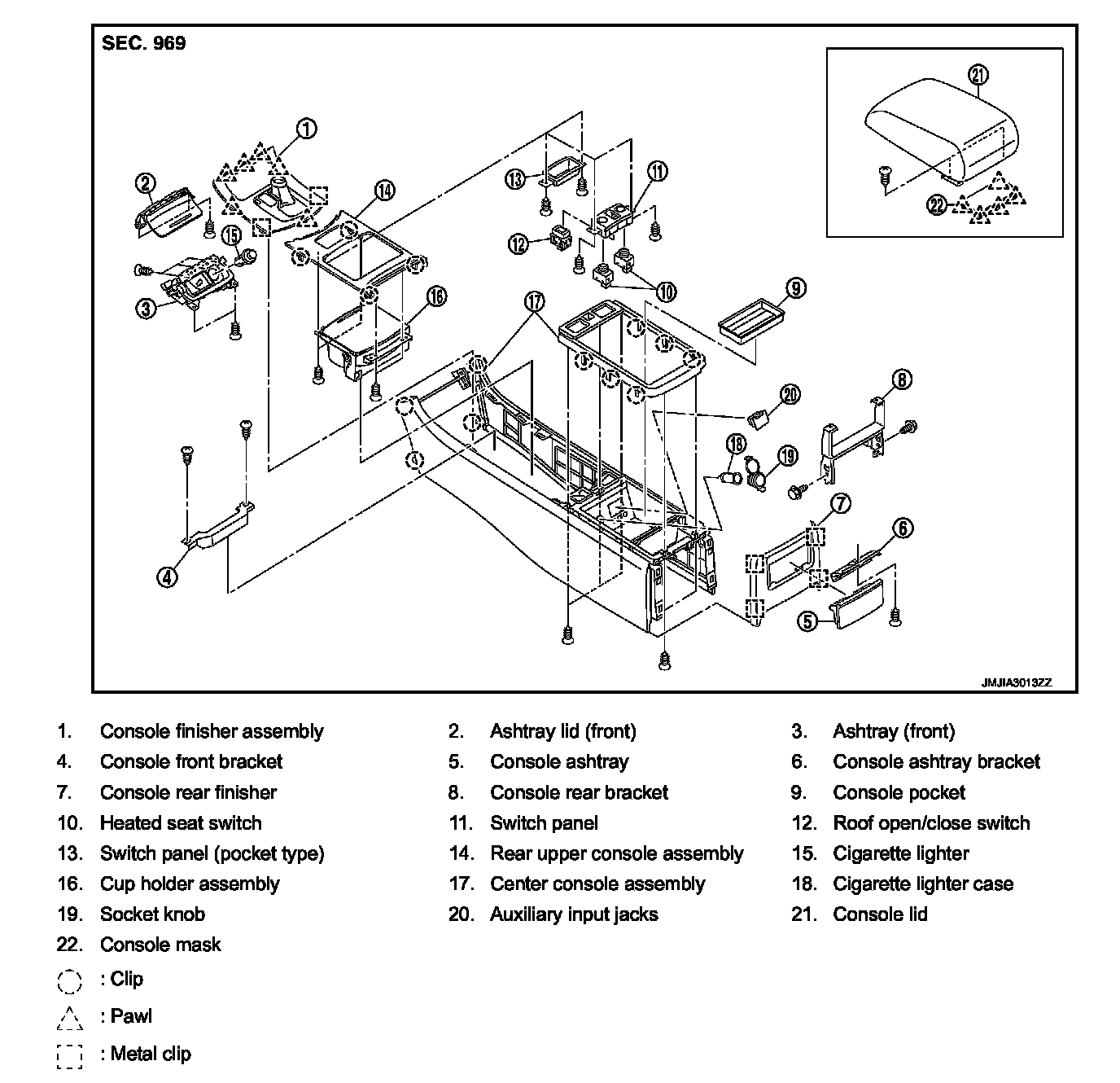

CENTER CONSOLE (A/T MODELS)

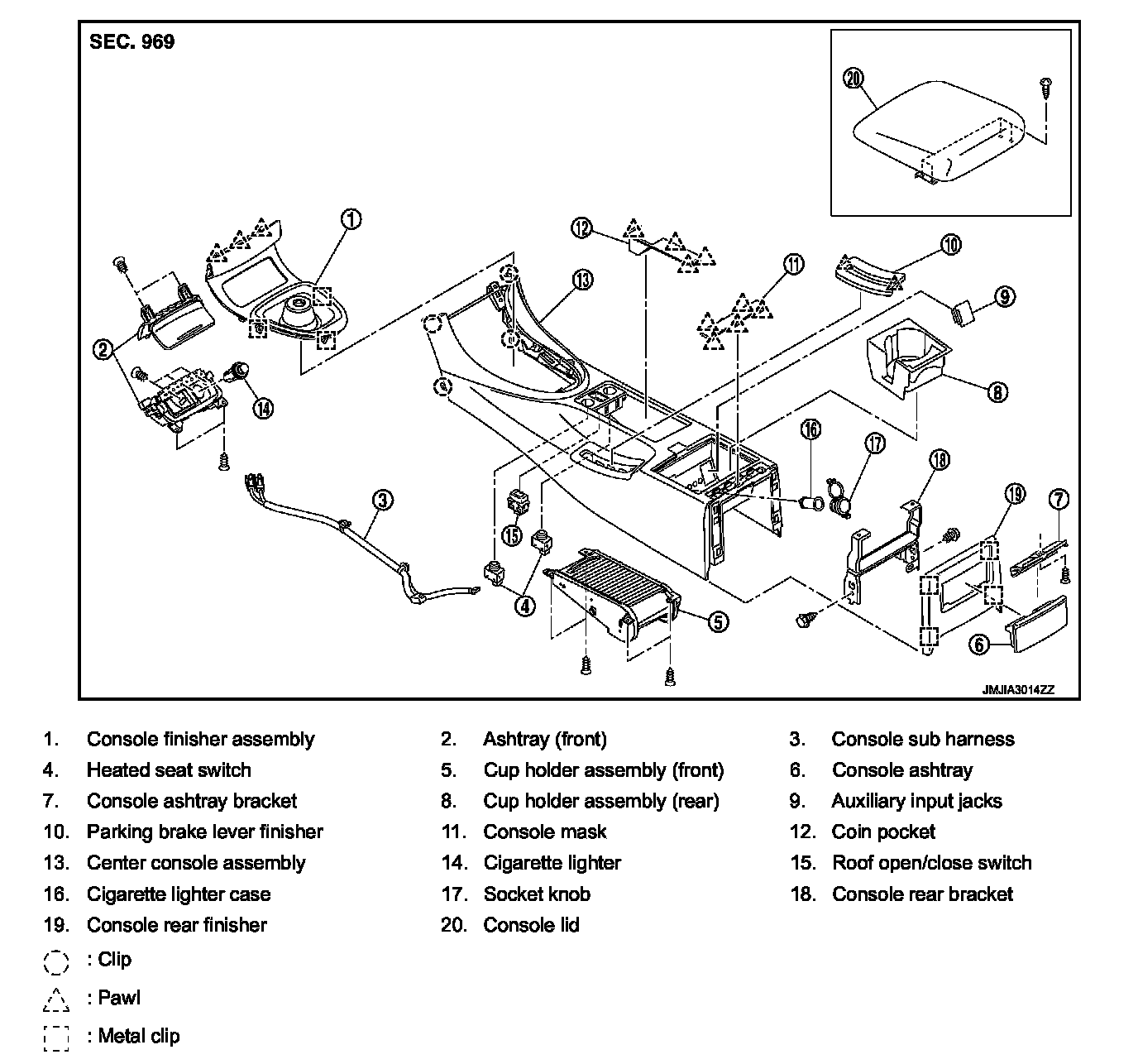

CENTER CONSOLE (M/T MODELS)
