IMMU
IMMU
DIAGNOSIS SYSTEM (
BCM
)
IMMU : CONSULT-III Function (
BCM
- IMMU)

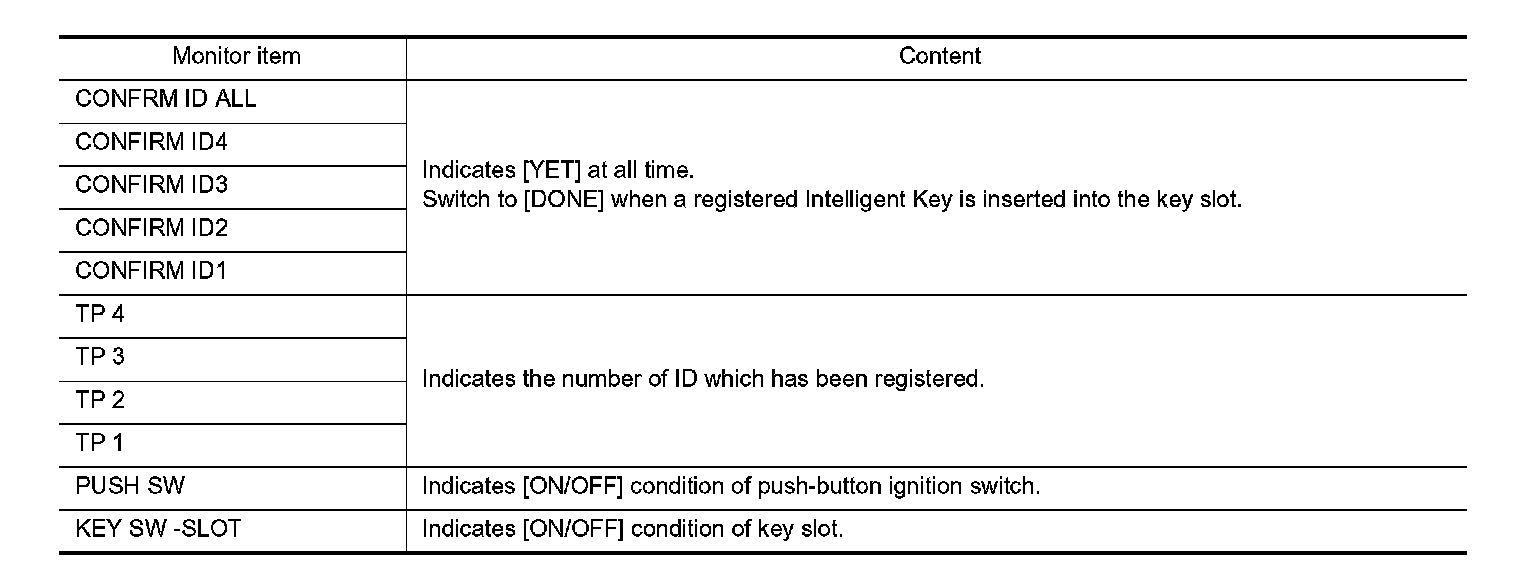

DATA MONITOR

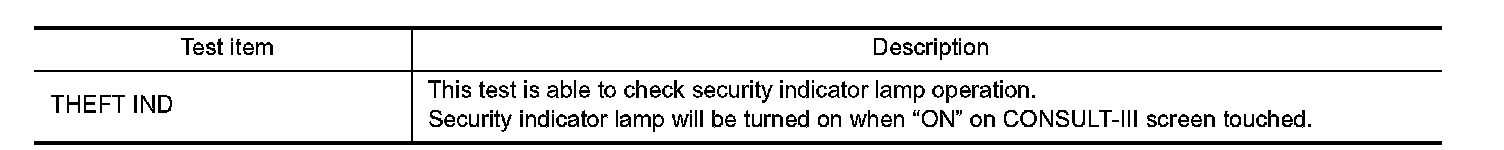

ACTIVE TEST
