Component Inspection

STEERING SWITCH SIGNAL A CIRCUIT


Component Inspection

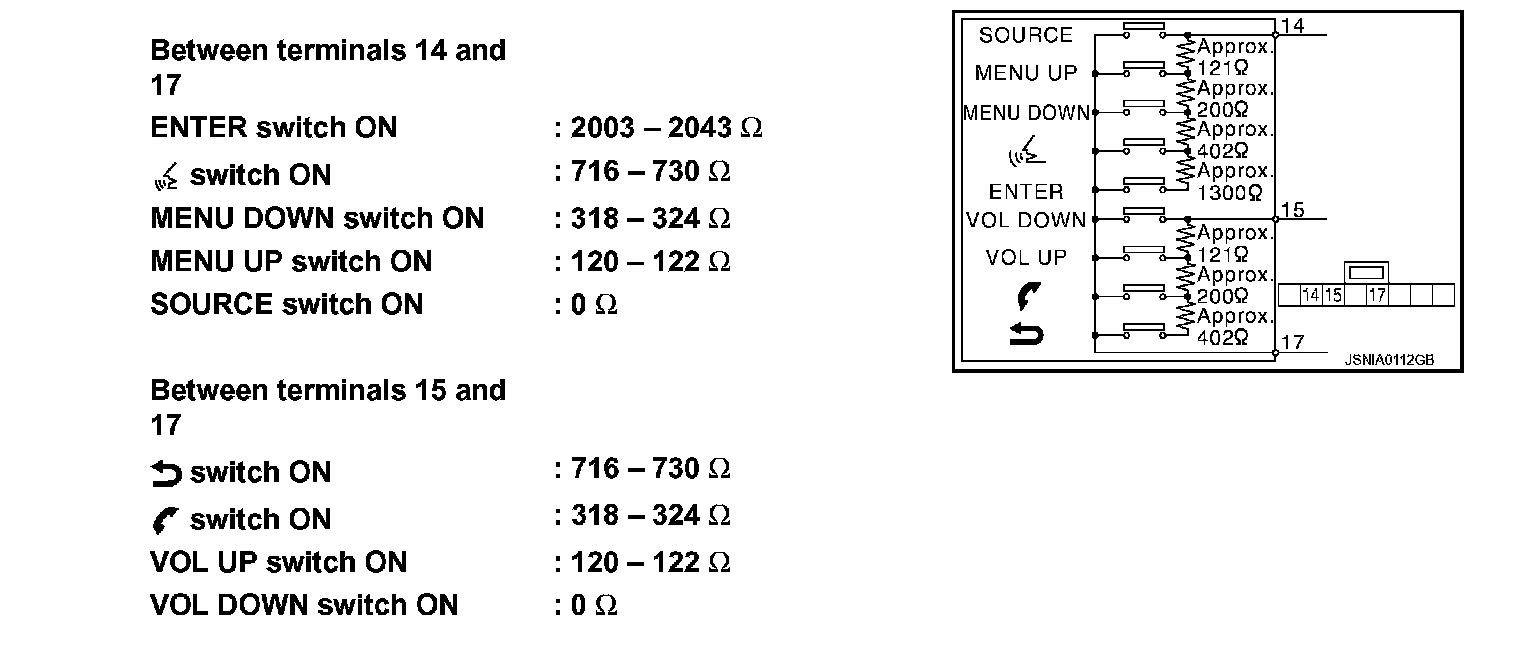

Measure the resistance between the steering switch connector terminals 14 to 17 and 15 to 17.






Between terminals 14 and 17
ENTER switch ON : 2003 - 2043 O
switch ON : 716 - 730 O
MENU DOWN switch ON : 318 - 324 O
MENU UP switch ON : 120 - 122 O
SOURCE switch ON : 0 O

Between terminals 15 and 17
switch ON : 716 - 730 O
switch ON : 318 - 324 O
VOL UP switch ON : 120 - 122 O
VOL DOWN switch ON : 0 O
